Advanced AI-powered 8-channel DVR featuring facial recognition, Motion Detection 2.0 with human and vehicle classification, perimeter protection up to 8 channels, and support for up to 8 MP cameras with 4K HDMI output—ideal for professional and enterprise surveillance systems.
Product Specifications
AI & Smart Features
Facial Recognition
Face picture comparison and face picture search
4-ch face picture comparison alarm (HD analog camera)
Face Picture Library
Up to 16 face picture libraries
HDD damage will not cause data loss as the library is backed up by HDD and flash
Motion Detection
Motion Detection 2.0 (Deep Learning)
Human and vehicle classification to reduce false alarms caused by leaves, lights, and other disturbances
Quick search by object or event type
Perimeter Protection
Human / Vehicle Analysis (Up to 8-ch – Advanced Model)
Facial Detection
Facial detection and capture
Face picture detection and face picture search
4-ch face picture capture
Video & Audio Input
IP Video Input
8-ch (up to 16-ch), each up to 4 Mbps
Supports H.265+/H.265/H.264+/H.264 IP cameras
Analog Video Input
8-ch, BNC interface (1.0 Vp-p, 75 Ω), coaxitron supported
HDTVI Input
8 MP@12/15 fps, 3K@25/20 fps, 3K@20 fps,
2K@20 fps, 5 MP@20 fps, 4 MP@25/30 fps,
1080p@25/30 fps, 720p@25/30 fps
AHD Input
5 MP@20 fps, 4 MP@25/30 fps,
1080p@25/30 fps, 720p@25/30 fps
HDCVI Input
8 MP@12/15 fps, 3K@20/25 fps,
5 MP@20 fps, 4 MP@25/30 fps,
1080p@25/30 fps, 720p@25/30 fps
CVBS Input
PAL / NTSC
Video Output
HDMI Output
1-ch: 4K (3840 × 2160) @30Hz,
2K (2560 × 1440) @60Hz,
1920 × 1080 @60Hz,
1280 × 1024 @60Hz,
1280 × 720 @60Hz
VGA Output
1-ch: 1920 × 1080 @60Hz,
1280 × 1024 @60Hz,
1280 × 720 @60Hz
CVBS Output
1-ch BNC (1.0 Vp-p, 75 Ω)
PAL: 704 × 576 / NTSC: 704 × 480
Video Output Mode
HDMI / VGA simultaneous output
Audio
Audio Input
1-ch (up to 8-ch optional), RCA (2.0 Vp-p, 1 KΩ)
8-ch via coaxial cable
Audio Output
1-ch RCA (Linear, 1 KΩ)
Two-Way Audio
1-ch RCA (using the first audio input)
Playback
Synchronous Playback
8-channel simultaneous playback

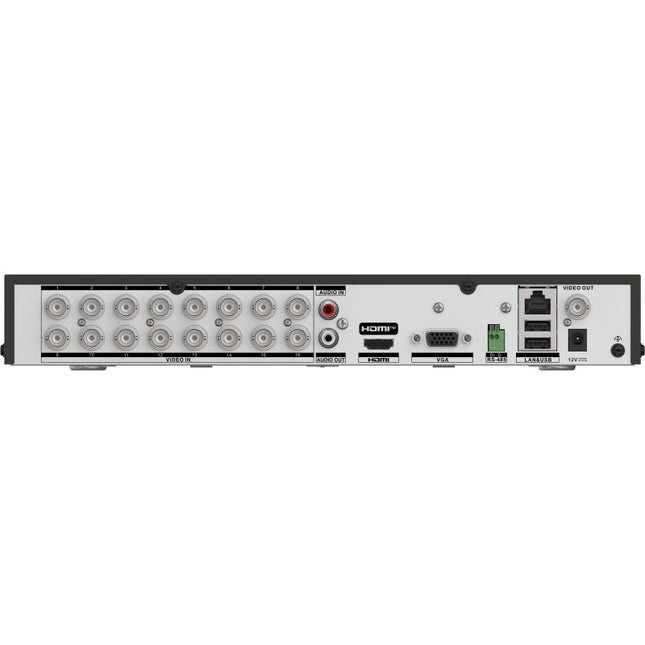

Advanced AI DVR designed for professional surveillance, featuring facial recognition and detection, Motion Detection 2.0, perimeter protection, and powerful IP expansion with 4K video output support.
Product Specifications
AI & Smart Features
Facial Recognition
Face picture comparison and face picture search
(4-ch face picture comparison alarm for HD analog cameras)
Face Picture Library
Up to 16 face picture libraries
Face library data is protected—HDD damage will not cause data loss as the library is backed up by HDD and flash
Facial Detection
Facial detection and capture
Face picture detection and search
4-ch face picture capture
Motion Detection
Motion Detection 2.0 (Deep Learning)
Human / Vehicle Analysis
Intelligent classification to significantly reduce false alarms caused by leaves, lights, and other disturbances
Quick Search
Search by object or event type
Perimeter Protection
Human / vehicle analysis, up to 8 channels (advanced model)
Video & Audio Input
IP Video Input
8-ch (up to 24-ch), up to 6 MP resolution
Analog Video Input
16-ch, BNC interface (1.0 Vp-p, 75 Ω), coaxitron supported
HDTVI Input
3K@25/20 fps, 2K@20 fps, 5 MP@20 fps,
4 MP@25/30 fps, 1080p@25/30 fps, 720p@25/30 fps
AHD Input
5 MP@20 fps, 4 MP@25/30 fps,
1080p@25/30 fps, 720p@25/30 fps
HDCVI Input
3K@20/25 fps, 5 MP@20 fps, 4 MP@25/30 fps,
1080p@25/30 fps, 720p@25/30 fps
CVBS Input
PAL / NTSC
Video Output
HDMI Output
1-ch: 4K (3840 × 2160) @30Hz,
2K (2560 × 1440) @60Hz,
1920 × 1080 @60Hz,
1280 × 1024 @60Hz,
1280 × 720 @60Hz
VGA Output
1-ch: 1920 × 1080 @60Hz,
1280 × 1024 @60Hz, 1280 × 720 @60Hz
CVBS Output
1-ch BNC (1.0 Vp-p, 75 Ω)
PAL: 704 × 576 / NTSC: 704 × 480
Video Output Mode
HDMI / VGA simultaneous output
Audio
Audio Input
1-ch (up to 16-ch optional), RCA (2.0 Vp-p, 1 KΩ)
16-ch via coaxial cable
Audio Output
1-ch RCA (Linear, 1 KΩ)
Two-Way Audio
1-ch RCA (using the first audio input)
Playback
Synchronous Playback
16-channel simultaneous playback

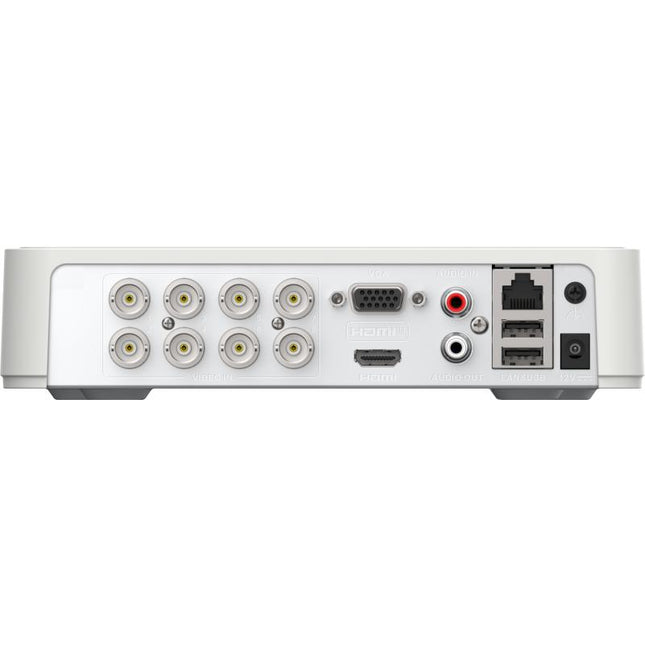

Powerful 8-channel HD DVR designed for medium-scale surveillance systems, supporting multiple analog video formats, full HD recording, efficient H.264 compression, and reliable remote access.
Product Specifications
General
DVR Type
8-Channel HD DVR
Video Input
8 analog channels (TVI / AHD / CVI / CVBS)
Recording Resolution
Up to 1080p Full HD
Video Compression
H.264
Playback & Storage
Playback
Up to 8 channels simultaneously
Storage
Supports 1 × SATA HDD (up to 8TB)
Connectivity & Interfaces
Network
Ethernet (for remote access)
Display Output
HDMI & VGA
USB Ports
2 × USB (mouse & backup)
Power
Power Supply
12V DC
High-resolution 3K security camera with advanced CMOS imaging, infrared night vision, true day & night (ICR), and a 3.6 mm fixed focal lens with wide mechanical angle adjustment.
Product Specifications
Camera
Image Sensor
3K CMOS
Max. Resolution
2960 (H) × 1665 (V)
Minimum Illumination
0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/25 s to 1/50,000 s
NTSC: 1/30 s to 1/50,000 s
Day & Night
ICR
Angle Adjustment
Pan: 0°–360°, Tilt: 0°–180°, Rotation: 0°–360°
Signal System
PAL / NTSC
Lens
Lens Type
3.6 mm fixed focal lens
Focal Length & FOV
Horizontal FOV: 92°
Vertical FOV: 48°
Diagonal FOV: 112°
Lens Mount
M12
High-resolution 3K security camera with advanced CMOS imaging, infrared night vision, true day & night (ICR), and a 3.6 mm fixed focal lens for clear wide-area monitoring.
Product Specifications
Camera
Image Sensor
3K CMOS
Max. Resolution
2960 (H) × 1665 (V)
Minimum Illumination
0.02 Lux @ (F2.2, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/25 s to 1/50,000 s
NTSC: 1/30 s to 1/50,000 s
Day & Night
ICR
Angle Adjustment
Pan: 0°–360°, Tilt: 0°–90°, Rotation: 0°–360°
Signal System
PAL / NTSC
Lens
Lens Type
3.6 mm fixed focal lens
Focal Length & FOV
Horizontal FOV: 80°
Vertical FOV: 51°
Diagonal FOV: 98°
Lens Mount
M12
2MP Full HD security camera with ultra-low light sensitivity, 24/7 color imaging, slow shutter support, and fixed focal lens options for wide-area monitoring.
Product Specifications
Camera
Image Sensor 2 MP CMOS
Max. Resolution 1920 (H) × 1080 (V)
Minimum Illumination 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
Shutter Time PAL: 1/25 s to 1/50,000 sNTSC: 1/30 s to 1/50,000 s
Day & Night 24/7 Color Imaging
Angle Adjustment Pan: 0°–350°, Tilt: 0°–75°*Do not adjust the angle of the main body or enclosure manually.
Signal System PAL / NTSC
Slow Shutter Max. 16 times
Lens
Lens Type Fixed focal lens, 2.8 mm / 3.6 mm optional
Focal Length & FOV (2.8 mm) Horizontal FOV: 106°Vertical FOV: 57°Diagonal FOV: 126°
Lens Mount M12

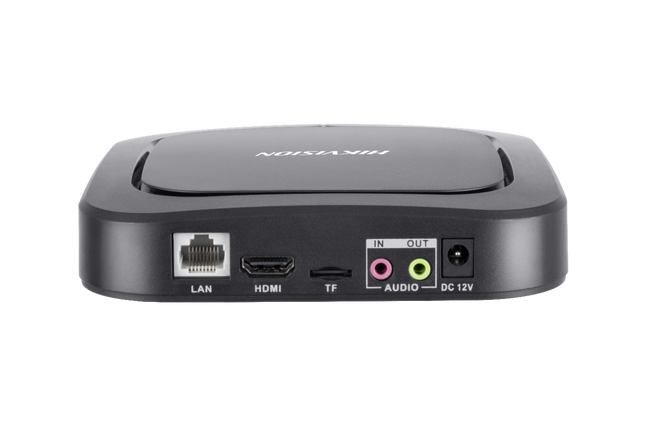

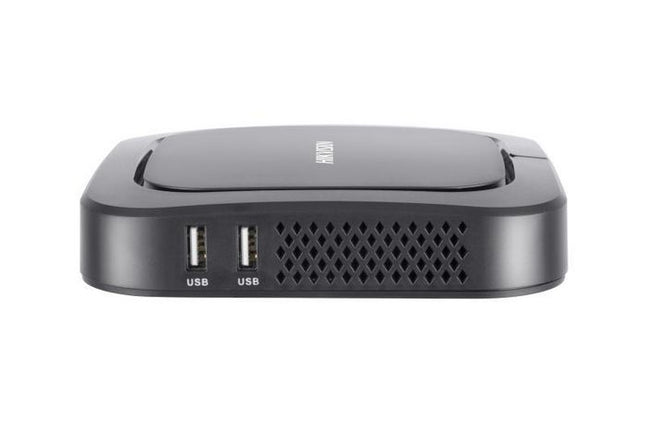

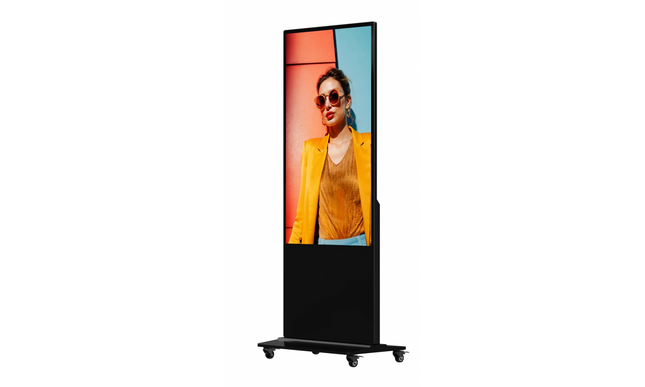

Android-based built-in system designed for digital signage and multimedia control, supporting multiple video resolutions, flexible connectivity, low standby power consumption, and stable operation in commercial environments.
Product Specifications
Built-in System
Operating System Android 8.1.0
CPU Cortex-A17, Quad-Core, 1.6 GHz
Memory 2 GB RAM
Storage 16 GB eMMC
Interfaces
Video & Audio Input Audio In × 1
Video & Audio Output Audio Out × 1, HDMI Out × 1
Network Interface LAN × 1, Wi-Fi
Data Transmission Interface USB 2.0 × 2, Bluetooth 4.0
Video Output Capability
Supported Resolutions 1920 × 1080 @ 30 / 50 / 60 Hz1280 × 720 @ 30 / 50 / 60 Hz3840 × 2160 @ 30 / 50 / 60 Hz
Power
Power Supply 12 VAC, 2 A
Standby Consumption ≤ 1 W
Working Environment
Working Temperature 0 °C to 40 °C (32 °F to 104 °F)
43-inch 4K UHD professional display designed for 24/7 operation, featuring high brightness, wide viewing angles, multiple HDMI inputs, RS232 control, and integrated speakers for commercial and digital signage applications.
Product Specifications
Display
Screen Size 43 inch
Resolution 3840 × 2160 (4K UHD)
Aspect Ratio 16 : 9
Refresh Rate 60 Hz
Image Performance
Brightness 300 cd/m²
Contrast Ratio 4000 : 1
Response Time 6.5 ms
Viewing Angle 178° (H) / 178° (V)
Color Depth 8-bit (16.7 Million colors)
Color Gamut 72% NTSC
Operation & Reliability
Operating Mode 24 / 7 Continuous Operation
VESA Mount 200 × 200 mm
Interfaces & Audio
Inputs HDMI × 3, USB × 1, RS232 × 1
Outputs Audio 3.5 mm × 1, RS232 × 1
Speakers 2 × 10 W
Power
Power Supply AC 100 – 240 V, 50 / 60 Hz
Average Power Consumption < 80 W
Physical
Dimensions (Without Stand) 956.7 × 561.65 × 76.06 mm (W × H × D)
Dimensions (With Stand) 956.7 × 616.21 × 242.11 mm (W × H × D)
Weight 6.81 kg
Environmental Conditions
Operating Temperature 0 °C ~ 40 °C
Operating Humidity 20% ~ 90% (non-condensing)
Storage Temperature -20 °C ~ 60 °C
Storage Humidity 10% ~ 90% (non-condensing)
43-inch Full HD display with D-LED backlight, high contrast ratio, wide viewing angles, 7×24 operation reliability, and built-in speaker output, designed for commercial and digital signage applications.
Product Specifications
Display
Screen Size 43 inch
Resolution 1920 × 1080 @ 60 Hz
Active Display Area 950.896 (H) × 529.254 (V) mm
Aspect Ratio 16 : 9
Backlight D-LED
Image Performance
Brightness 300 cd/m²
Contrast Ratio 4000 : 1
Color Depth 8-bit
Color Gamut 72% NTSC
Response Time 6.5 ms (Typ.)
Refresh Rate 60 Hz
Viewing Angle 178° (H) / 178° (V)
Surface & Reliability
Pixel Pitch 0.49005 (H) × 0.49005 (V) mm
Surface Haze 25%
Reliability 7 × 24 Hours
Interfaces & Audio
Video & Audio Input VGA × 1, HDMI 1.4 × 1
Video & Audio Output Line Out × 1, Speaker Out × 2 (8Ω 10W)
USB Interface USB 2.0 × 1
Control Interface None
Power
Power Supply 100 – 240 VAC, 50 / 60 Hz, 1.0 A Max
Power Consumption ≤ 80 W
Standby Consumption ≤ 0.5 W
23.8-inch Full HD display with E-LED backlight, high contrast ratio, smooth 100 Hz refresh rate, and wide viewing angles, designed for commercial and professional applications.
Product Specifications
Display
Screen Size 23.8 inch
Resolution 1920 × 1080 (Full HD)
Active Display Area 527.04 (H) × 296.46 (V) mm
Aspect Ratio 16 : 9
Backlight E-LED
Image Performance
Brightness 250 cd/m²
Contrast Ratio 4000 : 1
Color Depth 8-bit (16.7 Million colors)
Color Gamut 72% NTSC
Response Time 7 ms (Typ.)
Refresh Rate 100 Hz
Viewing Angle 178° (H) / 178° (V)
Surface & Reliability
Pixel Pitch 0.2745 (H) × 0.2745 (V) mm
Surface Haze 25%
Reliability 7 × 16 Hours
Interfaces
Video & Audio Input HDMI 1.4 × 1, VGA × 1
Video & Audio Output Audio Out × 1
Data Transmission Interface None
Control Interface None
Power
Power Supply DC 12 V, 2.0 A
Power Consumption ≤ 24 W
Standby Consumption ≤ 0.5 W
21.5-inch Full HD display with E-LED backlight, high contrast ratio, smooth 100 Hz refresh rate, and reliable long-duration operation, ideal for commercial and professional environments.
Product Specifications
Display
Screen Size 21.5 inch
Resolution 1920 × 1080 (Full HD)
Active Display Area 478.65 (H) × 260.28 (V) mm
Aspect Ratio 16 : 9
Backlight E-LED
Image Performance
Brightness 250 cd/m²
Contrast Ratio 3000 : 1
Color Depth 8-bit (16.7 Million colors)
Color Gamut 72% NTSC
Response Time GTG 7 ms (Typ.), MPRT 1 ms
Refresh Rate 100 Hz
Viewing Angle 178° (H) / 178° (V)
Surface & Reliability
Pixel Pitch 0.2493 (H) × 0.241 (V) mm
Surface Haze / Hardness 25% Haze, 3H
Reliability 7 × 16 Hours
Interfaces
Video & Audio Input HDMI 1.4 × 1, VGA × 1
Video & Audio Output Audio Out
Data Transmission Interface None
Control Interface None
Power
Power Supply DC 12V, 2.0A
Power Consumption ≤ 24 W
Standby Consumption ≤ 0.5 W

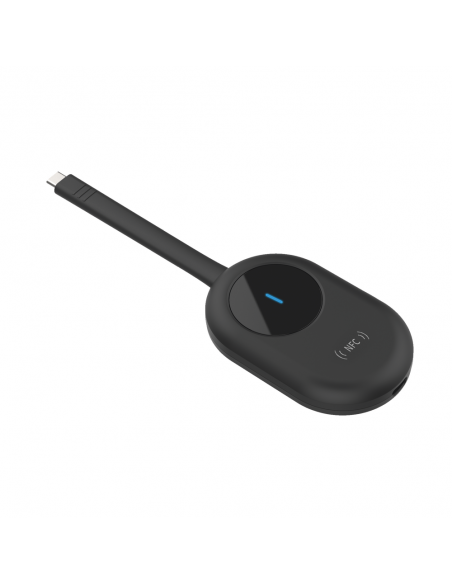

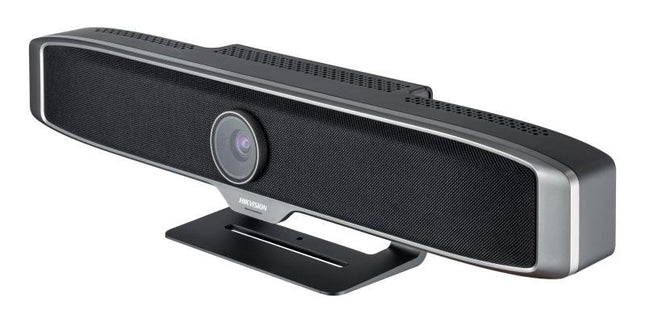

Highly-integrated USB camera and wireless mirroring device supporting advanced video and audio codecs, dual-band Wi-Fi connectivity, and modern communication protocols for conferencing, collaboration, and presentation environments.
Product Specifications
General
Product Form Highly-integrated
Product Characteristics Wired USB camera, wireless mirroring
Video & Audio Protocols
Video Codec Protocols MJPEG, H.264
Audio Codec Protocols PCM (16-bit, 48 kHz), AAC-LC (16-bit, 48 kHz)
Other Communication Protocols UAC, UVC
Wireless Connectivity
Wi-Fi Standard 2.4 GHz & 5 GHz dual-band
Bluetooth Bluetooth 5.0 (remote control only)

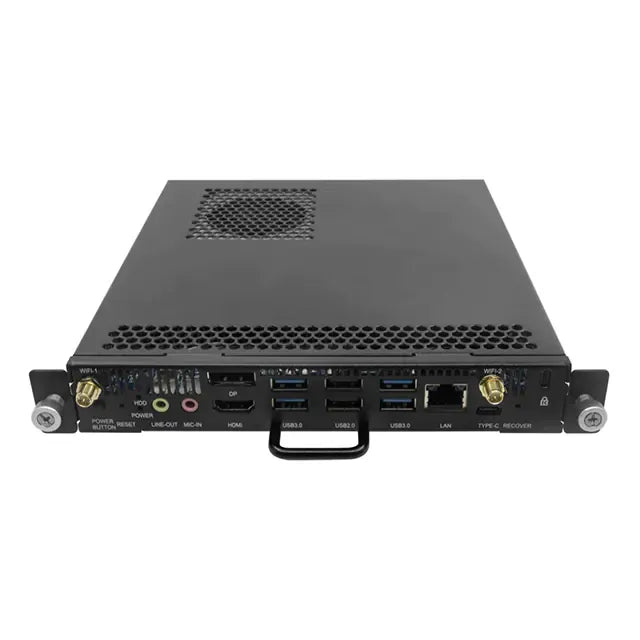

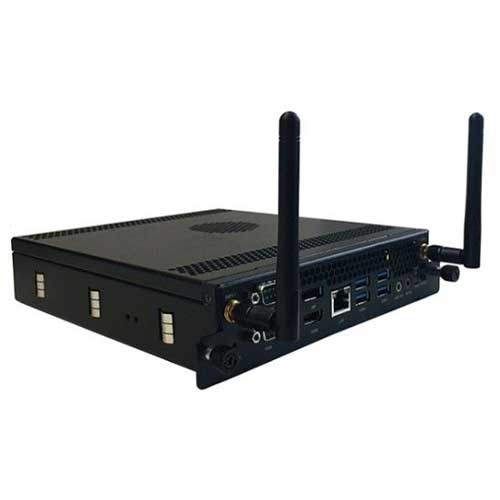

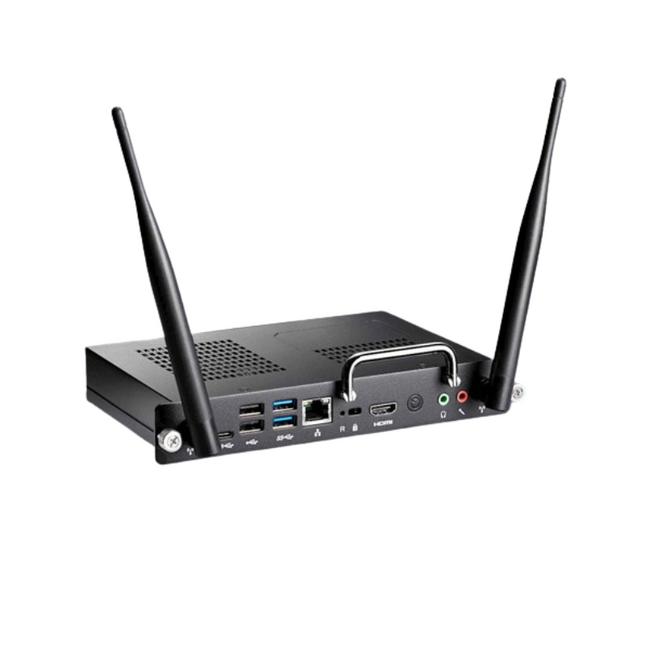

High-performance OPS / industrial PC powered by Intel® Core™ i5-12450H processor, Windows 11 Enterprise, fast SSD storage, and efficient thermal design for interactive displays, digital signage, and professional computing environments.
Product Specifications
System
Operating System Windows 11 Enterprise
Platform Architecture Intel® Alder Lake-H
Processor
Processor Intel® Core™ i5-12450H (12th Gen)
Base Clock Speed 2.0 GHz
Max Turbo Frequency Up to 4.4 GHz
CPU Cores 8 Cores
CPU Threads 12 Threads
Memory & Storage
Memory (RAM) 8 GB
Storage 256 GB SSD
Graphics
Graphics Processor Intel® UHD Graphics 750
Cooling System
Cooling Design Single brass heat pipe with single fan

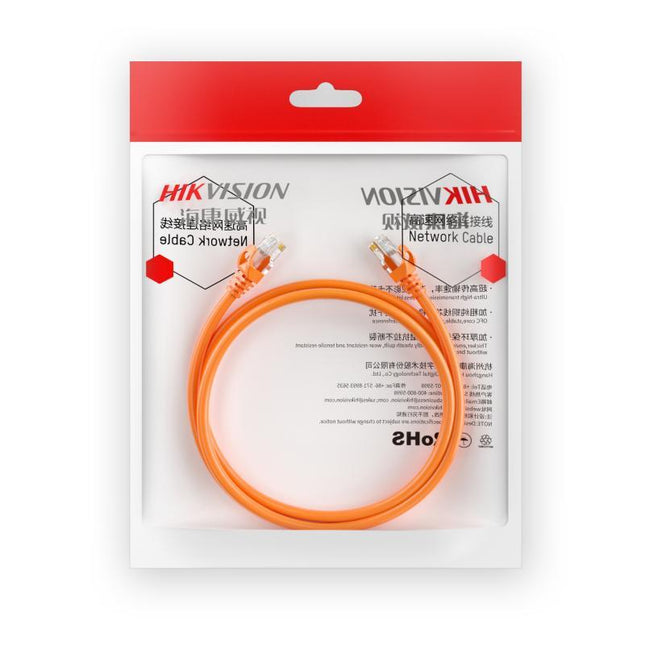

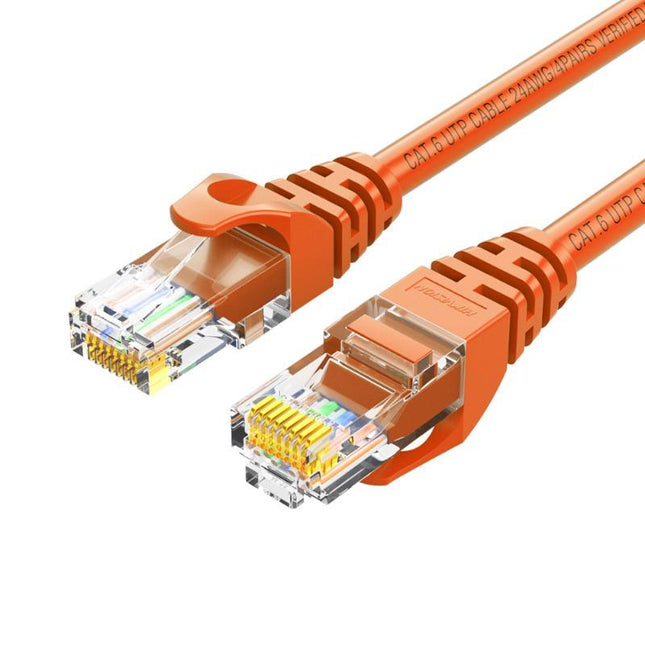

Cat 6 patch cord with high-purity bare copper conductors, HDPE insulation, durable PVC sheath, and gold-plated plugs, designed for stable high-speed network connections.
Product Specifications
General
Category
Cat 6
Available Lengths
0.5 m, 1 m, 2 m, 3 m, 5 m, 10 m
Operating Voltage
57 V
Conductor
Conductor Material
Bare Copper (99.95%)
Conductor Diameter
7 × 0.2 mm (24 AWG)
Insulation
Insulation Material
HDPE
Sheath
Sheath Material
PVC
Sheath Thickness
0.50 ± 0.05 mm
Sheath Diameter
5.8 ± 0.20 mm
Sheath Color
Orange / Gray
Plug
Plug Material
PC UL94V-0
Gold Plating
30 μinch
Electrical Characteristics
Impedance
100 ± 15 Ω
DC Resistance
≤ 9.4 Ω / 100 m
Cat 6 patch cord with high-purity bare copper conductors, HDPE insulation, durable PVC sheath, and gold-plated plugs, designed for stable high-speed network connections.
Product Specifications
General
Category
Cat 6
Available Lengths
0.5 m, 1 m, 2 m, 3 m, 5 m, 10 m
Operating Voltage
57 V
Conductor
Conductor Material
Bare Copper (99.95%)
Conductor Diameter
7 × 0.2 mm (24 AWG)
Insulation
Insulation Material
HDPE
Sheath
Sheath Material
PVC
Sheath Thickness
0.50 ± 0.05 mm
Sheath Diameter
5.8 ± 0.20 mm
Sheath Color
Orange / Gray
Plug
Plug Material
PC UL94V-0
Gold Plating
30 μinch
Electrical Characteristics
Impedance
100 ± 15 Ω
DC Resistance
≤ 9.4 Ω / 100 m
Cat 6 patch cord with high-purity bare copper conductors, HDPE insulation, durable PVC sheath, and gold-plated plugs, designed for stable high-speed network connections.
Product Specifications
General
Category
Cat 6
Available Lengths
0.5 m, 1 m, 2 m, 3 m, 5 m, 10 m
Operating Voltage
57 V
Conductor
Conductor Material
Bare Copper (99.95%)
Conductor Diameter
7 × 0.2 mm (24 AWG)
Insulation
Insulation Material
HDPE
Sheath
Sheath Material
PVC
Sheath Thickness
0.50 ± 0.05 mm
Sheath Diameter
5.8 ± 0.20 mm
Sheath Color
Orange / Gray
Plug
Plug Material
PC UL94V-0
Gold Plating
30 μinch
Electrical Characteristics
Impedance
100 ± 15 Ω
DC Resistance
≤ 9.4 Ω / 100 m
GJYXFCH fiber optic cable with G657A1 single-mode fiber, FRP strength member, steel messenger wire, and LSZH jacket, designed for reliable indoor and outdoor FTTH applications.
Product Specifications
General Specifications
Cable Type
GJYXFCH
Core Number
2 / 1
Fiber Type
9/125 μm G657A1
Strength Members
Strength Member Material
FRP
Strength Member Diameter
0.5 mm
Messenger Wire Material
Steel Wire
Messenger Wire Diameter
1.0 mm
Jacket
Sheath Material
LSZH
Sheath Color
Black
Mechanical Specifications
Min. Bending Radius
120 mm
Min. Bending Radius (Messenger Removed)
15 mm (Static), 30 mm (Dynamic)
Tensile Performance (Short Term)
600 N
Tensile Performance (Long Term)
300 N
Crush Resistance (Short Term)
2200 N / 100 mm
Crush Resistance (Long Term)
1000 N / 100 mm
DS160HKAI-VX1 16TB SATA Hard DriveHigh-performance enterprise-grade hard drive designed for AI and surveillance applications with 24/7 reliability and exceptional workload capacity.Specifications
Category
Specification
Value
General
Interface
SATA
Formatted Capacity
16 TB
Performance
Interface Speed
6.0 Gb/s, 3.0 Gb/s, 1.5 Gb/s
Rotation Speed
7200 RPM
Buffer Size
512 MB
Max Data Transfer Speed
260 MB/s (Sustained, Typ.)
Power
Supply Voltage
12V ± 10% / 5V ± 5%
Operating (Typ.)
8.08 W
Active Idle (Typ.)
4.16 W
Standby (Typ.)
0.43 W
Acoustics
Low Power Idle (Typ.)
31 dB
Environmental
Operating Temperature (Ambient)
5°C to 55°C
Operating Temperature (Enclosure)
5°C to 60°C
Non-Operating Temperature
-40°C to 70°C
Operating Humidity
5% to 90% RH
Operating Altitude
-305m to 3048m
Non-Operating Altitude
-305m to 12,192m
Shock & Vibration
Operating Shock
490 m/s² (50G, 2ms)
Non-Operating Shock
1960 m/s² (200G, 2ms)
Operating Vibration
7.35 m/s² (0.75G, 5-300Hz) / 2.45 m/s² (0.25G, 300-500Hz)
Reliability
MTTF / AFR
2,500,000 hours / 0.35%
Non-recoverable Error Rate
10 per 10¹⁶ bits read
Load/Unload Cycles
600,000 times
Availability
24/7 Operation
Rated Annual Workload
550 TB/year
Physical
Width
101.85 mm
Height (Max)
26.1 mm
Length (Max)
147.0 mm
Weight (Max)
720 g
Key Features
Enterprise-grade reliability with 2.5 million hours MTTF
Ultra-low 0.35% annualized failure rate
High-speed 7200 RPM for superior performance
Large 512MB cache buffer for enhanced data handling
Exceptional workload capacity up to 550TB/year
24/7 operation capability for continuous use
AI and surveillance optimized
Wide operating temperature range (5°C to 55°C)
DS80HKVS-VX1 8TB SATA Hard Drive
High-capacity enterprise-grade hard drive designed for 24/7 operation with exceptional reliability and performance.
Specifications
Category
Specification
Value
General
Interface
SATA
Formatted Capacity
8 TB
Performance
Interface Speed
6.0 Gb/s, 3.0 Gb/s, 1.5 Gb/s
Rotation Speed
5400 RPM
Buffer Size
256 MB
Max Data Transfer Speed
176.4 MB/s (Sustained, Typ.)
Logical Data Block Length
HOST: 512 B, DISK: 4096 B
Power
Supply Voltage
12V ± 10% / 5V ± 5%
Operating (Typ.)
4.84 W
Active Idle (Typ.)
2.81 W
Standby (Typ.)
0.36 W
Acoustics
Low Power Idle (Typ.)
24 dB
Environmental
Operating Temperature
0°C to 60°C
Non-Operating Temperature
-40°C to 70°C
Operating Humidity
5% to 90% RH
Operating Altitude
-305m to 3048m
Operating Shock
686 m/s² (70G, 2ms)
Operating Vibration
4.90 m/s² (0.50G, 5-350Hz)
Reliability
MTTF / AFR
1,000,000 hours / 0.88%
Non-recoverable Error Rate
1 per 10¹⁴ bits read
Load/Unload Cycles
600,000 times
Availability
24/7 Operation
Rated Annual Workload
180 TB/year
Physical
Width
101.6 mm ± 0.25 mm
Height (Max)
26.1 mm
Length (Max)
147.0 mm
Weight (Max)
680 g
Key Features
Enterprise-grade reliability with 1 million hours MTTF
24/7 operation capability for continuous use
Large 256MB cache for improved performance
Low power consumption - only 4.84W during operation
Quiet operation at just 24dB
Wide operating temperature range (0°C to 60°C)
32-ch 1.5U K Series AcuSense 4K NVR
Up to 32-ch IP camera inputs
H.265+/H.265/H.264+/H.264 video formats
Up to 2-ch@12 MP or 3-ch@8 MP or 6-ch@4 MP or 12-ch@1080p decoding capacity
Up to 256 Mbps incoming bandwidth
Adopt Hikvision Acusense technology to minimize manual effort and security costs
16-ch 1.5U K Series AcuSense 4K NVR
Up to 16-ch IP camera inputs
H.265+/H.265/H.264+/H.264 video formats
Up to 2-ch@12 MP or 3-ch@8 MP or 6-ch@4 MP or 12-ch@1080p decoding capacity
Up to 160 Mbps incoming bandwidth
Adopt Hikvision Acusense technology to minimize manual effort and security costs
32-ch 1U K Series AcuSense 4K NVR
Up to 32-ch IP camera inputs
H.265+/H.265/H.264+/H.264 video formats
Up to 2-ch@12 MP or 4-ch@8 MP or 8-ch@4 MP or 16-ch@1080p decoding capacity
Up to 256 Mbps incoming bandwidth
Adopt Hikvision Acusense technology to minimize manual effort and security costs
16-ch 1U 4K NVR
Up to 16-ch IP camera inputs
H.265+/H.265/H.264+/H.264 video formats
Up to 1-ch@8 MP/3-ch@4 MP/6-ch@1080p decoding capacity
Up to 160 Mbps incoming bandwidth
8-ch 1U 4K NVR
Up to 8-ch IP camera inputs
H.265+/H.265/H.264+/H.264 video formats
Up to 1-ch@8 MP/3-ch@4 MP/6-ch@1080p decoding capacity
Up to 80 Mbps incoming bandwidth

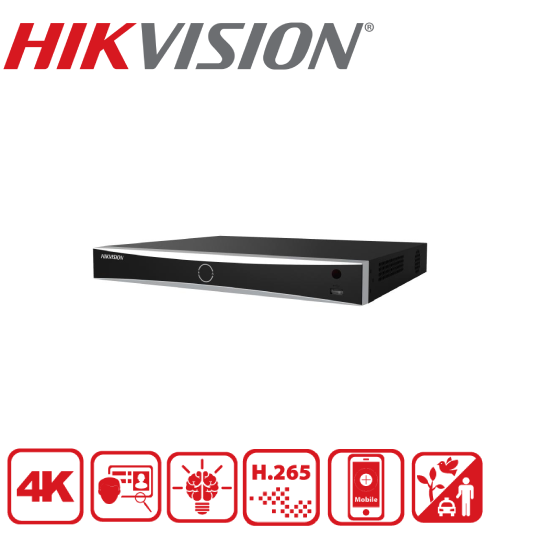

8-ch 1U K Series AcuSense 4K NVR
Up to 8-ch IP camera inputs
H.265+/H.265/H.264+/H.264 video formats
Up to 1-ch@12 MP or 2-ch@8 MP or 4-ch@4 MP or 8-ch@1080p decoding capacity
Up to 80 Mbps incoming bandwidth
Adopt Hikvision Acusense technology to minimize manual effort and security costs

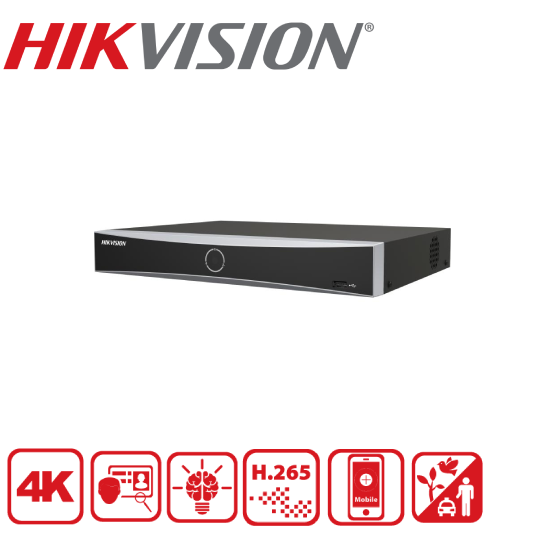

16-ch 1U K Series AcuSense 4K NVR
Up to 16-ch IP camera inputs
H.265+/H.265/H.264+/H.264 video formats
Up to 1-ch@12 MP or 2-ch@8 MP or 4-ch@4 MP or 8-ch@1080p decoding capacity
Up to 160 Mbps incoming bandwidth
Adopt Hikvision Acusense technology to minimize manual effort and security costs
8-ch 1U K Series AcuSense 4K NVR
Up to 8-ch IP camera inputs
H.265+/H.265/H.264+/H.264 video formats
Up to 2-ch@12 MP or 3-ch@8 MP or 6-ch@4 MP or 12-ch@1080p decoding capacity
Up to 80 Mbps incoming bandwidth
Adopt Hikvision Acusense technology to minimize manual effort and security costs
16-ch 1U K Series AcuSense 4K NVR
Up to 16-ch IP camera inputs
H.265+/H.265/H.264+/H.264 video formats
Up to 2-ch@12 MP or 3-ch@8 MP or 6-ch@4 MP or 12-ch@1080p decoding capacity
Up to 160 Mbps incoming bandwidth
Adopt Hikvision Acusense technology to minimize manual effort and security costs
Ultra-high-definition 4K security camera with a 1/2.7″ Progressive Scan CMOS sensor, dependable low-light performance, and flexible 2.8 mm or 4 mm fixed focal lens options.
Product Specifications
Camera
Image Sensor
1/2.7″ Progressive Scan CMOS
Maximum Resolution
3840 × 2160
Minimum Illumination
Color: 0.01 Lux @ (F2.0, AGC ON)
B/W: 0 Lux with IR
Shutter Time
1/3 s to 1/100,000 s
Day & Night
IR cut filter
Angle Adjustment
Pan: 0° to 360°
Tilt: 0° to 75°
Rotate: 0° to 360°
Lens
Lens Type
Fixed focal lens (2.8 mm / 4 mm optional)
Focal Length & FOV
2.8 mm — Horizontal: 113°, Vertical: 62°, Diagonal: 134°
4 mm — Horizontal: 90°, Vertical: 49°, Diagonal: 108°
Lens Mount
M12
Iris Type
Fixed
Aperture
F2.0

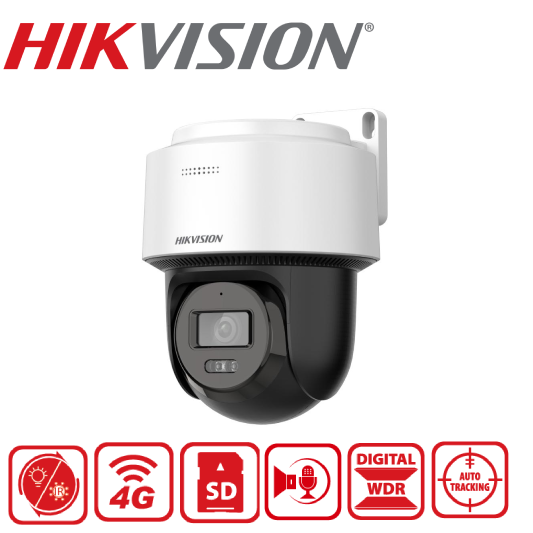

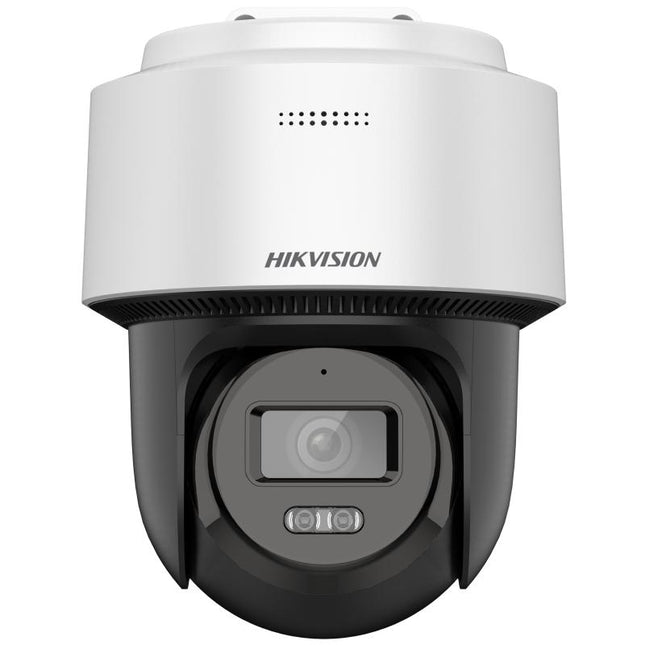

4 MP Fixed Outdoor Smart Hybrid-light PT Network Camera
High quality imaging with 4 MP resolution
Support Human Detection and Auto-tracking Lite
Smart Hybrid Light: advanced technology with long range
Hik-Connect cloud service and APP for remote management and views of devices
Built-in microphone and speaker for real-time audio security
Built-in memory card slot, support microSD/SDHC/SDXC card, up to 512 GB
Water and dust resistant (IP66)
