High-performance 32-channel 5MP 1.5U AcuSense DVR featuring Deep Learning-based perimeter protection and Motion Detection 2.0 for all analog channels. It supports up to 32 analog cameras, up to 64 network cameras, 4 SATA interfaces, advanced H.265 Pro+ compression, up to 8 MP encoding capability, and POS-triggered recording with POS information overlay.
Technical Specifications
Perimeter Protection
Human / Vehicle Analysis
Up to 16-ch, for channel 1/2/3/4/9/10/11/12/17/18/19/20/25/26/27/28 only
Motion Detection 2.0
Human / Vehicle Analysis
Deep learning-based Motion Detection 2.0 is enabled by default for all analog channels. It can classify human and vehicle targets and significantly reduce false alarms caused by objects such as leaves and lights.
Quick Search
Quick search by object or event type is supported
Video & Audio
Analog Camera Input
Up to 32-ch analog camera inputs
Video Input Support
HDTVI / AHD / CVI / CVBS / IP
IP Video Input
32-ch (up to 64-ch)
IP Camera Resolution
Up to 12 MP
Supported IP Camera Compression
H.265+ / H.265 / H.264+ / H.264
Encoding
Encoding Capability
Up to 8 MP @ 8 fps / 5 MP @ 12 fps
Video Compression
H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264
Recording
Video Compression
H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264
POS Recording
POS triggered recording and POS information overlay
Network
Remote Connection
128
Network Protocol
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP,
NFS, iSCSI, UPnP™, HTTPS, ONVIF, SNMP
Storage
SATA Interfaces
4 SATA interfaces
General
Power Supply
100 to 240 VAC, 50 to 60 Hz
Form Factor
1.5U
Key Features
Channel Capacity
32-channel 5MP AcuSense DVR
Analog Camera Inputs
Up to 32-ch
Network Camera Inputs
Up to 64-ch
Perimeter Protection
Deep Learning-based Human / Vehicle Analysis up to 16-ch
Motion Detection
Deep Learning-based Motion Detection 2.0 for all analog channels
Encoding Capability
Up to 8 MP @ 8 fps / 5 MP @ 12 fps
Compression Technology
H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264
POS Function
POS triggered recording and POS information overlay

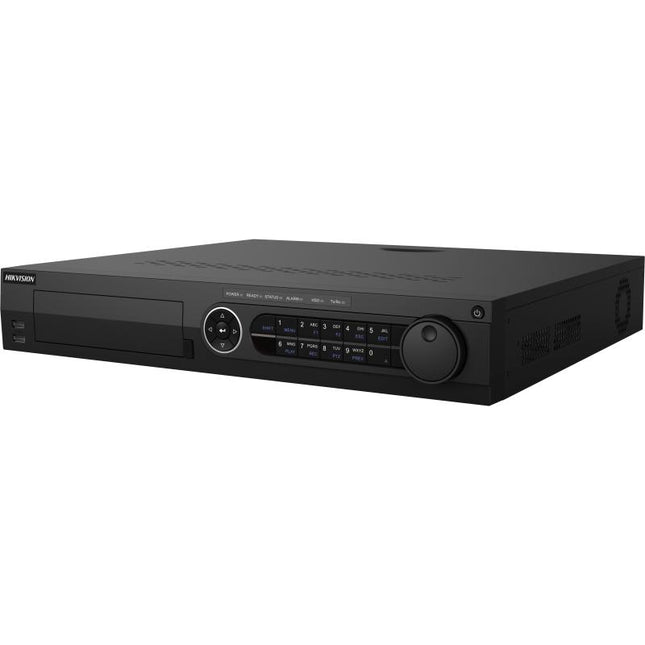

High-performance 16-channel 5MP 1.5U AcuSense DVR featuring Deep Learning-based perimeter protection and Motion Detection 2.0 across all analog channels. It supports up to 16 analog cameras, 34 network cameras, 4 SATA interfaces, advanced H.265 Pro+ compression, up to 8 MP encoding, and POS-triggered recording with POS information overlay.
Technical Specifications
Perimeter Protection
Human / Vehicle Analysis
Up to 8-ch, for channel 1/2/3/4/9/10/11/12 only
Motion Detection 2.0
Human / Vehicle Analysis
Deep learning-based Motion Detection 2.0 is enabled by default for all analog channels. It can classify human and vehicle targets and significantly reduce false alarms caused by objects such as leaves and lights.
Quick Search
Quick search by object or event type
Video & Audio
Analog Camera Input
Up to 16-ch analog camera inputs
Video Input Support
HDTVI / AHD / CVI / CVBS / IP
IP Video Input
18-ch (up to 34-ch)
IP Camera Resolution
Up to 12 MP
Supported IP Camera Compression
H.265+ / H.265 / H.264+ / H.264
Encoding
Encoding Capability
Up to 8 MP @ 8 fps / 5 MP @ 12 fps
Video Compression
H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264
Recording
Video Compression
H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264
POS Recording
POS triggered recording and POS information overlay
Network
Total Bandwidth
320 Mbps
Remote Connection
128
Network Camera Capacity
Up to 34-ch
Storage
SATA Interfaces
4 SATA interfaces
General
Power Supply
100 to 240 VAC, 50 to 60 Hz
Form Factor
1.5U
Key Features
Channel Capacity
16-channel 5MP AcuSense DVR
Analog Camera Inputs
Up to 16-ch
Network Camera Inputs
Up to 34-ch
Perimeter Protection
Deep Learning-based Human / Vehicle Analysis up to 8-ch
Motion Detection
Deep Learning-based Motion Detection 2.0 for all analog channels
Encoding Capability
Up to 8 MP @ 8 fps / 5 MP @ 12 fps
Compression Technology
H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264
POS Function
POS triggered recording and POS information overlay

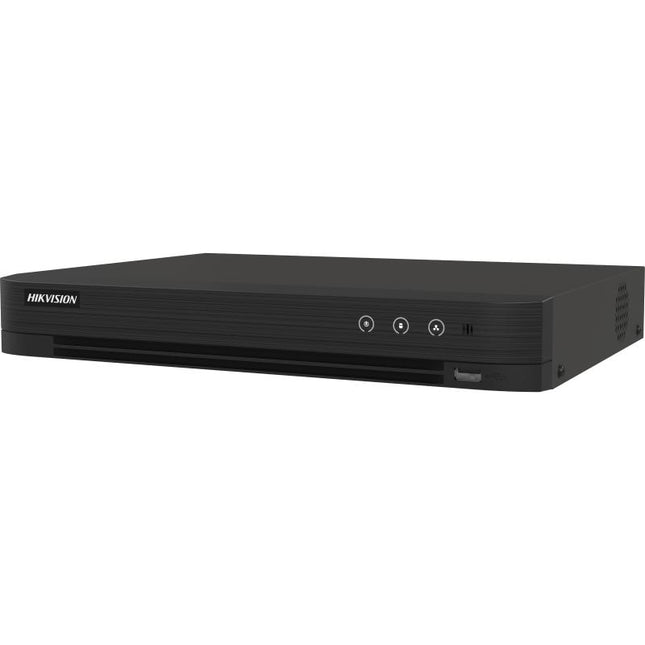

4-channel 1080p 1U AcuSense DVR featuring Deep Learning-based human and vehicle target classification, Motion Detection 2.0, perimeter protection, facial detection, efficient H.265 Pro+ compression, and support for up to 6 network cameras with resolutions up to 6 MP.
Technical Specifications
Perimeter Protection
Human / Vehicle Analysis Up to 2-ch
Facial Detection
Facial Detection & Capture Face picture detection, face picture search
Motion Detection 2.0
Human / Vehicle Analysis Deep learning-based motion detection 2.0 is enabled by default for all analog channels. It can classify human and vehicle targets and significantly reduce false alarms caused by objects such as leaves and lights.
Quick Search Quick search by object or event type
Video & Audio
Analog Video Input 4 channels
Video Input Signals HDTVI / AHD / CVI / CVBS / IP
IP Video Input 1-ch (up to 5-ch)
Enhanced IP Mode 2-ch (up to 6-ch), each up to 4 Mbps
IP Camera Resolution Up to 6 MP
Supported IP Camera Compression H.265+ / H.265 / H.264+ / H.264
Audio Audio via coaxial cable
Encoding Ability Up to 3K / 5M Lite @ 12 fps
Recording
Video Compression H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264
Storage
HDD 1 HDD
Key Features
Channel Capacity 4-channel 1080p 1U AcuSense DVR
Network Camera Capacity Up to 6 network cameras
Target Classification Human and vehicle target classification based on Deep Learning
Motion Detection Deep Learning-based Motion Detection 2.0
Perimeter Protection Human / Vehicle Analysis up to 2-ch
Facial Detection Facial Detection, Capture & Face Picture Search
Compression Technology H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264

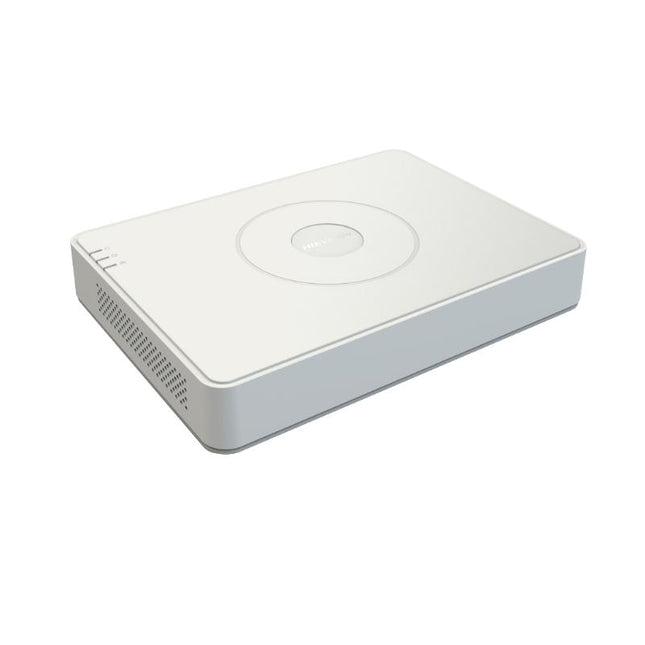

Advanced 16-channel 1080p Mini 1U AcuSense DVR featuring Deep Learning-based Motion Detection 2.0, perimeter protection, human and vehicle classification, facial detection, H.265 Pro+ compression, and support for up to 24 IP cameras with resolutions up to 6 MP.
Technical Specifications
Perimeter Protection
Line Crossing Detection
4-ch
Intrusion Detection
4-ch
Facial Detection
Facial Detection & Capture
Face picture detection, face picture search
Motion Detection 2.0
Human / Vehicle Analysis
Deep learning-based motion detection 2.0 enabled by default for all analog channels, with human and vehicle classification to significantly reduce false alarms caused by objects such as leaves and lights
Quick Search
Quick search by object or event type
Video & Audio
IP Video Input
2-ch (up to 18-ch)
Enhanced IP Mode
8-ch (up to 24-ch), each up to 4 Mbps
IP Camera Resolution
Up to 6 MP
Supported IP Camera Compression
H.265+ / H.265 / H.264+ / H.264
Analog Video Input
16-ch BNC interfaces (1.0 Vp-p, 75 Ω), supporting Coaxitron connection
Video Input Support
HDTVI / AHD / CVI / CVBS / IP
Audio
Audio via coaxial cable
Encoding Ability
Up to 3K / 5M Lite @ 12 fps
Recording
Video Compression
H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264
Incoming Bandwidth
96 Mbps
Network
Remote Connection
128
Total Bandwidth
128 Mbps
Key Features
Channel Capacity
16-channel 1080p Mini 1U AcuSense DVR
IP Camera Capacity
Up to 24-ch IP cameras, up to 6 MP
Motion Detection
Deep Learning-based Motion Detection 2.0
Perimeter Protection
Line Crossing Detection / Intrusion Detection
Facial Detection
Facial Detection, Capture & Face Picture Search
Target Classification
Human and vehicle classification
Video Compression
H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264
```
```html

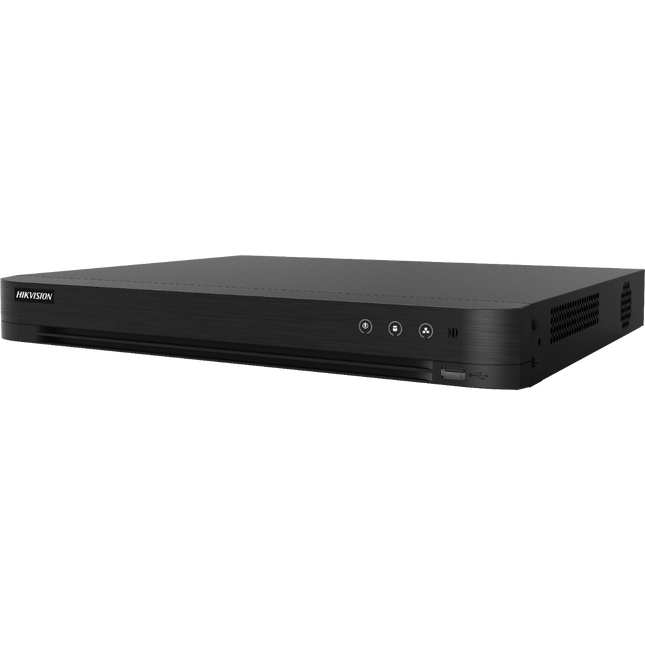

High-performance 32-channel Turbo HD DVR featuring Deep Learning-based Motion Detection 2.0 with human and vehicle classification, multiple video input formats, 2K Lite recording capability, H.265 Pro+ compression, and support for up to 18 IP cameras.
Technical Specifications
Intelligent Analytics
Intelligent Analytics by Recorder
Motion Detection 2.0
Human / Vehicle Analysis
Up to 32-ch analog cameras; supports human and vehicle classification to reduce false alarms
Video & Audio
Analog Video Input
32-ch BNC ports (1.0 Vp-p, 75 Ω)
Video Input Support
HDTVI / CVI / AHD / CVBS auto-detect
HDTVI Input
2K (2304 × 1296) @ 20 fps
1080P @ 25/30 fps
720P @ 25/30 fps
HDCVI Input
1080P @ 25/30 fps
720P @ 25/30 fps
HDTVI Two-Way Audio
32 channels via BNC
Audio
Audio over coaxial cable
IP Camera Input
Up to 18-ch IP cameras, up to 5 MP
Encoding Capability
Up to 2K Lite @ 10 fps / 2 MP Lite @ 15 fps
Recording
Stream Type
Video / Video & Audio
Video Compression
H.265 Pro+ / H.265 / H.264+ / H.264
Network
Incoming Bandwidth
40 Mbps
Outgoing Bandwidth
80 Mbps
Network Protocols
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP,
NFS, iSCSI, UPnP™, HTTPS, ONVIF, ISUP
API
ONVIF (Profile S/G), SDK, ISAPI, ISUP
Ports & Storage
SATA
2 SATA interfaces, up to 10 TB capacity for each disk
Serial Interface
1 × RS-485 (half-duplex)
Key Features
Channel Capacity
32-channel analog video input
Video Technologies
HDTVI / CVI / AHD / IP / CVBS
Motion Detection
Deep Learning-based Motion Detection 2.0
Target Classification
Human and vehicle target classification
Video Compression
H.265 Pro+ / H.265 / H.264+ / H.264
```
Intelligent analytics powered by dual AI engines, supporting facial recognition,
video structuralization, AcuSearch, AcuSeek, motion detection 2.0, ANPR, and
people counting for advanced investigation and large-scale target modeling.
Product Specifications
Intelligent Analytics
AI by NVR
Facial recognition
AI by NVR and Camera
Facial recognition, perimeter protection, video structuralization,
AcuSearch, motion detection 2.0, ANPR, people counting, AcuSeek
AI Engine
2 engines
Engine 1: Face picture & AcuSearch
Engine 2: AcuSeek
Facial Recognition
Facial Detection & Analytics
Face picture comparison, human face capture, face picture search
Face Picture Library
Up to 16 face picture libraries
Up to 50,000 face pictures in total
(Each picture ≤ 512 KB, total capacity ≤ 1 GB)
Face Picture Comparison
8-ch
Facial Detection & Analytics Performance
4-ch human face capture (HD network camera)
4-ch 2 MP / 2-ch 4 MP / 1-ch 8 MP
H.264 / H.265
AcuSearch
Performance
When cameras support Hikvision AcuSense Technology and have AcuSearch enabled,
the NVR supports AcuSearch on all channels, capable of modeling up to
300,000 targets per day
AcuSeek
Performance
When cameras support Hikvision AcuSense Technology and have AcuSearch enabled,
the NVR supports AcuSeek on all channels, capable of modeling up to
300,000 targets per day
Search Language
English, French, Italian, German, Polish, Portuguese, Thai, Russian, Arabic,
Turkish, Spanish, Dutch, Romanian, Czech, Swedish, Croatian, Latvian,
Ukrainian, Hungarian, Danish, Japanese, Korean, Vietnamese, Indonesian,
Brazilian Portuguese, Traditional Chinese
Intelligent analytics with dual AI engines, supporting facial recognition,
video structuralization, AcuSearch, AcuSeek, motion detection 2.0, ANPR,
and people counting for advanced investigation and target modeling.
Product Specifications
Intelligent Analytics
AI by NVR
Facial recognition
AI by NVR and Camera
Facial recognition, perimeter protection, video structuralization,
AcuSearch, motion detection 2.0, ANPR, people counting, AcuSeek
AI Engine
2 engines
Engine 1: Face picture & AcuSearch
Engine 2: AcuSeek
Facial Recognition
Facial Detection & Analytics
Face picture comparison, human face capture, face picture search
Face Picture Library
Up to 16 face picture libraries
Up to 50,000 face pictures in total
(Each picture ≤ 512 KB, total capacity ≤ 1 GB)
Face Picture Comparison
8-ch
Facial Detection & Analytics Performance
4-ch human face capture (HD network camera)
4-ch 2 MP / 2-ch 4 MP / 1-ch 8 MP
H.264 / H.265
AcuSearch
Performance
When cameras support Hikvision AcuSense Technology and have AcuSearch enabled,
the NVR supports AcuSearch on all channels, capable of modeling up to
300,000 targets per day
AcuSeek
Performance
When cameras support Hikvision AcuSense Technology and have AcuSearch enabled,
the NVR supports AcuSeek on all channels, capable of modeling up to
300,000 targets per day
Search Language
English
Intelligent analytics powered by dual AI engines, supporting facial recognition,
video structuralization, AcuSearch, motion detection 2.0, ANPR, and people counting
for efficient target analysis and investigation.
Product Specifications
Intelligent Analytics
AI by NVR
Facial recognition
AI by NVR and Camera
Facial recognition, perimeter protection, video structuralization,
AcuSearch, motion detection 2.0, ANPR, people counting
AI Engine
2 engines
Engine 1: Face picture & AcuSearch
Engine 2: Dedicated AI processing
Facial Recognition
Facial Detection & Analytics
Face picture comparison, human face capture, face picture search
Face Picture Library
Up to 16 face picture libraries
Up to 50,000 face pictures in total
(Each picture ≤ 512 KB, total capacity ≤ 1 GB)
Face Picture Comparison
8-ch
Facial Detection & Analytics Performance
4-ch human face capture (HD network camera)
4-ch 2 MP / 2-ch 4 MP / 1-ch 8 MP
H.264 / H.265
AcuSearch
Performance
When cameras support Hikvision AcuSense Technology and have AcuSearch enabled,
the NVR supports AcuSearch on all channels, capable of modeling up to
300,000 targets per day
Advanced intelligent analytics with dual AI engines, supporting facial recognition,
AcuSearch, AcuSeek, video structuralization, and multi-language smart search for
large-scale target modeling.
Product Specifications
Intelligent Analytics
AI by NVR
Facial recognition
AI by NVR and Camera
Facial recognition, perimeter protection, video structuralization,
AcuSearch, motion detection 2.0, ANPR, people counting, AcuSeek
AI Engine
2 engines
Engine 1: Face picture & AcuSearch
Engine 2: AcuSeek
Facial Recognition
Facial Detection & Analytics
Face picture comparison, human face capture, face picture search
Face Picture Library
Up to 16 face picture libraries
Up to 50,000 face pictures in total
(Each picture ≤ 512 KB, total capacity ≤ 1 GB)
Face Picture Comparison
8-ch
Facial Detection & Analytics Performance
4-ch human face capture (HD network camera)
4-ch 2 MP / 2-ch 4 MP / 1-ch 8 MP
H.264 / H.265
AcuSearch
Performance
When cameras support Hikvision AcuSense Technology and have AcuSearch enabled,
the NVR supports AcuSearch on all channels, capable of modeling up to
300,000 targets per day
AcuSeek
Performance
When cameras support Hikvision AcuSense Technology and have AcuSearch enabled,
the NVR supports AcuSeek on all channels, capable of modeling up to
300,000 targets per day
Search Language
English, French, Italian, German, Polish, Portuguese, Thai, Russian, Arabic,
Turkish, Spanish, Dutch, Romanian, Czech, Swedish, Croatian, Latvian,
Ukrainian, Hungarian, Danish, Japanese, Korean, Vietnamese, Indonesian,
Brazilian Portuguese, Traditional Chinese
Advanced intelligent analytics powered by dual AI engines, supporting facial recognition, video structuralization, AcuSearch, AcuSeek, and multi-dimensional behavior analysis for large-scale target modeling and fast investigation.
Product Specifications
Intelligent Analytics
AI by NVR Facial recognition
AI by NVR and Camera Facial recognition, perimeter protection, video structuralization, AcuSearch, motion detection 2.0, ANPR, people counting, AcuSeek
AI Engine 2 enginesEngine 1: Face picture & AcuSearchEngine 2: AcuSeek
Facial Recognition
Facial Detection & Analytics Face picture comparison, human face capture, face picture search
Face Picture Library Up to 16 face picture librariesUp to 50,000 face pictures in total(Each picture ≤ 512 KB, total capacity ≤ 1 GB)
Face Picture Comparison 8-ch
Facial Detection & Analytics Performance 4-ch human face capture (HD network camera)4-ch 2 MP / 2-ch 4 MP / 1-ch 8 MPH.264 / H.265
AcuSearch
Performance When cameras support Hikvision AcuSense Technology and have AcuSearch enabled, the NVR supports AcuSearch on all channels, capable of modeling up to 300,000 targets per day
Advanced intelligent analytics powered by NVR and camera AI, delivering facial
recognition, perimeter protection, Motion Detection 2.0, and AcuSearch for
accurate detection and efficient video investigation.
Product Specifications
Intelligent Analytics
AI by NVR
Facial recognition, perimeter protection, motion detection 2.0
AI by Camera
Facial recognition, perimeter protection, motion detection 2.0, ANPR, VCA
Facial Recognition
Facial Detection & Analytics
Face picture comparison, human face capture, face picture search
Face Picture Library
Up to 16 face picture libraries
Up to 50,000 face pictures in total
(Each picture ≤ 1 MB, total capacity ≤ 1 GB)
Facial Detection & Analytics Performance
Up to 4 MP: 2-ch
8 MP to 5 MP: 1-ch
Face Picture Comparison
8-ch
AcuSearch
By NVR
Up to 16-ch
By Camera
All channels
Note
The camera should enable AcuSearch function
Motion Detection 2.0
By NVR
All channels, up to 4 MP (when enhanced SVC mode is enabled, up to 8 MP) video
analysis for human and vehicle recognition to reduce false alarm
By Camera
All channels
Intelligent analytics powered by NVR and camera AI, enabling advanced facial
recognition, perimeter protection, Motion Detection 2.0, AcuSearch, and AcuSeek
for accurate identification and efficient video investigation.
Product Specifications
Intelligent Analytics
AI by NVR
Facial recognition, perimeter protection, motion detection 2.0, AcuSearch, AcuSeek
AI by NVR & Camera
Facial recognition, perimeter protection, motion detection 2.0, ANPR, VCA
Facial Recognition
Facial Detection & Analytics
Face picture comparison, human face capture, face picture search
Face Picture Library
Up to 16 face picture libraries
Up to 50,000 face pictures in total
(Each picture ≤ 1 MB, total capacity ≤ 800 MB)
Face Picture Comparison
8-ch
Facial Detection & Analytics Performance
Up to 4 MP: 2-ch
5 MP to 8 MP: 1-ch
AcuSearch
By Camera
All channels
Note
The camera should enable AcuSearch function
Intelligent analytics powered by NVR and camera AI, delivering advanced facial recognition, perimeter protection, Motion Detection 2.0, AcuSearch, and AcuSeek for accurate identification and efficient video investigation.
Product Specifications
Intelligent Analytics
AI by NVR Facial recognition, perimeter protection, Motion Detection 2.0, AcuSearch, AcuSeek
AI by NVR & Camera Facial recognition, perimeter protection, Motion Detection 2.0, ANPR, VCA
Facial Recognition
Facial Detection & Analytics Face picture comparison, human face capture, face picture search
Face Picture Library Up to 16 face picture librariesUp to 50,000 face pictures in total(Each picture ≤ 1 MB, total capacity ≤ 800 MB)
Face Picture Comparison 8-ch
Facial Detection & Analytics Performance Up to 4 MP: 2-ch5 MP to 8 MP: 1-ch
AcuSearch
By Camera All channels
Note The camera should enable the AcuSearch function
Intelligent analytics powered by NVR and camera AI, enabling advanced facial
recognition, perimeter protection, Motion Detection 2.0, AcuSearch, and AcuSeek
for accurate analysis and fast investigation.
Product Specifications
Intelligent Analytics
AI by NVR
Facial recognition, perimeter protection, Motion Detection 2.0, AcuSearch, AcuSeek
AI by NVR & Camera
Facial recognition, perimeter protection, Motion Detection 2.0, ANPR, VCA
Facial Recognition
Facial Detection & Analytics
Face picture comparison, human face capture, face picture search
Face Picture Library
Up to 16 face picture libraries
Up to 50,000 face pictures in total
(Each picture ≤ 1 MB, total capacity ≤ 800 MB)
Face Picture Comparison
8-ch
Facial Detection & Analytics Performance
Up to 4 MP: 2-ch
5 MP to 8 MP: 1-ch
AcuSearch
By Camera
All channels
Note
The camera should enable the AcuSearch function
Advanced intelligent analytics powered by NVR and camera AI, supporting facial
recognition, perimeter protection, Motion Detection 2.0, AcuSearch, and AcuSeek
for precise event detection and fast investigation.
Product Specifications
Intelligent Analytics
AI by NVR
Facial recognition, perimeter protection, Motion Detection 2.0, AcuSearch, AcuSeek
AI by NVR & Camera
Facial recognition, perimeter protection, Motion Detection 2.0, ANPR, VCA
Facial Recognition
Facial Detection & Analytics
Face picture comparison, human face capture, face picture search
Face Picture Library
Up to 16 face picture libraries
Up to 50,000 face pictures in total
(Each picture ≤ 1 MB, total capacity ≤ 800 MB)
Face Picture Comparison
4-ch
Facial Detection & Analytics Performance
Up to 4 MP: 2-ch
5 MP to 8 MP: 1-ch
AcuSearch
By Camera
All channels
Note
The camera should enable the AcuSearch function
Intelligent analytics powered by NVR and camera AI, supporting facial recognition,
perimeter protection, Motion Detection 2.0, and AcuSearch for advanced security
and accurate event detection.
Product Specifications
Intelligent Analytics
AI by NVR
Facial recognition, Perimeter protection, Motion Detection 2.0, AcuSearch
AI by Camera
Facial recognition, Perimeter protection, Motion Detection 2.0, ANPR
Facial Recognition
Facial Detection & Analytics
Face picture comparison, Human face capture, Face picture search
Facial Detection & Analytics Performance
Up to 4 MP: 2-ch
8 MP to 5 MP: 1-ch
Face Picture Comparison
8-ch
Face Picture Library
Up to 16 face picture libraries
Up to 50,000 face pictures in total
(Each picture ≤ 1 MB, total capacity ≤ 1 GB)
AcuSearch
By Camera
All channels
Note
The camera should enable the AcuSearch function
Advanced intelligent analytics powered by NVR and camera AI, delivering facial recognition,
perimeter protection, Motion Detection 2.0, and AcuSearch to improve detection accuracy
and significantly reduce false alarms.
Product Specifications
Intelligent Analytics
AI by NVR
Facial recognition, Perimeter protection, Motion Detection 2.0, AcuSearch
AI by Camera
Facial recognition, Perimeter protection, Motion Detection 2.0, ANPR
Facial Recognition
Facial Detection & Analytics
Face picture comparison, Human face capture, Face picture search
Facial Detection & Analytics Performance
Up to 4 MP: 2-ch
8 MP to 5 MP: 1-ch
Face Picture Comparison
8-ch
Face Picture Library
Up to 16 face picture libraries
Up to 50,000 face pictures in total
(Each picture ≤ 1 MB, total capacity ≤ 1 GB)
AcuSearch
By Camera
All channels
Note
The camera must support and enable the AcuSearch function
Motion Detection 2.0
By NVR
All channels, up to 4 MP video analysis for human and vehicle recognition
(Up to 8 MP when Enhanced SVC mode is enabled)
Designed to reduce false alarms
By Camera
All channels
Intelligent analytics powered by device and camera AI, providing facial recognition,
perimeter protection, Motion Detection 2.0, ANPR, and advanced video content analysis
to enhance accuracy and reduce false alarms.
Product Specifications
Intelligent Analytics
AI by Device
Facial recognition, Perimeter protection, Motion Detection 2.0
AI by Camera
Facial recognition, Perimeter protection, Throwing objects from building,
Motion Detection 2.0, ANPR, VCA
Facial Recognition
Facial Detection & Analytics
Face picture comparison, Human face capture, Face picture search
Face Picture Library
Up to 16 face picture libraries
Up to 20,000 face pictures in total
(Each picture ≤ 4 MB, total capacity ≤ 1 GB)
Facial Detection & Analytics Performance
1-ch @ 8 MP
Face Picture Comparison
4-ch
Motion Detection 2.0
By Device
All channels, 4 MP video analysis for human and vehicle recognition
(Up to 8 MP when Enhanced SVC mode is enabled)
Designed to reduce false alarms
By Camera
All channels
Perimeter Protection
By Device
2-ch, 4 MP (HD network camera, H.264/H.265)
Human & vehicle recognition to reduce false alarms
By Camera
All channels
Advanced intelligent analytics powered by NVR and camera AI, enabling facial recognition,
perimeter protection, Motion Detection 2.0, AcuSearch, and ANPR to improve accuracy
and significantly reduce false alarms.
Product Specifications
Intelligent Analytics
AI by NVR
Facial recognition, Perimeter protection, Motion Detection 2.0, AcuSearch
AI by Camera
Facial recognition, Perimeter protection, Motion Detection 2.0, ANPR
Facial Recognition
Facial Detection & Analytics
Face picture comparison, Human face capture, Face picture search
Facial Detection & Analytics Performance
Up to 4 MP: 2-ch
8 MP to 5 MP: 1-ch
Face Picture Comparison
8-ch
Face Picture Library
Up to 16 face picture libraries
Up to 50,000 face pictures total
(Each picture ≤ 1 MB, total capacity ≤ 1 GB)
AcuSearch
By Camera
All channels
* Camera must support AcuSearch
Motion Detection 2.0
By NVR
All channels, up to 4 MP video analysis
(Up to 8 MP with Enhanced SVC enabled)
Human & vehicle recognition to reduce false alarms
By Camera
All channels
Intelligent analytics powered by device and camera AI, delivering accurate facial recognition,
perimeter protection, Motion Detection 2.0, ANPR, and advanced video content analysis to reduce
false alarms and improve security efficiency.
Product Specifications
Intelligent Analytics
AI by Device
Facial recognition, Perimeter protection, Motion Detection 2.0
AI by Camera
Facial recognition, Perimeter protection, Throwing objects from building,
Motion Detection 2.0, ANPR, VCA
Facial Recognition
Facial Detection & Analytics
Face picture comparison, Human face capture, Face picture search
Face Picture Library
Up to 16 face picture libraries
Up to 20,000 face pictures in total
(Each picture ≤ 4 MB, total capacity ≤ 1 GB)
Facial Detection & Analytics Performance
1-ch @ 8 MP
Face Picture Comparison
4-ch
Motion Detection 2.0
By Device
All channels, 4 MP video analysis for human and vehicle recognition
(Up to 8 MP when Enhanced SVC mode is enabled)
Designed to reduce false alarms
By Camera
All channels
Advanced intelligent analytics powered by NVR and camera AI, supporting facial recognition, perimeter protection, Motion Detection 2.0, AcuSearch, and ANPR to improve security efficiency and reduce false alarms.
Product Specifications
Intelligent Analytics
AI by NVR
Facial recognition, Perimeter protection, Motion Detection 2.0, AcuSearch
AI by Camera
Facial recognition, Perimeter protection, Motion Detection 2.0, ANPR
Facial Recognition
Facial Detection & Analytics
Face picture comparison, Human face capture, Face picture search
Facial Detection & Analytics Performance
Up to 4 MP: 2-ch
5 MP to 8 MP: 1-ch
Face Picture Comparison
8-ch
Face Picture Library
Up to 16 face picture libraries
Up to 50,000 face pictures total
(Each picture ≤ 1 MB, total capacity ≤ 1 GB)
AcuSearch
By Camera
All channels
Notes
Camera must support and enable the AcuSearch function
Motion Detection 2.0
By NVR
All channels, up to 4 MP video analysis for human and vehicle recognition
(Up to 8 MP when Enhanced SVC mode is enabled)
Designed to reduce false alarms
By Camera
All channels
AI-powered intelligent analytics supporting facial recognition, perimeter protection, motion detection 2.0, ANPR, and advanced video content analysis to enhance security accuracy and reduce false alarms.
Product Specifications
Intelligent Analytics
AI by Device
Facial recognition, Perimeter protection, Motion Detection 2.0
AI by Camera
Facial recognition, Perimeter protection, Throwing objects from building,
Motion Detection 2.0, ANPR, VCA
Facial Recognition
Facial Detection & Analytics
Face picture comparison, Human face capture, Face picture search
Face Picture Library
Up to 16 face picture libraries
Up to 20,000 face pictures total
(Each picture ≤ 4 MB, total capacity ≤ 1 GB)
Facial Detection & Analytics Performance
1-ch @ 8 MP
Face Picture Comparison
4-ch
Motion Detection 2.0
By Device
All channels, 4 MP video analysis for human and vehicle recognition
(Up to 8 MP when Enhanced SVC mode is enabled)
Designed to reduce false alarms
By Camera
All channels
Advanced intelligent analytics with AI by device and AI by camera, supporting facial recognition, perimeter protection, motion detection 2.0, ANPR, and video content analysis to reduce false alarms and enhance security accuracy.
Product Specifications
Intelligent Analytics
AI by Device
Perimeter protection, Motion Detection 2.0
Facial recognition, Perimeter protection, Motion Detection 2.0
AI by Camera
Facial recognition, Perimeter protection, Throwing objects from building, Motion Detection 2.0, ANPR, VCA
Perimeter protection, Throwing objects from building, Motion Detection 2.0, ANPR, VCA
Facial Recognition
Facial Detection & Analytics
Face picture comparison, Human face capture, Face picture search
N/A
Face Picture Library
N/A
Up to 16 face picture libraries
Up to 20,000 face pictures total
(Each picture ≤ 4 MB, total capacity ≤ 1 GB)
Facial Detection & Analytics Performance
N/A
1-ch @ 8 MP
Face Picture Comparison
4-ch
N/A
Motion Detection 2.0
By Device
1-ch, 4 MP (HD network camera, H.264/H.265) human & vehicle analysis
4-ch, 4 MP (Up to 8 MP with Enhanced SVC mode enabled)
All channels, 4 MP (Up to 8 MP with Enhanced SVC mode enabled)
Designed to reduce false alarms
By Camera
All channels
Advanced AI-powered intelligent analytics supporting facial recognition, perimeter protection, motion detection 2.0, ANPR, and video content analysis for enhanced security monitoring.
Product Specifications
Intelligent Analytics
AI by Device
Perimeter protection, Motion Detection 2.0
Facial recognition, Perimeter protection, Motion Detection 2.0
AI by Camera
Facial recognition, Perimeter protection, Throwing objects from building, Motion Detection 2.0, ANPR, VCA
Perimeter protection, Throwing objects from building, Motion Detection 2.0, ANPR, VCA
Facial Recognition
Face Attributes
N/A
Facial Detection & Analytics
Face picture comparison, Human face capture, Face picture search
N/A
Face Picture Library
N/A
Up to 16 face picture libraries
Up to 20,000 face pictures total
(Each picture ≤ 4 MB, total capacity ≤ 1 GB)
Facial Detection & Analytics Performance
N/A
1-ch @ 8 MP
Face Picture Comparison
N/A
2-ch
Motion Detection 2.0
By Device
All channels
4 MP human & vehicle analysis
(Up to 8 MP when Enhanced SVC mode is enabled)
Reduces false alarms
By Camera
All channels
Advanced AI-powered 8-channel DVR featuring facial recognition, Motion Detection 2.0 with human and vehicle classification, perimeter protection up to 8 channels, and support for up to 8 MP cameras with 4K HDMI output—ideal for professional and enterprise surveillance systems.
Product Specifications
AI & Smart Features
Facial Recognition
Face picture comparison and face picture search
4-ch face picture comparison alarm (HD analog camera)
Face Picture Library
Up to 16 face picture libraries
HDD damage will not cause data loss as the library is backed up by HDD and flash
Motion Detection
Motion Detection 2.0 (Deep Learning)
Human and vehicle classification to reduce false alarms caused by leaves, lights, and other disturbances
Quick search by object or event type
Perimeter Protection
Human / Vehicle Analysis (Up to 8-ch – Advanced Model)
Facial Detection
Facial detection and capture
Face picture detection and face picture search
4-ch face picture capture
Video & Audio Input
IP Video Input
8-ch (up to 16-ch), each up to 4 Mbps
Supports H.265+/H.265/H.264+/H.264 IP cameras
Analog Video Input
8-ch, BNC interface (1.0 Vp-p, 75 Ω), coaxitron supported
HDTVI Input
8 MP@12/15 fps, 3K@25/20 fps, 3K@20 fps,
2K@20 fps, 5 MP@20 fps, 4 MP@25/30 fps,
1080p@25/30 fps, 720p@25/30 fps
AHD Input
5 MP@20 fps, 4 MP@25/30 fps,
1080p@25/30 fps, 720p@25/30 fps
HDCVI Input
8 MP@12/15 fps, 3K@20/25 fps,
5 MP@20 fps, 4 MP@25/30 fps,
1080p@25/30 fps, 720p@25/30 fps
CVBS Input
PAL / NTSC
Video Output
HDMI Output
1-ch: 4K (3840 × 2160) @30Hz,
2K (2560 × 1440) @60Hz,
1920 × 1080 @60Hz,
1280 × 1024 @60Hz,
1280 × 720 @60Hz
VGA Output
1-ch: 1920 × 1080 @60Hz,
1280 × 1024 @60Hz,
1280 × 720 @60Hz
CVBS Output
1-ch BNC (1.0 Vp-p, 75 Ω)
PAL: 704 × 576 / NTSC: 704 × 480
Video Output Mode
HDMI / VGA simultaneous output
Audio
Audio Input
1-ch (up to 8-ch optional), RCA (2.0 Vp-p, 1 KΩ)
8-ch via coaxial cable
Audio Output
1-ch RCA (Linear, 1 KΩ)
Two-Way Audio
1-ch RCA (using the first audio input)
Playback
Synchronous Playback
8-channel simultaneous playback
