DS-PD451SMK-WE Smoke+Heat Detector
Product Specifications
Detection Performance
Detection Method
Chamber With Photoelectric Sensor
Indication
Alarm Duration
Support
Electrical Characteristics
Typical Voltage
3V
Battery Type

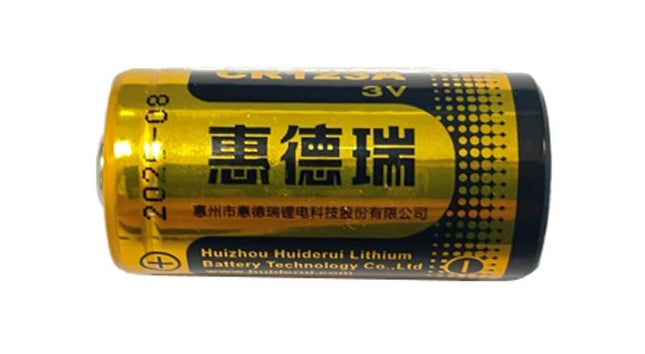

Replaceable CR123A × 2
Power Supply
Battery Powered
Battery Life
Up to 5 years
Wireless Transmission
RF Frequency
868MHz
Transmission Range (Free Space)
Up to 1,000 m between the detector and a hub (or radio signal range extender) in an open space
Wireless Security
AES-128 Encryption
Enrolling Method
Power Up; Remote ID; QR Code
General
Installation Method
Ceiling Mounted
Dimension (W×H×D)
125 mm × 39 mm (4.9" × 1.5")
Color
White

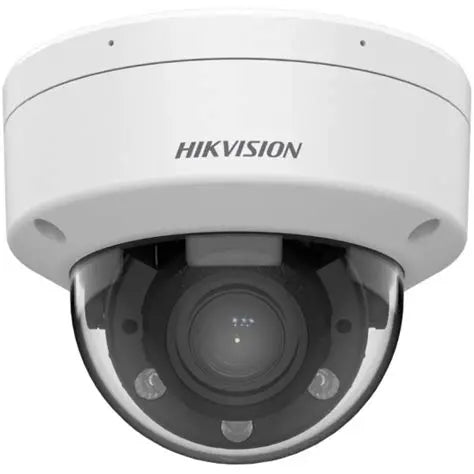

High-quality 4 MP Smart Hybrid Light 3.0 Vari-Focal Dome Network Camera featuring HikAI-ISP for improved image quality, Motion Detection 3.0 for accurate person and vehicle detection, Smart Hybrid Light with IR and white lights, built-in microphone, motorized 2.8 to 12 mm varifocal lens, and IP67 dust and water resistance.
Technical Specifications
Camera
Image Sensor
1/3" Progressive Scan CMOS
Maximum Resolution
2688 × 1520
Minimum Illumination
Color: 0.003 Lux @ (F1.6, AGC ON)
B/W: 0 Lux with IR
Shutter Time
1 s to 1/100,000 s
Day & Night
IR Cut Filter
Angle Adjustment
Pan: 0° to 355°
Tilt: 0° to 75°
Rotate: 0° to 355°
Lens
Lens Type
Varifocal lens, motorized lens, 2.8 to 12 mm
Focal Length & FOV
2.8 to 12 mm: Horizontal FOV 93° to 28°, Vertical FOV 50° to 16°, Diagonal FOV 110° to 33°
Lens Mount
Ø14
Wide Dynamic Range (WDR)
120 dB
SNR
≥ 52 dB
Day/Night Mode
Day, Night, Auto, Schedule
Image Enhancement
BLC, HLC, 3D DNR
Privacy Mask
4 programmable polygon privacy masks
Smart Features
HikAI-ISP
Noise reduction, color correction, and image quality improvement
Motion Detection 3.0
Accurate person and vehicle detection with reduced false alarms
Smart Hybrid Light
Integrates IR and white lights with 3 supplemental lighting modes
Built-in Microphone
Supported for real-time audio security
Compression
H.265+
Protection
Weather Protection
IP67 dust and water resistant
High-quality 4 MP Smart Hybrid Light 3.0 Fixed Turret Network Camera featuring HikAI-ISP for improved image quality, Motion Detection 3.0 for accurate person and vehicle detection, Smart Hybrid Light with IR and white lights, built-in microphone, and IP67 dust and water resistance.
Technical Specifications
Camera
Image Sensor
1/3" Progressive Scan CMOS
Maximum Resolution
2688 × 1520
Minimum Illumination
Color: 0.003 Lux @ (F1.6, AGC ON)
B/W: 0 Lux with IR
Shutter Time
1 s to 1/100,000 s
Day & Night
IR Cut Filter
Angle Adjustment
Pan: 0° to 360°
Tilt: 0° to 75°
Rotate: 0° to 360°
Lens
Lens Type
Fixed focal lens, 2.8 mm and 4 mm optional
Focal Length & FOV
2.8 mm: Horizontal FOV 98°, Vertical FOV 54°, Diagonal FOV 115°
4 mm: Horizontal FOV 79°, Vertical FOV 42°, Diagonal FOV 93°
Lens Mount
M12
Wide Dynamic Range (WDR)
120 dB
SNR
≥ 52 dB
Day/Night Mode
Day, Night, Auto, Schedule
Image Enhancement
BLC, HLC, 3D DNR
Privacy Mask
4 programmable polygon privacy masks
Smart Features
HikAI-ISP
Noise reduction, color correction, and image quality improvement
Motion Detection 3.0
Accurate person and vehicle detection with reduced false alarms
Smart Hybrid Light
Integrates IR and white lights with 3 supplemental lighting modes
Built-in Microphone
Supported for real-time audio security
Compression
H.265+
Protection
Weather Protection
IP67 dust and water resistant

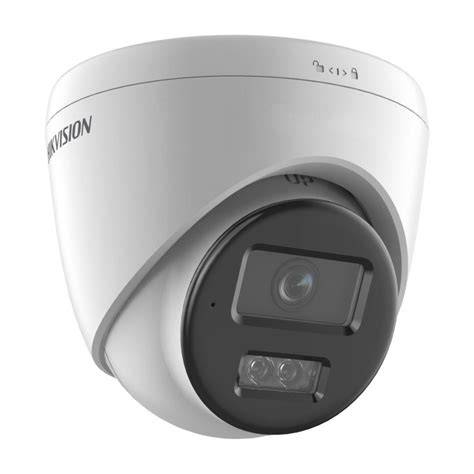

High-quality 4 MP Smart Hybrid Light Fixed Turret Network Camera featuring Human Detection, efficient H.265+ compression, long-range Smart Hybrid Light coverage, built-in microphone for real-time audio security, up to 512 GB on-board storage, and IP67 water and dust resistance.
Technical Specifications
Camera
Image Sensor 1/2.8" Progressive Scan CMOS
Maximum Resolution 2560 × 1440
Minimum Illumination Color: 0.01 Lux @ (F2.2, AGC ON)B/W: 0 Lux with IR
Shutter Time 1/3 s to 1/100,000 s
Day & Night IR Cut Filter
Angle Adjustment Pan: 0° to 360°Tilt: 0° to 75°Rotate: 0° to 360°
Lens
Lens Type Fixed focal lens, 2.8 mm and 4 mm optional
Focal Length & FOV 2.8 mm: Horizontal FOV 104°, Vertical FOV 57°, Diagonal FOV 123°4 mm: Horizontal FOV 82°, Vertical FOV 45°, Diagonal FOV 98°
Lens Mount M12
Wide Dynamic Range (WDR) Digital WDR
SNR ≥ 52 dB
Day/Night Mode Day, Night, Auto, Schedule
Image Enhancement BLC, HLC, 3D DNR
Privacy Mask 1 programmable polygon privacy mask
Smart Features
Human Detection Supported
Smart Hybrid Light Advanced technology with long-range coverage
Built-in Microphone Supported for real-time audio security
Compression H.265+
Storage
On-board Storage Up to 512 GB (SD card slot) - F model
Protection
Weather Protection IP67 water and dust resistant

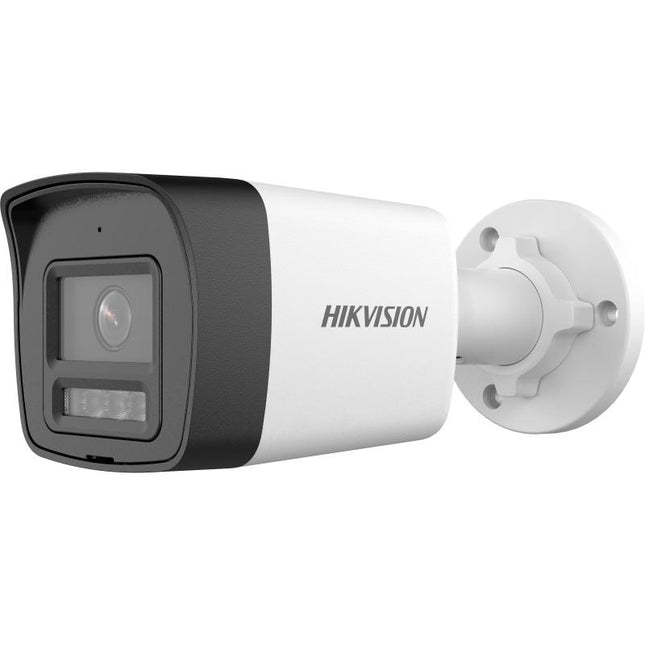

2 MP Smart Hybrid Light 3.0 Fixed Bullet Network Camera featuring HikAI-ISP for advanced noise reduction, color correction and image quality improvement, Motion Detection 3.0 for accurate person and vehicle detection, Smart Hybrid Light with three supplemental lighting modes, built-in microphone for real-time audio security, and IP67 dust and water resistance.
Technical Specifications
Camera
```
Image Sensor
1/2.9" Progressive Scan CMOS
Maximum Resolution
1920 × 1080
Minimum Illumination
Color: 0.003 Lux @ (F1.6, AGC ON)
B/W: 0 Lux with IR
Shutter Time
1 s to 1/100,000 s
Day & Night
IR Cut Filter
Angle Adjustment
Pan: 0° to 355°
Tilt: 0° to 75°
Rotate: 0° to 355°
```
Lens
```
Lens Type
Fixed focal lens, 2.8 mm, 4 mm, and 6 mm optional
Focal Length & FOV
2.8 mm: Horizontal FOV 104°, Vertical FOV 57°, Diagonal FOV 121°
4 mm: Horizontal FOV 84°, Vertical FOV 45°, Diagonal FOV 100°
6 mm: Horizontal FOV 52°, Vertical FOV 28°, Diagonal FOV 60°
Lens Mount
M12
```
```
Wide Dynamic Range (WDR)
Digital WDR
SNR
≥ 52 dB
Day/Night Mode
Day, Night, Auto, Schedule
Image Enhancement
BLC, HLC, 3D DNR
Privacy Mask
4 programmable polygon privacy masks
```
Smart Features
```
HikAI-ISP
Noise reduction, color correction and image quality improvement
Motion Detection 3.0
Accurate person and vehicle detection with reduced false alarms
Smart Hybrid Light 3.0
Integrates IR and white lights with 3 supplemental lighting modes
Built-in Microphone
Real-time audio security
```
Protection
```
Weather Protection
IP67 dust and water resistant
```
2 MP Smart Hybrid Light 3.0 Fixed Dome Network Camera featuring HikAI-ISP for advanced noise reduction, color correction and image quality improvement, Motion Detection 3.0 for accurate person and vehicle detection, Smart Hybrid Light with three supplemental lighting modes, built-in microphone for real-time audio security, and IP67 dust and water resistance.
Technical Specifications
Camera
```
Image Sensor
1/2.9" Progressive Scan CMOS
Maximum Resolution
1920 × 1080
Minimum Illumination
Color: 0.003 Lux @ (F1.6, AGC ON)
B/W: 0 Lux with IR
Shutter Time
1 s to 1/100,000 s
Day & Night
IR Cut Filter
Angle Adjustment
Pan: 0° to 355°
Tilt: 0° to 75°
Rotate: 0° to 355°
```
Lens
```
Lens Type
Fixed focal lens, 2.8 mm and 4 mm optional
Focal Length & FOV
2.8 mm: Horizontal FOV 104°, Vertical FOV 57°, Diagonal FOV 121°
4 mm: Horizontal FOV 84°, Vertical FOV 45°, Diagonal FOV 100°
Lens Mount
M12
```
```
Wide Dynamic Range (WDR)
Digital WDR
SNR
≥ 52 dB
Day/Night Mode
Day, Night, Auto, Schedule
Image Enhancement
BLC, HLC, 3D DNR
Privacy Mask
4 programmable polygon privacy masks
```
Smart Features
```
HikAI-ISP
Noise reduction, color correction and image quality improvement
Motion Detection 3.0
Accurate person and vehicle detection with reduced false alarms
Smart Hybrid Light 3.0
Integrates IR and white lights with 3 supplemental lighting modes
Built-in Microphone
Real-time audio security
```
Protection
```
Weather Protection
IP67 dust and water resistant
```

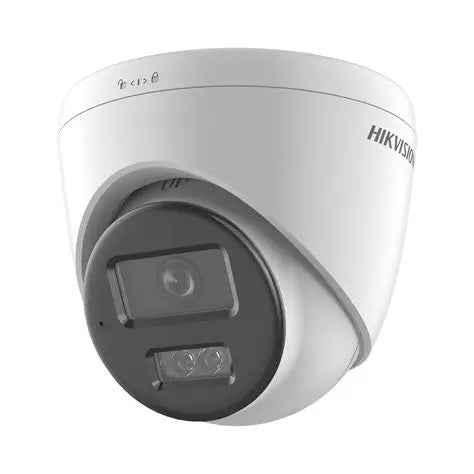

2 MP Smart Hybrid Light 3.0 Fixed Turret Network Camera featuring HikAI-ISP for advanced noise reduction, color correction and image quality improvement, Motion Detection 3.0 for accurate person and vehicle detection, Smart Hybrid Light with three supplemental lighting modes, built-in microphone for real-time audio security, and IP67 dust and water resistance.
Technical Specifications
Camera
```
Image Sensor
1/2.9" Progressive Scan CMOS
Maximum Resolution
1920 × 1080
Minimum Illumination
Color: 0.003 Lux @ (F1.6, AGC ON)
B/W: 0 Lux with IR
Shutter Time
1 s to 1/100,000 s
Day & Night
IR Cut Filter
Angle Adjustment
Pan: 0° to 360°
Tilt: 0° to 75°
Rotate: 0° to 360°
```
Lens
```
Lens Type
Fixed focal lens, 2.8 mm and 4 mm optional
Focal Length & FOV
2.8 mm: Horizontal FOV 104°, Vertical FOV 57°, Diagonal FOV 121°
4 mm: Horizontal FOV 84°, Vertical FOV 45°, Diagonal FOV 100°
Lens Mount
M12
```
```
Wide Dynamic Range (WDR)
Digital WDR
SNR
≥ 52 dB
Day/Night Mode
Day, Night, Auto, Schedule
Image Enhancement
BLC, HLC, 3D DNR
Privacy Mask
4 programmable polygon privacy masks
```
Smart Features
```
HikAI-ISP
Noise reduction, color correction and image quality improvement
Motion Detection 3.0
Accurate person and vehicle detection with reduced false alarms
Smart Hybrid Light 3.0
Integrates IR and white lights with 3 supplemental lighting modes
Built-in Microphone
Real-time audio security
```
Protection
```
Weather Protection
IP67 dust and water resistant
```
2 MP Smart Hybrid Light 3.0 Fixed Bullet Network Camera featuring HikAI-ISP for advanced noise reduction, color correction and image quality improvement, Motion Detection 3.0 for accurate person and vehicle detection, Smart Hybrid Light with three supplemental lighting modes, built-in microphone for real-time audio security, and IP67 dust and water resistance.
Technical Specifications
Camera
```
Image Sensor
1/2.9" Progressive Scan CMOS
Maximum Resolution
1920 × 1080
Minimum Illumination
Color: 0.003 Lux @ (F1.6, AGC ON)
B/W: 0 Lux with IR
Shutter Time
1 s to 1/100,000 s
Day & Night
IR Cut Filter
Angle Adjustment
Pan: 0° to 360°
Tilt: 0° to 90°
Rotate: 0° to 360°
```
Lens
```
Lens Type
Fixed focal lens, 2.8 mm and 4 mm optional
Focal Length & FOV
2.8 mm: Horizontal FOV 104°, Vertical FOV 57°, Diagonal FOV 121°
4 mm: Horizontal FOV 84°, Vertical FOV 45°, Diagonal FOV 100°
Lens Mount
M12
```
```
Wide Dynamic Range (WDR)
Digital WDR
SNR
≥ 52 dB
Day/Night Mode
Day, Night, Auto, Schedule
Image Enhancement
BLC, HLC, 3D DNR
Privacy Mask
4 programmable polygon privacy masks
```
Smart Features
```
HikAI-ISP
Noise reduction, color correction and image quality improvement
Motion Detection 3.0
Accurate person and vehicle detection with reduced false alarms
Smart Hybrid Light 3.0
Integrates IR and white lights with 3 supplemental lighting modes
Built-in Microphone
Real-time audio security
```
Protection
```
Weather Protection
IP67 dust and water resistant
```

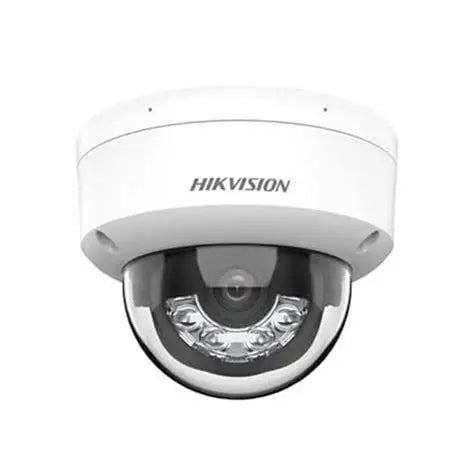

2 MP Fixed Dome Network Camera featuring high-quality 1920 × 1080 imaging, Human Detection, Smart Hybrid Light with long-range illumination, built-in microphone for real-time audio security, efficient H.265+ compression, and IP67 water and dust resistance with IK08 vandal resistance.
Technical Specifications
Camera
```
Image Sensor
1/2.9" Progressive Scan CMOS
Maximum Resolution
1920 × 1080
Minimum Illumination
Color: 0.005 Lux @ (F1.6, AGC ON)
B/W: 0 Lux with IR
Shutter Time
PAL: 1/25 s to 1/50,000 s
NTSC: 1/30 s to 1/50,000 s
Day & Night
IR Cut Filter
Angle Adjustment
Pan: 0° to 355°
Tilt: 0° to 75°
Rotate: 0° to 355°
```
Lens
```
Lens Type
Fixed focal lens, 2.8 mm
Focal Length & FOV
2.8 mm
Horizontal FOV: 103°
Vertical FOV: 56°
Diagonal FOV: 121°
Lens Mount
M12
```
```
Wide Dynamic Range (WDR)
Digital WDR
SNR
≥ 52 dB
Day/Night Mode
Day, Night, Auto, Schedule
Image Enhancement
BLC, HLC, 3D DNR
Privacy Mask
4 programmable polygon privacy masks
```
Key Features
```
Resolution
2 MP
Human Detection
Supported
Smart Hybrid Light
Advanced technology with long range
Built-in Microphone
Real-time audio security
Compression
H.265+
Protection
IP67 water and dust resistant; IK08 vandal resistant
```
High-performance 32-channel 5MP 1.5U AcuSense DVR featuring Deep Learning-based perimeter protection and Motion Detection 2.0 for all analog channels. It supports up to 32 analog cameras, up to 64 network cameras, 4 SATA interfaces, advanced H.265 Pro+ compression, up to 8 MP encoding capability, and POS-triggered recording with POS information overlay.
Technical Specifications
Perimeter Protection
Human / Vehicle Analysis
Up to 16-ch, for channel 1/2/3/4/9/10/11/12/17/18/19/20/25/26/27/28 only
Motion Detection 2.0
Human / Vehicle Analysis
Deep learning-based Motion Detection 2.0 is enabled by default for all analog channels. It can classify human and vehicle targets and significantly reduce false alarms caused by objects such as leaves and lights.
Quick Search
Quick search by object or event type is supported
Video & Audio
Analog Camera Input
Up to 32-ch analog camera inputs
Video Input Support
HDTVI / AHD / CVI / CVBS / IP
IP Video Input
32-ch (up to 64-ch)
IP Camera Resolution
Up to 12 MP
Supported IP Camera Compression
H.265+ / H.265 / H.264+ / H.264
Encoding
Encoding Capability
Up to 8 MP @ 8 fps / 5 MP @ 12 fps
Video Compression
H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264
Recording
Video Compression
H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264
POS Recording
POS triggered recording and POS information overlay
Network
Remote Connection
128
Network Protocol
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP,
NFS, iSCSI, UPnP™, HTTPS, ONVIF, SNMP
Storage
SATA Interfaces
4 SATA interfaces
General
Power Supply
100 to 240 VAC, 50 to 60 Hz
Form Factor
1.5U
Key Features
Channel Capacity
32-channel 5MP AcuSense DVR
Analog Camera Inputs
Up to 32-ch
Network Camera Inputs
Up to 64-ch
Perimeter Protection
Deep Learning-based Human / Vehicle Analysis up to 16-ch
Motion Detection
Deep Learning-based Motion Detection 2.0 for all analog channels
Encoding Capability
Up to 8 MP @ 8 fps / 5 MP @ 12 fps
Compression Technology
H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264
POS Function
POS triggered recording and POS information overlay
High-performance 16-channel 5MP 1.5U AcuSense DVR featuring Deep Learning-based perimeter protection and Motion Detection 2.0 across all analog channels. It supports up to 16 analog cameras, 34 network cameras, 4 SATA interfaces, advanced H.265 Pro+ compression, up to 8 MP encoding, and POS-triggered recording with POS information overlay.
Technical Specifications
Perimeter Protection
Human / Vehicle Analysis
Up to 8-ch, for channel 1/2/3/4/9/10/11/12 only
Motion Detection 2.0
Human / Vehicle Analysis
Deep learning-based Motion Detection 2.0 is enabled by default for all analog channels. It can classify human and vehicle targets and significantly reduce false alarms caused by objects such as leaves and lights.
Quick Search
Quick search by object or event type
Video & Audio
Analog Camera Input
Up to 16-ch analog camera inputs
Video Input Support
HDTVI / AHD / CVI / CVBS / IP
IP Video Input
18-ch (up to 34-ch)
IP Camera Resolution
Up to 12 MP
Supported IP Camera Compression
H.265+ / H.265 / H.264+ / H.264
Encoding
Encoding Capability
Up to 8 MP @ 8 fps / 5 MP @ 12 fps
Video Compression
H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264
Recording
Video Compression
H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264
POS Recording
POS triggered recording and POS information overlay
Network
Total Bandwidth
320 Mbps
Remote Connection
128
Network Camera Capacity
Up to 34-ch
Storage
SATA Interfaces
4 SATA interfaces
General
Power Supply
100 to 240 VAC, 50 to 60 Hz
Form Factor
1.5U
Key Features
Channel Capacity
16-channel 5MP AcuSense DVR
Analog Camera Inputs
Up to 16-ch
Network Camera Inputs
Up to 34-ch
Perimeter Protection
Deep Learning-based Human / Vehicle Analysis up to 8-ch
Motion Detection
Deep Learning-based Motion Detection 2.0 for all analog channels
Encoding Capability
Up to 8 MP @ 8 fps / 5 MP @ 12 fps
Compression Technology
H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264
POS Function
POS triggered recording and POS information overlay
4-channel 1080p 1U AcuSense DVR featuring Deep Learning-based human and vehicle target classification, Motion Detection 2.0, perimeter protection, facial detection, efficient H.265 Pro+ compression, and support for up to 6 network cameras with resolutions up to 6 MP.
Technical Specifications
Perimeter Protection
Human / Vehicle Analysis Up to 2-ch
Facial Detection
Facial Detection & Capture Face picture detection, face picture search
Motion Detection 2.0
Human / Vehicle Analysis Deep learning-based motion detection 2.0 is enabled by default for all analog channels. It can classify human and vehicle targets and significantly reduce false alarms caused by objects such as leaves and lights.
Quick Search Quick search by object or event type
Video & Audio
Analog Video Input 4 channels
Video Input Signals HDTVI / AHD / CVI / CVBS / IP
IP Video Input 1-ch (up to 5-ch)
Enhanced IP Mode 2-ch (up to 6-ch), each up to 4 Mbps
IP Camera Resolution Up to 6 MP
Supported IP Camera Compression H.265+ / H.265 / H.264+ / H.264
Audio Audio via coaxial cable
Encoding Ability Up to 3K / 5M Lite @ 12 fps
Recording
Video Compression H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264
Storage
HDD 1 HDD
Key Features
Channel Capacity 4-channel 1080p 1U AcuSense DVR
Network Camera Capacity Up to 6 network cameras
Target Classification Human and vehicle target classification based on Deep Learning
Motion Detection Deep Learning-based Motion Detection 2.0
Perimeter Protection Human / Vehicle Analysis up to 2-ch
Facial Detection Facial Detection, Capture & Face Picture Search
Compression Technology H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264
Advanced 16-channel 1080p Mini 1U AcuSense DVR featuring Deep Learning-based Motion Detection 2.0, perimeter protection, human and vehicle classification, facial detection, H.265 Pro+ compression, and support for up to 24 IP cameras with resolutions up to 6 MP.
Technical Specifications
Perimeter Protection
Line Crossing Detection
4-ch
Intrusion Detection
4-ch
Facial Detection
Facial Detection & Capture
Face picture detection, face picture search
Motion Detection 2.0
Human / Vehicle Analysis
Deep learning-based motion detection 2.0 enabled by default for all analog channels, with human and vehicle classification to significantly reduce false alarms caused by objects such as leaves and lights
Quick Search
Quick search by object or event type
Video & Audio
IP Video Input
2-ch (up to 18-ch)
Enhanced IP Mode
8-ch (up to 24-ch), each up to 4 Mbps
IP Camera Resolution
Up to 6 MP
Supported IP Camera Compression
H.265+ / H.265 / H.264+ / H.264
Analog Video Input
16-ch BNC interfaces (1.0 Vp-p, 75 Ω), supporting Coaxitron connection
Video Input Support
HDTVI / AHD / CVI / CVBS / IP
Audio
Audio via coaxial cable
Encoding Ability
Up to 3K / 5M Lite @ 12 fps
Recording
Video Compression
H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264
Incoming Bandwidth
96 Mbps
Network
Remote Connection
128
Total Bandwidth
128 Mbps
Key Features
Channel Capacity
16-channel 1080p Mini 1U AcuSense DVR
IP Camera Capacity
Up to 24-ch IP cameras, up to 6 MP
Motion Detection
Deep Learning-based Motion Detection 2.0
Perimeter Protection
Line Crossing Detection / Intrusion Detection
Facial Detection
Facial Detection, Capture & Face Picture Search
Target Classification
Human and vehicle classification
Video Compression
H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264
```
```html
High-performance 32-channel Turbo HD DVR featuring Deep Learning-based Motion Detection 2.0 with human and vehicle classification, multiple video input formats, 2K Lite recording capability, H.265 Pro+ compression, and support for up to 18 IP cameras.
Technical Specifications
Intelligent Analytics
Intelligent Analytics by Recorder
Motion Detection 2.0
Human / Vehicle Analysis
Up to 32-ch analog cameras; supports human and vehicle classification to reduce false alarms
Video & Audio
Analog Video Input
32-ch BNC ports (1.0 Vp-p, 75 Ω)
Video Input Support
HDTVI / CVI / AHD / CVBS auto-detect
HDTVI Input
2K (2304 × 1296) @ 20 fps
1080P @ 25/30 fps
720P @ 25/30 fps
HDCVI Input
1080P @ 25/30 fps
720P @ 25/30 fps
HDTVI Two-Way Audio
32 channels via BNC
Audio
Audio over coaxial cable
IP Camera Input
Up to 18-ch IP cameras, up to 5 MP
Encoding Capability
Up to 2K Lite @ 10 fps / 2 MP Lite @ 15 fps
Recording
Stream Type
Video / Video & Audio
Video Compression
H.265 Pro+ / H.265 / H.264+ / H.264
Network
Incoming Bandwidth
40 Mbps
Outgoing Bandwidth
80 Mbps
Network Protocols
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP,
NFS, iSCSI, UPnP™, HTTPS, ONVIF, ISUP
API
ONVIF (Profile S/G), SDK, ISAPI, ISUP
Ports & Storage
SATA
2 SATA interfaces, up to 10 TB capacity for each disk
Serial Interface
1 × RS-485 (half-duplex)
Key Features
Channel Capacity
32-channel analog video input
Video Technologies
HDTVI / CVI / AHD / IP / CVBS
Motion Detection
Deep Learning-based Motion Detection 2.0
Target Classification
Human and vehicle target classification
Video Compression
H.265 Pro+ / H.265 / H.264+ / H.264
```

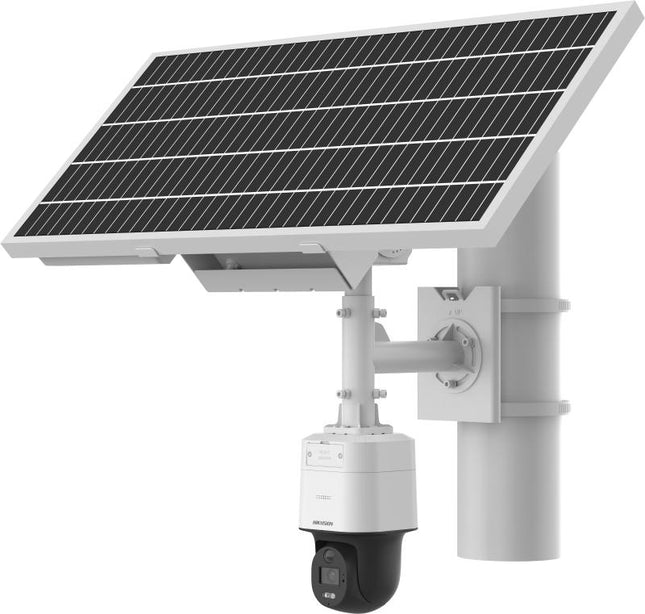

The DS-2XS3Q47G1-LDH/4G/C18S40 is a 4 MP ColorVu solar-powered security PT camera setup designed for reliable 24/7 colorful imaging. It features a standalone solar panel with built-in battery, efficient H.265+ compression, built-in two-way audio, and 4G LTE communication for real-time security monitoring.
Technical Specifications
Key Features
Product Model
DS-2XS3Q47G1-LDH/4G/C18S40
Product Type
4MP ColorVu Solar-powered Security PT Camera Setup
Image Resolution
4 MP
Power Solution
Standalone solar panel with built-in battery
Color Imaging
24/7 colorful imaging
Compression Technology
H.265+
Audio
Built-in two-way audio
Communication
4G (LTE-TDD / LTE-FDD / TD-SCDMA)
Camera
Image Sensor
1/3" Progressive Scan CMOS
Max. Resolution
2688 × 1520
Min. Illumination
Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light
Shutter Time
1/3 s to 1/100,000 s
Day & Night
24/7 color imaging
Angle Adjustment
Solar panel: Pan: 0° to 358°, Tilt: -40° to 0°
Camera: Pan: 0° to 340°, Tilt: -5° to 105°
Lens
Lens Type
Fixed focal lens, 4 mm and 6 mm optional
Iris Type
Fixed
Aperture
F1.0
Depth of Field
4 mm: 2.7 m to ∞
6 mm: 5.9 m to ∞
Focal Length & FOV
4 mm: Horizontal FOV: 75°, Vertical FOV: 40°, Diagonal FOV: 89°
6 mm: Horizontal FOV: 49°, Vertical FOV: 27°, Diagonal FOV: 57°
Lens Mount
M12

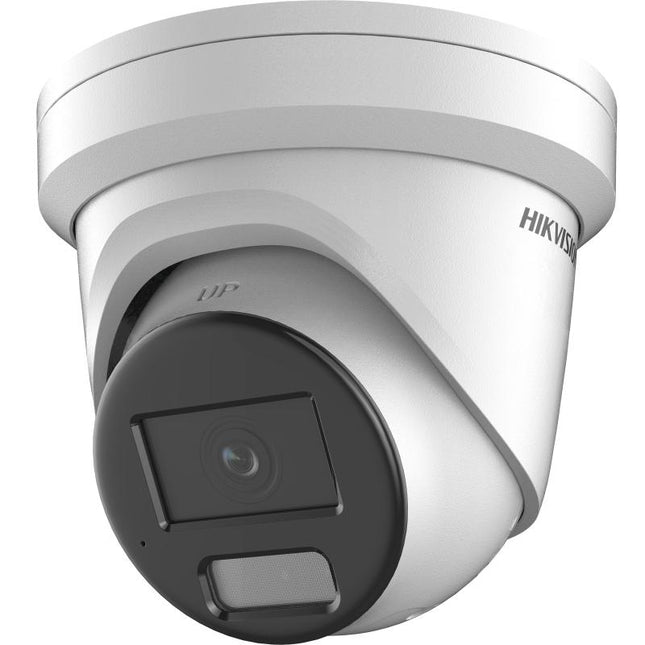

High-quality 2 MP ColorVu Fixed Turret Network Camera delivering 24/7 colorful imaging with excellent low-light performance. Features H.265+ compression, 120 dB WDR, deep-learning-based human and vehicle classification, built-in microphone, 30 m white light illumination, and IP67 water and dust resistance.
Technical Specifications
Key Features
Product Model
DS-2CD2327G2-LU 2MP
Product Type
2 MP ColorVu Fixed Turret Network Camera
Resolution
2 MP
Compression Technology
H.265+ / H.265 / H.264+ / H.264
WDR
120 dB
Smart Classification
Human and Vehicle Classification based on Deep Learning
Built-in Microphone
Yes (-U)
Color Imaging
24/7 Colorful Imaging
Weather Protection
IP67 Water and Dust Resistant
Camera
Image Sensor
1/2.8" Progressive Scan CMOS
Maximum Resolution
1920 × 1080
Minimum Illumination
Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with Light
Shutter Time
1/3 s to 1/100,000 s
Angle Adjustment
Pan: 0° to 360°
Tilt: 0° to 75°
Rotate: 0° to 360°
Lens
Lens Type
Fixed Focal Lens, 2.8 mm / 4 mm Optional
Focal Length & FOV
2.8 mm: H: 107°, V: 56°, D: 127°
4 mm: H: 84°, V: 45°, D: 99°
Lens Mount
M12
Iris Type
Fixed
Aperture
F1.0
Depth of Field
2.8 mm: 1.7 m to ∞
4 mm: 2.3 m to ∞
DORI
2.8 mm
D: 46 m, O: 18 m, R: 9 m, I: 4 m
4 mm
D: 56 m, O: 22 m, R: 11 m, I: 5 m
Illuminator
Supplement Light Type
White Light
Supplement Light Range
30 m
Smart Supplement Light
Yes
Video
Main Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 720)
60 Hz: 30 fps (1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360)
Third Stream
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
Third stream is supported under certain settings.
Video Compression
Main Stream: H.265 / H.264 / H.264+ / H.265+
Sub-Stream: H.265 / H.264 / MJPEG
Third Stream: H.265 / H.264
Third stream is supported under certain settings.
Video Bit Rate
32 Kbps to 8 Mbps
H.264 Type
Baseline Profile / Main Profile / High Profile
H.265 Type
Main Profile
Bit Rate Control
CBR / VBR
Scalable Video Coding (SVC)
H.264 and H.265 Encoding
Region of Interest (ROI)
1 Fixed Region for Main Stream and Sub-Stream
Audio
Audio Compression
-U: G.711ulaw / G.711alaw / G.722.1 / G.726 / MP2L2 / PCM / MP3 / AAC-LC
Audio Bit Rate
-U: 64 Kbps (G.711ulaw / G.711alaw)
16 Kbps (G.722.1)
16 Kbps (G.726)
32 to 192 Kbps (MP2L2)
8 to 320 Kbps (MP3)
16 to 64 Kbps (AAC-LC)
Audio Sampling Rate
-U: 8 kHz / 16 kHz / 32 kHz / 44.1 kHz / 48 kHz
Environment Noise Filtering
-U: Yes

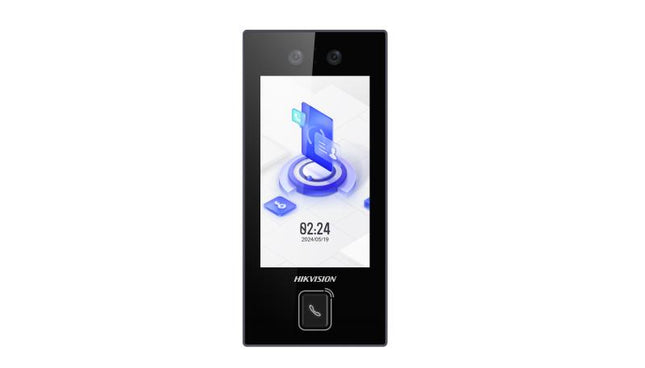

Value Series Face Access Terminal featuring a 4.5-inch LCD touch screen, 2 MP wide-angle lens, built-in M1 card reader, and fast face recognition. Supports face, card, and PIN authentication, two-way audio, mobile and PC web configuration, and standard PoE power supply with door lock power output.
Technical Specifications
Access Control
Product Model
DS-K1T344MX-E1
Product Type
Value Series Face Access Terminal
Face Capacity
Up to 3,000 Faces
Card Capacity
Up to 3,000 Cards
Authentication Methods
Face, Card, PIN
Face Recognition Distance
0.3 m to 1.5 m
Face Recognition Duration
< 0.2 s/User
Face Recognition Accuracy
≥ 99%
Card Reader
Built-in M1 Card Reading Module
Operation Method
Touchable
Buttons
Physical Button and Touch Button Supported
System
Operating System
Linux
Display
Screen Size
4.5-inch
Resolution
480 × 854
Type
LCD
Operation Method
Touchable
Video
Lens
2 MP Wide-Angle Lens
Video Standard
PAL (Default) / NTSC
Network
Wired Network
10/100 Mbps Self-Adaptive
Wi-Fi
Not Supported
Communication & Audio
Two-Way Audio
Supported with Client Software, Indoor Station, and Main Station
Configuration
Mobile Web and PC Web Supported
Power
Power Supply
Standard PoE
Door Lock Power Output
12 VDC / 1 A

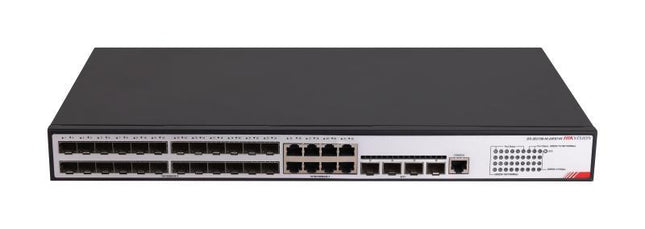

High-performance Smart L2+ switch featuring 24 Gigabit SFP ports, 8 Gigabit RJ45 ports, and 4 10G SFP ports. Its virtualization technology provides control and data link redundancy, enabling uninterrupted Layer-3 forwarding and improved network reliability. When the master device fails, traffic remains uninterrupted, helping avoid unplanned business downtime and improving overall network performance.
Technical Specifications
General Features
Product Model
DS-3E2736-HI-24F8T4X
Product Type
Smart L2+ Switch
Gigabit SFP Ports
24 × Gigabit Fiber Optical Ports
Gigabit RJ45 Ports
8 × Gigabit RJ45 Ports
10G SFP Ports
4 × 10G Fiber Optical Ports
Virtualization Technology
Supports device stacking with master and slave redundancy
Control Link Redundancy
Supported
Data Link Redundancy
Supported
Layer-3 Forwarding
Uninterrupted Layer-3 Forwarding
Master Device Failure Protection
Traffic remains uninterrupted when the master device fails
Surge Protection
6 kV
Network Parameters
Ports
8 × Gigabit RJ45 Port, 24 × Gigabit Fiber Optical Port,
4 × 10G Fiber Optical Port
MAC Address Table
32 K
Internal Cache
2.0 Mbits
Switching Capacity
Whole-Device Performance: 216 Gbps
Port Performance: 144 Gbps
Packet Forwarding Rate
Whole-Device Performance: 160.71 Mpps
Port Performance: 107.13 Mpps
General
Shell
Metal
Net Weight
3.20 kg (7.05 lb)
Gross Weight
4.40 kg (9.70 lb)
Dimensions (W × H × D)
440.00 mm × 260.00 mm × 43.60 mm
(17.32'' × 10.23'' × 1.71'')
Operating Temperature
-5 °C to 45 °C (23 °F to 113 °F)
Storage Temperature
-40 °C to 70 °C (-40 °F to 158 °F)
Operating Humidity
10% to 95% (no condensation)
Relative Humidity
5% to 95% (no condensation)
Power Supply
AC: 100 V to 240 V AC, 50/60 Hz
Installation Mode
Rack (equipped with mounting ears)
Maximum Power Consumption
54 W
Power Consumption in Idle
27 W
Surge Protection
6 kV

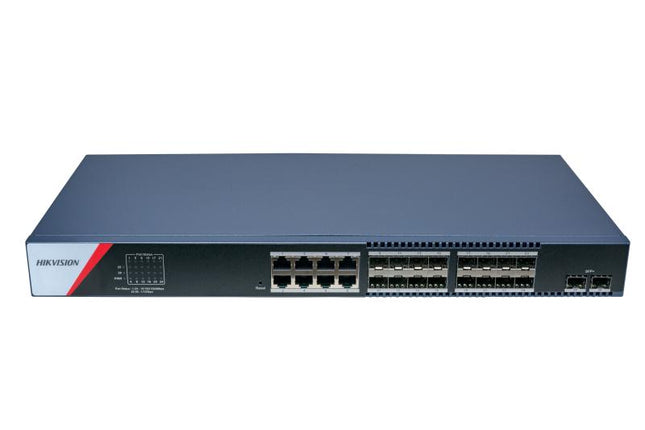

High-performance 26-port aggregation switch designed for reliable and efficient network connectivity, featuring Gigabit RJ45 and fiber optical ports, 10G fiber uplink ports, advanced network security, VLAN, loop prevention, energy-saving mode, and 6 kV surge protection.
Technical Specifications
General Features
Product Model
DS-3E1726-SI-16F8T2X
Product Type
26 Port Aggregation Switch
RJ45 Ports
8 × Gigabit RJ45 Ports
Gigabit Fiber Ports
16 × Gigabit Fiber Optical Ports
10G Fiber Ports
2 × 10G Fiber Optical Ports
Port Security
Supported
IP Source Guard
Supported
Energy Saving Mode
Supported with user-configurable plans
VLAN
Support IEEE 802.1Q VLAN Tagging
Loop Prevention
Support STP / RSTP / ERPS
Storm Control
Supported
Cable Detection
Supported for locating cable failures
Network Management
SNMP, QoS, DHCP Snooping, ARP Anti-Spoofing
Surge Protection
6 kV
Network Parameters
Ports
8 × Gigabit RJ45 Port, 16 × Gigabit Fiber Optical Port,
2 × 10G Fiber Optical Port
MAC Address Table
16 K
Switching Capacity
88 Gbps
Packet Forwarding Rate
65.47 Mpps
Internal Cache
8.4 Mbits
General
Shell
Metal Material
Net Weight
2.81 kg (6.19 lb)
Gross Weight
3.73 kg (8.22 lb)
Dimensions (W × H × D)
440.0 mm × 44.0 mm × 220.8 mm
(17.32'' × 1.73'' × 8.69'')
Operating Temperature
0 °C to 45 °C (0 °F to 113 °F)
Storage Temperature
-40 °C to 85 °C (-40 °F to 185 °F)
Operating Humidity
5% to 95% (no condensation)
Relative Humidity
5% to 95% (no condensation)
Power Supply
100 to 240 V AC, 50/60 Hz, Max. 2 A
Maximum Power Consumption
40 W
Power Consumption in Idle
7 W
Surge Protection
6 kV
Installation Mode
Rack (equipped with mounting ears)

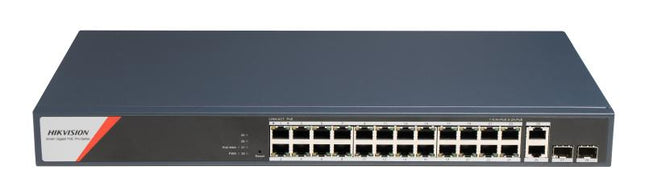

High-performance 24-port Gigabit Smart PoE switch designed for reliable network connectivity and power delivery, featuring a 370 W PoE budget, Hi-PoE support up to 90 W per port, VLAN, SNMP, QoS, DHCP snooping, loop prevention, and 6 kV surge protection.
Technical Specifications
General Features
Product Model
DS-3E1528HP-SI-24P2T2F
Product Type
24 Port Gigabit Smart PoE Switch
PoE Ports
24 × 10/100/1000 Mbps PoE Ports
RJ45 Ports
2 × 10/100/1000 Mbps RJ45 Ports
SFP Ports
2 × 10/100/1000 Mbps SFP Ports
Total PoE Power Budget
370 W
Maximum PoE Power per Port
Up to 90 W with 802.3bt Hi-PoE
VLAN
Support 802.1Q VLAN
Loop Prevention
Support STP / RSTP
Storm Control
Supported
Cable Detection
Supported for locating cable failures
Network Management
SNMP, QoS, DHCP Snooping
Surge Protection
6 kV
Network Parameters
Ports
24 × Gigabit PoE Port, 2 × Gigabit RJ45 Port, 2 × Gigabit Fiber Optical Port
MAC Address Table
8 K
Switching Capacity
Whole-Device Performance: 56 Gbps
Port Performance: 56 Gbps
Packet Forwarding Rate
Whole-Device Performance: 41.66 Mpps
Port Performance: 41.66 Mpps
Internal Cache
4.1 Mbits
General
Shell
Metal Material
Net Weight
2.975 kg (6.56 lb)
Gross Weight
3.535 kg (7.79 lb)
Dimensions (W × H × D)
440 mm × 44 mm × 220.8 mm
(17.32'' × 1.73'' × 8.69'')
Operating Temperature
0 °C to 45 °C (0 °F to 113 °F)
Storage Temperature
-40 °C to 85 °C (-40 °F to 185 °F)
Operating Humidity
5% to 95% (no condensation)
Relative Humidity
5% to 95% (no condensation)
Power Supply
100-240V~ 50/60Hz 6.3 A
Installation Mode
Desk-Mounted, Rack (equipped with mounting ears)
Maximum Power Consumption
400 W
Power Consumption in Idle
30 W
Surge Protection
6 kV

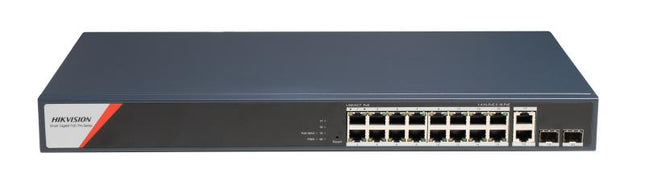

16-port Gigabit Smart PoE Switch featuring 16 × 10/100/1000 Mbps PoE ports,
2 × Gigabit RJ45 ports, 2 × Gigabit SFP ports, a 230 W total PoE power budget,
802.3bt Hi-PoE with up to 90 W on a single port, 802.1Q VLAN, STP/RSTP loop
prevention, storm control, cable detection, SNMP, QoS, DHCP snooping, and
6 kV surge protection for reliable network and surveillance applications.
Technical Specifications
Network Parameters
Ports
16 × Gigabit PoE ports, 2 × Gigabit RJ45 ports,
2 × Gigabit fiber optical ports
PoE Ports
16 × 10/100/1000 Mbps PoE ports
RJ45 Ports
2 × 10/100/1000 Mbps RJ45 ports
SFP Ports
2 × 10/100/1000 Mbps SFP ports
Total PoE Power Budget
230 W
MAC Address Table
8 K
Switching Capacity
Whole-Device Performance: 56 Gbps
Port Performance: 40 Gbps
Packet Forwarding Rate
Whole-Device Performance: 29.76 Mpps
Port Performance: 41.66 Mpps
Internal Cache
4.1 Mbits
PoE Features
PoE Standard
Supports IEEE 802.3bt Hi-PoE
Maximum Power per Port
Up to 90 W for one port
Total PoE Power Budget
230 W
Network Management
VLAN
Supports 802.1Q VLAN
Loop Prevention
Supports STP/RSTP
Storm Control
Supported
Cable Detection
Supports cable detection to locate failures
SNMP
Supported
QoS
Supported
DHCP Snooping
Supported
Protection
Surge Protection
6 kV
General
Model
DS-3E1520HP-SI-16P2T2F
Product Type
16 Port Gigabit Smart PoE Switch
Shell
Metal material
Net Weight
2.735 kg (6.03 lb)
Gross Weight
3.31 kg (7.30 lb)
Dimensions (W × H × D)
440 mm × 44 mm × 220.8 mm
(17.32" × 1.73" × 8.69")
Operating Temperature
0 °C to 45 °C (0 °F to 113 °F)
Storage Temperature
-40 °C to 85 °C (-40 °F to 185 °F)
Operating Humidity
5% to 95% (no condensation)
Relative Humidity
5% to 95% (no condensation)
Power Supply
100–240 V~ 50/60 Hz, 4 A
Installation Mode
Desk-Mounted, Rack (equipped with mounting ears)
Maximum Power Consumption
250 W
Power Consumption in Idle
20 W

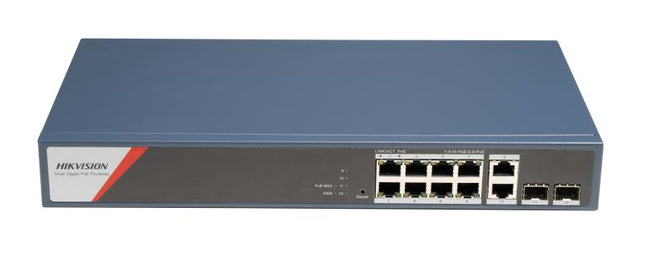

8-port Gigabit Smart PoE Switch featuring 8 × 10/100/1000 Mbps PoE ports,
2 × Gigabit RJ45 ports, 2 × Gigabit SFP ports, a 130 W total PoE power budget,
802.3bt Hi-PoE with up to 90 W on a single port, 802.1Q VLAN, STP/RSTP loop
prevention, storm control, cable detection, SNMP, QoS, DHCP snooping, and
6 kV surge protection for reliable network and surveillance applications.
Technical Specifications
Network Parameters
Ports
8 × Gigabit PoE ports, 2 × Gigabit RJ45 ports,
2 × Gigabit fiber optical ports
PoE Ports
8 × 10/100/1000 Mbps PoE ports
RJ45 Ports
2 × 10/100/1000 Mbps RJ45 ports
SFP Ports
2 × 10/100/1000 Mbps SFP ports
Total PoE Power Budget
130 W
MAC Address Table
8 K
Switching Capacity
Whole-Device Performance: 24 Gbps
Port Performance: 24 Gbps
Packet Forwarding Rate
Whole-Device Performance: 17.86 Mpps
Port Performance: 17.86 Mpps
Internal Cache
4.1 Mbits
PoE Features
PoE Standard
Supports IEEE 802.3bt Hi-PoE
Maximum Power per Port
Up to 90 W for one port
Total PoE Power Budget
130 W
Network Management
VLAN
Supports 802.1Q VLAN
Loop Prevention
Supports STP/RSTP
Storm Control
Supported
Cable Detection
Supports cable detection to locate failures
SNMP
Supported
QoS
Supported
DHCP Snooping
Supported
Protection
Surge Protection
6 kV
General
Model
DS-3E1512HP-SI-8P2T2F
Product Type
8 Port Gigabit Smart PoE Switch
Shell
Metal material
Net Weight
2.7 kg (5.9 lb)
Gross Weight
2.9 kg (6.4 lb)
Dimensions (W × H × D)
335 mm × 44.5 mm × 175.8 mm
(13.19" × 1.75" × 6.92")
Operating Temperature
0 °C to 45 °C (0 °F to 113 °F)
Storage Temperature
-40 °C to 85 °C (-40 °F to 185 °F)
Operating Humidity
5% to 95% (no condensation)
Relative Humidity
5% to 95% (no condensation)
Power Supply
100–240 V~ 50/60 Hz, 2.5 A
Installation Mode
Desk-Mounted, Rack (equipped with mounting ears)
Maximum Power Consumption
150 W
Power Consumption in Idle
20 W

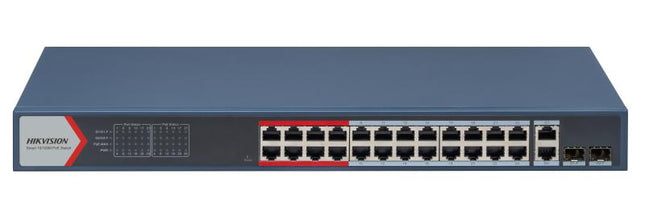

24-port Fast Ethernet Smart PoE Switch featuring 24 × 10/100 Mbps PoE ports,
2 × Gigabit combo ports, a 370 W total PoE power budget, up to 300 m long-range
PoE transmission, PoE watchdog, 802.1Q VLAN, STP/RSTP loop prevention,
cable detection, and 6 kV surge protection for reliable network connectivity
and IP surveillance applications.
Technical Specifications
Network Parameters
Ports
24 × 10/100 Mbps PoE ports, 2 × Gigabit combo ports
PoE Ports
24 × 10/100 Mbps PoE ports
Uplink Ports
2 × Gigabit combo ports
Total PoE Power Budget
370 W
MAC Address Table
16 K
Switching Capacity
Whole-Device Performance: 14.8 Gbps
Port Performance: 8.8 Gbps
Packet Forwarding Rate
Whole-Device Performance: 11.01 Mpps
Port Performance: 6.55 Mpps
Internal Cache
4 Mbits
PoE Features
Long Range PoE Transmission
Up to 300 m
PoE Watchdog
Detects and restarts cameras that do not respond
Network Management
VLAN
Supports 802.1Q VLAN
Loop Prevention
Supports STP/RSTP
Cable Detection
Supports cable detection to locate failures
Protection
Surge Protection
6 kV
General
Model
DS-3E1326P-EI
Product Type
24 Port Fast Ethernet Smart PoE Switch
Shell
Metal material
Net Weight
2.83 kg (6.24 lb)
Gross Weight
3.8 kg (8.38 lb)
Dimensions (W × H × D)
440.00 mm × 44.00 mm × 220.80 mm
(17.32" × 1.73" × 8.69")
Operating Temperature
0 °C to 45 °C (0 °F to 113 °F)
Storage Temperature
-40 °C to 85 °C (-40 °F to 185 °F)
Operating Humidity
5% to 95% (no condensation)
Relative Humidity
5% to 95% (no condensation)
Power Supply
100–240 VAC, 50/60 Hz, Max. 6.3 A
Installation Mode
Rack (equipped with mounting ears)
Maximum Power Consumption
400 W
Power Consumption in Idle
30 W

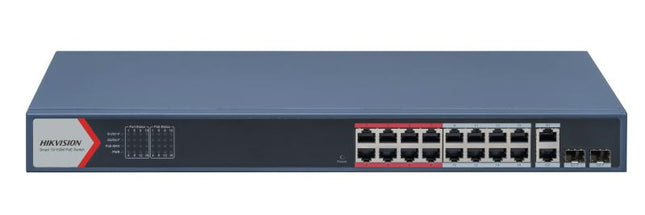

16-port Fast Ethernet Smart PoE Switch featuring 16 × 10/100 Mbps PoE ports,
2 × Gigabit combo ports, a 230 W total PoE power budget, up to 300 m long-range
PoE transmission, PoE watchdog, 802.1Q VLAN, STP/RSTP loop prevention,
cable detection, and 6 kV surge protection for reliable network connectivity
and IP surveillance applications.
Technical Specifications
Network Parameters
Ports
16 × 10/100 Mbps PoE ports, 2 × Gigabit combo ports
PoE Ports
16 × 10/100 Mbps PoE ports
Uplink Ports
2 × Gigabit combo ports
Total PoE Power Budget
230 W
PoE Features
Long Range PoE Transmission
Up to 300 m
PoE Watchdog
Detects and restarts cameras that do not respond
Network Management
VLAN
Supports 802.1Q VLAN
Loop Prevention
Supports STP/RSTP
Cable Detection
Supports cable detection to locate failures
Protection
Surge Protection
6 kV
General
Model
DS-3E1318P-EI
Product Type
16 Port Fast Ethernet Smart PoE Switch
Shell
Metal material
Net Weight
2.59 kg (5.71 lb)
Gross Weight
3.68 kg (8.11 lb)
Dimensions (W × H × D)
440.00 mm × 44.00 mm × 220.80 mm
(17.32" × 1.73" × 8.69")
Operating Temperature
0 °C to 45 °C (0 °F to 113 °F)
Storage Temperature
-40 °C to 85 °C (-40 °F to 185 °F)
Operating Humidity
5% to 95% (no condensation)
Relative Humidity
5% to 95% (no condensation)
Power Supply
100–240 VAC, 50/60 Hz, Max. 4 A
Installation Mode
Rack (equipped with mounting ears)
Maximum Power Consumption
250 W
Power Consumption in Idle
20 W

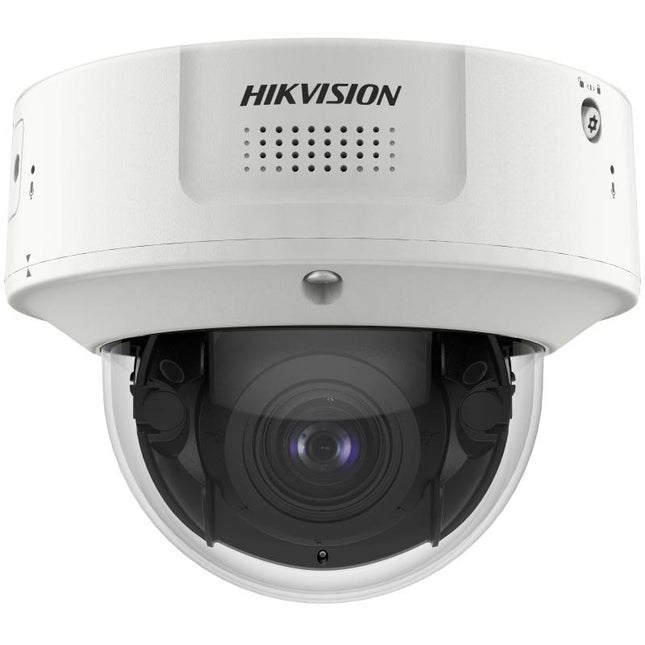

4MP DeepinView Moto Varifocal Dome Camera featuring DarkFighter 2.0 technology,
150 dB AWDR, ShotN technology, motorized varifocal lens, high frame rate up to
4MP at 60fps, H.265+ compression, built-in dual microphones and speaker,
G-sensor vibration detection, IP67 weather resistance, IK10 vandal resistance,
and NEMA 4X corrosion resistance for advanced professional surveillance.
Technical Specifications
Camera
Image Sensor
1/1.8" Progressive Scan CMOS
Maximum Resolution
2688 × 1520
Resolution
4 MP
Minimum Illumination
Color: 0.0005 Lux @ (F1.2, AGC ON)
B/W: 0.0001 Lux @ (F1.2, AGC ON)
B/W: 0 Lux with IR
Shutter Time
1 s to 1/100,000 s
Day & Night
IR cut filter, Blue glass module (less ghost phenomenon)
Angle Adjustment
Pan: 0° to 355°
Tilt: 0° to 75°
Rotate: 0° to 355°
Lens
Lens Type
Varifocal lens, motorized lens, 2.8 to 12 mm
Optional Lens
8 to 32 mm
Focal Length & FOV (2.8 to 12 mm)
Horizontal FOV: 114.6° to 41.8°
Vertical FOV: 59.3° to 23.6°
Diagonal FOV: 141.3° to 48.1°
Focal Length & FOV (8 to 32 mm)
Horizontal FOV: 42.5° to 15.2°
Vertical FOV: 23.4° to 8.7°
Diagonal FOV: 49.7° to 17.3°
Focus
Auto, Semi-auto, Manual
Iris Type
P-iris
Aperture (2.8 to 12 mm)
F1.38 to F2.53
Aperture (8 to 32 mm)
F1.7 to F1.73
Image Technology
Low-Light Technology
DarkFighter 2.0
Backlight Technology
150 dB AWDR
Shot Technology
ShotN technology for clearly capturing vehicles and humans at different speeds
High Frame Rate
Up to 2MP @ 120fps and 4MP @ 60fps
Compression
H.265+ compression technology
Streams
5 streams
Audio
Built-in Audio
Built-in dual microphones and speaker
Audio Function
Real-time audio security
Intelligent & Hardware Features
G-Sensor
Built-in G-sensor for vibration detection
Power Monitoring
Built-in power meter for voltage exception alarms and historical power statistics
Protection
Water & Dust Resistance
IP67
Vandal Resistance
IK10
Corrosion Resistance
NEMA 4X
General
Model
iDS-2CD7146G2-IZS (2.8-12mm)
Camera Type
4MP DeepinView Moto Varifocal Dome Camera
Resolution
4 MP
Lens
2.8 to 12 mm motorized varifocal lens
Optional Lens
8 to 32 mm

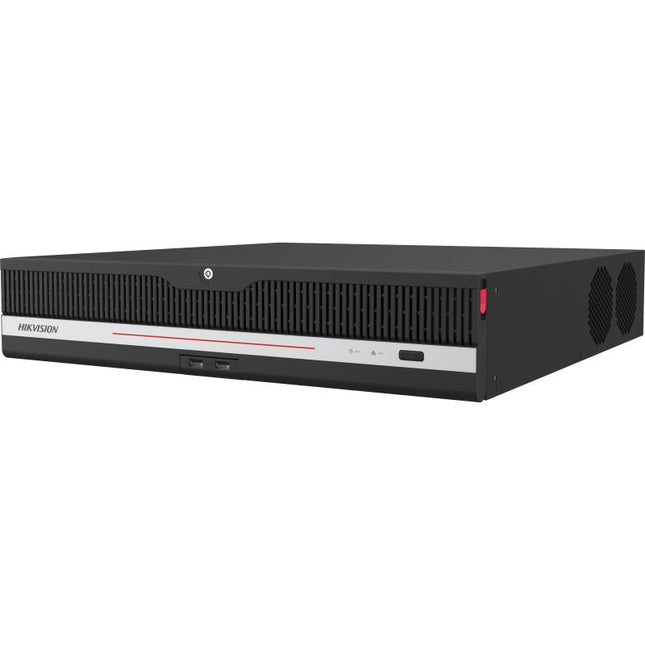

High-performance S Series NVR with AcuSense, supporting up to 64 IP cameras,
up to 32 MP resolution, 1 Gbps incoming bandwidth, 800 Mbps outgoing bandwidth,
up to 32-channel 1080p decoding, intelligent analytics, facial recognition,
perimeter protection, video structuralization, AcuSearch, RAID storage protection,
and HDMI video output up to 8K resolution.
Technical Specifications
Intelligent Analytics
AI by NVR
Facial recognition, perimeter protection, video structuralization
AI by Camera
Facial recognition, perimeter protection, video structuralization,
AcuSearch, Motion Detection 2.0, ANPR, people counting, VCA
AcuSearch by Camera
All channels, up to 345,600 targets per day
AcuSearch Note
The camera should enable AcuSearch function
Perimeter Protection
By NVR - Simultaneous Mode
8-ch, up to 2 MP
By NVR - Independent Mode
4-ch, up to 2 MP
By Camera
All channels
Video Structuralization
Structured Analysis - Simultaneous Mode
8-ch, up to 2 MP
Structured Analysis - Independent Mode
4-ch, up to 2 MP
Facial Recognition
Facial Detection and Analytics
Face picture comparison, human face capture, face picture search
Face Picture Library
Up to 64 face picture libraries, with up to 300,000 face pictures
in list library. Each picture ≤ 4 MB, total capacity ≤ 10 GB
Face Picture Comparison
16-ch; comparison speed: 24 pictures per second
Face Picture Comparison (Captured from Camera)
16-ch; comparison speed: 24 pictures per second
Facial Detection and Analytics Performance
Simultaneous mode: 8-ch, up to 2 MP;
Independent mode: 4-ch, up to 2 MP
Video and Audio
IP Video Input
64-ch
Maximum IP Video Resolution
Up to 32 MP
IP Camera Capacity
Up to 64-ch IP cameras
IP Speakers
Up to 8-ch IP speakers
Decoding
Decoding Capacity
Up to 32 × 1080p
Video Compression
H.265+ / H.265 / H.264+ / H.264
Network
Incoming Bandwidth
Up to 1 Gbps
Outgoing Bandwidth
Up to 800 Mbps
IP Camera Connections
Up to 64-ch IP cameras
Video Output
HDMI Video Output
Up to 8K resolution
Storage
RAID Support
RAID 0, RAID 1, RAID 5, RAID 6, RAID 10
Hot Spare
N+M hot spare
Storage Protection
RAID and N+M hot spare technology provides reliable data storage
and helps reduce data loss risks
General
Model
DS-9664NXI-S8
Series
S Series NVR with AcuSense
Maximum IP Camera Inputs
Up to 64-ch
Maximum Resolution
Up to 32 MP
Maximum Decoding
Up to 32 × 1080p
AI Features
Facial recognition, perimeter protection, video structuralization,
AcuSearch, Motion Detection 2.0, ANPR, people counting, and VCA
HDMI Output
Up to 8K resolution
IP Speakers
Up to 8-ch

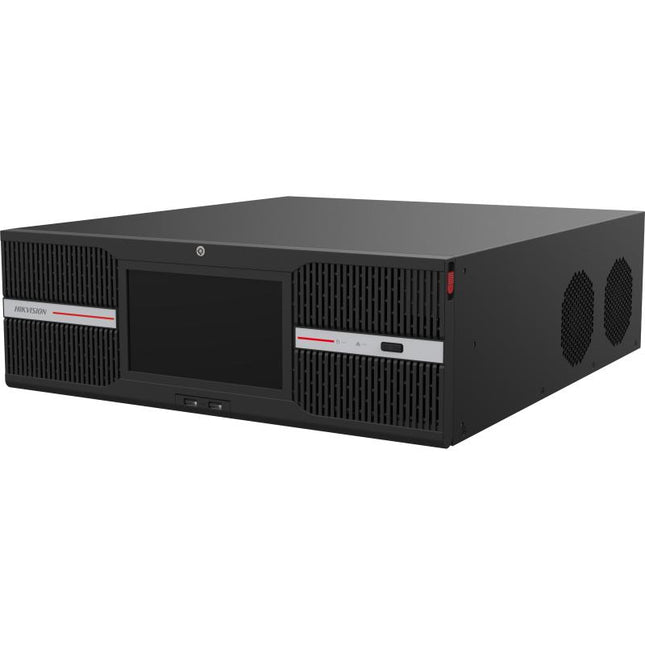

High-performance S Series NVR with AcuSense, supporting up to 256 IP cameras, up to 32 MP resolution, H.265+/H.265/H.264+/H.264 video formats, intelligent analytics, facial recognition, perimeter protection, video structuralization, AcuSearch, RAID storage protection, and HDMI video output up to 8K resolution.
Technical Specifications
Intelligent Analytics
AI by NVR
Facial recognition, perimeter protection, video structuralization
AI by Camera
Facial recognition, perimeter protection, video structuralization,
AcuSearch, Motion Detection 2.0, ANPR, people counting, VCA
AcuSearch by Camera
All channels, up to 345,600 targets per day
AcuSearch Note
The camera should enable AcuSearch function
Perimeter Protection
By NVR - Simultaneous Mode
8-ch, up to 2 MP
By NVR - Independent Mode
4-ch, up to 2 MP
By Camera
All channels
Video Structuralization
Structured Analysis - Simultaneous Mode
8-ch, up to 2 MP
Structured Analysis - Independent Mode
4-ch, up to 2 MP
Facial Recognition
Facial Detection and Analytics
Face picture comparison, human face capture, face picture search
Face Picture Library
Up to 64 face picture libraries, with up to 300,000 face pictures
in list library. Each picture ≤ 4 MB, total capacity ≤ 10 GB
Face Picture Comparison
16-ch; comparison speed: 24 pictures per second
Face Picture Comparison from Camera
16-ch; comparison speed: 24 pictures per second
Facial Detection and Analytics Performance
Simultaneous mode: 8-ch, up to 2 MP;
Independent mode: 4-ch, up to 2 MP
Video and Audio
IP Video Input
256-ch
Maximum IP Video Resolution
Up to 32 MP
IP Camera Capacity
Up to 256-ch IP cameras
IP Speakers
Up to 8-ch IP speakers
Decoding
Decoding Capacity
Up to 32 × 1080p
Video Compression
H.265+ / H.265 / H.264+ / H.264
Video Output
HDMI Video Output
Up to 8K resolution
Storage
RAID Support
RAID 0, RAID 1, RAID 5, RAID 6, RAID 10
Hot Spare
N+M hot spare
Storage Protection
RAID and N+M hot spare technology provides reliable data storage
and helps reduce data loss risks
General
Model
DS-96256NXI-S16
Series
S Series NVR with AcuSense
Maximum IP Camera Inputs
Up to 256-ch
Maximum Resolution
Up to 32 MP
Maximum Decoding
Up to 32 × 1080p
AI Features
Facial recognition, perimeter protection, video structuralization,
AcuSearch, Motion Detection 2.0, ANPR, people counting, and VCA
HDMI Output
Up to 8K resolution
IP Speakers
Up to 8-ch
High-performance 128-channel 3U 8K NVR designed for professional surveillance systems, supporting up to 128 IP camera inputs, up to 32 MP resolution, 400 Mbps incoming and outgoing bandwidth, 8K video output, advanced streaming technology, RAID storage protection, specialist camera support, redundant power supply, and up to 8-channel IP speakers.
Technical Specifications
Video and Audio
IP Video Input
128-ch
Maximum IP Video Resolution
Up to 32 MP
High-Resolution IP Inputs
Up to 8-ch 32/24/16 MP IP video inputs
Incoming Bandwidth
400 Mbps
Outgoing Bandwidth
400 Mbps
IP Speakers
Up to 8-ch IP speakers
Specialist Camera Support
People counting cameras, ANPR (Automatic Number Plate Recognition) cameras, and fisheye cameras
Streaming Technology
Advanced streaming technology enables smooth live view in poor network conditions
Audio Input
1-ch, RCA (2.0 Vp-p, 1 KΩ)
Audio Output
2-ch, RCA (Linear, 1 KΩ)
Two-Way Audio
1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
Video Output
HDMI 1 Output
8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz,
4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz,
1920 × 1080/60Hz, 1600 × 1200/60Hz,
1280 × 1024/60Hz, 1280 × 720/60Hz,
1024 × 768/60Hz
HDMI 2 Output
4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz,
2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz,
1600 × 1200/60Hz, 1280 × 1024/60Hz,
1280 × 720/60Hz, 1024 × 768/60Hz
HDMI Output Limitation
When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p
VGA 1 Output
1920 × 1080/60Hz, 1280 × 1024/60Hz,
1280 × 720/60Hz, 1024 × 768/60Hz
VGA 2 Output
1920 × 1080/60Hz, 1280 × 1024/60Hz,
1280 × 720/60Hz, 1024 × 768/60Hz
Video Output Mode
HDMI 1 and VGA 1 provide simultaneous video output and work as the main output;
HDMI 2 and VGA 2 provide simultaneous video output and work as the auxiliary output
CVBS Output
1-ch, BNC (1.0 Vp-p, 75 Ω), resolution:
PAL: 704 × 576, NTSC: 704 × 480
Decoding
Decoding Capacity
Up to 40 × 1080p @ 30fps
Video Compression
H.265+ / H.265 / H.264+ / H.264
Network
IP Camera Connections
Up to 128-ch IP cameras
Incoming Bandwidth
400 Mbps
Outgoing Bandwidth
400 Mbps
Network Performance
Advanced streaming technology enables smooth live view in poor network conditions
Special Camera Support
People counting cameras, ANPR cameras, and fisheye cameras
Storage
RAID Support
RAID 0, RAID 1, RAID 5, RAID 6, RAID 10
Hot Spare
N+M hot spare
Storage Protection
RAID and N+M hot spare technology provides reliable data storage and helps reduce data loss risks
General
Model
DS-96128NI-M16/R
NVR Type
128-ch 3U 8K NVR
Maximum IP Camera Inputs
Up to 128-ch
Maximum Decoding Capacity
Up to 40 × 1080p @ 30fps
Video Outputs
2 × HDMI (different source) and 2 × VGA (different source)
Maximum Video Output
8K or dual 4K
Redundant Power Supply
Supported
High-performance 128-channel 2U 8K NVR designed for professional surveillance systems, supporting up to 128 IP camera inputs, up to 32 MP resolution, 400 Mbps incoming and outgoing bandwidth, 8K video output, advanced streaming technology, RAID storage protection, specialist camera support, and up to 8-channel IP speakers.
Technical Specifications
Video and Audio
IP Video Input
128-ch
Maximum IP Video Resolution
Up to 32 MP
High-Resolution IP Inputs
Up to 8-ch 32/24/16 MP IP video inputs
Incoming Bandwidth
400 Mbps
Outgoing Bandwidth
400 Mbps
IP Speakers
Up to 8-ch IP speakers
Specialist Camera Support
People counting cameras, ANPR (Automatic Number Plate Recognition) cameras, and fisheye cameras
Streaming Technology
Advanced streaming technology enables smooth live view in poor network conditions
Audio Output
2-ch, RCA (Linear, 1 KΩ)
Two-Way Audio
1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
Video Output
HDMI 1 Output
8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz,
4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz,
1920 × 1080/60Hz, 1600 × 1200/60Hz,
1280 × 1024/60Hz, 1280 × 720/60Hz,
1024 × 768/60Hz
HDMI 2 Output
4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz,
2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz,
1600 × 1200/60Hz, 1280 × 1024/60Hz,
1280 × 720/60Hz, 1024 × 768/60Hz
HDMI Output Limitation
When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p
VGA 1 Output
1920 × 1080/60Hz, 1280 × 1024/60Hz,
1280 × 720/60Hz, 1024 × 768/60Hz
VGA 2 Output
1920 × 1080/60Hz, 1280 × 1024/60Hz,
1280 × 720/60Hz, 1024 × 768/60Hz
Video Output Mode
HDMI 1 and VGA 1 provide simultaneous video output and work as the main output;
HDMI 2 and VGA 2 provide simultaneous video output and work as the auxiliary output
CVBS Output
1-ch, BNC (1.0 Vp-p, 75 Ω), resolution:
PAL: 704 × 576, NTSC: 704 × 480
Decoding
Decoding Capacity
Up to 40 × 1080p @ 30fps
Video Compression
H.265+ / H.265 / H.264+ / H.264
Network
IP Camera Connections
Up to 128-ch IP cameras
Incoming Bandwidth
400 Mbps
Outgoing Bandwidth
400 Mbps
Streaming Technology
Smooth live view in poor network conditions
Special Camera Support
People counting cameras, ANPR cameras, and fisheye cameras
Storage
RAID Support
RAID 0, RAID 1, RAID 5, RAID 6, RAID 10
Hot Spare
N+M hot spare
Storage Protection
RAID and N+M hot spare technology provides reliable data storage and helps reduce data loss risks
General
Model
DS-96128NI-M8
NVR Type
128-ch 2U 8K NVR
Maximum IP Camera Inputs
Up to 128-ch
Maximum Decoding Capacity
Up to 40 × 1080p @ 30fps
Video Outputs
2 × HDMI (different source) and 2 × VGA (different source)
Maximum Video Output
8K or dual 4K
High-performance 64-channel 2U 8K NVR designed for continuous professional video surveillance, supporting up to 64 IP cameras, up to 32 MP resolution, 400 Mbps incoming and outgoing bandwidth, 8 HDDs for continuous recording, 8K video output, advanced streaming technology, RAID protection, specialist camera support, and up to 8-channel IP speakers.
Technical Specifications
Video and Audio
IP Video Input
64-ch
Maximum IP Video Resolution
Up to 32 MP
High-Resolution IP Inputs
Up to 8-ch 32/24/16 MP IP video inputs
Incoming Bandwidth
400 Mbps
Outgoing Bandwidth
400 Mbps
IP Speakers
Up to 8-ch IP speakers
Specialist Camera Support
People counting cameras, ANPR (Automatic Number Plate Recognition) cameras, and fisheye cameras
Streaming Technology
Advanced streaming technology enables smooth live view in poor network conditions
Live View / Storage / Playback
Up to 12 MP high-definition live view, storage and playback
Audio Output
2-ch, RCA (Linear, 1 KΩ)
Two-Way Audio
1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
Video Output
HDMI 1 Output
8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz,
4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz,
1920 × 1080/60Hz
HDMI 2 Output
4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz,
2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz
HDMI Output Limitation
When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p
VGA 1 Output
1920 × 1080/60Hz
VGA 2 Output
1920 × 1080/60Hz
Video Output Mode
HDMI 1 and VGA 1 provide simultaneous video output and work as the main output;
HDMI 2 and VGA 2 provide simultaneous video output and work as the auxiliary output
CVBS Output
1-ch, BNC (1.0 Vp-p, 75 Ω), resolution:
PAL: 704 × 576, NTSC: 704 × 480
Decoding
Decoding Format
H.265+ / H.265 / H.264+ / H.264
Decoding Capacity
Up to 40 × 1080p @ 30fps
Network
Network Bandwidth
400 Mbps incoming / 400 Mbps outgoing
IP Camera Connections
Up to 64 channel IP cameras
Advanced Streaming
Smooth live view in poor network conditions
Storage
Hard Disk Support
Up to 8 HDDs
Recording
Supports continuous video recording
RAID Support
RAID 0, RAID 1, RAID 5, RAID 6, RAID 10
Hot Spare
N+1 hot spare
Storage Protection
RAID and N+1 hot spare technology provides reliable data storage and helps reduce data loss risks
General
Model
DS-9664NI-M8/R
NVR Type
64-ch 2U 8K NVR
Maximum IP Camera Inputs
Up to 64 channels
Maximum Live View / Storage / Playback
Up to 12 MP high-definition
Video Outputs
2 × HDMI (different source) and 2 × VGA (different source)
Maximum Video Output
8K or dual 4K
Professional 32-channel 2U 4K AcuSense NVR featuring intelligent deep-learning analytics, advanced facial recognition, perimeter protection, AcuSearch, and Motion Detection 2.0. Supports up to 32 IP camera inputs, 320 Mbps incoming bandwidth, up to 32-channel 1080p decoding, and advanced AI-powered security analytics for accurate human and vehicle detection.
Technical Specifications
Video and Audio
NVR Type
32-ch 2U 4K AcuSense NVR
IP Video Input
Up to 32-ch
Incoming Bandwidth
Up to 320 Mbps
Decoding Capability
Up to 32-ch 1080p
Video Compression
H.265+ / H.265 / H.264+ / H.264
Intelligent Analytics
AI by NVR
Facial recognition, perimeter protection, Motion Detection 2.0, AcuSearch
AI by Camera
Facial recognition, perimeter protection, video structuralization,
throwing objects from building, Motion Detection 2.0, ANPR,
people counting, VCA
AI Engine
1 engine; engine mode is adjustable
AcuSearch
AcuSearch Support
Supports AcuSearch on all channels when cameras support Hikvision AcuSense Technology and AcuSearch is enabled
AcuSearch Performance
Capable of modeling up to 300,000 targets per day
Perimeter Protection
By Camera
All channels
By NVR
4-ch, 2 MP (H.264/H.265) video analysis for human and vehicle recognition to reduce false alarms
Perimeter Rules
Up to 12 rules in total
Perimeter Protection Capacity
Up to 4-ch
Facial Recognition
Facial Recognition for Video Stream
Up to 4-ch
Facial Recognition for Face Picture
Up to 8-ch
Face Detection and Analytics
Face picture comparison, human face capture, face picture analytics
Face Picture Libraries
Up to 16 face picture libraries with up to 50,000 face pictures in total
Face Picture Size
Each picture ≤ 512 KB; total capacity ≤ 1 GB
Facial Detection and Analytics Performance
4-ch human face capture with HD network cameras, up to 8 MP, H.264/H.265
Face Picture Comparison
8-ch
Motion Detection 2.0
By Camera
All channels
By NVR
All channels for Hikvision cameras
Target Recognition
Human & Vehicle Recognition
Intelligent human and vehicle recognition based on deep learning algorithms
Deep Learning Analytics
Intelligent analytics based on deep learning algorithm
General
Model
DS-9632NXI-I8/S
NVR Type
32-ch 2U 4K AcuSense NVR
Maximum IP Camera Inputs
Up to 32-ch
Maximum Decoding Capacity
Up to 32-ch 1080p
AI Technology
Deep Learning / AcuSense
6 MP Smart Hybrid Light Motion 2.0 Motorized Varifocal Dome Network Camera designed for reliable indoor and outdoor surveillance. It delivers high-quality 6 MP imaging, Human and Vehicle Detection, long-range Smart Hybrid Light, efficient H.265+ compression, 120 dB WDR, 3D DNR, built-in microphone, motorized varifocal lens, and on-board storage support up to 512 GB. The camera is water and dust resistant with IP67 protection and vandal resistant with IK10 protection.
Technical Specifications
Camera
Model
DS-2CD3761G2-LIZSU(2.7-13.5mm)
Image Sensor
1/2.4" Progressive Scan CMOS
Maximum Resolution
3200 × 1800
Minimum Illumination
Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Shutter Time
1/3 s to 1/100,000 s
Day & Night
IR Cut Filter
Angle Adjustment
Pan: 0° to 355°, Tilt: 0° to 75°, Rotate: 0° to 355°
Detection
Human and Vehicle Detection
Lens
Lens Type
Varifocal lens, motorized lens, 2.7 to 13.5 mm
Focal Length & FOV
2.7 to 13.5 mm
Horizontal FOV: 106° to 35.6°
Vertical FOV: 55.9° to 20°
Diagonal FOV: 127.4° to 40.8°
Lens Mount
Ø14
Iris Type
Fixed
Aperture
Max. F1.6
Depth of Field
Wide: 1 m to ∞
Tele: 4 m to ∞
DORI
Wide
D: 68.1 m, O: 27 m, R: 13.6 m, I: 6.8 m
Tele
D: 200 m, O: 79.4 m, R: 40 m, I: 20 m
Illuminator
Supplement Light Type
IR, White Light
Supplement Light Range
Up to 30 m
Smart Supplement Light
Yes
IR Wavelength
850 nm
Video
Main Stream
50 Hz: 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
Third Stream
50 Hz: 1 fps (640 × 360)
60 Hz: 1 fps (640 × 360)
Video Compression
Main Stream: H.265+ / H.265 / H.264+ / H.264
Sub-Stream: H.265 / H.264 / MJPEG
Third Stream: H.265 / H.264
Video Bit Rate
32 Kbps to 8 Mbps
H.264 Type
Baseline Profile, Main Profile, High Profile
H.265 Type
Main Profile
Bit Rate Control
CBR, VBR
Region of Interest (ROI)
1 fixed region for main stream and sub-stream
Audio
Audio Type
Mono sound
Environment Noise Filtering
Yes
Audio Sampling Rate
8 kHz / 16 kHz
Audio Compression
G.711 / G.722.1 / G.726 / MP2L2 / PCM / AAC-LC
Audio Bit Rate
64 Kbps (G.711ulaw/G.711alaw) /
16 Kbps (G.722.1) /
16 Kbps (G.726) /
32 to 160 Kbps (MP2L2) /
16 to 64 Kbps (AAC-LC)
Key Features
Resolution
6 MP
Smart Hybrid Light
IR + White Light with long-range illumination
Motion Detection
Motion 2.0
Human & Vehicle Detection
Supported
Wide Dynamic Range
120 dB WDR
Noise Reduction
3D DNR
Audio
Built-in Microphone for real-time audio security
On-board Storage
Up to 512 GB SD Card
Installation
Power over Ethernet (PoE)
Protection
Water & Dust Resistance
IP67
Vandal Resistance
IK10
