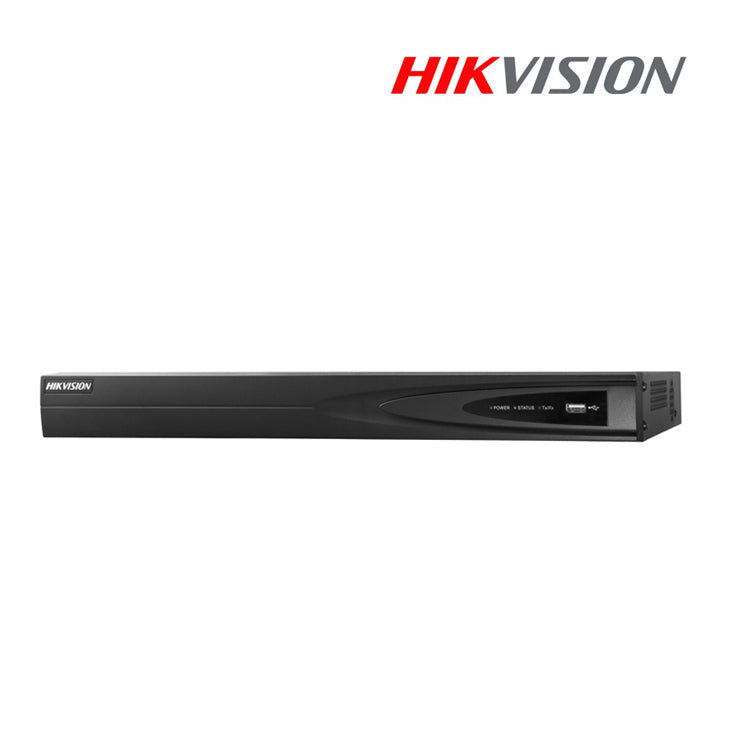

DS-7616NI-Q2 , HIKVISION Embedded NVR

VendorHIKVISION
Share
- WhatsApp
- Share
- X
- Pin it
- Messenger
- Email

Description

16 ch input, 160Mbps Bit Rate Input Max (up to 16-ch IP video), 2 SATA interfaces, 1U case, 19'' ABOUT

Video/Audio Input
Two-way audio input:		1-ch, RCA (2.0 Vp-p, 1kΩ)
IP video input:		16-ch

Network
Remote connection:		128
Incoming bandwidth:		160Mbps
Outgoing bandwidth:		80Mbps

Video/Audio Output
HDMI/VGA output:		1-ch, resolution: 1920 × 1080P /60Hz, 1600 × 1200 /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz, 1024 × 768 /60Hz
Recording Resolution:		6MP/5MP/4MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Frame Rate:		Main stream: 50 fps (P) / 60 fps (N) Sub-stream: 50 fps (P) / 60 fps (N)
Audio Output:		1-ch, RCA (Linear, 1kΩ)
Synchronous Playback:		16-ch

Decoding
Capability:		6-ch@1080P
Live view / Playback:		6MP/5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF

Hard Disk
SATA:		2 SATA interfaces for 2 HDDs
Capacity:		Up to 4TB for each disk

External Interface
Network Interface:		1RJ-45 10/100/1000Mbps self-adaptive Ethernet interface
USB Interface:		1 × USB 2.0 and 1 × USB 3.0
Alarm In:		4-ch(optional)
Alarm Out:		1-ch(optional)

General
Power Supply:		12V DC
Consumption(without hard disk and POE):		≤ 10W
Working Temperature:		-10 oC ~ 55 oC ( 14 oF~ 131 oF)
Working Humidity:		10 % ~ 90 %
Chassis:		380 chassis
Dimensions:		380 × 290 × 48mm (15.0 ×11.4 × 1.9 inch)
Weight(without HDD):		≤ 1 kg

Product form

SKU: DS-7616NI-Q2

DS-7616NI-Q2 , HIKVISION Embedded NVR

VendorHIKVISION
Share
- WhatsApp
- Share
- X
- Pin it
- Messenger
- Email

Rs 61,067.15

Price inclusive of VAT

or pay in 3 x Rs 21,780.61 with

(incl. 7% convenience fee)

Found the price a bit high?

Call or WhatsApp us — we will connect you with a dealer or work out a special price for you. You can also split it with KOKO, pay in 3 easy installments.

Call 0750900900 WhatsApp us

Island-Wide Delivery

Fast, tracked delivery across Sri Lanka

2 Year Warranty

Full manufacturer warranty included

Genuine Products

100% original with local warranty support

Expert Support

Talk to our IT specialists anytime

Payment methods

Visa

Mastercard

Amex

Koko : Buy now, pay later

7% service fee

Bank Details

Bank NameCommercial Bank of Ceylon PLC

Account NameIT Gallery Computers (PVT) Ltd

Account No1810029986

BranchJa-ela

SWIFT CodeCCEYLKLX

Please use your order number as the payment reference and email the transfer receipt to orders@itgallery.lk

Description

16 ch input, 160Mbps Bit Rate Input Max (up to 16-ch IP video), 2 SATA interfaces, 1U case, 19'' ABOUT

Video/Audio Input
Two-way audio input:		1-ch, RCA (2.0 Vp-p, 1kΩ)
IP video input:		16-ch

Network
Remote connection:		128
Incoming bandwidth:		160Mbps
Outgoing bandwidth:		80Mbps

Video/Audio Output
HDMI/VGA output:		1-ch, resolution: 1920 × 1080P /60Hz, 1600 × 1200 /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz, 1024 × 768 /60Hz
Recording Resolution:		6MP/5MP/4MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Frame Rate:		Main stream: 50 fps (P) / 60 fps (N) Sub-stream: 50 fps (P) / 60 fps (N)
Audio Output:		1-ch, RCA (Linear, 1kΩ)
Synchronous Playback:		16-ch

Decoding
Capability:		6-ch@1080P
Live view / Playback:		6MP/5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF

Hard Disk
SATA:		2 SATA interfaces for 2 HDDs
Capacity:		Up to 4TB for each disk

External Interface
Network Interface:		1RJ-45 10/100/1000Mbps self-adaptive Ethernet interface
USB Interface:		1 × USB 2.0 and 1 × USB 3.0
Alarm In:		4-ch(optional)
Alarm Out:		1-ch(optional)

General
Power Supply:		12V DC
Consumption(without hard disk and POE):		≤ 10W
Working Temperature:		-10 oC ~ 55 oC ( 14 oF~ 131 oF)
Working Humidity:		10 % ~ 90 %
Chassis:		380 chassis
Dimensions:		380 × 290 × 48mm (15.0 ×11.4 × 1.9 inch)
Weight(without HDD):		≤ 1 kg
