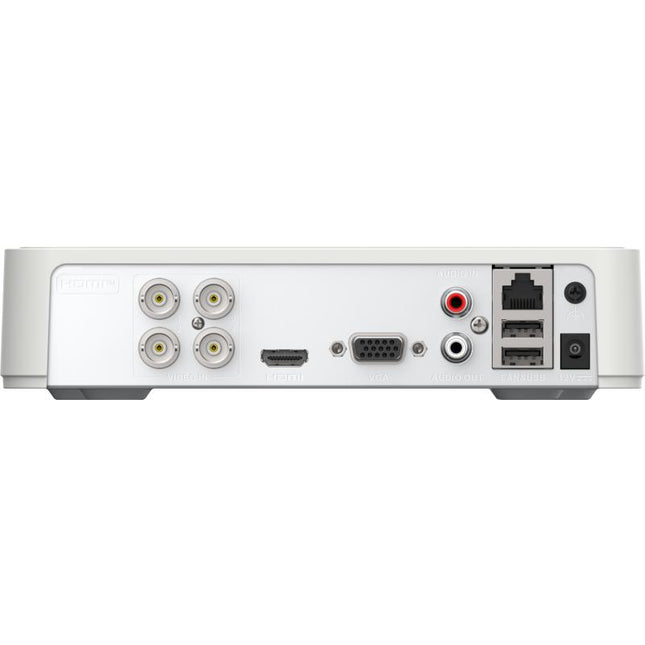

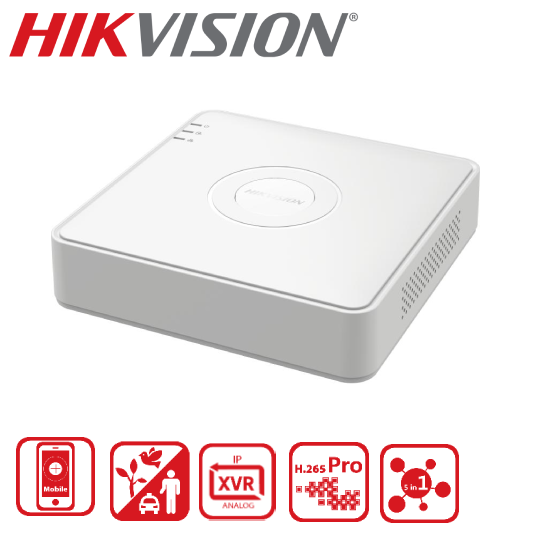

4-ch 1080p Lite Mini 1U H.265 DVR
Support all channels motion detection technology
H.265 Pro+/H.265 Pro/H.265 video compression
HDTVI/CVI/AHD/IP/CVBS video inputs
Audio over coaxial cable
Support all channels HDTVI two-way audio technology
Up to 5-ch IP camera inputs

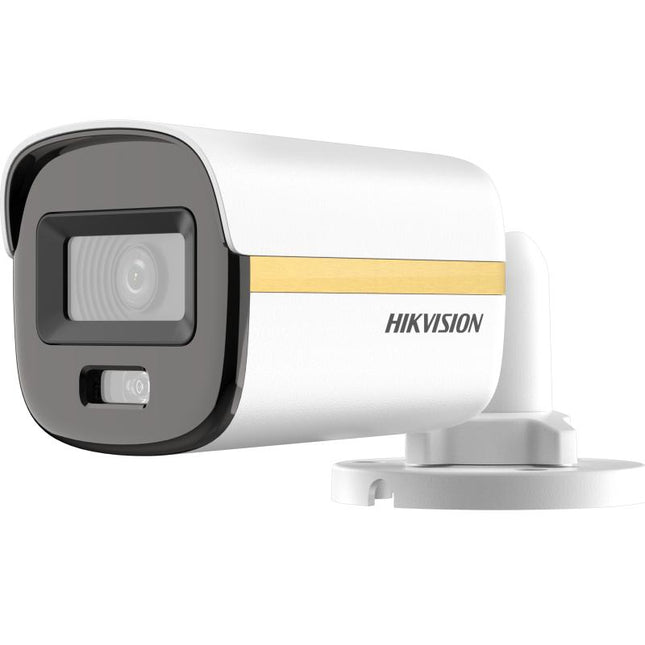

High-performance 2 MP security camera with 24/7 color imaging, ultra-low light sensitivity, slow shutter support up to 16×, and dual fixed focal lens options for reliable day and night surveillance.
Product Specifications
Camera
Image Sensor
2 MP CMOS
Max. Resolution
1920 (H) × 1080 (V)
Minimum Illumination
0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
Shutter Time
PAL: 1/25 s to 1/50,000 s
NTSC: 1/30 s to 1/50,000 s
Day & Night
24/7 Color Imaging
Signal System
PAL / NTSC
Slow Shutter
Max. 16 times
Angle Adjustment
Pan: 0°–360°, Tilt: 0°–75°, Rotation: 0°–360°
Lens
Lens Type
2.8 mm / 3.6 mm fixed focal lens
Field of View (2.8 mm)
Horizontal FOV: 98°
Vertical FOV: 52°
Diagonal FOV: 116°
Field of View (3.6 mm)
Horizontal FOV: 77°
Vertical FOV: 42°
Diagonal FOV: 91°
Lens Mount
M12
High-performance 2 MP security camera featuring 24/7 color imaging, ultra-low light sensitivity, slow shutter support up to 16×, and multiple fixed focal lens options for flexible surveillance coverage.
Product Specifications
Camera
Image Sensor
2 MP CMOS
Max. Resolution
1920 (H) × 1080 (V)
Minimum Illumination
0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
Shutter Time
PAL: 1/25 s to 1/50,000 s
NTSC: 1/30 s to 1/50,000 s
Day & Night
24/7 Color Imaging
Signal System
PAL / NTSC
Slow Shutter
Max. 16 times
Angle Adjustment
Pan: 0°–360°, Tilt: 0°–180°, Rotation: 0°–360°
Lens
Lens Type
2.8 mm / 3.6 mm / 6 mm fixed focal lens
Field of View (2.8 mm)
Horizontal FOV: 98°
Vertical FOV: 52°
Diagonal FOV: 116°
Field of View (3.6 mm)
Horizontal FOV: 77°
Vertical FOV: 42°
Diagonal FOV: 91°
Field of View (6 mm)
Horizontal FOV: 51°
Vertical FOV: 28°
Diagonal FOV: 59°
Lens Mount
M12

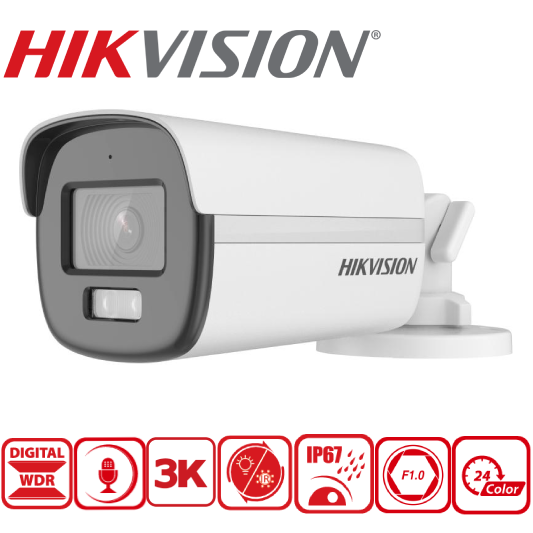

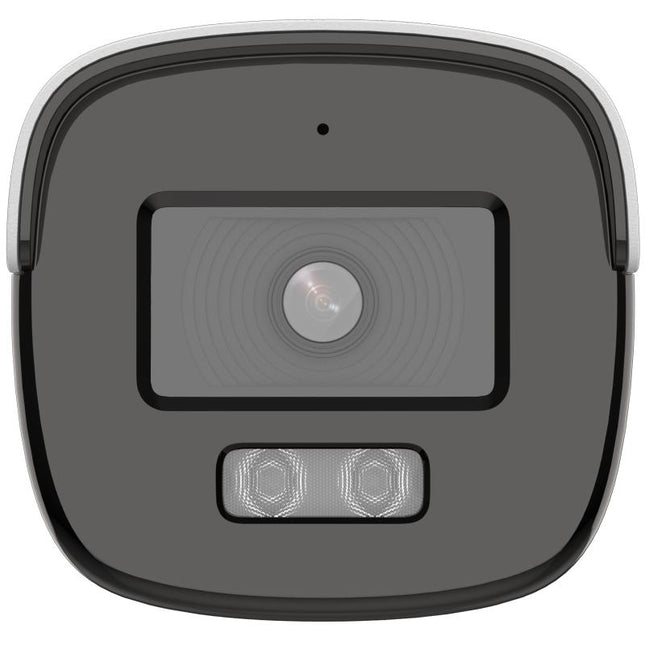

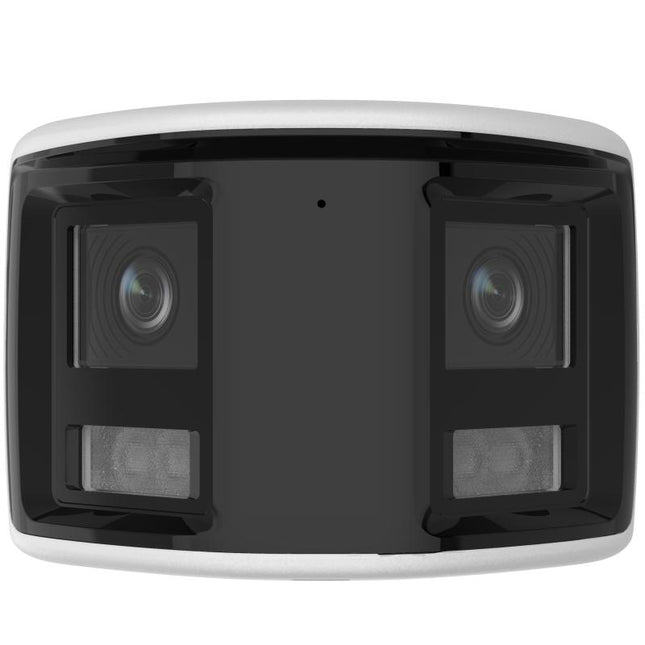

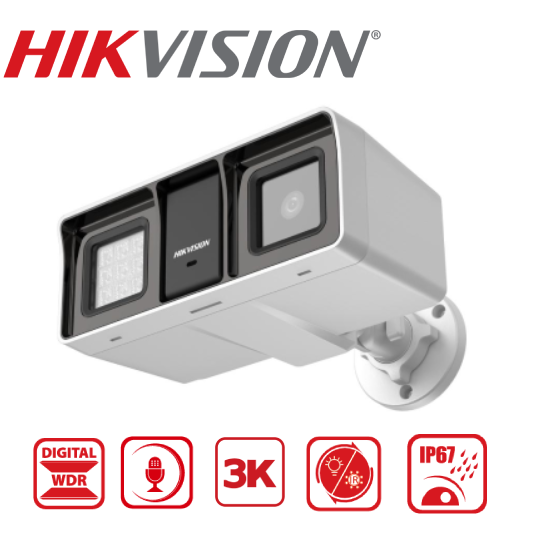

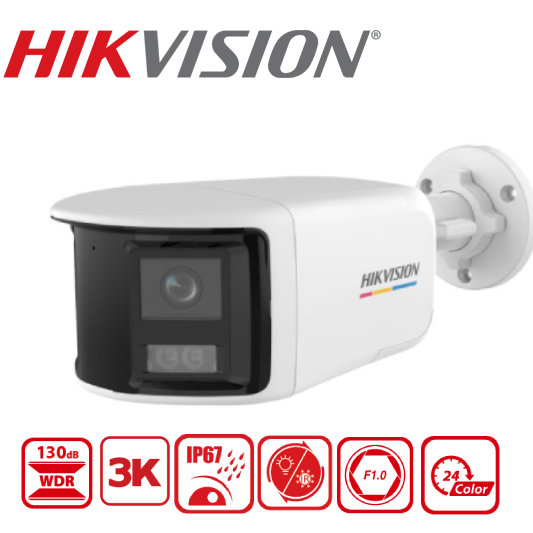

Ultra-wide angle 3K security camera with high-resolution imaging, exceptional low-light performance, slow shutter up to 16×, and a 2.8 mm fixed focal lens delivering a panoramic 180° field of view.
Product Specifications
Camera
Image Sensor
3K CMOS
Max. Resolution
3328 (H) × 1504 (V)
Slow Shutter
Max. 16 times
Minimum Illumination
0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
Shutter Time
1/20 s to 1/50,000 s
Angle Adjustment
Pan: 0°–360°, Tilt: 0°–75°, Rotation: 0°–360°
Lens
Lens Type
2.8 mm fixed focal lens
Focal Length & FOV
Horizontal FOV: 180°
Vertical FOV: 75°
Lens Mount
M12

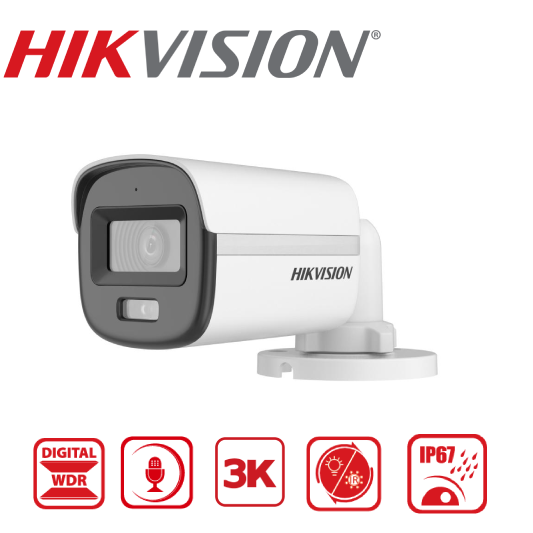

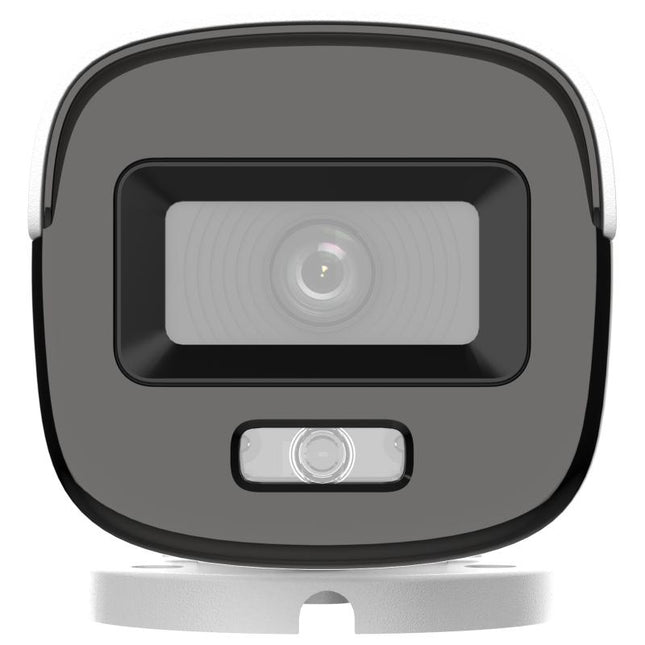

High-performance 3K security camera with ultra-low light sensitivity, slow shutter support up to 16×, and dual fixed focal lens options for flexible day and night surveillance.
Product Specifications
Camera
Image Sensor
3K CMOS
Signal System
PAL / NTSC
Max. Resolution
2960 (H) × 1665 (V)
Slow Shutter
Max. 16 times
Minimum Illumination
0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
Shutter Time
PAL: 1/25 s to 1/50,000 s
NTSC: 1/30 s to 1/50,000 s
Angle Adjustment
Pan: 0°–360°, Tilt: 0°–75°, Rotation: 0°–360°
Lens
Lens Type
2.8 mm / 3.6 mm fixed focal lens
Focal Length & FOV (2.8 mm)
Horizontal FOV: 105°
Vertical FOV: 59°
Diagonal FOV: 139°
Focal Length & FOV (3.6 mm)
Horizontal FOV: 80°
Vertical FOV: 49°
Diagonal FOV: 105°
Lens Mount
M12
High-performance 3K security camera with ultra-low light sensitivity, slow shutter support up to 16×, and dual fixed focal lens options for reliable day and night surveillance.
Product Specifications
Camera
Image Sensor
3K CMOS
Signal System
PAL / NTSC
Max. Resolution
2960 (H) × 1665 (V)
Slow Shutter
Max. 16 times
Minimum Illumination
0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
Shutter Time
PAL: 1/25 s to 1/50,000 s
NTSC: 1/30 s to 1/50,000 s
Angle Adjustment
Pan: 0°–360°, Tilt: 0°–90°, Rotation: 0°–360°
Lens
Lens Type
2.8 mm / 3.6 mm fixed focal lens
Focal Length & FOV (2.8 mm)
Horizontal FOV: 105°
Vertical FOV: 59°
Diagonal FOV: 139°
Focal Length & FOV (3.6 mm)
Horizontal FOV: 80°
Vertical FOV: 49°
Diagonal FOV: 105°
Lens Mount
M12

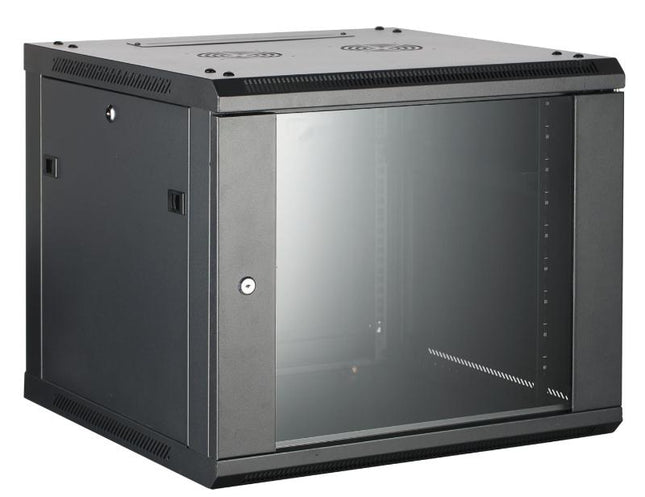

Wall-mounted 6U network cabinet designed for secure and efficient equipment installation, featuring a tempered glass front door, durable SPCC steel construction, and a static load capacity of up to 40 kg.
Product Specifications
General Specifications
Installation Method
Wall-mounted
Internal Space
6U
Static Load Capacity
40 kg
Dimensions & Weight
Dimensions (W × D × H)
600 × 600 × 370 mm
Net Weight
19.5 kg
Door & Ventilation
Opening Percentage (Front Door)
78%
Opening Percentage (Rear Door)
0%
Front Door
4 mm Glass Door, 1.0 mm SPCC Frame
Material Specifications
Front & Rear Frame
1.2 mm SPCC
Side Panel
1.0 mm SPCC
Beam
1.2 mm SPCC
Top Cover
1.0 mm SPCC
Bottom Panel
1.0 mm SPCC
Vertical Rail
1.5 mm SPCC
Rear Panel
1.0 mm SPCC
Mounting Bracket
1.2 mm SPCC

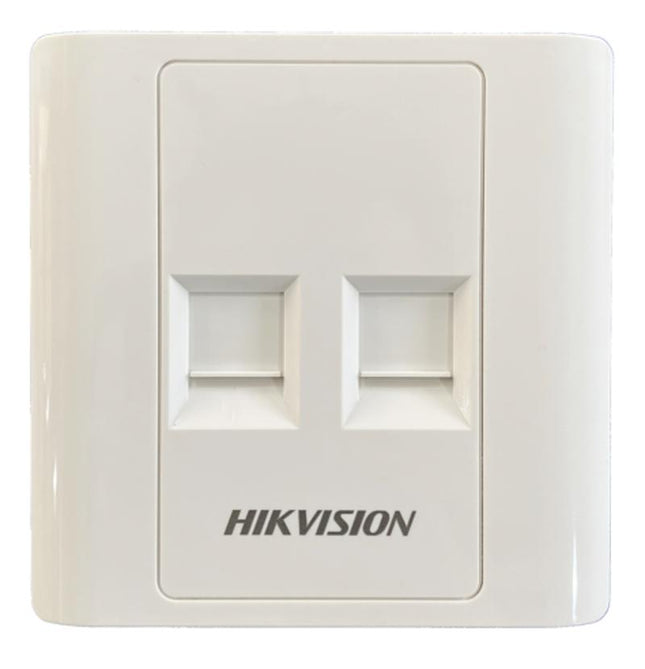

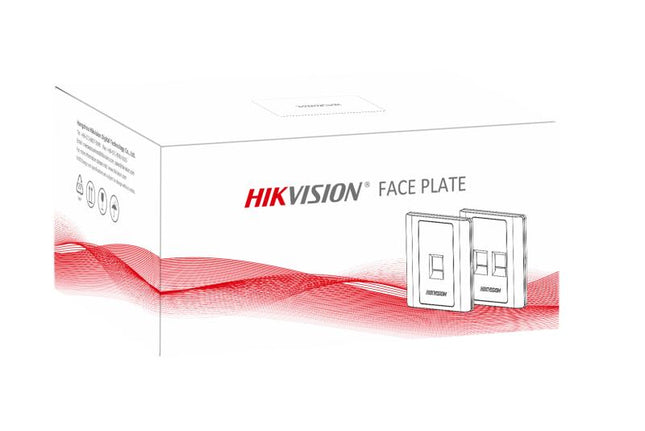

Two-port face plate designed for clean and secure wall installations, featuring a sliding dust cover, UL 94 V-0 fire resistance, and durable ABS construction for structured cabling systems.
Product Specifications
Category
Product Category
Face Plate
Fire Resistance
UL 94 V-0
General Specifications
Color
White
Integrated Dust Cover Type
Sliding
Outlet Orientation
Flat
Total Ports
2
Material Specifications
Material Type
Acrylonitrile Butadiene Styrene (ABS)
Dimensions
Height
86.0 mm
Width
86.0 mm
Depth
14.5 mm
Packaging & Weights
Packaging Type
Box
Package Dimensions
230 × 155 × 100 mm
Net Weight
48 g / pc
Gross Weight
1053 g / box
Packaging Quantity
20 pcs
The DS-1M01 connector is designed for reliable electrical performance, featuring gold-plated copper alloy contacts, durable polycarbonate housing, and long insertion life for professional networking and low-voltage applications.
Product Specifications
General
Model
DS-1M01
Max Current
1.5 A @ 25 ℃
Max Voltage
≤ 150 VAC
Electrical Characteristics
Insulation Resistance
≥ 1000 MΩ @ 100 V DC
Withstand Voltage
1 kV AC RMS
Contact Resistance
≤ 20 mΩ
Mechanical Performance
Tensile Strength
50 N for 60 s ± 5 s
Insert / Extraction Life
≥ 750 Cycles
Environmental
Operating Temperature
-25 ℃ to +55 ℃
Storage Temperature
-10 ℃ to +40 ℃
Relative Humidity
< 80%
Material Specifications
Plug Housing
Polycarbonate, UL94V-2
Conductor
Copper Alloy with 15 μinch Gold Plating
Cat 6 unshielded keystone jack with UL 94 V-0 fire resistance, gold-plated contacts, IDC termination, and long service life, designed for reliable structured cabling installations.
Product Specifications
Category
Product Category
Keystone Jack
Fire Resistance
UL 94 V-0
General Specifications
Color
White, Blue
ANSI/TIA Category
Category 6
Cable Type
Unshielded
Conductor Type
Solid, Stranded
Integrated Dust Cover
None
Termination Type
IDC
Wiring
TIA 568A, TIA 568B
Material Specifications
Conductor
Phosphor Bronze
Housing
PC
IDC
PC
IDC Cap
PC
Termination Contact Plating
50 μinch Gold
Electrical Characteristics
DC Resistance
≤ 20 mΩ
Current Rating
1.5 A @ 20 °C
Dielectric Withstand Voltage (Conductive Surface)
1,000 Vac @ 60 s
Dielectric Withstand Voltage (Contact-to-Contact)
1,000 Vac @ 60 s
Insulation Resistance
≥ 500 MΩ
Mechanical Specifications
Plug to Jack Mating Cycles
≥ 750 Times
Compatible Conductor Gauge (Solid)
22–24 AWG
Compatible Conductor Gauge (Stranded)
22–24 AWG
Dimensions
Height
20.05 mm
Width
16.80 mm
Depth
32.55 mm
1U horizontal cable management panel designed for organized rack cabling, featuring durable cold-rolled steel construction and support for up to 24 ports in standard 19-inch racks.
Product Specifications
Category
Product Category
Horizontal Cable Management
General Specifications
Color
Black
Total Ports
24
Rack Unit
1U
Material Specifications
Material Type
Cold-Rolled Steel
Dimensions
Height
44.4 mm
Width
483 mm
Depth
74 mm
Packaging & Weights
Packaging Type
Box
Net Weight
80 g
Package Dimensions
500 × 105 × 58 mm
Packaging Quantity
1
Accessories
Included Accessories
Nuts: 4 pcs, Screws: 4 pcs
Cat 6 U/UTP outdoor network cable with solid bare copper conductors, PE sheath, separator structure, and weather-resistant design for outdoor installations.
Product Specifications
General
Category
Cat 6
Structure
U/UTP
Fire Resistance
None
Usage Scenario
Outdoor
Conductor
Material
Solid Bare Copper
Diameter
0.552 ± 0.005 mm (23 AWG)
Insulation
Insulation Diameter
0.98 ± 0.05 mm
Sheath
Sheath Material
PE
Sheath Color
Black
Structure & Packaging
Length
305 ± 1.5 m
Rip Cord
Yes
Separator
Yes
High-quality Cat.6 U/UTP network cable with solid bare copper conductors, HDPE insulation, separator design, and verified compliance with international cabling standards.
Product Specifications
General
Category Cat.6
Rip-cord Yes
Separator Yes
Fire Resistance No
Sheath Printing HIKVISION 4PR 23AWG 75°C U/UTP CAT6 VERIFIED TO ANSI/TIA-568-C.2 PVC ****m mm/dd/yyyy Tracing Code-HS
Reference Standard ISO/IEC 11801, ANSI/TIA-568-C.2, RoHS 2.0
Conductor
Material Solid Bare Copper (99.95%)
Diameter 0.55 ± 0.005 mm (23 AWG)
Insulation
Material HDPE
Diameter 0.98 ± 0.05 mm
Sheath Physical Properties
Before Aging – Tensile Strength ≥ 13.5 MPa
Before Aging – Elongation ≥ 150%
Aging Period 100 °C × 24 h × 10 days
After Aging – Tensile Strength ≥ 12.5 MPa
After Aging – Elongation ≥ 125%
Cold Bend Test -20 ± 2 °C × 4 h, 8 × cable O.D., no visible cracks
2 MP Smart Hybrid Light Fixed Bullet Network Camera
High quality imaging with 2 MP resolution
Support Human and Vehicle Detection
Smart Hybrid Light: advanced technology with long range
Built-in microphone for real-time audio security
Water and dust resistant (IP67)
Efficient H.265+ compression technology
Support on-board storage up to 512 GB (SD card slot) (Optional)
