High-resolution 3K security camera with advanced CMOS imaging, infrared night vision, true day & night (ICR), and a wide-angle 2.8 mm fixed focal lens for detailed monitoring.
Product Specifications
Camera
Image Sensor
3K CMOS
Max. Resolution
2960 (H) × 1665 (V)
Minimum Illumination
0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/25 s to 1/50,000 s
NTSC: 1/30 s to 1/50,000 s
Day & Night
ICR
Angle Adjustment
Pan: 0°–360°, Tilt: 0°–75°, Rotation: 0°–360°
Signal System
PAL / NTSC
Lens
Lens Type
2.8 mm fixed focal lens
Focal Length & FOV
Horizontal FOV: 105°
Vertical FOV: 62°
Diagonal FOV: 132°
Lens Mount
M12
The Hikvision DS-2CE16K0T-EXLPF is a 3K Smart Hybrid Light fixed outdoor bullet camera engineered for ultra-sharp high-definition surveillance. Featuring a high-resolution 3K image sensor, smart dual-light illumination up to 20 meters, IP67 weather resistance, and a durable bullet casing, it delivers crisp and detailed outdoor monitoring around the clock.
Product Specifications
Camera & Imaging
Image Sensor 3K CMOS Sensor
Max. Resolution 2960 (H) × 1665 (V)
Frame Rate 3K @ 20fps, 1080p @ 25fps / 30fps
Min. Illumination 0.02 Lux @ (F2.2, AGC ON), 0 Lux with IR
Lens & Illumination
Lens Type 2.8 mm or 3.6 mm fixed focal lens
Field of View 101° (2.8 mm) / 80° (3.6 mm)
Smart Hybrid Light Range Up to 20 m IR / White Light range
Interface
Video Output Switchable TVI / AHD / CVI / CVBS
General & Environment
Operating Power 12 VDC ± 25%
Protection Level IP67
Operating Conditions -40 °C to 60 °C, humidity: 90% or less
Material & Dimensions Plastic Body, Ø70 mm × 138.8 mm
Weight Approx. 150 g
2MP Full HD security camera with ultra-low light sensitivity, 24/7 color imaging, and a motorized auto-focus varifocal lens for flexible and precise surveillance coverage.
Product Specifications
Camera
Image Sensor
2 MP CMOS
Max. Resolution
1920 (H) × 1080 (V)
Minimum Illumination
0.0003 Lux @ (F1.29, AGC ON), 0 Lux with white light
Shutter Time
PAL: 1/25 s to 1/50,000 s
NTSC: 1/30 s to 1/50,000 s
Day & Night
24/7 Color Imaging
Angle Adjustment
Pan: 0°–360°, Tilt: 0°–75°, Rotation: 0°–360°
Signal System
PAL / NTSC
Lens
Lens Type
2.8 mm to 12 mm motorized lens, auto focus
Focal Length & FOV
Horizontal FOV: 92.3° to 34.2°
Vertical FOV: 48.4° to 19°
Diagonal FOV: 112.2° to 39.2°
Lens Mount
Φ24
2MP Full HD security camera with ultra-low light performance, 24/7 color imaging, slow shutter support, flexible angle adjustment, and fixed focal lens options.
Product Specifications
Camera
Image Sensor
2 MP CMOS
Max. Resolution
1920 (H) × 1080 (V)
Minimum Illumination
0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
Shutter Time
PAL: 1/25 s to 1/50,000 s
NTSC: 1/30 s to 1/50,000 s
Day & Night
24/7 Color Imaging
Angle Adjustment
Pan: 0°–360°, Tilt: 0°–75°, Rotation: 0°–360°
Signal System
PAL / NTSC
Slow Shutter
Max. 16 times
Lens
Lens Type
2.8 mm / 3.6 mm fixed focal lens
Focal Length & FOV (3.6 mm)
Horizontal FOV: 77°
Vertical FOV: 42°
Diagonal FOV: 91°
Lens Mount
M12
2MP Full HD security camera with ultra-low light sensitivity, 24/7 color imaging, slow shutter support, wide angle adjustment up to 180° tilt, and a 3.6mm fixed focal lens.
Product Specifications
Camera
Image Sensor
2 MP CMOS
Max. Resolution
1920 (H) × 1080 (V)
Minimum Illumination
0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
Shutter Time
PAL: 1/25 s to 1/50,000 s
NTSC: 1/30 s to 1/50,000 s
Day & Night
24/7 Color Imaging
Angle Adjustment
Pan: 0°–360°, Tilt: 0°–180°, Rotation: 0°–360°
Signal System
PAL / NTSC
Slow Shutter
Max. 16 times
Lens
Lens Type
3.6 mm fixed focal lens
Focal Length & FOV
Horizontal FOV: 77°
Vertical FOV: 42°
Diagonal FOV: 91°
Lens Mount
M12
2MP Full HD security camera with ultra-low light sensitivity, 24/7 color imaging, slow shutter support, and fixed focal lens options for wide-area monitoring.
Product Specifications
Camera
Image Sensor 2 MP CMOS
Max. Resolution 1920 (H) × 1080 (V)
Minimum Illumination 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
Shutter Time PAL: 1/25 s to 1/50,000 sNTSC: 1/30 s to 1/50,000 s
Day & Night 24/7 Color Imaging
Angle Adjustment Pan: 0°–350°, Tilt: 0°–75°*Do not adjust the angle of the main body or enclosure manually.
Signal System PAL / NTSC
Slow Shutter Max. 16 times
Lens
Lens Type Fixed focal lens, 2.8 mm / 3.6 mm optional
Focal Length & FOV (2.8 mm) Horizontal FOV: 106°Vertical FOV: 57°Diagonal FOV: 126°
Lens Mount M12
Android-based built-in system designed for digital signage and multimedia control, supporting multiple video resolutions, flexible connectivity, low standby power consumption, and stable operation in commercial environments.
Product Specifications
Built-in System
Operating System Android 8.1.0
CPU Cortex-A17, Quad-Core, 1.6 GHz
Memory 2 GB RAM
Storage 16 GB eMMC
Interfaces
Video & Audio Input Audio In × 1
Video & Audio Output Audio Out × 1, HDMI Out × 1
Network Interface LAN × 1, Wi-Fi
Data Transmission Interface USB 2.0 × 2, Bluetooth 4.0
Video Output Capability
Supported Resolutions 1920 × 1080 @ 30 / 50 / 60 Hz1280 × 720 @ 30 / 50 / 60 Hz3840 × 2160 @ 30 / 50 / 60 Hz
Power
Power Supply 12 VAC, 2 A
Standby Consumption ≤ 1 W
Working Environment
Working Temperature 0 °C to 40 °C (32 °F to 104 °F)
21.5-inch Full HD display with E-LED backlight, high contrast ratio, smooth 100 Hz refresh rate, and reliable long-duration operation, ideal for commercial and professional environments.
Product Specifications
Display
Screen Size 21.5 inch
Resolution 1920 × 1080 (Full HD)
Active Display Area 478.65 (H) × 260.28 (V) mm
Aspect Ratio 16 : 9
Backlight E-LED
Image Performance
Brightness 250 cd/m²
Contrast Ratio 3000 : 1
Color Depth 8-bit (16.7 Million colors)
Color Gamut 72% NTSC
Response Time GTG 7 ms (Typ.), MPRT 1 ms
Refresh Rate 100 Hz
Viewing Angle 178° (H) / 178° (V)
Surface & Reliability
Pixel Pitch 0.2493 (H) × 0.241 (V) mm
Surface Haze / Hardness 25% Haze, 3H
Reliability 7 × 16 Hours
Interfaces
Video & Audio Input HDMI 1.4 × 1, VGA × 1
Video & Audio Output Audio Out
Data Transmission Interface None
Control Interface None
Power
Power Supply DC 12V, 2.0A
Power Consumption ≤ 24 W
Standby Consumption ≤ 0.5 W

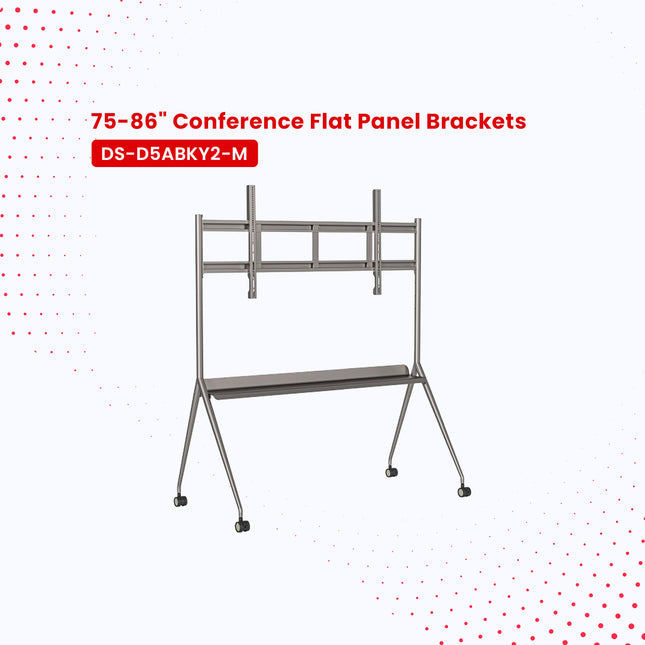

Heavy-duty display stand built with high-quality SPCC steel, designed to securely support large-format displays up to 86 inches, offering excellent load capacity, stability, and professional finish.
Product Specifications
General
Available Screen Sizes 75″ / 86″
Color Silver Gray
Material SPCC high-quality steel plate
Surface Treatment Sheet metal spraying
Bracket & Load Capacity
Maximum Load Capacity 100 kg
Shelf Size 1300 × 750 × 1710 mm
Dimensions & Weight
Package Dimensions (W × H × D) 1650 × 780 × 150 mm (65.0″ × 30.7″ × 5.9″)
Net Weight 21.2 kg
Gross Weight 24.5 kg
Compact infrared remote control designed for interactive displays and smart devices, offering reliable operation, low power consumption, and ergonomic design.
Product Specifications
General
Color Black
Remote Control Type Infrared
Operating Distance ≤ 10 m
Power
Power Supply DC 3 V
Battery Type AAA dry cell batteries (1.5 V × 2)
Environment
Working Temperature -5 °C to 45 °C
Working Humidity ≤ 90% RH
Physical & Packaging
Product Dimensions 148.65 × 32.25 × 15.9 mm
Net Weight 10 g
Package Dimensions (W × D × H) 190 × 37 × 65 mm (7.5″ × 1.5″ × 2.5″)
Gross Weight 20 g
Lightweight and durable touch pen designed for interactive displays and touch screens, featuring an ergonomic polyethylene body and smooth writing performance.
Product Specifications
General
Color Black
Material Polyethylene
Physical
Product Dimensions 156 mm × 11 mm
Net Weight 10 g
Packaging
Package Dimensions (W × D × H) 190 × 37 × 65 mm (7.5″ × 1.5″ × 2.5″)
Gross Weight 20 g
Packing List Touch Pen × 2
Professional 360-degree omnidirectional MEMS microphone array with advanced beamforming and 3A algorithms, combined with a high-quality built-in speaker, designed for conference rooms, classrooms, and collaboration spaces.
Product Specifications
Microphone System
Microphone Type MEMS
Direction 360° Omni-directional
Pickup Distance Up to 5 m radius
Number of Microphones 8
Frequency Response 100 Hz – 8 kHz
Sensitivity -38 dBV/Pa
Signal-to-Noise Ratio (SNR) 65 dB
Sampling Rate 16 kHz / 32 kHz / 48 kHz
Audio Processing
Special Algorithms Beamforming
3A Algorithms AEC, ANS, AGC
Speaker
Rated Power 3 W
Maximum Output Loudness 81 dB SPL @ 1 m, 1 kHz
Speaker Range Up to 8 m radius
Effective Bandwidth (-10 dB) 150 Hz – 15 kHz
Total Harmonic Distortion (THD) < 1% @ 1 kHz
High-performance OPS / industrial PC powered by Intel® Core™ i5-12450H processor, Windows 11 Enterprise, fast SSD storage, and efficient thermal design for interactive displays, digital signage, and professional computing environments.
Product Specifications
System
Operating System Windows 11 Enterprise
Platform Architecture Intel® Alder Lake-H
Processor
Processor Intel® Core™ i5-12450H (12th Gen)
Base Clock Speed 2.0 GHz
Max Turbo Frequency Up to 4.4 GHz
CPU Cores 8 Cores
CPU Threads 12 Threads
Memory & Storage
Memory (RAM) 8 GB
Storage 256 GB SSD
Graphics
Graphics Processor Intel® UHD Graphics 750
Cooling System
Cooling Design Single brass heat pipe with single fan
Cat 6 patch cord with high-purity bare copper conductors, HDPE insulation, durable PVC sheath, and gold-plated plugs, designed for stable high-speed network connections.
Product Specifications
General
Category
Cat 6
Available Lengths
0.5 m, 1 m, 2 m, 3 m, 5 m, 10 m
Operating Voltage
57 V
Conductor
Conductor Material
Bare Copper (99.95%)
Conductor Diameter
7 × 0.2 mm (24 AWG)
Insulation
Insulation Material
HDPE
Sheath
Sheath Material
PVC
Sheath Thickness
0.50 ± 0.05 mm
Sheath Diameter
5.8 ± 0.20 mm
Sheath Color
Orange / Gray
Plug
Plug Material
PC UL94V-0
Gold Plating
30 μinch
Electrical Characteristics
Impedance
100 ± 15 Ω
DC Resistance
≤ 9.4 Ω / 100 m
65-inch 4K UHD interactive display with DLED backlight, anti-glare protection glass, and powerful Android 14 system with large storage and memory, ideal for classrooms, offices, and collaboration spaces.
Product Specifications
Display
Screen Size 65 inch
Resolution 4K UHD (3840 × 2160)
Backlight DLED
Display Area 142.9 cm × 80.4 cm
Protection & Glass
Protection Layer 3.2 mm Anti-Glare glass
System & Performance
Operating System Android 14
Memory (RAM) 8 GB
Internal Storage 128 GB
GJYXFCH fiber optic cable with G657A1 single-mode fiber, FRP strength member, steel messenger wire, and LSZH jacket, designed for reliable indoor and outdoor FTTH applications.
Product Specifications
General Specifications
Cable Type
GJYXFCH
Core Number
2 / 1
Fiber Type
9/125 μm G657A1
Strength Members
Strength Member Material
FRP
Strength Member Diameter
0.5 mm
Messenger Wire Material
Steel Wire
Messenger Wire Diameter
1.0 mm
Jacket
Sheath Material
LSZH
Sheath Color
Black
Mechanical Specifications
Min. Bending Radius
120 mm
Min. Bending Radius (Messenger Removed)
15 mm (Static), 30 mm (Dynamic)
Tensile Performance (Short Term)
600 N
Tensile Performance (Long Term)
300 N
Crush Resistance (Short Term)
2200 N / 100 mm
Crush Resistance (Long Term)
1000 N / 100 mm
2 MP Smart Hybrid Light Fixed Turret Network Camera
High quality imaging with 2 MP resolution
Support Human and Vehicle Detection
Smart Hybrid Light: advanced technology with long range
Built-in microphone for real-time audio security
Efficient H.265+ compression technology
Support on-board storage up to 512 GB (SD card slot) (Optional)
Water and dust resistant (IP67)
DS160HKAI-VX1 16TB SATA Hard DriveHigh-performance enterprise-grade hard drive designed for AI and surveillance applications with 24/7 reliability and exceptional workload capacity.Specifications
Category
Specification
Value
General
Interface
SATA
Formatted Capacity
16 TB
Performance
Interface Speed
6.0 Gb/s, 3.0 Gb/s, 1.5 Gb/s
Rotation Speed
7200 RPM
Buffer Size
512 MB
Max Data Transfer Speed
260 MB/s (Sustained, Typ.)
Power
Supply Voltage
12V ± 10% / 5V ± 5%
Operating (Typ.)
8.08 W
Active Idle (Typ.)
4.16 W
Standby (Typ.)
0.43 W
Acoustics
Low Power Idle (Typ.)
31 dB
Environmental
Operating Temperature (Ambient)
5°C to 55°C
Operating Temperature (Enclosure)
5°C to 60°C
Non-Operating Temperature
-40°C to 70°C
Operating Humidity
5% to 90% RH
Operating Altitude
-305m to 3048m
Non-Operating Altitude
-305m to 12,192m
Shock & Vibration
Operating Shock
490 m/s² (50G, 2ms)
Non-Operating Shock
1960 m/s² (200G, 2ms)
Operating Vibration
7.35 m/s² (0.75G, 5-300Hz) / 2.45 m/s² (0.25G, 300-500Hz)
Reliability
MTTF / AFR
2,500,000 hours / 0.35%
Non-recoverable Error Rate
10 per 10¹⁶ bits read
Load/Unload Cycles
600,000 times
Availability
24/7 Operation
Rated Annual Workload
550 TB/year
Physical
Width
101.85 mm
Height (Max)
26.1 mm
Length (Max)
147.0 mm
Weight (Max)
720 g
Key Features
Enterprise-grade reliability with 2.5 million hours MTTF
Ultra-low 0.35% annualized failure rate
High-speed 7200 RPM for superior performance
Large 512MB cache buffer for enhanced data handling
Exceptional workload capacity up to 550TB/year
24/7 operation capability for continuous use
AI and surveillance optimized
Wide operating temperature range (5°C to 55°C)
DS120HKAI-VX1 12TB SATA Hard DriveHigh-performance enterprise-grade hard drive designed for AI and surveillance applications with 24/7 reliability and exceptional workload capacity.Specifications
Category
Specification
Value
General
Interface
SATA
Formatted Capacity
12 TB
Performance
Interface Speed
6.0 Gb/s, 3.0 Gb/s, 1.5 Gb/s
Rotation Speed
7200 RPM
Buffer Size
512 MB
Max Data Transfer Speed
260 MB/s (Sustained, Typ.)
Power
Supply Voltage
12V ± 10% / 5V ± 5%
Operating (Typ.)
8.08 W
Active Idle (Typ.)
4.16 W
Standby (Typ.)
0.43 W
Acoustics
Low Power Idle (Typ.)
31 dB
Environmental
Operating Temperature (Ambient)
5°C to 55°C
Operating Temperature (Enclosure)
5°C to 60°C
Non-Operating Temperature
-40°C to 70°C
Operating Humidity
5% to 90% RH
Operating Altitude
-305m to 3048m
Non-Operating Altitude
-305m to 12,192m
Shock & Vibration
Operating Shock
490 m/s² (50G, 2ms)
Non-Operating Shock
1960 m/s² (200G, 2ms)
Operating Vibration
7.35 m/s² (0.75G, 5-300Hz) / 2.45 m/s² (0.25G, 300-500Hz)
Reliability
MTTF / AFR
2,500,000 hours / 0.35%
Non-recoverable Error Rate
10 per 10¹⁶ bits read
Load/Unload Cycles
600,000 times
Availability
24/7 Operation
Rated Annual Workload
550 TB/year
Physical
Width
101.85 mm
Height (Max)
26.1 mm
Length (Max)
147.0 mm
Weight (Max)
720 g
Key Features
Enterprise-grade reliability with 2.5 million hours MTTF
Ultra-low 0.35% annualized failure rate
High-speed 7200 RPM for superior performance
Large 512MB cache buffer for enhanced data handling
Exceptional workload capacity up to 550TB/year
24/7 operation capability for continuous use
AI and surveillance optimized
Wide operating temperature range (5°C to 55°C)
DS80HKVS-VX1 8TB SATA Hard Drive
High-capacity enterprise-grade hard drive designed for 24/7 operation with exceptional reliability and performance.
Specifications
Category
Specification
Value
General
Interface
SATA
Formatted Capacity
8 TB
Performance
Interface Speed
6.0 Gb/s, 3.0 Gb/s, 1.5 Gb/s
Rotation Speed
5400 RPM
Buffer Size
256 MB
Max Data Transfer Speed
176.4 MB/s (Sustained, Typ.)
Logical Data Block Length
HOST: 512 B, DISK: 4096 B
Power
Supply Voltage
12V ± 10% / 5V ± 5%
Operating (Typ.)
4.84 W
Active Idle (Typ.)
2.81 W
Standby (Typ.)
0.36 W
Acoustics
Low Power Idle (Typ.)
24 dB
Environmental
Operating Temperature
0°C to 60°C
Non-Operating Temperature
-40°C to 70°C
Operating Humidity
5% to 90% RH
Operating Altitude
-305m to 3048m
Operating Shock
686 m/s² (70G, 2ms)
Operating Vibration
4.90 m/s² (0.50G, 5-350Hz)
Reliability
MTTF / AFR
1,000,000 hours / 0.88%
Non-recoverable Error Rate
1 per 10¹⁴ bits read
Load/Unload Cycles
600,000 times
Availability
24/7 Operation
Rated Annual Workload
180 TB/year
Physical
Width
101.6 mm ± 0.25 mm
Height (Max)
26.1 mm
Length (Max)
147.0 mm
Weight (Max)
680 g
Key Features
Enterprise-grade reliability with 1 million hours MTTF
24/7 operation capability for continuous use
Large 256MB cache for improved performance
Low power consumption - only 4.84W during operation
Quiet operation at just 24dB
Wide operating temperature range (0°C to 60°C)
High-Performance 6TB Surveillance Hard DriveProfessional-grade SATA hard drive designed for 24/7 surveillance systems, supporting up to 32 high-definition camera streams with reliable performance and durability. Features 256MB cache buffer for smooth video recording.Technical Specifications
Category
Specification
Value
Basic
Interface
SATA
Formatted Capacity
6 TB
Performance
Interface Speed
6.0 Gb/s, 3.0 Gb/s, 1.5 Gb/s
Rotation Speed
5400 rpm
Buffer Size
256 MB
Maximum Data Transfer Speed (Sustained)
176.4 MB/s
Logical Data Block Length
HOST: 512 B, DISK: 4096 B
Supply Voltage
Allowable Voltage
12 V ± 10% / 5 V ± 5%
Power Consumption
Operating (Typ.)
4.84 W
Active Idle (Typ.)
2.81 W
Standby (Typ.)
0.36 W
Acoustics
Low Power Idle (Typ.)
24 dB
Environmental Limits
Item
Specification
Ambient Temperature (Operating)
0°C to 60°C (No condensation)
Ambient Temperature (Non-Operating)
-40°C to 70°C (No condensation)
Enclosure Surface Temperature (Operating)
0°C to 70°C (No condensation)
Relative Humidity (Operating)
5% to 90% R.H. (No condensation)
Relative Humidity (Non-Operating)
5% to 95% R.H. (No condensation)
Altitude (Operating)
-305m to 3048m
Altitude (Non-Operating)
-305m to 12192m
Shock (Operating)
686 m/s² (70G, 2ms duration)
Shock (Non-Operating)
2940 m/s² (300G, 2ms duration)
Vibration (Operating)
4.90 m/s² (0.50G, 5-350Hz) / 2.45 m/s² (0.25G, 350-500Hz)
Vibration (Non-Operating)
29.4 m/s² (3.0G, 5-500Hz)
Reliability
Item
Specification
MTTF / AFR
1,000,000 hours / 0.88%
Non-recoverable Error Rate
1 error per 10¹⁴ bits read
Load / Unload
600,000 times
Availability
24 hours/day, 7 days/week
Rated Annual Workload
180 TB/year (R/W)
Mechanical Specifications
Item
Specification
Width
101.6 mm ± 0.25 mm
Height (Max)
26.1 mm
Length (Max)
147.0 mm
Weight (Max)
680 g
Key Features
6TB storage capacity for extended surveillance recording
256MB cache buffer for superior performance and smooth video recording
Supports up to 32 high-definition camera streams
Designed for 24x7 continuous operation
Annual workload rating of 180TB/year
MTTF of 1 million hours for exceptional reliability
Industry-standard 3.5-inch form-factor with SATA interface
Advanced Format 512e Sector Technology
Optimized for surveillance and security systems
The Hikvision DS-7732NXI-I4/VPro is a 32-channel I/VPro Series Network Video Recorder featuring advanced AI-powered surveillance capabilities, including facial recognition, perimeter protection, Motion Detection 2.0, AcuSearch, and AcuSeek technology.
Product Specifications
General Information
Model DS-7732NXI-I4/VPro
Product Type 32-ch I/VPro Series NVR with AcuSeek
Intelligent Analytics
AI by NVR Facial recognition, perimeter protection, Motion Detection 2.0
AI by NVR and Camera Facial recognition, perimeter protection, video structuralization, AcuSearch, Motion Detection 2.0, ANPR, people counting, AcuSeek
AI Engine 2 AI enginesEngine 1: Face picture and AcuSearchEngine 2: AcuSeek
AcuSearch
Performance If the cameras support Hikvision AcuSense Technology and have enabled the AcuSearch function, the NVR supports AcuSearch in all channels, capable of modeling up to 300,000 targets per day.Supports 8-ch face picture comparison when cameras support face capture.Maximum resolution: 8 MP (4256 × 1888, 4096 × 2160)
AcuSeek
Performance If the cameras support Hikvision AcuSense Technology and have enabled the AcuSearch function, the NVR supports AcuSeek in all channels, capable of modeling up to 300,000 targets per day.Maximum resolution: 8 MP (4256 × 1888, 4096 × 2160)
Perimeter Protection
By NVR 4-ch, 2 MP (H.264/H.265) video analysis
Target Recognition
Face Picture Library Up to 16 face picture libraries, with up to 50,000 face pictures in total.Maximum picture size: 512 KB eachTotal capacity: Up to 1 GB
Face Picture Comparison 8-ch
Facial Detection and Analytics Face picture comparison, human face capture, face picture search
Facial Detection and Analytics Performance 4-ch human face capture (HD network camera, H.264/H.265)2 MP: 4-ch4 MP: 2-ch8 MP: 1-ch
Motion Detection 2.0
By NVR All channels for Hikvision cameras
By Camera All channels
Devices and Servers
Heat Map Cameras Heat map data recording and presentation
Video & Audio
IP Video Input 32-ch
Incoming Bandwidth 384 Mbps
Outgoing Bandwidth 256 Mbps
HDMI 1 Output 4K (3840 × 2160) @ 30 Hz2K (2560 × 1440) @ 60 Hz1920 × 1080 @ 60 Hz1280 × 720 @ 60 Hz
HDMI 2 Output 1920 × 1080 @ 60 Hz1280 × 720 @ 60 Hz
Decoding
Decoding Format H.265+ / H.265 / H.264+ / H.264
Network
Network Interface 2 × RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces
Remote Connection 128
Network Protocol TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF (Version 2.2), OTAP
Auxiliary Interface
SATA 4 SATA interfaces
General
Power Supply 100 to 240 VAC, 50 to 60 Hz
Certification
Obtained Certifications CE, CB, REACH, WEEE, UKCA, RCM, IC, LOA, KC
CE Standards EN 55032: 2015EN 61000-3-2EN 61000-3-3EN 50130-4
Warranty
Warranty Period 2 Years
The Hikvision DS-7632NXI-K2(E) is a 32-channel 1U K Series AcuSense 4K Network Video Recorder featuring intelligent AI analytics, facial recognition, perimeter protection, Motion Detection 2.0, and AcuSearch. It supports up to 32 IP cameras, 16 MP recording resolution, 4K HDMI output, H.265+ video compression, and advanced human and vehicle recognition to reduce false alarms.
Product Specifications
General Information
Model
DS-7632NXI-K2(E)
Product Type
32-ch 1U K Series AcuSense 4K NVR
Intelligent Analytics
AI by NVR
Facial recognition, perimeter protection, Motion Detection 2.0, AcuSearch
AI by Camera
Facial recognition, perimeter protection, Motion Detection 2.0, ANPR
AcuSearch
By Camera
All channels
Perimeter Protection
By NVR
Video analysis (HD network camera, H.264/H.265) for human and vehicle recognition to reduce false alarms.
Up to 4 MP: 2-ch
5 MP to 8 MP: 1-ch
By Camera
All channels
Facial Recognition
Facial Detection and Analytics
Face picture comparison, human face capture, face picture search
Facial Detection and Analytics Performance
Up to 4 MP: 2-ch
5 MP to 8 MP: 1-ch
Face Picture Comparison
8-ch
Motion Detection 2.0
By NVR
All channels, up to 4 MP video analysis for human and vehicle recognition to reduce false alarms. When enhanced SVC mode is enabled, supports up to 8 MP.
By Camera
All channels
Video & Audio
IP Video Input
32-ch
IP Speaker Input
4-ch
Incoming Bandwidth
256 Mbps
Outgoing Bandwidth
160 Mbps
HDMI Output
1-ch HDMI
4K (3840 × 2160) @ 30 Hz
2K (2560 × 1440) @ 60 Hz
1920 × 1080 @ 60 Hz
1600 × 1200 @ 60 Hz
1280 × 1024 @ 60 Hz
1280 × 720 @ 60 Hz
1024 × 768 @ 60 Hz
Decoding
Decoding Format
H.265 / H.265+ / H.264 / H.264+
Recording Resolution
16 MP / 12 MP / 8 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080P / UXGA / 720P / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
Network
Remote Connection
128
Network Interface
1 × RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
Network Protocol
TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
Auxiliary Interface
SATA
2 SATA interfaces
General
Power Supply
12 VDC, 3.33 A
Certification
CE Standards
EN 55032: 2015
EN 61000-3-2
EN 61000-3-3
EN 50130-4
EN 55035: 2017
Obtained Certifications
CE, CB, REACH, WEEE, UKCA, RCM, IC
Warranty
Warranty Period
2 Years
TandemVu 4MP+4MP 4X POE PTZ Network Camera
Captures a large area and great details at the same time
High quality imaging with 4 MP resolution
Excellent low-light performance with powered-by-DarkFighter technology
Secures an expansive area with 4× optical zoom and 16× digital zoom
Supports WDR, HLC, BLC, 3D DNR, defog, regional exposure, regional focus
Supports 12V DC & PoE+
Support Human and Vehicle Detection
The Hikvision DS-2CD1383G2-LIU is an 8MP 4K Smart Hybrid Light Fixed Turret Network Camera designed for ultra-high-definition 4K 24/7 network video surveillance. Featuring Motion Detection 2.0 with human and vehicle target classification, smart dual-light illumination up to 20 meters, a built-in microphone for real-time audio, and IP67 weather resistance, it delivers crisp, detailed 4K indoor or outdoor IP security performance around the clock.
Product Specifications
Camera & Imaging
Image Sensor 1/2.7" Progressive Scan CMOS
Max. Resolution 3840 × 2160 (8 MP)
Frame Rate 50 Hz: 20 fps (3840 × 2160), 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)60 Hz: 20 fps (3840 × 2160), 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Min. Illumination Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR
Wide Dynamic Range (WDR) 120 dB WDR
Lens & Illumination
Lens Type 2.8 mm or 4 mm fixed focal lens
Field of View 113° (2.8 mm) / 90° (4 mm)
Smart Hybrid Light Range Up to 30 m IR / White Light range
Smart & Video Analytics
Human & Vehicle Classification Motion detection 2.0 supporting human and vehicle target classification
Audio & Network
Audio Built-in microphone for real-time audio security
Network Interface 1 RJ45 10M/100M self-adaptive Ethernet port
Video Compression H.265+ / H.265 / H.264+ / H.264
General & Environment
Operating Power 12 VDC ± 25%, PoE (802.3af)
Protection Level IP67
Operating Conditions -30 °C to 60 °C, humidity: 95% or less
Material & Dimensions Enclosure: Metal & plastic, Ø 110 mm × 93 mm
Weight Approx. 385 g
Ultra-high-definition 4K security camera featuring a 1/2.7″ Progressive Scan CMOS sensor, dependable low-light performance, and fixed focal lens options of 4 mm or 6 mm for flexible surveillance coverage.
Product Specifications
Camera
Image Sensor
1/2.7″ Progressive Scan CMOS
Maximum Resolution
3840 × 2160
Minimum Illumination
Color: 0.01 Lux @ (F2.0, AGC ON)
B/W: 0 Lux with IR
Shutter Time
1/3 s to 1/100,000 s
Day & Night
IR cut filter
Angle Adjustment
Pan: 0° to 360°
Tilt: 0° to 180°
Rotate: 0° to 360°
Lens
Lens Type
Fixed focal lens (4 mm / 6 mm optional)
Focal Length & FOV
4 mm — Horizontal: 90°, Vertical: 49°, Diagonal: 108°
6 mm — Horizontal: 56°, Vertical: 30°, Diagonal: 65°
Lens Mount
M12
Iris Type
Fixed
Aperture
F2.0
2 MP Fixed Outdoor Smart Hybrid-light PT Network Camera
High quality imaging with 2 MP resolution
Support Human Detection and Auto-tracking Lite
Smart Hybrid Light: advanced technology with long range
Hik-Connect cloud service and APP for remote management and views of device
Built-in microphone and speaker for real-time audio security
Built-in memory card slot, support microSD/SDHC/SDXC card, up to 512 GB
Water and dust resistant (IP66)
