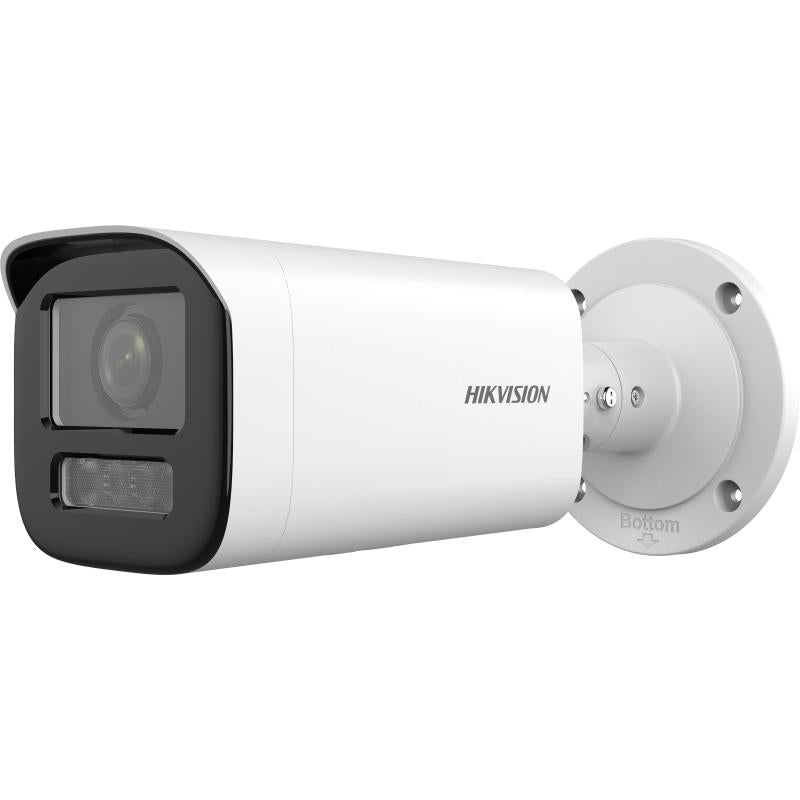

High-quality 2MP Smart Hybrid Light Motion 2.0 Motorized Varifocal Bullet Network Camera featuring a motorized 2.7–13.5 mm varifocal lens, 120 dB WDR, 3D DNR, Smart Hybrid Light, H.265+ compression, PoE installation, and IP67/IK10 protection for reliable and flexible surveillance.
Technical Specifications
Camera
Image Sensor
1/2.8" Progressive Scan CMOS
Maximum Resolution
1920 × 1080
Minimum Illumination
Color: 0.005 Lux @ (F1.6, AGC ON)
0 Lux with light
Shutter Time
1/3 s to 1/100,000 s
Day & Night
IR Cut Filter
Angle Adjustment
Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°
Lens
Lens Type
Varifocal lens, motorized lens, 2.7 to 13.5 mm
Focal Length & FOV
2.7 to 13.5 mm
Horizontal FOV: 111.5° to 33.4°
Vertical FOV: 58.4° to 18.8°
Diagonal FOV: 134.3° to 38.3°
Lens Mount
Ø14
Iris Type
Fixed
Aperture
Max. F1.6
Depth of Field
Wide: 0.7 m to ∞
Tele: 2.7 m to ∞
DORI
DORI - Wide
Detect: 42.7 m | Observe: 16.9 m | Recognize: 8.5 m | Identify: 4.3 m
DORI - Tele
Detect: 132 m | Observe: 52.4 m | Recognize: 26.4 m | Identify: 13.2 m
Illuminator
Supplement Light Type
IR, White Light
Supplement Light Range
Up to 50 m
Smart Supplement Light
Yes
IR Wavelength
850 nm
Video
Main Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 720)
60 Hz: 30 fps (1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360)
Third Stream
50 Hz: 1 fps (640 × 360)
60 Hz: 1 fps (640 × 360)
Video Compression
Main Stream: H.265+ / H.265 / H.264+ / H.264
Sub-Stream: H.265 / H.264 / MJPEG
Third Stream: H.265 / H.264
Video Bit Rate
32 Kbps to 8 Mbps
H.264 Type
Baseline Profile, Main Profile, High Profile
H.265 Type
Main Profile
Bit Rate Control
CBR, VBR
Region of Interest (ROI)
1 fixed region for main stream and sub-stream
Audio
Audio Type
Mono sound
Environment Noise Filtering
Yes
Audio Sampling Rate
8 kHz / 16 kHz
Audio Compression
G.711 / G.722.1 / G.726 / MP2L2 / PCM / MP3 / AAC-LC
Audio Bit Rate
64 Kbps (G.711ulaw / G.711alaw) /
16 Kbps (G.722.1) /
16 Kbps (G.726) /
32 to 192 Kbps (MP2L2) /
8 to 320 Kbps (MP3) /
16 to 64 Kbps (AAC-LC)
Network
Security
Password protection, complicated password, HTTPS encryption,
802.1X authentication (EAP-MD5), watermark, basic and digest
authentication for HTTP/HTTPS, WSSE and digest authentication
for Open Network Video Interface, RTP/RTSP over HTTPS,
security audit log, TLS 1.2, TLS 1.3, host authentication
(MAC address)
Simultaneous Live View
Up to 6 channels
API
Open Network Video Interface
(Profile S, Profile T, Profile G), ISAPI, SDK
Protocols
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP,
IPv6, UDP, QoS, FTP, SMTP, HTTPS, DDNS, UPnP, 802.1X
User / Host
Up to 32 users
3 user levels: administrator, operator, and user
Client
iVMS-4200, Hik-Connect
Web Browser
Plug-in required live view: IE 10, IE 11
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Wide Dynamic Range (WDR)
120 dB
SNR
≥ 52 dB
Day / Night Switch
Day, Night, Auto, Schedule
Image Enhancement
BLC, HLC, 3D DNR
Image Settings
Rotate mode, saturation, brightness, contrast, sharpness,
gain, white balance, adjustable by client software or web browser
Privacy Mask
4 programmable polygon privacy masks
Interface
Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port
Key Features
Detection
Motion 2.0
Lighting Technology
Smart Hybrid Light with advanced long-range technology
Compression
Efficient H.265+ compression technology
Backlight Compensation
120 dB WDR technology
Noise Reduction
3D DNR technology
Motorized Varifocal Lens
2.7 to 13.5 mm motorized varifocal lens
PoE
Easy installation with Power over Ethernet (PoE) technology
Weather Protection
IP67 water and dust resistant
Vandal Resistance
IK10
