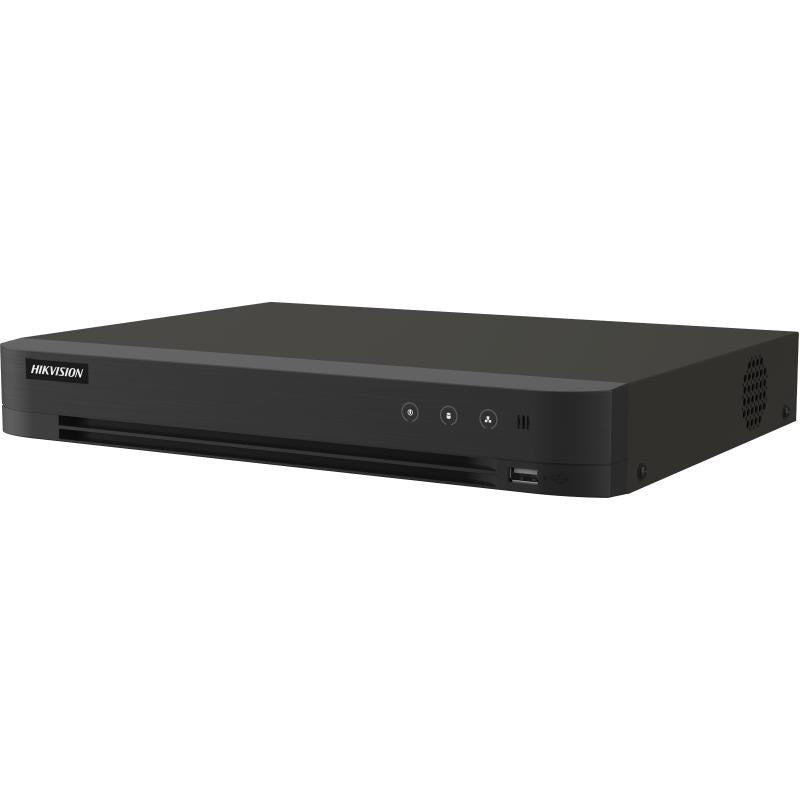

Intelligent 8-channel AI DVR with facial recognition, Motion Detection 2.0, and perimeter protection. Designed for advanced surveillance with accurate human and vehicle analysis and flexible IP expansion.
Product Specifications
AI & Smart Features
Facial Recognition
Face picture comparison and face picture search
(2-ch face picture comparison alarm for HD analog cameras)
Face Picture Library
Up to 16 face picture libraries
Motion Detection
Motion Detection 2.0 (Deep Learning)
Human / Vehicle Analysis
Intelligent classification of humans and vehicles to significantly reduce false alarms caused by leaves, lights, and other disturbances
Quick Search
Search by object or event type
Perimeter Protection
Human / vehicle analysis, up to 4 channels
Video & Audio Input
IP Video Input
4-ch (up to 12-ch)
Up to 6 MP resolution
Supports H.265+/H.265/H.264+/H.264 IP cameras
Analog Video Input
8-ch, BNC interface (1.0 Vp-p, 75 Ω), coaxitron supported
HDTVI Input
3K@25/20 fps, 2K@20 fps, 5 MP@20 fps,
4 MP@25/30 fps, 1080p@25/30 fps, 720p@25/30 fps
AHD Input
5 MP@20 fps, 4 MP@25/30 fps,
1080p@25/30 fps, 720p@25/30 fps
HDCVI Input
3K@20/25 fps, 5 MP@20 fps, 4 MP@25/30 fps,
1080p@25/30 fps, 720p@25/30 fps
CVBS Input
PAL / NTSC
Video Output
HDMI Output
1-ch: 1920 × 1080 / 60Hz,
1280 × 1024 / 60Hz, 1280 × 720 / 60Hz
HDMI / VGA simultaneous output
VGA Output
1-ch: 1920 × 1080 / 60Hz,
1280 × 1024 / 60Hz, 1280 × 720 / 60Hz
HDMI / VGA simultaneous output
CVBS Output
1-ch BNC (1.0 Vp-p, 75 Ω)
PAL: 704 × 576 / NTSC: 704 × 480
Audio
Audio Input
8-ch RCA (2.0 Vp-p, 1 KΩ), 8-ch via coaxial cable
4-ch RCA or 1-ch (up to 8-ch optional)
Audio Output
1-ch RCA (Linear, 1 KΩ)
Two-Way Audio
1-ch RCA (using the first audio input)
Playback
Synchronous Playback
8-channel simultaneous playback
