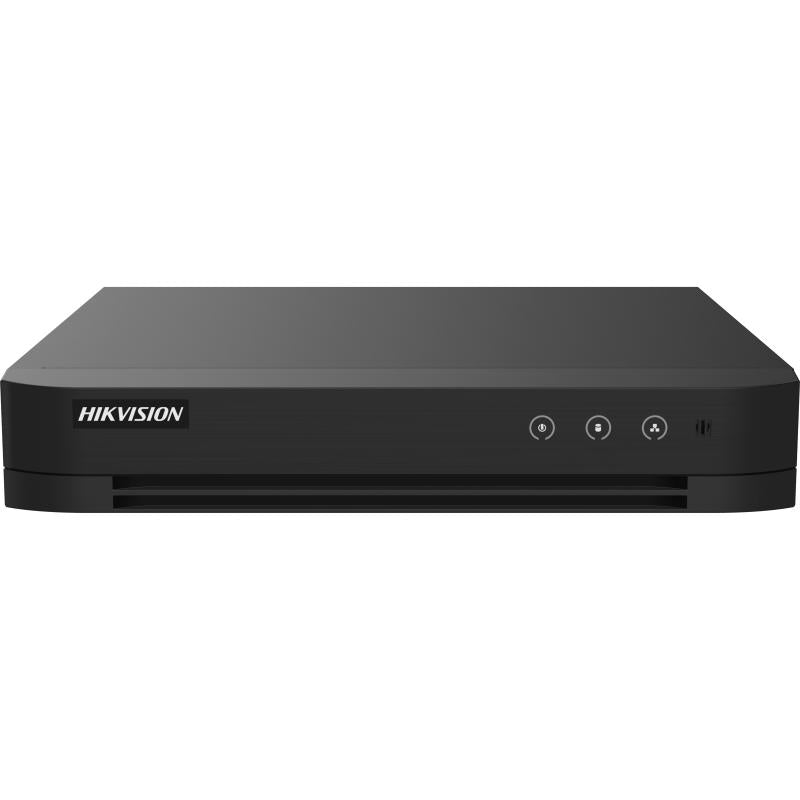

Advanced AI-enabled 8-channel DVR with Motion Detection 2.0, perimeter protection, facial detection and capture, and full support for up to 8 MP cameras—designed for powerful, intelligent surveillance systems.
Product Specifications
AI & Smart Features
Motion Detection
Motion Detection 2.0 (Deep Learning)
Human / Vehicle classification enabled by default on all analog channels
Greatly reduces false alarms caused by leaves, lights, and environmental motion
Smart Search
Quick search by object or event type
Perimeter Protection
Line Crossing Detection / Intrusion Detection
Up to 4 channels
Facial Detection
Facial detection and capture
Face picture detection and face picture search
Video & Audio Input
IP Video Input
4-ch (up to 12-ch), up to 8 MP resolution
Enhanced IP Mode: 8-ch (up to 16-ch), each up to 4 Mbps
Supports H.265+/H.265/H.264+/H.264 IP cameras
Analog Video Input
8-ch, BNC interface (1.0 Vp-p, 75 Ω), coaxitron supported
HDTVI Input
8 MP@12/15 fps, 3K@25/20 fps, 3K@20 fps,
2K@20 fps, 5 MP@20 fps, 4 MP@25/30 fps,
1080p@25/30 fps, 720p@25/30 fps
AHD Input
5 MP@20 fps, 4 MP@25/30 fps,
1080p@25/30 fps, 720p@25/30 fps
HDCVI Input
8 MP@12/15 fps, 3K@20/25 fps,
5 MP@20 fps, 4 MP@25/30 fps,
1080p@25/30 fps, 720p@25/30 fps
CVBS Input
PAL / NTSC
Video Output
HDMI Output
1-ch: 4K (3840 × 2160) @30Hz,
2K (2560 × 1440) @60Hz,
1920 × 1080 @60Hz,
1280 × 1024 @60Hz,
1280 × 720 @60Hz
VGA Output
1-ch: 1920 × 1080 @60Hz,
1280 × 1024 @60Hz,
1280 × 720 @60Hz
Video Output Mode
HDMI / VGA simultaneous output
Audio
Audio Input
1-ch RCA (2.0 Vp-p, 1 KΩ)
8-ch via coaxial cable
Audio Output
1-ch RCA (Linear, 1 KΩ)
Two-Way Audio
1-ch RCA (using the audio input)
Playback
Synchronous Playback
8-channel simultaneous playback
