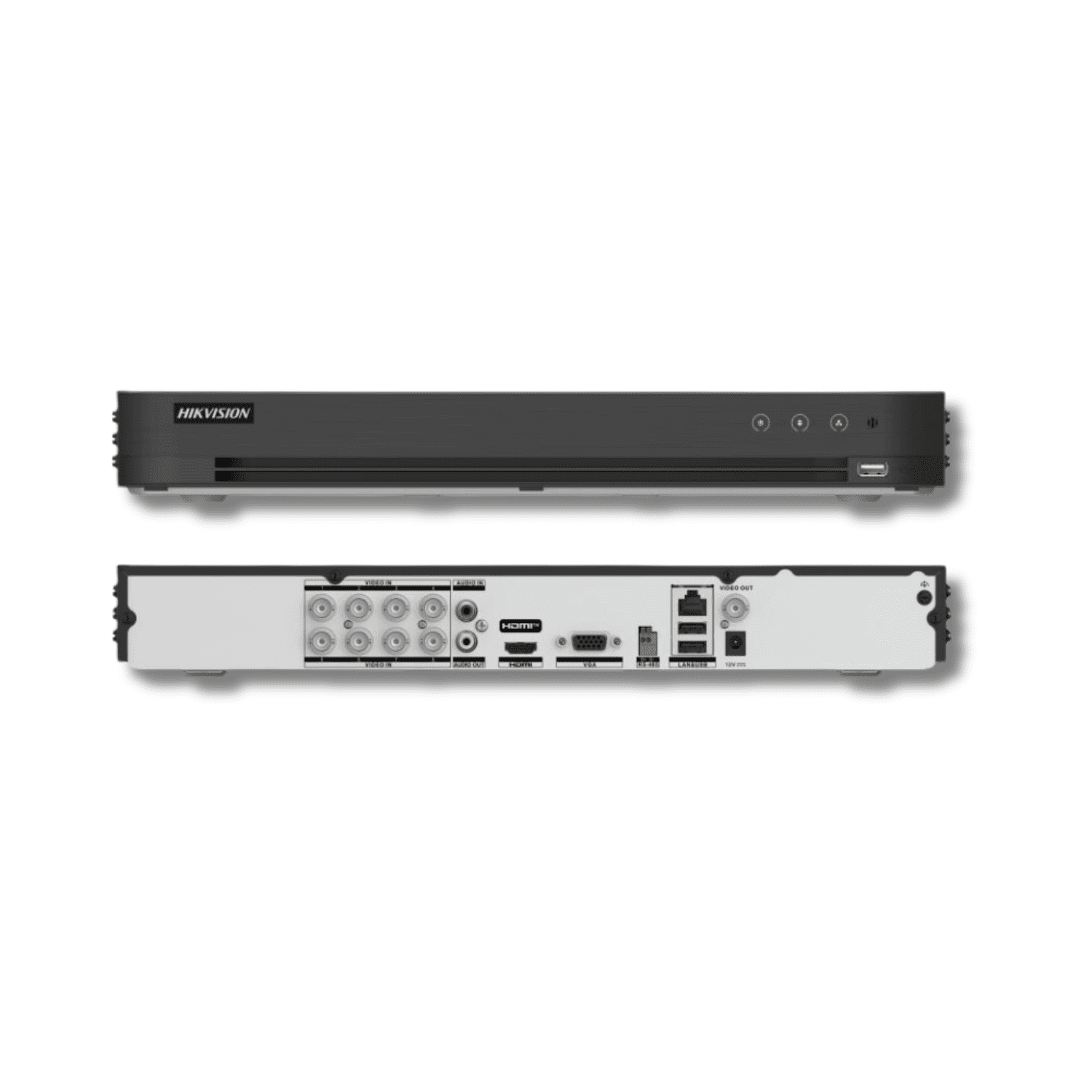

Advanced AI-powered 8-channel DVR featuring facial recognition, Motion Detection 2.0 with human and vehicle classification, perimeter protection up to 8 channels, and support for up to 8 MP cameras with 4K HDMI output—ideal for professional and enterprise surveillance systems.
Product Specifications
AI & Smart Features
Facial Recognition
Face picture comparison and face picture search
4-ch face picture comparison alarm (HD analog camera)
Face Picture Library
Up to 16 face picture libraries
HDD damage will not cause data loss as the library is backed up by HDD and flash
Motion Detection
Motion Detection 2.0 (Deep Learning)
Human and vehicle classification to reduce false alarms caused by leaves, lights, and other disturbances
Quick search by object or event type
Perimeter Protection
Human / Vehicle Analysis (Up to 8-ch – Advanced Model)
Facial Detection
Facial detection and capture
Face picture detection and face picture search
4-ch face picture capture
Video & Audio Input
IP Video Input
8-ch (up to 16-ch), each up to 4 Mbps
Supports H.265+/H.265/H.264+/H.264 IP cameras
Analog Video Input
8-ch, BNC interface (1.0 Vp-p, 75 Ω), coaxitron supported
HDTVI Input
8 MP@12/15 fps, 3K@25/20 fps, 3K@20 fps,
2K@20 fps, 5 MP@20 fps, 4 MP@25/30 fps,
1080p@25/30 fps, 720p@25/30 fps
AHD Input
5 MP@20 fps, 4 MP@25/30 fps,
1080p@25/30 fps, 720p@25/30 fps
HDCVI Input
8 MP@12/15 fps, 3K@20/25 fps,
5 MP@20 fps, 4 MP@25/30 fps,
1080p@25/30 fps, 720p@25/30 fps
CVBS Input
PAL / NTSC
Video Output
HDMI Output
1-ch: 4K (3840 × 2160) @30Hz,
2K (2560 × 1440) @60Hz,
1920 × 1080 @60Hz,
1280 × 1024 @60Hz,
1280 × 720 @60Hz
VGA Output
1-ch: 1920 × 1080 @60Hz,
1280 × 1024 @60Hz,
1280 × 720 @60Hz
CVBS Output
1-ch BNC (1.0 Vp-p, 75 Ω)
PAL: 704 × 576 / NTSC: 704 × 480
Video Output Mode
HDMI / VGA simultaneous output
Audio
Audio Input
1-ch (up to 8-ch optional), RCA (2.0 Vp-p, 1 KΩ)
8-ch via coaxial cable
Audio Output
1-ch RCA (Linear, 1 KΩ)
Two-Way Audio
1-ch RCA (using the first audio input)
Playback
Synchronous Playback
8-channel simultaneous playback
