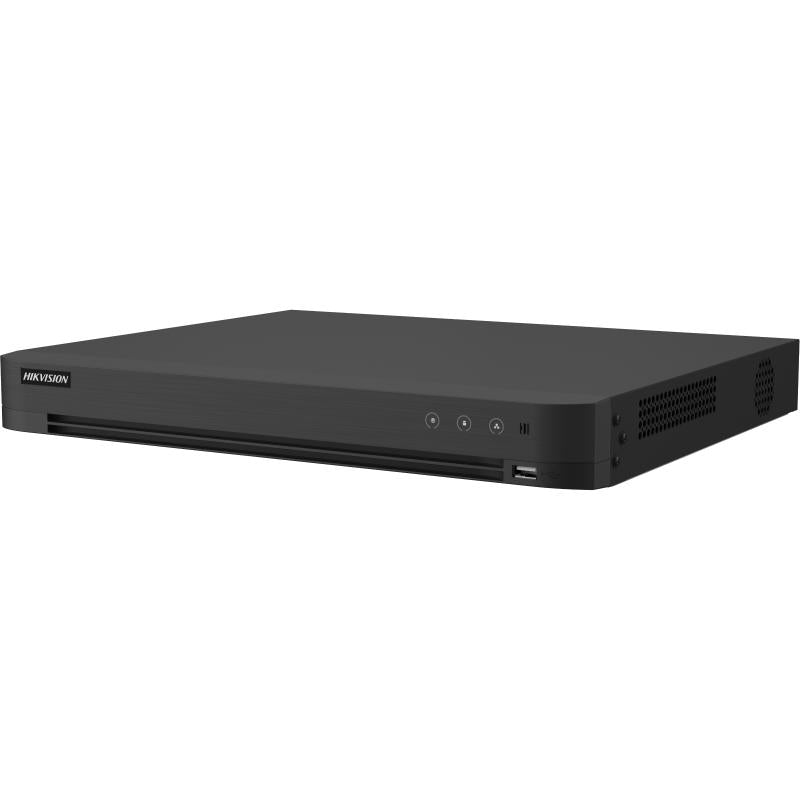

Advanced AI-powered DVR featuring facial recognition, motion detection 2.0, perimeter protection, and support for up to 8 MP cameras with 4K HDMI output.
Product Specifications
AI & Facial Recognition
Face Picture Library
Up to 16 face picture libraries
HDD damage will not cause data loss (library backed up by HDD and flash)
Face Picture Comparison
4-channel face picture comparison alarm
(HD analog camera)
Motion Detection
Motion Detection 2.0 (Deep Learning)
Human / Vehicle classification enabled by default
Reduces false alarms caused by leaves, lights, and environmental motion
Smart Search
Quick search by object or event type
Perimeter Protection
Human / Vehicle analysis
Up to 8 channels (advanced model)
Facial Detection
Facial detection and capture
Face picture detection and face picture search
4-channel face picture capture
Video Input
IP Video Input
8-ch (up to 16-ch), each up to 8 MP
Analog Video Input
8-ch, BNC interface (1.0 Vp-p, 75 Ω)
Supports coaxitron connection
HDTVI Input
8 MP@12/15 fps, 3K@25/20 fps, 3K@20 fps,
2K@20 fps, 5 MP@20 fps, 4 MP@25/30 fps,
1080P@25/30 fps, 720P@25/30 fps
AHD Input
5 MP@20 fps, 4 MP@25/30 fps,
1080P@25/30 fps, 720P@25/30 fps
HDCVI Input
8 MP@12/15 fps, 3K@20/25 fps,
5 MP@20 fps, 4 MP@25/30 fps,
1080P@25/30 fps, 720P@25/30 fps
CVBS Input
PAL / NTSC
Video Output
HDMI Output
1-ch:
4K (3840 × 2160) @30Hz,
2K (2560 × 1440) @60Hz,
1920 × 1080 @60Hz,
1280 × 1024 @60Hz,
1280 × 720 @60Hz
VGA Output
1-ch:
1920 × 1080 @60Hz,
1280 × 1024 @60Hz,
1280 × 720 @60Hz
Video Output Mode
HDMI / VGA simultaneous output
CVBS Output
1-ch BNC (1.0 Vp-p, 75 Ω)
PAL: 704 × 576 / NTSC: 704 × 480
Audio
Audio Input
1-ch RCA (2.0 Vp-p, 1 KΩ)
Up to 8-ch via coaxial cable
Audio Output
1-ch RCA (Linear, 1 KΩ)
Two-Way Audio
1-ch RCA (using the first audio input)
Playback
Synchronous Playback
8-channel simultaneous playback
