DS-PDSMK-S WE Wireless Photoelectric Smoke Detector
Product Specifications
Detection Performance
Detection Method
Chamber With Photoelectric Sensor
Feature
Environment Temperature Indicator
Support
Signal Strength Indicator
Support
Interface
Power Switch
Power up enrolling
LED Indicator
Red (alarm)
Buzzer
≥ 85 dB @3 m
Transmission
Transmission Method
Two-Way RF Wireless
Transmission Frequency
868MHz
Transmission Security
AES-128 Encryption
Transmission Range (Free Space)
800m
Enrolling Method
Power up;Remote ID;QR Code
Electrical Characteristics
Standard Battery Life
Up to 10 years (standby time)
Power Supply
Battery powered
Battery Type
Non-Replaceable CR17450 × 1
Typical Voltage
3V
General
Operation Temperature
-10°C to 60°C (14°F to 140°F)
Storage Temperature
-20°C to 60°C (-4°F to 140°F)
Operation Humidity
10% to 90%
Dimension (WxHxD)
φ102 × 35 mm
Weight
125 g
Mounting Method
Ceiling
Application Scenario
Indoor
DS-PDMCK-EG2 WE Wireless Magnet Shock Detector
Product Specifications
Detection Performance
Detection Method
Opening Contact;Shock Sensor
Detection Gap
43 mm Max
Shock Sensitivity
High, Normal, Low
Tilt Detection
Up to 25°
Feature
Digital Processing
Support
Tamper Protection
Front;Rear
Environment Temperature Indicator
Support
Signal Strength Indicator
Support
Interface
Alarm Input
Normally Closed;Normally Open;Impulse Count
Power Switch
Power up enrolling
LED Indicator
Green (MC), Orange (tilt), Red (shock), Blue (alarm)
Transmission
Transmission Technology
Tri-X Wireless
Transmission Method
Two-Way RF Wireless
Transmission Frequency
868MHz
Transmission Security
AES-128 Encryption
Transmission Range (Free Space)
1.6Km
Frequency Hopping
Support
Enrolling Method
Power up;Remote ID;QR Code
Electrical Characteristics
Power Supply
Battery powered
Battery Type
CR123A × 1
Typical Voltage
3V
Standard Battery Life
Up to 3 years (standby time)
General
Operation Temperature
-10°C to 55°C (14°F to 131°F)
Storage Temperature
-20°C to 60°C (-4°F to 140°F)
Operation Humidity
10% to 90%
Dimension (Main Unit)
22.5 mm × 103 mm × 23.2 mm
Dimension (Sensor)
13 mm × 34.4 mm × 11.4 mm
Weight
60 g
Application Scenario
Indoor
DS-PDBG8-EG2 WE Wireless Glass Break Detector
Product Specifications
Detection Performance
Detection Method
Acoustic Sensor
Detection Range
8m
Detection Angle
120°
Sensitivity
2m;4m;6m;8m
Glass Type
Float;Plate;Tampered;Wired;Laminated Leaded;Double Glazing
Glass Thickness
2.4 mm to 6.4 mm
Glass Size
0.3 m × 0.3 m to 3 m × 3 m
Feature
Digital Processing
Support
Tamper Protection
Front;Rear
Environment Temperature Indicator
Support
Signal Strength Indicator
Support
Interface
Alarm Input
Normally Closed;Normally Open;Impulse Count
Power Switch
Power up unenrolling
LED Indicator
Blue (alarm)
Transmission
Transmission Technology
Tri-X Wireless
Transmission Method
Two-Way RF Wireless
Transmission Frequency
868MHz
Transmission Security
AES-128 Encryption
Transmission Range (Free Space)
1.6Km
Frequency Hopping
Support
Enrolling Method
Power up;Remote ID;QR Code
Electrical Characteristics
Power Supply
Battery powered
Battery Type
CR123A × 2
Typical Voltage
3V
Standard Battery Life
Up to 5 years (standby time)
General
Operation Temperature
-10°C to 55°C (14°F to 131°F)
Storage Temperature
-20°C to 60°C (-4°F to 140°F)
Operation Humidity
10% to 90%
Dimension (WxHxD)
38.8 mm × 107.0 mm × 24.5 mm
Weight
83 g
Mounting Method
Wall;Ceiling
Application Scenario
Indoor
DS-PDCL12-EG2 WE Wireless PIR Ceiling Detector
Product Specifications
Detection Performance
Detection Method
Passive Infrared
Detection Range
12m
Detection Angle
360°
Detection Zones
172
Detectable Speed
0.3～2m/s
Sensitivity
Auto;Low
White Light Filter
6500lux
Digital Temperature Compensation
Support
Creep Zone Protection
Support
Feature
Digital Processing
Support
Sealed Optics
Support
Tamper Protection
Front;Rear
Environment Temperature Indicator
Support
Signal Strength Indicator
Support
Interface
Power Switch
Power up enrolling
LED Indicator
Blue (alarm)
Transmission
Transmission Technology
Tri-X Wireless
Transmission Method
Two-Way RF Wireless
Transmission Frequency
868MHz
Transmission Security
AES-128 Encryption
Transmission Range (Free Space)
1.6Km
Frequency Hopping
Support
Enrolling Method
Power up;Remote ID;QR Code
Electrical Characteristics
Standard Battery Life
Up to 5 years (standby time)
Power Supply
Battery powered
Battery Type
CR123A × 1
Typical Voltage
3V
General
Operation Temperature
-10°C to 55°C (14°F to 131°F)
Storage Temperature
-20°C to 60°C (-4°F to 140°F)
Operation Humidity
10% to 90%
Dimension (WxHxD)
φ101.2 mm × 32.9 mm
Weight
109.5 g
Mounting Height
2.4 m to 4 m
Mounting Method
Ceiling
Application Scenario
Indoor
DS-PR1-WE Wireless Repeater
Product Specifications
Software Features
Auto Pairing
Supported
Hardware Features
Serial Port
2, for debug
Tamper-Proof
1, front and back
Power Switch
1
Display
LEDs status
LED Indicator
3, register/signal (green/red), power (green), fault (amber)
Electrical Characteristics
Battery Type
Built in Battery Li
Power Supply
100 VAC to 240 VAC
Operation Humidity
10％ to 90％
Operation Temperature
﹣10°C to +55°C (The battery can not be charged at temperature lower than 10°C, please make sure the adapter is connected)
Battery Life Span
Up to 24 hours at normal temperature (The battery working time can be significantly reduced at low temperatures)
Wireless Transmission
RF Frequency
868 MHz
RF Method
Two-way communication
RF Modulation
2GFSK
RF Distance
1600 m (open area)
Wireless Security
AES-128
Device Management
PIRCAM Pairing
Supported
Keypad
LCD keypad not support
General
Installation Method
Wall mounting
Dimension (WxHxD)
150 mm × 150 mm × 25 mm
Shell Material
Plastic
Color
White
Weight
372 g
DS-PM1-O1H WE Wall Switch
Product Specifications
Software Features
Scenario Setting
By Alarm, By Operation, By Fault, By Schedule, By Manual
Learning Button
1, For register
Hardware Features
Serial Port
1, for debug
Display
LEDs status
LED Indicator
3, Register/Signal (Green/Red), Power (Green), Relay Status (Blue)
Electrical Characteristics
Power Supply
AC 100V – 240V, 50/60 Hz
Operation Humidity
10％~90％
Operation Temperature
﹣10℃~+55℃
Wireless Transmission
RF Frequency
868MHz
RF Method
Two way communication
RF Modulation
2GFSK
RF Distance
1600m
Wireless Security
AES-128
Device Management
Relay Output
1, NO/NC (AC 100~240V, Max 13A)
General
Installation Method
Wall Mounting or Inside 86 box
Dimension (WxHxD)
38 × 25 × 18 mm
Shell Material
Plastic
Color
White
Weight
31.5 g
DS-PM1-O1L WE Relay Module
Product Specifications
Software Features
Scenario Setting
By alarm, by operation, by fault, by schedule, by manual
Learning Button
1, for register
Hardware Features
Serial Port
1, for debug
Display
LEDs status
LED Indicator
3, register/signal (green/red), power (green), relay status (blue)
Electrical Characteristics
Power Supply
DC 7V to 24V
Operation Humidity
10% to 90%
Operation Temperature
-10°C to 55°C
Wireless Transmission
RF Frequency
868 MHz
RF Method
Two-way communication
RF Modulation
2GFSK
RF Distance
1800 m
Wireless Security
AES-128
Device Management
Alarm Input
1 for tamper, NO/NC
Relay Output
1, NO/NC (0 to 36V DC, Max 5A)
General
Installation Method
Wall-Mounting
Dimension (WxHxD)
38 mm × 25 mm × 18 mm
Shell Material
Plastic
Color
White
Weight
28.5 g
DS-PDTT15AM-LM WE Wireless Triple Signal Detector
Product Specifications
Detection Performance
Detection Method
Passive Infrared;Microwave
Detection Range
15m
Detection Angle
90° @180° adjustable
Detection Zone
92
Detectable Speed
0.3～2m/s
General
Operation Temperature
-25°C to 60°C (-13°F to 140°F)
Storage Temperature
-25°C to 60°C (-13°F to 140°F)
Operation Humidity
10% to 90%
Dimension(WxHxD)
75 mm × 202 mm × 73 mm
Weight
600 g
Transmission
Transmission Technology
Tri-X Wireless
Transmission Method
Two-Way RF Wireless
Transmission Security
AES-128 Encryption
Transmission Range(Free Space)
1.6 km
DS-PDEB1-EG2 WE (Single button)
Product Specifications
Feature
Button
1
Tamper Protection
Front;Rear
General
Operation Temperature
-10°C to 55°C (14 °F to 131 °F)
Storage Temperature
-20°C to 60°C (-4 °F to 140 °F)
Operation Humidity
10% to 90%
Dimension(WxHxD)
63.8 mm × 63.8 mm × 18.4 mm
Weight
57.5g
Transmission
Transmission Technology
Tri-X Wireless
Transmission Method
Two-Way RF Wireless
Transmission Security
AES-128 Encryption
Transmission Range(Free Space)
1.2 km
Interface
LED Indicator
Blue (alarm)
DS-PDMCS-EG2 WE Wireless Slim Magnet Detector
Product Specifications
Detection Performance
Detection Method
Opening Contact
Detection Gap
52 mm Max
General
Operation Temperature
-10°C to 55°C (14 °F to 131 °F)
Storage Temperature
-20°C to 60°C (-4 °F to 140 °F)
Operation Humidity
10% to 90%
Dimension(WxHxD)
29 mm × 69 mm × 10 mm
14 mm × 69 mm × 10 mm
Weight
38 g
Transmission
Transmission Technology
Tri-X Wireless
Transmission Method
Two-Way RF Wireless
Transmission Security
AES-128 Encryption
Transmission Range(Free Space)
1 km
Interface
LED Indicator
Blue (alarm)
DS-PDMC-EG2 WE Magnetic Contact
Product Specifications
Detection Performance
Detection Method
Opening Contact
Detection Gap
43 mm Max
General
Operation Temperature
-10°C to 55°C (14 °F to 131 °F)
Storage Temperature
-20°C to 60°C (-4 °F to 140 °F)
Operation Humidity
10% to 90%
Dimension(WxHxD)
24mm × 104mm × 24.4mm
13 mm × 34.4 mm × 11.4 mm
Weight
59 g
Transmission
Transmission Technology
Tri-X Wireless
Transmission Method
Two-Way RF Wireless
Transmission Security
AES-128 Encryption
Transmission Range(Free Space)
1.6 km
Interface
LED Indicator
Blue (alarm)
DS-PDP15P-EG2-WE(B) PIR
Product Specifications
Detection Performance
Detection Method
Passive Infrared
Detection Range
15m
Detection Angle
90°
Detection Zone
84
Detectable Speed
0.3～2m/s
General
Shell material
PC+ABS
IP rate
IP65
Operation Temperature
-10°C to 55°C (14 °F to 131 °F)
Storage Temperature
-20°C to 60°C (-4 °F to 140 °F)
Operation Humidity
10% to 90%
Dimension(WxHxD)
65.5 mm × 103 mm × 48.5 mm
Weight
128 g
Transmission
Transmission Technology
Tri-X Wireless
Transmission Method
Two-Way RF Wireless
Transmission Security
AES-128 Encryption
Transmission Range(Free Space)
1.6 km
Frequency Hopping
Support
Enrolling Method
Power up;Remote ID;QR Code
DS-PS1-I-WE Wireless internal sounderv(Blue-red-green Indicators)
Product Specifications
Electrical characteristics
Operation humidity
10% to 90% (No condensing)
Operation temperature
-20°C to 60°C (-4 °F to 140 °F)
Battery life span
Up to 3 years (standby time)
Battery type
Battery (default power supply method) or 12 VDC
Power supply
Battery (default power supply method) or 12 VDC
General
Shell material
PC+ABS
IP rate
IP65
Wireless transmission
RF frequency
868 MHz
RF modulation
2GFSK
RF distance
1.6 KM(open area)
DS-PS1-I-WE Wireless internal sounder
Product Specifications
Electrical characteristics
Operation humidity
10% to 90% (No condensing)
Operation temperature
-10 °C to 55 °C (-4 °F to 131 °F)
Battery life span
Up to 3 years (standby time)
General
Shell material
PC+ABS
Color
Blue/Red LED flash
Wireless transmission
RF frequency
868 MHz
RF modulation
2GFSK
RF distance
1.6 KM(open area)
DS-PS1-I-WE Wireless internal sounder
Product Specifications
Electrical characteristics
Operation humidity
10% to 90% (No condensing)
Operation temperature
-10 °C to 55 °C (-4 °F to 131 °F)
Battery life span
Up to 3 years (standby time)
General
Shell material
PC+ABS
Color
Blue/Red LED flash
Wireless transmission
RF frequency
868 MHz
RF modulation
2GFSK
RF distance
1.6 KM(open area)
DS-PKF1-WE(B) Wireless Keyfob
Product Specifications
Electrical characteristics
Operation humidity
10% to 90% (No condensing)
Operation temperature
-10 °C to 55 °C (-4 °F to 122 °F)
Battery life span
Up to 3 years (standby time)
General
Shell material
Panel (plastic) + gasket(rubber)
Color
white
Wireless transmission
RF frequency
868 MHz
RF modulation
2GFSK
RF distance
900 m (open area)
DS-PK1-E-WE Wireless LED keypad
Product Specifications
Hardware features
Power switch
Power on/off
Display
Indicator
5, area(blue), fault(orange), arm(blue), disarm(green), alarm(red), signal(red/green)
Electrical characteristics
Battery type
Three AA batteries
Operation humidity
10% to 90% (no condensing)
Wireless transmission
RF frequency
868 MHz
RF modulation
2GFSK
DS-PK1-E-WE Wireless LED keypad
Product Specifications
Electrical characteristics
Battery type
Four AA batteries
Power supply
Battery Supply
Operation humidity
10% to 90% (No condensing)
Operation temperature
-10 °C to +55 °C (-4 °F to +122 °F)
Battery life span
Up to 2 years (standby time)
Wireless transmission
RF frequency
868 MHz
RF modulation
2GFSK
General
Installation method
Screw mounting
Dimension(WxHxD)
140 (5.50") x 86 (3.38") x 22 (0.87") mm
151 g (5.33 oz) without battery
DS-PWA96-Kit-WE-AX PRO Kit (868MHz)
Product Specifications
Software features
Tag
48
Area
32
Zone
96 (up to 48 PIRCAMs)
User & admin
46 & 1
Voice Prompt & Loudspeaker built in
Supported
Programming tools
Hik-Connect/Hik-ProConnect/Web Portal/ IVMS4200/ Convergence Cloud
Arm modes
Away/Stay
Hardware features
RS232 output
Supported
SIM slot
Dual
RF transmission
RF Frequency
868Mhz
Wireless Security
Frequency Hoping 128 AES Encryption
Display
LEDs Status
Arm/Disarm, Alarm, Tamper, Fault, Cloud, Power
General
Operation temperature
-10 °C to +55 °C
Color
White
Product Specifications
Camera
Image Sensor
1/3″ Progressive Scan CMOS
Maximum Resolution
2560 × 1440
Minimum Illumination
Color: 0.005 Lux @ (F1.6, AGC ON)
B/W: 0 Lux with IR
Shutter Time
1/3 s to 1/100,000 s
Day & Night
IR cut filter
Angle Adjustment
Pan: 0° to 360°
Tilt: 0° to 75°
Rotate: 0° to 360°
Lens
Lens Type
Fixed focal lens (2.8 mm / 4 mm optional)
Focal Length & FOV
2.8 mm — H: 98°, V: 54°, D: 114°
4 mm — H: 78°, V: 42°, D: 93°
Lens Mount
M12
Iris Type
Fixed
Aperture
F1.6
Product Specifications
Camera
Image Sensor
1/3″ Progressive Scan CMOS
Maximum Resolution
2560 × 1440
Minimum Illumination
Color: 0.005 Lux @ (F1.6, AGC ON)
B/W: 0 Lux with IR
Shutter Time
1/3 s to 1/100,000 s
Day & Night
IR cut filter
Angle Adjustment
Pan: 0° to 355°
Tilt: 0° to 75°
Rotate: 0° to 355°
Lens
Lens Type
Fixed focal lens (2.8 mm / 4 mm optional)
Focal Length & FOV
2.8 mm — H: 98°, V: 54°, D: 114°
4 mm — H: 78°, V: 42°, D: 93°
Lens Mount
M12
Iris Type
Fixed
Aperture
F1.6
Product Specifications
Camera
Image Sensor
1/3″ Progressive Scan CMOS
Maximum Resolution
2560 × 1440
Minimum Illumination
Color: 0.005 Lux @ (F1.6, AGC ON)
B/W: 0 Lux with IR
Shutter Time
1/3 s to 1/100,000 s
Day & Night
IR cut filter
Angle Adjustment
Pan: 0° to 360°
Tilt: 0° to 90°
Rotate: 0° to 360°
Lens
Lens Type
Fixed focal lens (2.8 mm / 4 mm optional)
Focal Length & FOV
2.8 mm — H: 98°, V: 54°, D: 114°
4 mm — H: 78°, V: 42°, D: 93°
Lens Mount
M12
Iris Type
Fixed
Aperture
F1.6
Product Specifications
Camera
Image Sensor
1/2.7″ Progressive Scan CMOS
Maximum Resolution
2560 × 1440
Minimum Illumination
Color: 0.01 Lux @ (F2.2, AGC ON)
B/W: 0 Lux with IR
Shutter Time
1/3 s to 1/100,000 s
Day & Night
IR cut filter
Angle Adjustment
Pan: 0° to 360°
Tilt: 0° to 75°
Rotate: 0° to 360°
Lens
Lens Type
Fixed focal lens (2.8 mm / 4 mm optional)
Focal Length & FOV
2.8 mm — H: 112°, V: 61°, D: 135°
4 mm — H: 89°, V: 48°, D: 105°
Depth of Field
2.8 mm: 0.9 m to ∞
4 mm: 1.1 m to ∞
Lens Mount
M12
Iris Type
Fixed
Aperture
F2.2
Product Specifications
Camera
Image Sensor
1/2.7″ Progressive Scan CMOS
Maximum Resolution
2560 × 1440
Minimum Illumination
Color: 0.01 Lux @ (F2.2, AGC ON)
B/W: 0 Lux with IR
Shutter Time
1/3 s to 1/100,000 s
Day & Night
IR cut filter
Angle Adjustment
Pan: 0° to 360°
Tilt: 0° to 90°
Rotate: 0° to 360°
Lens
Lens Type
Fixed focal lens (2.8 mm / 4 mm optional)
Focal Length & FOV
2.8 mm — H: 112°, V: 61°, D: 135°
4 mm — H: 89°, V: 48°, D: 105°
Depth of Field
2.8 mm: 0.9 m to ∞
4 mm: 1.1 m to ∞
Lens Mount
M12
Iris Type
Fixed
Aperture
F2.2
Product Specifications
Camera
Image Sensor
1/2.9″ Progressive Scan CMOS
Maximum Resolution
1920 × 1080
Minimum Illumination
Color: 0.005 Lux @ (F1.6, AGC ON)
B/W: 0 Lux with IR
Shutter Time
1/3 s to 1/100,000 s
Day & Night
IR cut filter
Angle Adjustment
Pan: 0° to 360°
Tilt: 0° to 75°
Rotate: 0° to 360°
Lens
Lens Type
Fixed focal lens (2.8 mm / 4 mm optional)
Focal Length & FOV
2.8 mm — H: 103°, V: 56°, D: 121°
4 mm — H: 83°, V: 44°, D: 99°
Lens Mount
M12
Iris Type
Fixed
Aperture
F1.6
High-definition network camera with a progressive scan CMOS sensor,
adjustable mounting angles, and flexible lens options, designed for
reliable day and night surveillance.
Product Specifications
Camera
Image Sensor
1/3" Progressive Scan CMOS
Max. Resolution
1920 × 1080
Minimum Illumination
Color: 0.01 Lux @ (F2.2, AGC ON)
B/W: 0 Lux with IR
Shutter Time
1/3 s to 1/100,000 s
Day & Night
IR cut filter
Angle Adjustment
Pan: 0° to 360°
Tilt: 0° to 75°
Rotate: 0° to 360°
Lens
Lens Type
Fixed focal lens, 2.8 mm and 4 mm optional
Focal Length & FOV
2.8 mm: Horizontal 97°, Vertical 54°, Diagonal 113°
4 mm: Horizontal 76°, Vertical 42°, Diagonal 90°
Lens Mount
M12
Iris Type
Fixed
Aperture
F2.2
Depth of Field
2.8 mm: 0.8 m to ∞
4 mm: 1 m to ∞
High-performance 3K security camera with 24/7 color imaging, ultra-low light sensitivity down to 0.0003 Lux, slow shutter support up to 16×, and a 2.8 mm fixed focal lens for wide-angle surveillance.
Product Specifications
Camera
Image Sensor
3K CMOS
Max. Resolution
2960 (H) × 1665 (V)
Minimum Illumination
0.0003 Lux @ (F1.0, AGC ON), 0 Lux with white light
Shutter Time
PAL: 1/25 s to 1/50,000 s
NTSC: 1/30 s to 1/50,000 s
Day & Night
24/7 Color Imaging
Signal System
PAL / NTSC
Slow Shutter
Max. 16 times
Angle Adjustment
Pan: 0°–360°, Tilt: 0°–75°, Rotation: 0°–360°
Lens
Lens Type
2.8 mm fixed focal lens
Focal Length & FOV
Horizontal FOV: 109°
Vertical FOV: 58°
Diagonal FOV: 129°
Lens Mount
M16
High-performance 3K security camera featuring 24/7 color imaging, ultra-low light sensitivity down to 0.0003 Lux, slow shutter support up to 16×, and a 3.6 mm fixed focal lens for clear day and night monitoring.
Product Specifications
Camera
Image Sensor
3K CMOS
Max. Resolution
2960 (H) × 1665 (V)
Minimum Illumination
0.0003 Lux @ (F1.0, AGC ON), 0 Lux with white light
Shutter Time
PAL: 1/25 s to 1/50,000 s
NTSC: 1/30 s to 1/50,000 s
Day & Night
24/7 Color Imaging
Signal System
PAL / NTSC
Slow Shutter
Max. 16 times
Angle Adjustment
Pan: 0°–360°, Tilt: 0°–180°, Rotation: 0°–360°
Lens
Lens Type
3.6 mm fixed focal lens
Focal Length & FOV
Horizontal FOV: 92°
Vertical FOV: 45°
Diagonal FOV: 111°
Lens Mount
M16
High-resolution 3K security camera with advanced CMOS imaging, infrared night vision, true day & night (ICR), and a 3.6 mm fixed focal lens with wide mechanical angle adjustment.
Product Specifications
Camera
Image Sensor
3K CMOS
Max. Resolution
2960 (H) × 1665 (V)
Minimum Illumination
0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/25 s to 1/50,000 s
NTSC: 1/30 s to 1/50,000 s
Day & Night
ICR
Angle Adjustment
Pan: 0°–360°, Tilt: 0°–180°, Rotation: 0°–360°
Signal System
PAL / NTSC
Lens
Lens Type
3.6 mm fixed focal lens
Focal Length & FOV
Horizontal FOV: 92°
Vertical FOV: 48°
Diagonal FOV: 112°
Lens Mount
M12
High-resolution 3K security camera with advanced CMOS imaging, infrared night vision, true day & night (ICR), and a wide-angle 2.8 mm fixed focal lens for detailed monitoring.
Product Specifications
Camera
Image Sensor
3K CMOS
Max. Resolution
2960 (H) × 1665 (V)
Minimum Illumination
0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/25 s to 1/50,000 s
NTSC: 1/30 s to 1/50,000 s
Day & Night
ICR
Angle Adjustment
Pan: 0°–360°, Tilt: 0°–75°, Rotation: 0°–360°
Signal System
PAL / NTSC
Lens
Lens Type
2.8 mm fixed focal lens
Focal Length & FOV
Horizontal FOV: 105°
Vertical FOV: 62°
Diagonal FOV: 132°
Lens Mount
M12
High-resolution 3K security camera with advanced CMOS imaging, infrared night vision, true day & night (ICR), and a 3.6 mm fixed focal lens for clear wide-area monitoring.
Product Specifications
Camera
Image Sensor
3K CMOS
Max. Resolution
2960 (H) × 1665 (V)
Minimum Illumination
0.02 Lux @ (F2.2, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/25 s to 1/50,000 s
NTSC: 1/30 s to 1/50,000 s
Day & Night
ICR
Angle Adjustment
Pan: 0°–360°, Tilt: 0°–90°, Rotation: 0°–360°
Signal System
PAL / NTSC
Lens
Lens Type
3.6 mm fixed focal lens
Focal Length & FOV
Horizontal FOV: 80°
Vertical FOV: 51°
Diagonal FOV: 98°
Lens Mount
M12
2MP Full HD security camera with ultra-low light sensitivity, 24/7 color imaging, and a motorized auto-focus varifocal lens for flexible and precise surveillance coverage.
Product Specifications
Camera
Image Sensor
2 MP CMOS
Max. Resolution
1920 (H) × 1080 (V)
Minimum Illumination
0.0003 Lux @ (F1.29, AGC ON), 0 Lux with white light
Shutter Time
PAL: 1/25 s to 1/50,000 s
NTSC: 1/30 s to 1/50,000 s
Day & Night
24/7 Color Imaging
Angle Adjustment
Pan: 0°–360°, Tilt: 0°–75°, Rotation: 0°–360°
Signal System
PAL / NTSC
Lens
Lens Type
2.8 mm to 12 mm motorized lens, auto focus
Focal Length & FOV
Horizontal FOV: 92.3° to 34.2°
Vertical FOV: 48.4° to 19°
Diagonal FOV: 112.2° to 39.2°
Lens Mount
Φ24
2MP Full HD security camera with ultra-low light performance, 24/7 color imaging, slow shutter support, flexible angle adjustment, and fixed focal lens options.
Product Specifications
Camera
Image Sensor
2 MP CMOS
Max. Resolution
1920 (H) × 1080 (V)
Minimum Illumination
0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
Shutter Time
PAL: 1/25 s to 1/50,000 s
NTSC: 1/30 s to 1/50,000 s
Day & Night
24/7 Color Imaging
Angle Adjustment
Pan: 0°–360°, Tilt: 0°–75°, Rotation: 0°–360°
Signal System
PAL / NTSC
Slow Shutter
Max. 16 times
Lens
Lens Type
2.8 mm / 3.6 mm fixed focal lens
Focal Length & FOV (3.6 mm)
Horizontal FOV: 77°
Vertical FOV: 42°
Diagonal FOV: 91°
Lens Mount
M12
2MP Full HD security camera with ultra-low light sensitivity, 24/7 color imaging, slow shutter support, wide angle adjustment up to 180° tilt, and a 3.6mm fixed focal lens.
Product Specifications
Camera
Image Sensor
2 MP CMOS
Max. Resolution
1920 (H) × 1080 (V)
Minimum Illumination
0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
Shutter Time
PAL: 1/25 s to 1/50,000 s
NTSC: 1/30 s to 1/50,000 s
Day & Night
24/7 Color Imaging
Angle Adjustment
Pan: 0°–360°, Tilt: 0°–180°, Rotation: 0°–360°
Signal System
PAL / NTSC
Slow Shutter
Max. 16 times
Lens
Lens Type
3.6 mm fixed focal lens
Focal Length & FOV
Horizontal FOV: 77°
Vertical FOV: 42°
Diagonal FOV: 91°
Lens Mount
M12
2MP Full HD security camera with ultra-low light sensitivity, 24/7 color imaging, slow shutter support, and fixed focal lens options for wide-area monitoring.
Product Specifications
Camera
Image Sensor 2 MP CMOS
Max. Resolution 1920 (H) × 1080 (V)
Minimum Illumination 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
Shutter Time PAL: 1/25 s to 1/50,000 sNTSC: 1/30 s to 1/50,000 s
Day & Night 24/7 Color Imaging
Angle Adjustment Pan: 0°–350°, Tilt: 0°–75°*Do not adjust the angle of the main body or enclosure manually.
Signal System PAL / NTSC
Slow Shutter Max. 16 times
Lens
Lens Type Fixed focal lens, 2.8 mm / 3.6 mm optional
Focal Length & FOV (2.8 mm) Horizontal FOV: 106°Vertical FOV: 57°Diagonal FOV: 126°
Lens Mount M12
Advanced AI analytics including facial recognition, Motion Detection 2.0 with human and vehicle classification, and perimeter protection, designed to deliver accurate alerts, powerful search capabilities, and reduced false alarms in professional surveillance systems.
AI & Smart Features
Facial Recognition
Face Picture Library Up to 16 face picture librariesHDD damage will not cause data loss, as the face library is backed up by HDD and flash
Face Picture Comparison Face picture comparison and face picture search4-ch face picture comparison alarm (HD analog camera)Captured directly from camera
Motion Detection 2.0
Human / Vehicle Analysis Deep learning-based Motion Detection 2.0 enabled by default for all analog channelsAccurately classifies humans and vehicles to significantly reduce false alarms caused by leaves, lights, and other environmental disturbances
Smart Search Quick search by object or event type
Perimeter Protection & Facial Detection
Perimeter Protection Human / Vehicle AnalysisUp to 8 channels (Advanced Model)
Facial Detection Facial detection and captureFace picture detection and face picture search4-ch face picture capture
iDS-7232HQHI-M2/XT
32-ch 1080p 1U H.265 AcuSense DVR
32 channels and 2 HDD 1U AcuSense DVR
Support 4-ch Facial Recognition or 8-ch advanced model Perimeter Protection based on Deep Learning algorithm
Support 8-ch AcuSearch Technology
Efficient H.265 pro+ compression technology
Encoding ability up to 3K/ 5MP Lite@12fps
Up to 40 channels IP camera inputs, each channel up to 6MP
Up to 24*1080P@30fps decoding ability
5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
Support All channels Motion Detection Technology
Support All channels HDTVI Two-Way Audio Technology

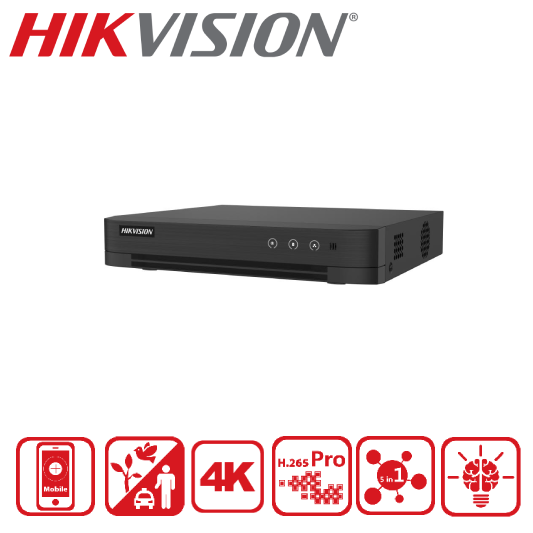

16-ch 1080p 1U H.265 AcuSense DVR
16 channels and 1 HDD 1U AcuSense DVR
Support 4-ch Facial Recognition or 8-ch advanced model Perimeter Protection based on Deep Learning algorithm
Support 8-ch AcuSearch Technology
Efficient H.265 pro+ compression technology
Encoding ability up to 3K/5MP Lite@12fps
Up to 24-ch IP camera inputs, each channel up to 6MP
Up to 24*1080P@30fps decoding ability
5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
Support All channels Motion Detection Technology
Support All channels HDTVI Two-Way Audio Technology

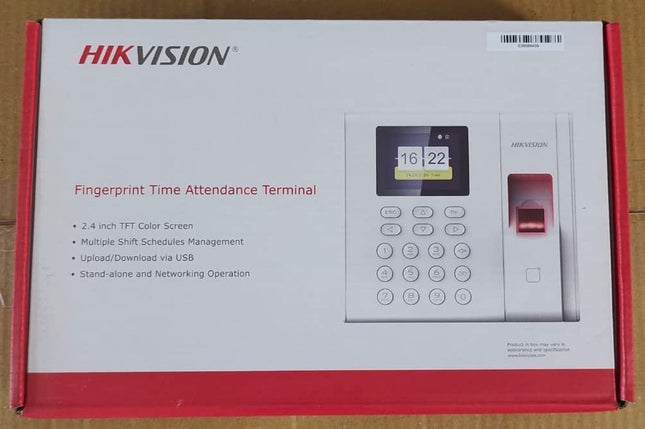

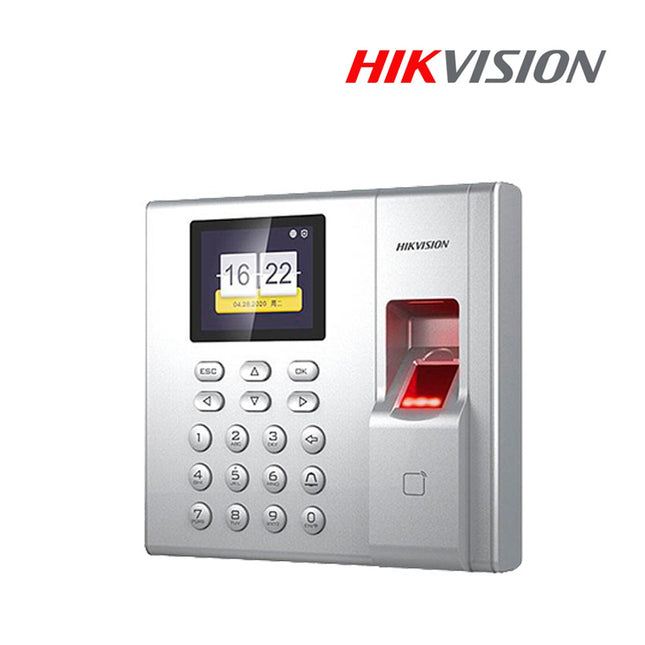

Specification
System
Operation system Linux
Screen
Size 2.4-inch
Type LCD-TFT display screen
Audio
Audio output 1 loudspeaker, 1 buzzer
Network
Wired network TCP/IP, 10/100Mbps, self-adaptive
Interface
Network interface 1
USB 1
Capacity
Card capacity 1000
Fingerprint capacity 1000
Event capacity 100,000
Authentication
Card type EM card
Card reading distance 0 to 3.5 cm
Fingerprint module Optical fingerprint module
Fingerprint comparing mode 1:1 and 1:N
Fingerprint recognition duration ＜ 1 s
Fingerprint False Acceptance
Rate (FAR) ≤ 0.001 %
Fingerprint False Rejection Rate
(FRR) ≤ 0.01 %
Others
Battery Support
Power supply 5 VDC/1 A
Working temperature -10 °C to +55 °C (14 °F to +131 °F)
Working humidity 10% to 90% (no condensing)
Color White
Dimensions 140 mm × 155 mm × 30 mm (5.51" × 6.01" × 1.18")
Application environment Indoor
Installation Wall mounting
