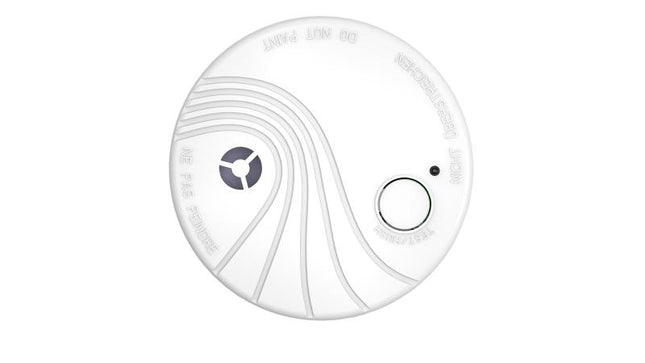

DS-PD451SMK-WE Smoke+Heat Detector
Product Specifications
Detection Performance
Detection Method
Chamber With Photoelectric Sensor
Indication
Alarm Duration
Support
Electrical Characteristics
Typical Voltage
3V
Battery Type
Replaceable CR123A × 2
Power Supply
Battery Powered
Battery Life
Up to 5 years
Wireless Transmission
RF Frequency
868MHz
Transmission Range (Free Space)
Up to 1,000 m between the detector and a hub (or radio signal range extender) in an open space
Wireless Security
AES-128 Encryption
Enrolling Method
Power Up; Remote ID; QR Code
General
Installation Method
Ceiling Mounted
Dimension (W×H×D)
125 mm × 39 mm (4.9" × 1.5")
Color
White

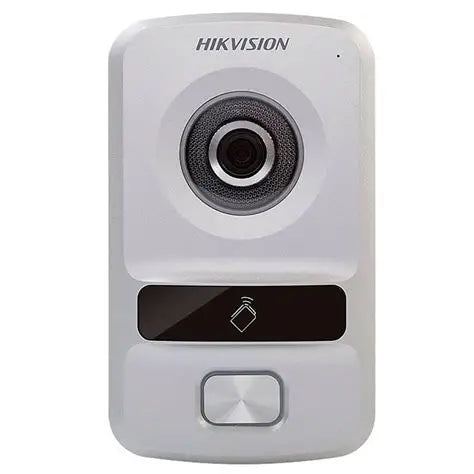

Feature
Specification
Type
Villa Door Station
Camera
1.3 MP HD Camera
Camera Resolution
HD 720P, 25fps
Night Vision
IR Supplement
Material
Plastic
Indoor Station Access
1 Indoor Station
Network
10M/100M Self-adaptive Ethernet
Interface
RS-485
Alarm Interface
4 Alarm Inputs, 1 Alarm Output
Protection
IP65
Power
12 VDC

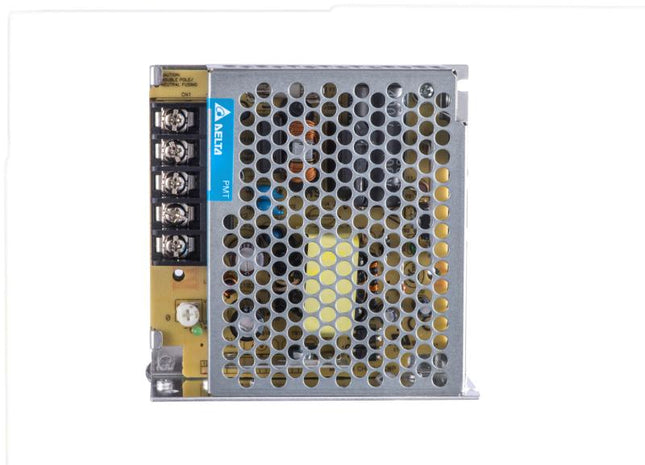

Feature
Specification
Type
Power Supply
Application
Door Station & Villa Door Station
Output Voltage
12 VDC
Output Current
4.2 A
Power Rating
50 W
Enclosure
Without Box

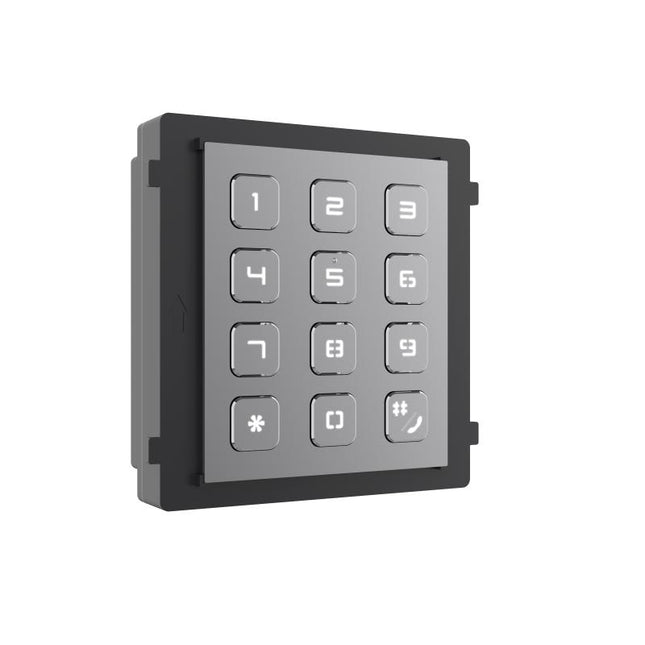

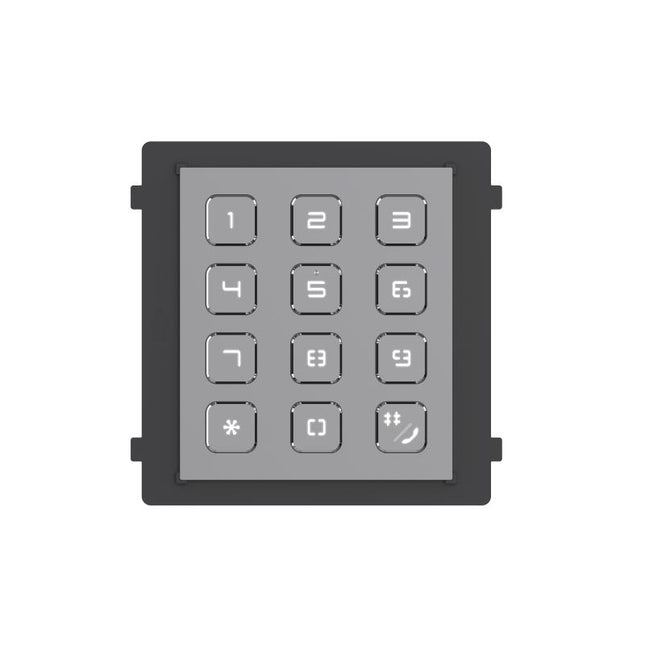

Feature
Specification
Type
Keypad Module
Communication
RS-485 Module Connection
Protection
IP65
Functions
• PIN Code Door Unlock<br>• Call Indoor Station via Room Number
Backlight
Supported
Mounting
• Flush Mounting<br>• Surface Mounting<br>• Requires Mounting Bracket
Dimensions
98.21 × 100.21 × 33.7 mm
Power Input
12 VDC
Power Output
12 VDC (Powered by Other Module)
Feature
Specification
Camera
CMOS 2MP HD Color Camera
Material
Aluminum Alloy
Indoor Station Access
1 Indoor Station
Wireless
Wi-Fi 802.11b/g/n
Power
Standard PoE / 12 VDC
Card Reader
Built-in Mifare Card Reading Module
Network
10M/100M Self-adaptive Ethernet
Interface
RS-485
Alarm Interface
4 Alarm Inputs, 2 Relay Outputs for Door Lock Control
Protection
IP65
Indicators
3 Integrated Status Indicators
Functions
• Direct Call to Hik-Connect App<br>• Works Without Indoor Station

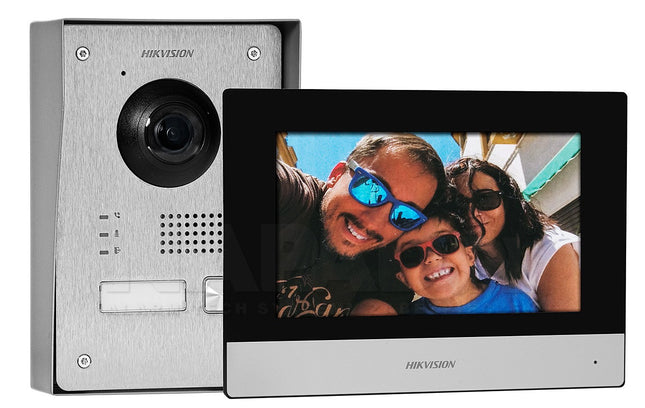

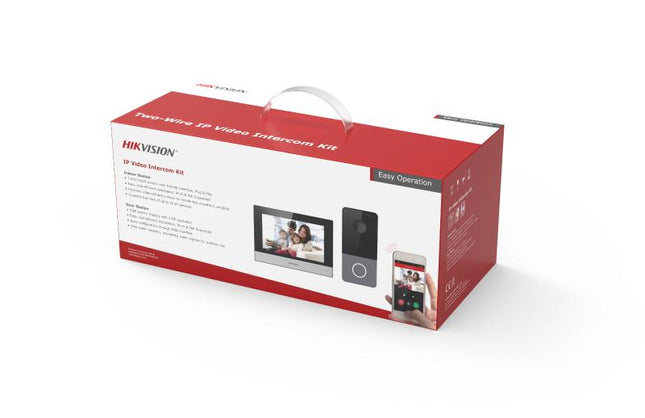

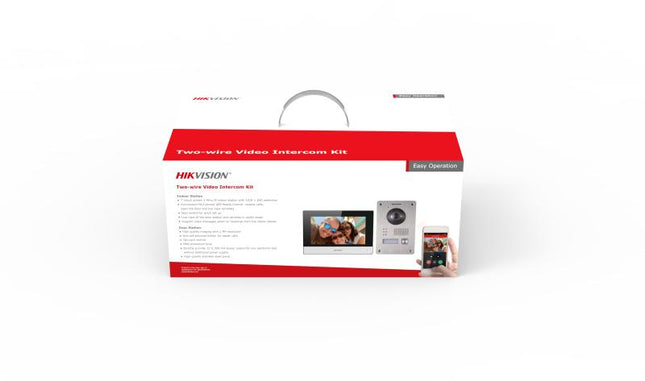

Feature
Specification
Type
Two-wire Digital IP Video Intercom Kit
Package Includes
• DS-KV8103-IMPE2 ×1<br>• DS-KH6320-WTPE2 ×1<br>• DS-KAB8103-IMEX ×1
Power
Power Adapter Included

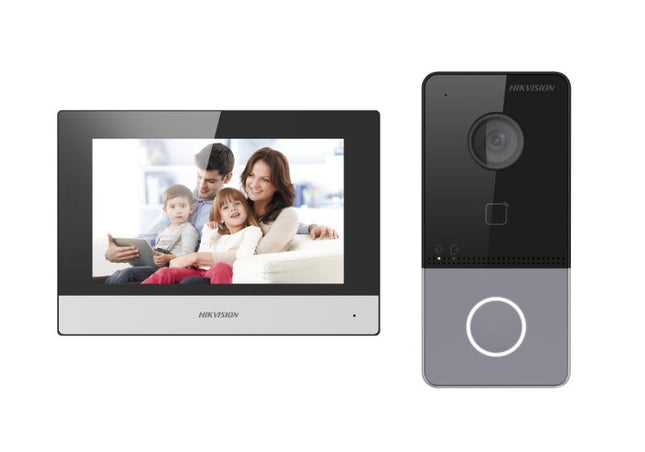

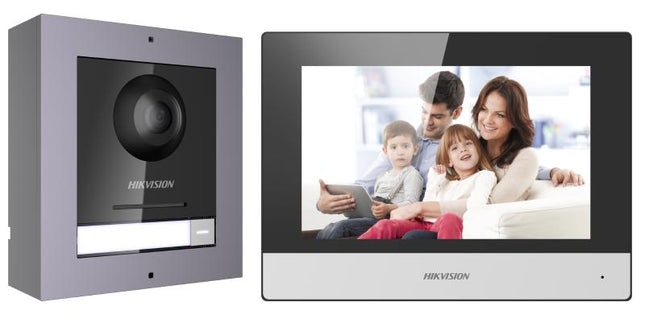

Feature
Specification
Type
IP Video Intercom Kit
Application
Villa or House (Single Call Button)
Package Includes
• DS-KV6113-WPE1 ×1<br>• DS-KH6320-WTE1 ×1<br>• PSU ×2

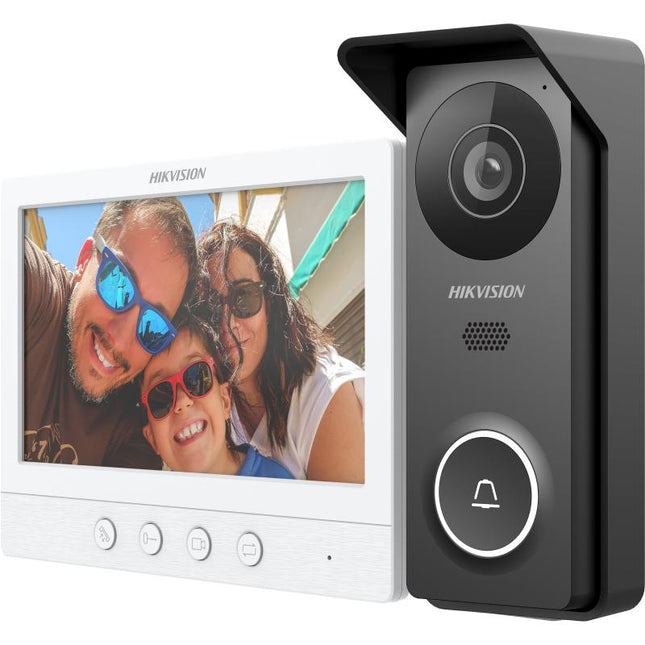

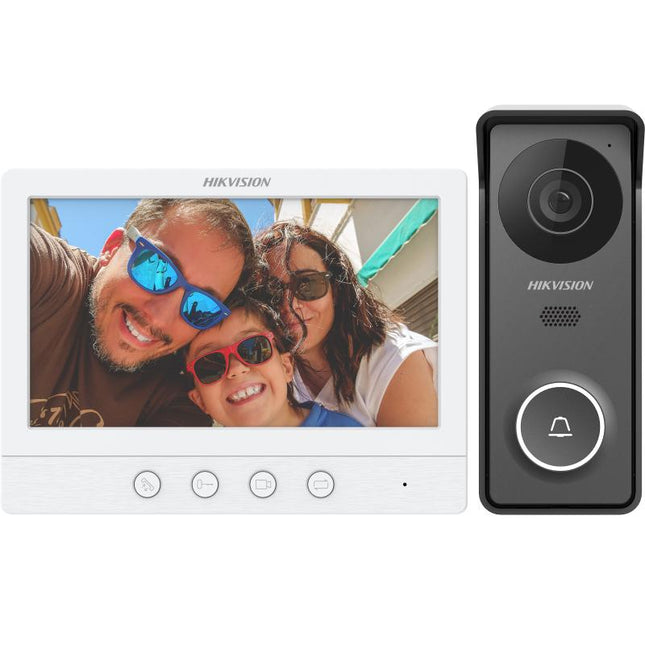

Feature
Specification
Type
4-wire HD Analog Video Intercom Kit
Kit Includes
• DS-KB2422T-IM(B)<br>• DS-KH2230T(B)
Accessories
• One Indoor Monitor<br>• One Outdoor Panel<br>• 5-meter 4-wire Cable<br>• Other Accessories
Indoor Station
7-inch LCD Screen
Door Station
2MP Camera, HD TVI Video Quality, Metal Housing, IP65, IK08
Power
European Standard Power Adapter Included

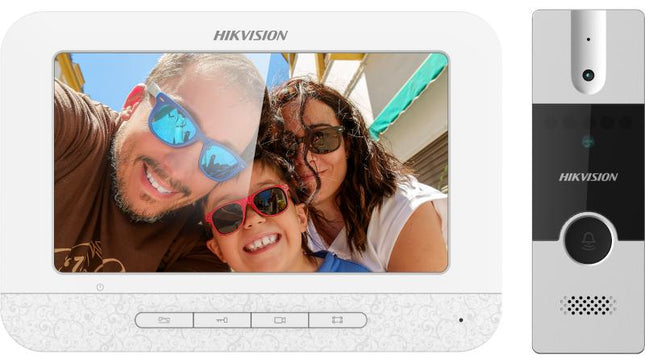

Feature
Specification
Type
Analog Video Intercom Kit
Kit Includes
• DS-KB2411T-IM<br>• DS-KH2220 Monitor
Accessories
• One Indoor Monitor<br>• One Outdoor Panel<br>• 5-meter 4-wire Cable<br>• Other Accessories
Camera
2MP
Display
7-inch LCD
Power
European Standard Power Adapter Included

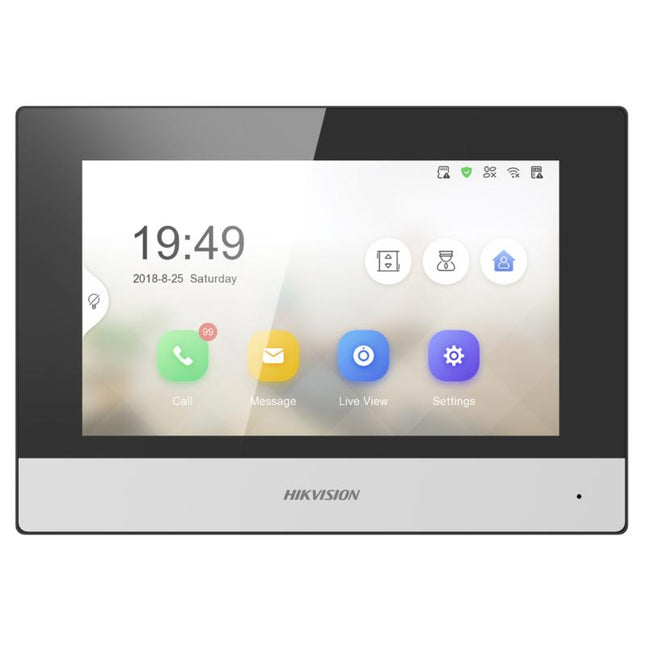

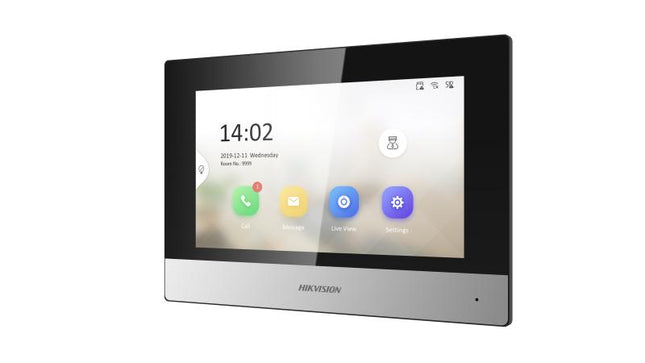

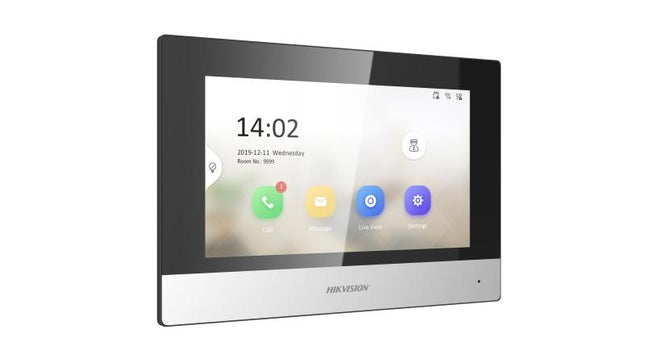

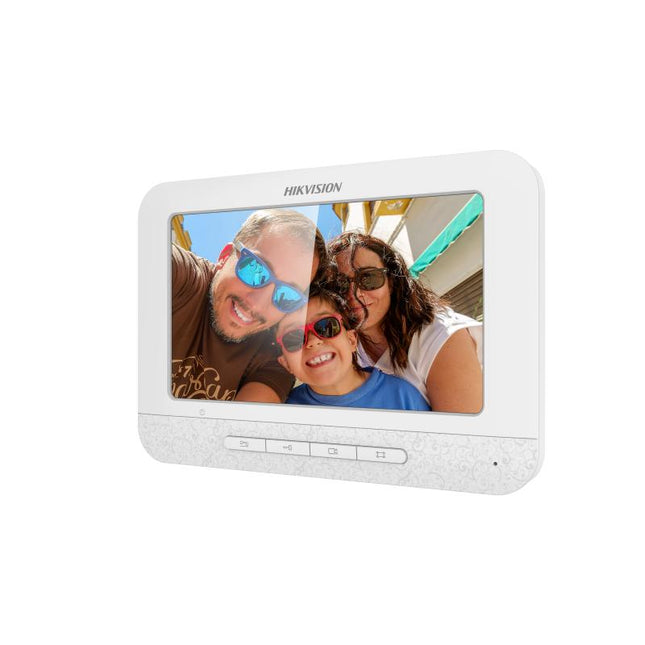

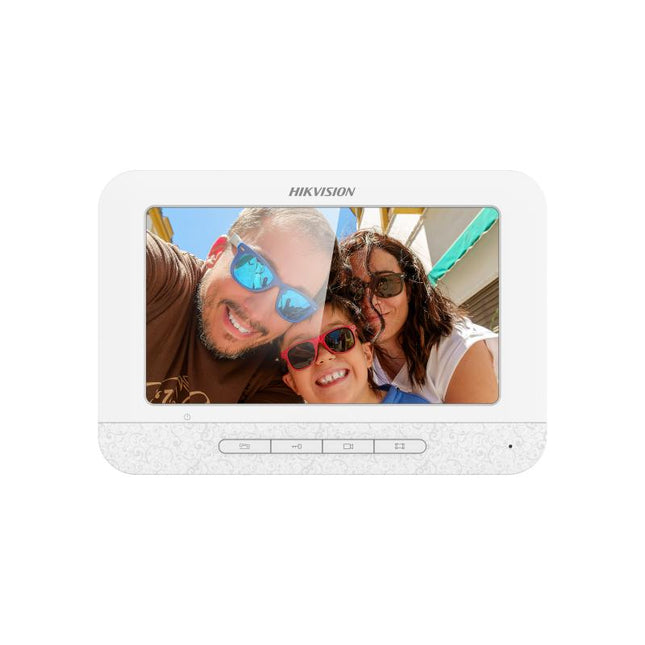

Feature
Specification
Screen
7-inch LCD Screen
Type
Indoor Video Intercom Station
Communication
Video Intercom Communication
System Support
Supports Three Indoor Stations Cascading
Functions
• Remote Unlocking<br>• Door Station Monitoring<br>• External Analog Camera Monitoring (Storage Supported)
Feature
Specification
Type
Smart Lock
Lock Compatibility
Compatible with 6068 Standard Lock Body and C-Level Lock Cylinder
Communication
Wi-Fi
Management Platform
Centralized Management Through Localized Platform
User Capacity
Maximum 100 Users
Card Capacity
Maximum 100 M1 Cards
Language
English
Power Supply
8 × AA Alkaline BatteriesSingle Rated Voltage: 1.5V
Feature
Specification
Type
USB Fingerprint Enrollment Device
Connection
USB 2.0
Driver
Plug-and-Play USB with No-Driver Technology
Function
Fingerprint Enrollment
Compatible Devices
DS-K1T201, DS-K1201, DS-K1T804, DS-K1A802, DS-K1T501
Feature
Specification
Type
Fingerprint & EM Card Reader
Card Type
Reads EM Card
Fingerprint Capacity
5,000 Fingerprints
Communication
RS-485 (HIK Private Protocol)
Protection
IP65
Installation
Wall Mounting with ScrewsGang Box Not Supported
Application
Fingerprint Device Recommended for Indoor Environment
Feature
Specification
Type
EM Card Reader with Keypad
Card Type
Reads EM Card
Communication
RS-485
Wiegand Support
Wiegand (W26/W34)
Keypad
Built-in Keypad
Protection
• Tamper-proof Alarm• Dust-proof• IP64
Installation
Applicable for 86 & 120 Gang Box
Feature
Specification
Display
7 inch LCD Touch Screen
Type
Face Recognition & Temperature Screening Terminal
Camera
2 Mega Pixel Wide-angle Lens
Storage Capacity
• 50,000 faces
Verification Methods
• Face Recognition• Fast Temperature Measurement• Fever Screening
Functions
• Face Recognition• Temperature Screening• Time Attendance (6 Status)
Temperature Measurement
• Range: 30°C ~ 45°C• Accuracy: ±0.5°C
Recognition Performance
• Authentication Distance: 0.3 m ~ 2.0 m• Face Recognition Duration ≤ 0.2 s (1:N)
Attendance Status
• Check In• Check Out• Break In• Break Out• Overtime In• Overtime Out
Mask Detection
• Face Mask Wearing Alert• Forced Mask Wearing Alert
Languages
English, Spanish, French, German, Italian, Portuguese, Polish, Russian, Thai, Arabic
Power
Power Supply Not Included
Feature
Specification
Display
4.3 inch LCD Touch Screen
Type
Face Recognition Terminal
Camera
2 Mega Pixel Wide-angle Lens
Card Reader
Built-in EM Card Reading Module
Storage Capacity
• 6,000 faces• 5,000 fingerprints• 10,000 cards
Functions
• Face Recognition• Fingerprint Authentication• Time Attendance (6 Status)• Two-way Audio• Face Recognition in Dark Environment
Communication
• TCP/IP• Wi-Fi
Protocols
• ISUP5.0• ISAPI
Recognition Performance
• Accuracy Rate > 99%• Recognition Duration ≤ 0.2 s (1:N)• Recognition Distance: 0.3 m ~ 1.5 m
Application
Indoor
Languages
English, Spanish, Arabic, Thai, Indonesian, Russian, Vietnamese
Configuration
Web Client
Power
DC 12V/2A
Feature
Specification
Display
4.3 inch LCD Touch Screen
Type
Face Recognition Terminal
Camera
2 Mega Pixel Wide-angle Lens
Card Reader
Built-in EM Card Reading Module
Storage Capacity
• 1,500 faces• 3,000 fingerprints• 3,000 cards
Functions
• Face Recognition• Fingerprint Authentication• Time Attendance (6 Status)• Two-way Audio• Face Recognition in Dark Environment
Communication
• TCP/IP
Protocols
• ISUP5.0• ISAPI
Recognition Performance
• Accuracy Rate > 99%• Recognition Duration ≤ 0.2 s (1:N)• Recognition Distance: 0.3 m ~ 1.5 m
Application
Indoor
Languages
English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil)
Configuration
Web Client
Power
DC 12V/1A, Power Adapter Included (European Standard)

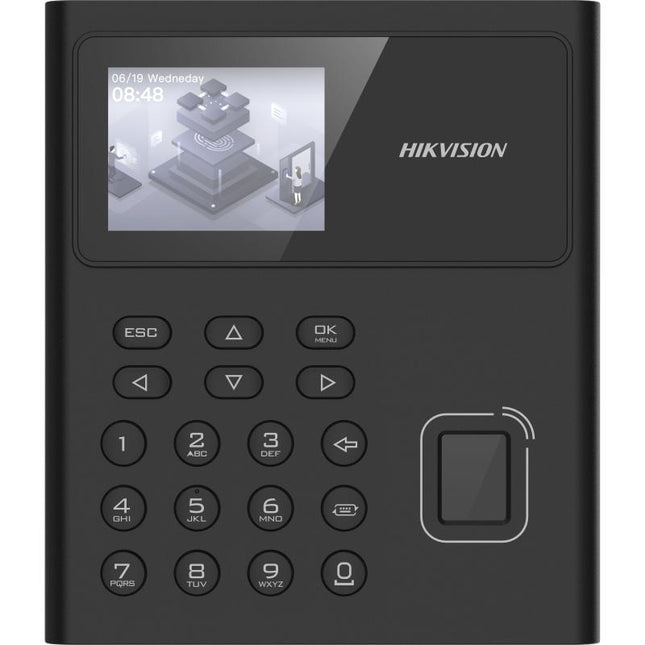

Feature
Specification
Display
2.4-inch LCD Screen
Type
Standalone Access Control Terminal
Authentication
Fingerprint, EM Card, PIN
Storage Capacity
• 3,000 Cards<br>• 3,000 Fingerprints<br>• 100,000 Events
Functions
• Access Control<br>• Local Time Attendance
Communication
• TCP/IP<br>• Wi-Fi (AP Mode)
Configuration
PC Web Client, Mobile Web Client
Protocols
• ISAPI<br>• ISUP 5.0
Interface
RS-485 (Secure Door Control Unit / Card Reader)

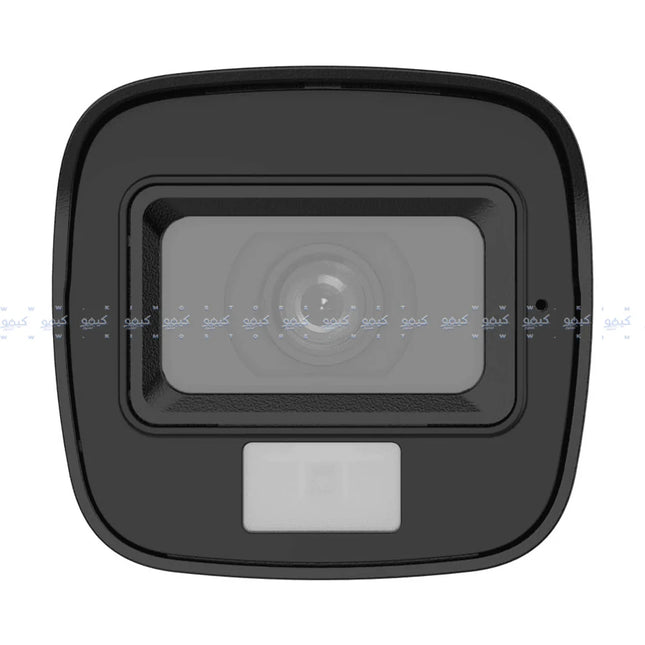

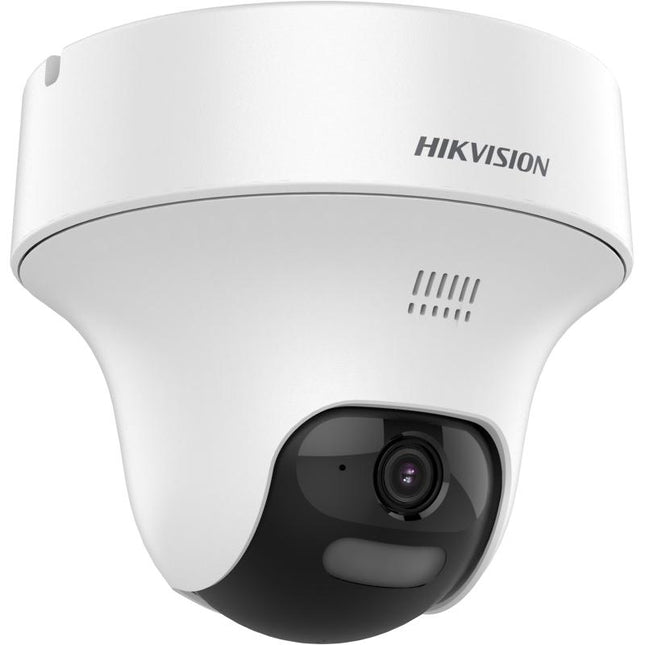

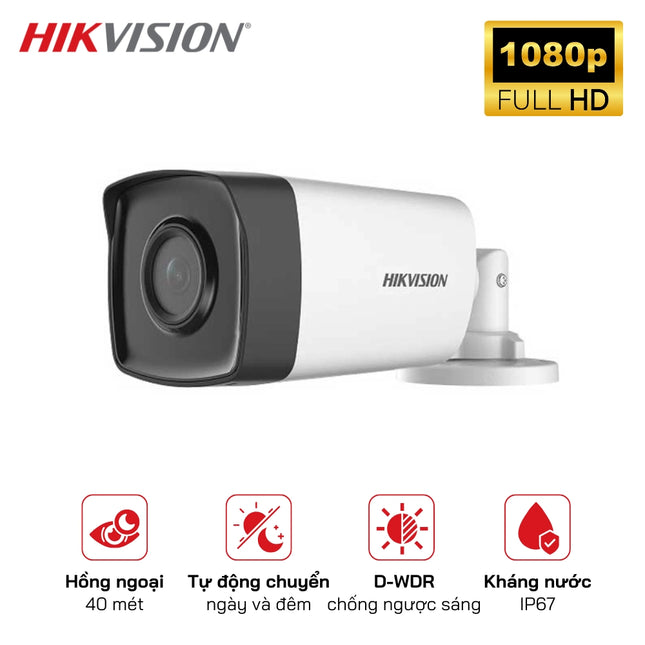

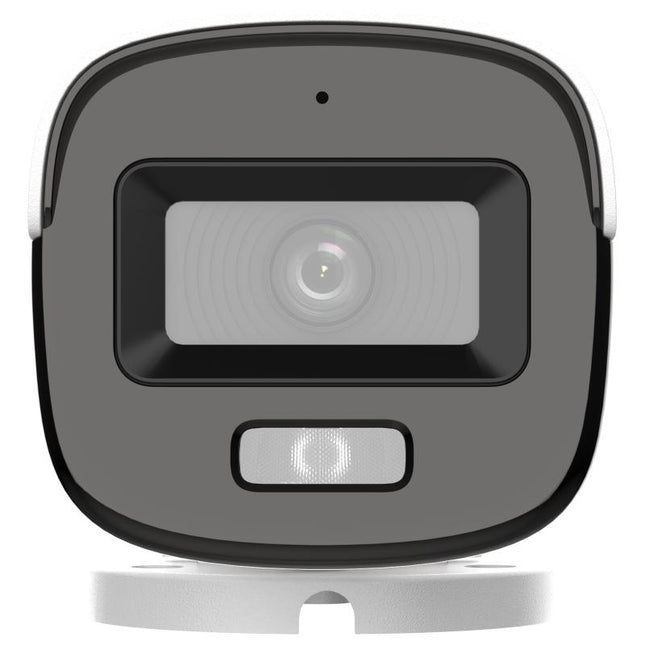

2MP Full HD security camera with smart illumination technology, offering extended 40 m IR and white light range, clear night vision, and flexible pan–tilt–rotation adjustment for dependable 24/7 surveillance.
Technical Specifications
Camera
Image Sensor
2 MP CMOS
Maximum Resolution
1920 (H) × 1080 (V)
Minimum Illumination
0.02 Lux @ (F2.2, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/25 s to 1/50,000 s
NTSC: 1/30 s to 1/50,000 s
Day & Night
ICR (Infrared Cut Filter)
Signal System
PAL / NTSC
Lens
Lens Type
3.6 mm Fixed Focal Lens
Focal Length & FOV
3.6 mm – H: 77° | V: 43° | D: 90°
Lens Mount
M12
Angle Adjustment
Pan
0° to 360°
Tilt
0° to 75°
Rotation
0° to 360°
Illumination
Supplement Light Type
Smart Light / IR / White Light
IR Light Range
Up to 40 m
White Light Range
Up to 40 m

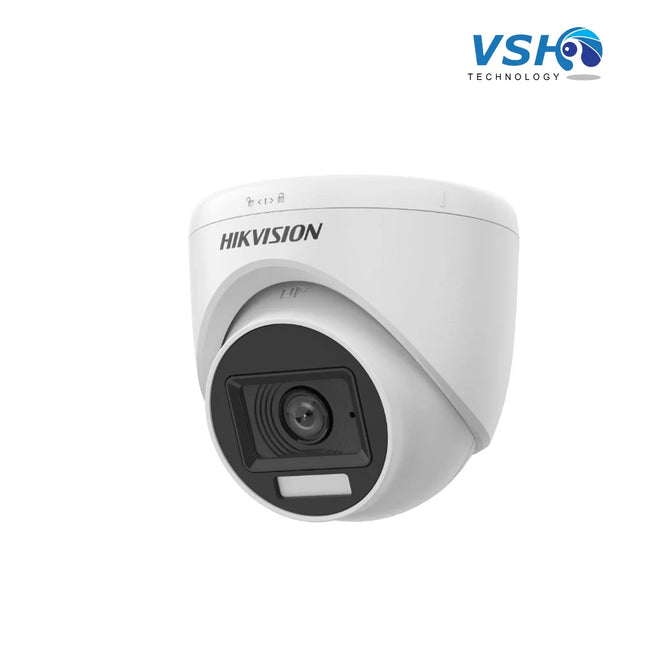

2MP Full HD wide-angle security camera featuring smart illumination with IR and white light, excellent low-light performance, and flexible pan–tilt–rotation adjustment for reliable 24/7 surveillance.
Technical Specifications
Camera
Image Sensor 2 MP CMOS
Maximum Resolution 1920 (H) × 1080 (V)
Minimum Illumination 0.02 Lux @ (F2.2, AGC ON), 0 Lux with IR
Shutter Time PAL: 1/25 s to 1/50,000 sNTSC: 1/30 s to 1/50,000 s
Day & Night ICR (Infrared Cut Filter)
Signal System PAL / NTSC
Lens
Lens Type 2.8 mm Fixed Lens
Focal Length & FOV 2.8 mm – H: 97° | V: 54° | D: 113°
Lens Mount M12
Angle Adjustment
Pan 0° to 360°
Tilt 0° to 75°
Rotation 0° to 360°
Illumination
Supplement Light Type Smart Light / IR / White Light
IR Light Range Up to 20 m
White Light Range Up to 20 m
2MP Full HD ultra-wide surveillance camera featuring an F1.6 low-light lens, wide field of view coverage, and flexible pan-tilt-rotation adjustment for reliable day and night security monitoring.
Technical Specifications
Camera
Image Sensor
2 MP CMOS
Maximum Resolution
1920 (H) × 1080 (V)
Minimum Illumination
0.01 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/25 s to 1/50,000 s
NTSC: 1/30 s to 1/50,000 s
Day & Night
ICR (Infrared Cut Filter)
Signal System
PAL / NTSC
Lens
Lens Type
2.8 mm Fixed Lens
Focal Length & FOV
2.8 mm – H: 101° | V: 56° | D: 118°
Lens Mount
M12
Angle Adjustment
Pan
0° to 360°
Tilt
0° to 90°
Rotation
0° to 360°

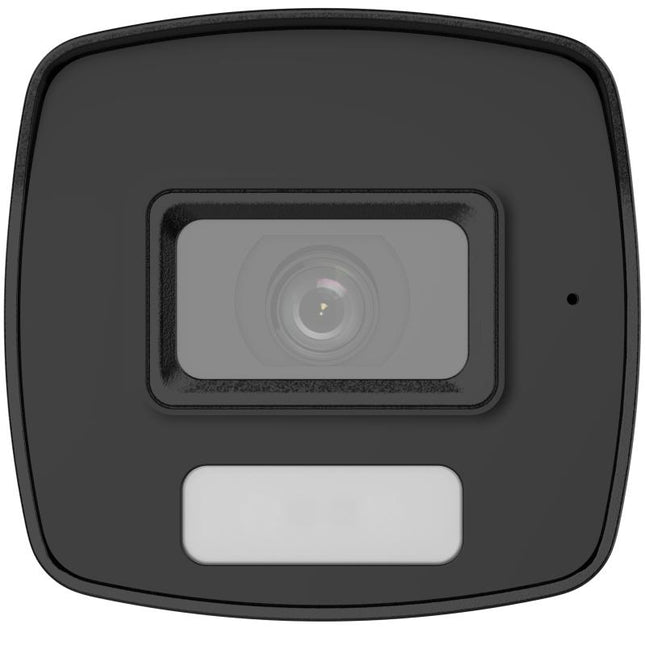

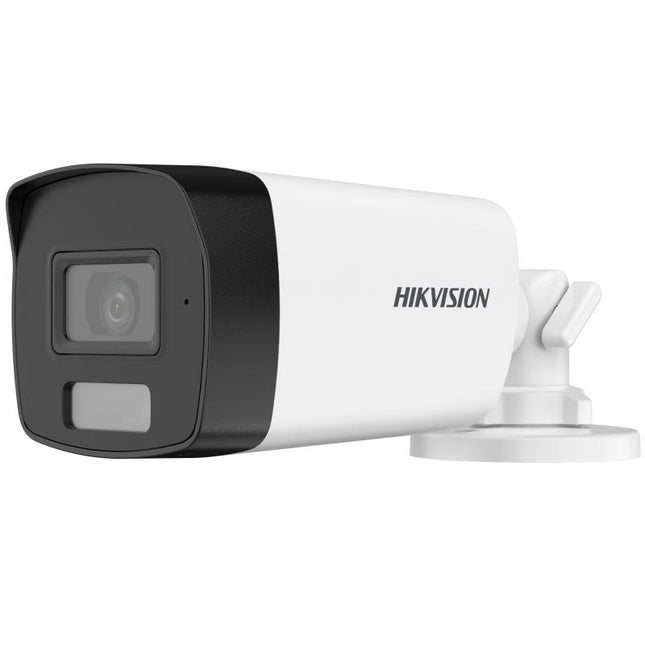

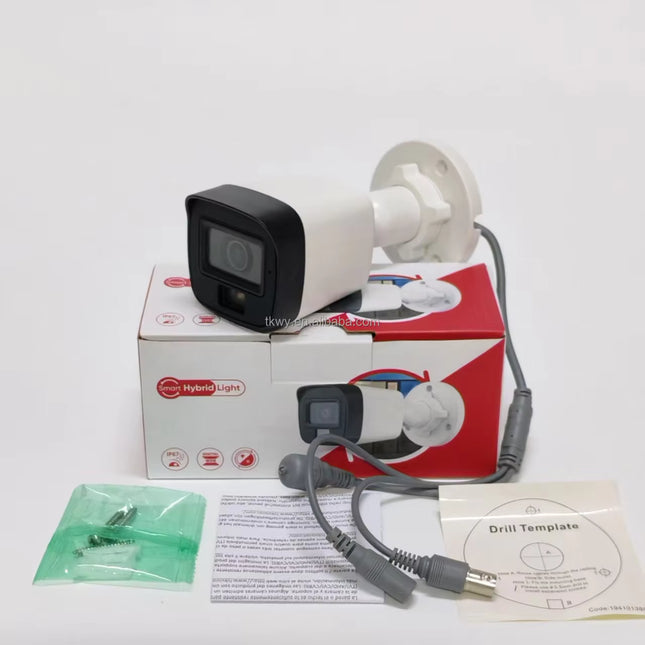

High-performance 2K surveillance camera featuring a CMOS image sensor, wide-angle fixed focal lens, IR night vision, and extended 180° tilt for flexible and precise monitoring.
Technical Specifications
Camera
Image Sensor
2K CMOS
Maximum Resolution
2304 (H) × 1296 (V)
Minimum Illumination
0.01 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/25 s to 1/50,000 s
NTSC: 1/30 s to 1/50,000 s
Day & Night
ICR (Infrared Cut Filter)
Signal System
PAL / NTSC
Lens
Lens Type
3.6 mm Fixed Focal Lens
Focal Length & FOV
3.6 mm – H: 89° | V: 47° | D: 107°
Lens Mount
M12
Angle Adjustment
Pan
0° to 360°
Tilt
0° to 180°
Rotation
0° to 360°
Full HD 2MP surveillance camera featuring a wide-angle fixed lens, excellent low-light performance with IR night vision, and flexible pan-tilt-rotation adjustment for reliable indoor and outdoor monitoring.
Technical Specifications
Camera
Image Sensor
2 MP CMOS
Maximum Resolution
1920 (H) × 1080 (V)
Minimum Illumination
0.01 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/12.5 s to 1/50,000 s
NTSC: 1/15 s to 1/50,000 s
Day & Night
ICR (Infrared Cut Filter)
Signal System
PAL / NTSC
Lens
Lens Type
2.8 mm Fixed Lens
Focal Length & FOV
2.8 mm – H: 101° | V: 56° | D: 118°
Lens Mount
M12
Angle Adjustment
Pan
0° to 360°
Tilt
0° to 75°
Rotation
0° to 360°
Full HD 2MP surveillance camera with a wide-angle fixed lens, excellent low-light performance with IR night vision, and extended pan and tilt range for flexible and precise area coverage.
Technical Specifications
Camera
Image Sensor
2 MP CMOS
Maximum Resolution
1920 (H) × 1080 (V)
Minimum Illumination
0.01 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/12.5 s to 1/50,000 s
NTSC: 1/15 s to 1/50,000 s
Day & Night
ICR (Infrared Cut Filter)
Signal System
PAL / NTSC
Lens
Lens Type
2.8 mm Fixed Lens
Focal Length & FOV
2.8 mm – H: 105° | V: 59° | D: 127°
Lens Mount
M12
Angle Adjustment
Pan
0° to 350°
Tilt
0° to 100°
Full HD 2MP surveillance camera featuring an ultra-large F1.0 aperture for exceptional low-light performance, white-light illumination for full-color night imaging, and a 3.6 mm fixed focal lens with flexible pan-tilt-rotation adjustment.
Technical Specifications
Camera
Image Sensor
2 MP CMOS
Maximum Resolution
1920 (H) × 1080 (V)
Minimum Illumination
0.001 Lux @ (F1.0, AGC ON), 0 Lux with White Light
Shutter Time
PAL: 1/25 s to 1/50,000 s
NTSC: 1/30 s to 1/50,000 s
Signal System
PAL / NTSC
Lens
Lens Type
3.6 mm Fixed Focal Lens
Focal Length & FOV
3.6 mm – H: 84° | V: 45° | D: 99°
Lens Mount
M12
Angle Adjustment
Pan
0° to 360°
Tilt
0° to 90°
Rotation
0° to 360°

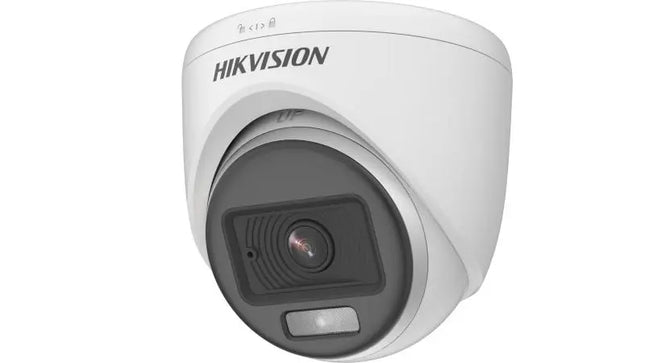

Full HD 2MP surveillance camera featuring an ultra-wide 2.8 mm fixed lens, excellent low-light performance with IR night vision, and extended pan-tilt adjustment for flexible and accurate monitoring coverage.
Technical Specifications
Camera
Image Sensor
2 MP CMOS
Maximum Resolution
1920 (H) × 1080 (V)
Minimum Illumination
0.01 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/12.5 s to 1/50,000 s
NTSC: 1/15 s to 1/50,000 s
Day & Night
ICR (Infrared Cut Filter)
Signal System
PAL / NTSC
Lens
Lens Type
2.8 mm Fixed Lens
Focal Length & FOV
2.8 mm – H: 105° | V: 59° | D: 127°
Lens Mount
M12
Angle Adjustment
Pan
0° to 350°
Tilt
0° to 100°

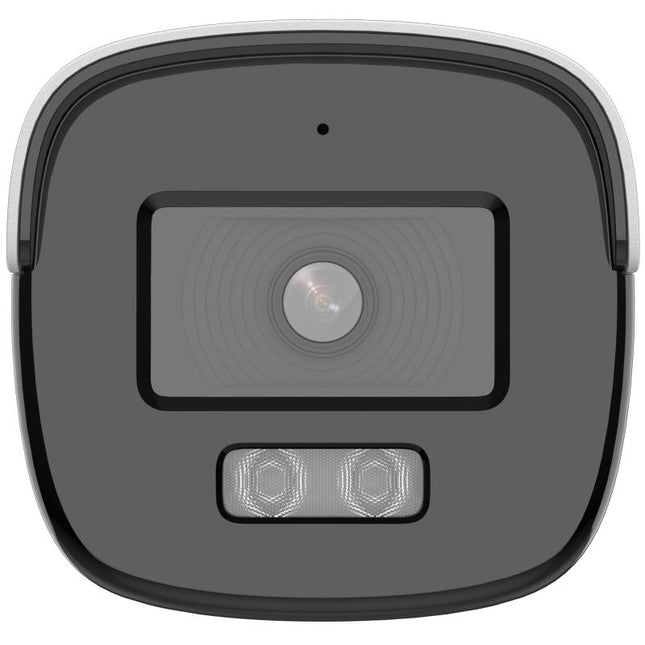

Full HD 2MP surveillance camera with an ultra-large F1.0 aperture for superior low-light imaging, white-light illumination for full-color night vision, and a 3.6 mm fixed focal lens with flexible pan-tilt-rotation adjustment.
Technical Specifications
Camera
Image Sensor 2 MP CMOS
Maximum Resolution 1920 (H) × 1080 (V)
Minimum Illumination 0.001 Lux @ (F1.0, AGC ON), 0 Lux with White Light
Shutter Time PAL: 1/25 s to 1/50,000 sNTSC: 1/30 s to 1/50,000 s
Day & Night ICR (Infrared Cut Filter)
Signal System PAL / NTSC
Lens
Lens Type 3.6 mm Fixed Focal Lens
Focal Length & FOV 3.6 mm – H: 84° | V: 46° | D: 98°
Lens Mount M12
Angle Adjustment
Pan 0° to 360°
Tilt 0° to 90°
Rotation 0° to 360°
Full HD 2MP surveillance camera with an ultra-large F1.0 aperture for superior low-light performance, white-light illumination for full-color night imaging, and a 3.6 mm fixed focal lens with extended 180° tilt for maximum installation flexibility.
Technical Specifications
Camera
Image Sensor
2 MP CMOS
Maximum Resolution
1920 (H) × 1080 (V)
Minimum Illumination
0.001 Lux @ (F1.0, AGC ON), 0 Lux with White Light
Shutter Time
PAL: 1/25 s to 1/50,000 s
NTSC: 1/30 s to 1/50,000 s
Day & Night
ICR (Infrared Cut Filter)
Signal System
PAL / NTSC
Lens
Lens Type
3.6 mm Fixed Focal Lens
Focal Length & FOV
3.6 mm – H: 84° | V: 46° | D: 98°
Lens Mount
M12
Angle Adjustment
Pan
0° to 360°
Tilt
0° to 180°
Rotation
0° to 360°
DS-PK1-E-WE Wireless LED keypad
Electrical Characteristics
Battery Type
Four AA batteries
Power Supply
Battery Supply
Operation Humidity
10% to 90% (No condensing)
Operation Temperature
-10°C to +55°C (-4°F to +122°F)
Battery Life Span
Up to 2 years (standby time)
Wireless Transmission
RF Frequency
868 MHz
RF Modulation
2GFSK
RF Distance
1200 m (open area)
General
Installation Method
Screw mounting
Dimension (WxHxD)
140 (5.50") x 86 (3.38") x 22 (0.87") mm
Weight
151 g (5.33 oz) without battery
