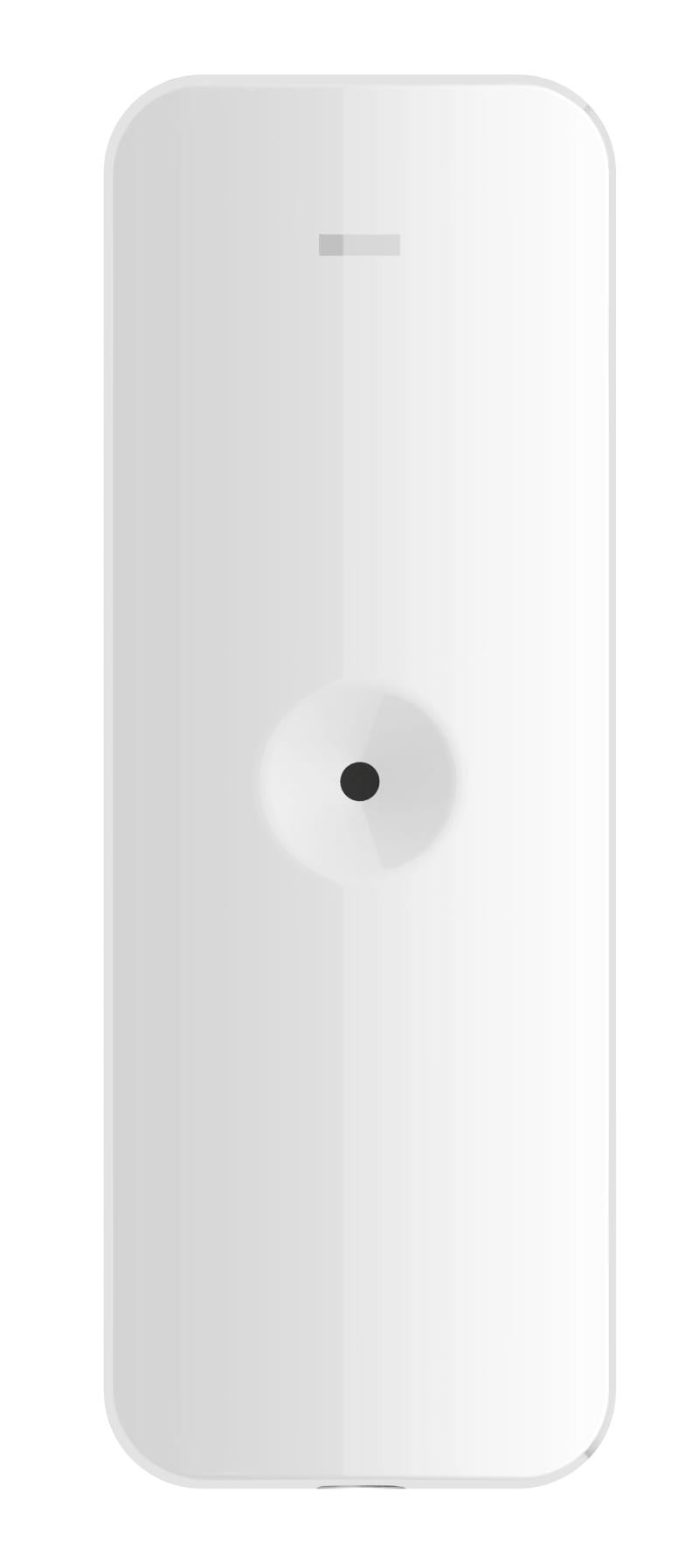

DS-PDBG8-EG2 WE Wireless Glass Break Detector
Product Specifications
Detection Performance
Detection Method
Acoustic Sensor
Detection Range
8m
Detection Angle
120°
Sensitivity
2m;4m;6m;8m
Glass Type
Float;Plate;Tampered;Wired;Laminated Leaded;Double Glazing
Glass Thickness
2.4 mm to 6.4 mm
Glass Size
0.3 m × 0.3 m to 3 m × 3 m
Feature
Digital Processing
Support
Tamper Protection
Front;Rear
Environment Temperature Indicator
Support
Signal Strength Indicator
Support
Interface
Alarm Input
Normally Closed;Normally Open;Impulse Count
Power Switch
Power up unenrolling
LED Indicator
Blue (alarm)
Transmission
Transmission Technology
Tri-X Wireless
Transmission Method
Two-Way RF Wireless
Transmission Frequency
868MHz
Transmission Security
AES-128 Encryption
Transmission Range (Free Space)
1.6Km
Frequency Hopping
Support
Enrolling Method
Power up;Remote ID;QR Code
Electrical Characteristics
Power Supply
Battery powered
Battery Type
CR123A × 2
Typical Voltage
3V
Standard Battery Life
Up to 5 years (standby time)
General
Operation Temperature
-10°C to 55°C (14°F to 131°F)
Storage Temperature
-20°C to 60°C (-4°F to 140°F)
Operation Humidity
10% to 90%
Dimension (WxHxD)
38.8 mm × 107.0 mm × 24.5 mm
Weight
83 g
Mounting Method
Wall;Ceiling
Application Scenario
Indoor
