The DS-1M01 connector is designed for reliable electrical performance, featuring gold-plated copper alloy contacts, durable polycarbonate housing, and long insertion life for professional networking and low-voltage applications.
Product Specifications
General
Model
DS-1M01
Max Current
1.5 A @ 25 ℃
Max Voltage
≤ 150 VAC
Electrical Characteristics
Insulation Resistance
≥ 1000 MΩ @ 100 V DC
Withstand Voltage
1 kV AC RMS
Contact Resistance
≤ 20 mΩ
Mechanical Performance
Tensile Strength
50 N for 60 s ± 5 s
Insert / Extraction Life
≥ 750 Cycles
Environmental
Operating Temperature
-25 ℃ to +55 ℃
Storage Temperature
-10 ℃ to +40 ℃
Relative Humidity
< 80%
Material Specifications
Plug Housing
Polycarbonate, UL94V-2
Conductor
Copper Alloy with 15 μinch Gold Plating
Cat 6 unshielded keystone jack with UL 94 V-0 fire resistance, gold-plated contacts, IDC termination, and long service life, designed for reliable structured cabling installations.
Product Specifications
Category
Product Category
Keystone Jack
Fire Resistance
UL 94 V-0
General Specifications
Color
White, Blue
ANSI/TIA Category
Category 6
Cable Type
Unshielded
Conductor Type
Solid, Stranded
Integrated Dust Cover
None
Termination Type
IDC
Wiring
TIA 568A, TIA 568B
Material Specifications
Conductor
Phosphor Bronze
Housing
PC
IDC
PC
IDC Cap
PC
Termination Contact Plating
50 μinch Gold
Electrical Characteristics
DC Resistance
≤ 20 mΩ
Current Rating
1.5 A @ 20 °C
Dielectric Withstand Voltage (Conductive Surface)
1,000 Vac @ 60 s
Dielectric Withstand Voltage (Contact-to-Contact)
1,000 Vac @ 60 s
Insulation Resistance
≥ 500 MΩ
Mechanical Specifications
Plug to Jack Mating Cycles
≥ 750 Times
Compatible Conductor Gauge (Solid)
22–24 AWG
Compatible Conductor Gauge (Stranded)
22–24 AWG
Dimensions
Height
20.05 mm
Width
16.80 mm
Depth
32.55 mm
1U horizontal cable management panel designed for organized rack cabling, featuring durable cold-rolled steel construction and support for up to 24 ports in standard 19-inch racks.
Product Specifications
Category
Product Category
Horizontal Cable Management
General Specifications
Color
Black
Total Ports
24
Rack Unit
1U
Material Specifications
Material Type
Cold-Rolled Steel
Dimensions
Height
44.4 mm
Width
483 mm
Depth
74 mm
Packaging & Weights
Packaging Type
Box
Net Weight
80 g
Package Dimensions
500 × 105 × 58 mm
Packaging Quantity
1
Accessories
Included Accessories
Nuts: 4 pcs, Screws: 4 pcs
Cat 6 U/UTP outdoor network cable with solid bare copper conductors, PE sheath, separator structure, and weather-resistant design for outdoor installations.
Product Specifications
General
Category
Cat 6
Structure
U/UTP
Fire Resistance
None
Usage Scenario
Outdoor
Conductor
Material
Solid Bare Copper
Diameter
0.552 ± 0.005 mm (23 AWG)
Insulation
Insulation Diameter
0.98 ± 0.05 mm
Sheath
Sheath Material
PE
Sheath Color
Black
Structure & Packaging
Length
305 ± 1.5 m
Rip Cord
Yes
Separator
Yes
High-quality Cat.6 U/UTP network cable with solid bare copper conductors, HDPE insulation, separator design, and verified compliance with international cabling standards.
Product Specifications
General
Category Cat.6
Rip-cord Yes
Separator Yes
Fire Resistance No
Sheath Printing HIKVISION 4PR 23AWG 75°C U/UTP CAT6 VERIFIED TO ANSI/TIA-568-C.2 PVC ****m mm/dd/yyyy Tracing Code-HS
Reference Standard ISO/IEC 11801, ANSI/TIA-568-C.2, RoHS 2.0
Conductor
Material Solid Bare Copper (99.95%)
Diameter 0.55 ± 0.005 mm (23 AWG)
Insulation
Material HDPE
Diameter 0.98 ± 0.05 mm
Sheath Physical Properties
Before Aging – Tensile Strength ≥ 13.5 MPa
Before Aging – Elongation ≥ 150%
Aging Period 100 °C × 24 h × 10 days
After Aging – Tensile Strength ≥ 12.5 MPa
After Aging – Elongation ≥ 125%
Cold Bend Test -20 ± 2 °C × 4 h, 8 × cable O.D., no visible cracks
The Hikvision DS-1LC1SSA-305M is a 300-meter RG59 coaxial cable designed for CCTV and surveillance systems, offering stable 75-ohm impedance, durable PVC jacket, and reliable long-distance analog video transmission.
Product Specifications
General
Cable Type
RG59 Coaxial Cable
Application
CCTV and Surveillance Systems
Length
305 m
Impedance
75 Ω
Conductor & Shielding
Conductor Material
Copper Clad Steel
Braiding Material
Copper Clad Aluminum Magnesium
Jacket & Physical
Jacket Material
PVC (Polyvinyl Chloride)
Outer Diameter
Approximately 6.0 mm
Color
Black
Environmental
Operating Temperature
-20 °C to +60 °C

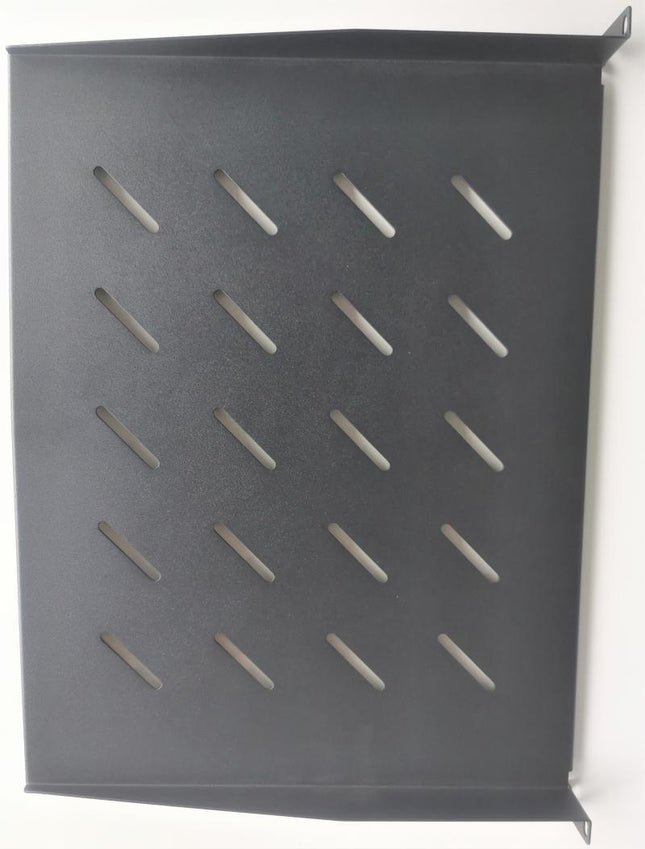

Standard tray designed for 600 mm width cabinets, compatible with 4U, 6U, 9U, and 12U wall-mounted cabinets. Constructed from high-strength SPCC cold-rolled steel to support stable equipment installation.
Product Specifications
General
Product Type
Standard Cabinet Tray / Shelf
Compatible Cabinet Width
600 mm
Compatible Cabinet Sizes
4U / 6U / 9U / 12U
Static Load Capacity
20 kg
Material Specifications
Material
SPCC Cold-Rolled Steel Sheet
2 MP Smart Hybrid Light Fixed Bullet Network Camera
High quality imaging with 2 MP resolution
Support Human and Vehicle Detection
Smart Hybrid Light: advanced technology with long range
Built-in microphone for real-time audio security
Water and dust resistant (IP67)
Efficient H.265+ compression technology
Support on-board storage up to 512 GB (SD card slot) (Optional)
Motion Detection 2.0
Human/Vehicle Analysis
Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;
Quick search by object or event type is supported;
Recording
Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution
For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF
For 720p stream access: 720p/WD1/4CIF/VGA/CIF
For SD stream access: WD1/4CIF/VGA/CIF
Frame Rate
Main stream:
For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@25 fps(P)/30 fps (N)
For 720p stream access: 720p/WD1/4CIF/VGA/CIF@ 25fps (P)/30 fps (N)
For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
Sub-stream:
4CIF@15fps; CIF/QVGA@25 fps (P)/30 fps (N)
Video Bitrate32 Kbps to 4 Mbps
Stream TypeVideo, Video & Audio
Audio CompressionG.711u
Audio Bitrate64 Kbps

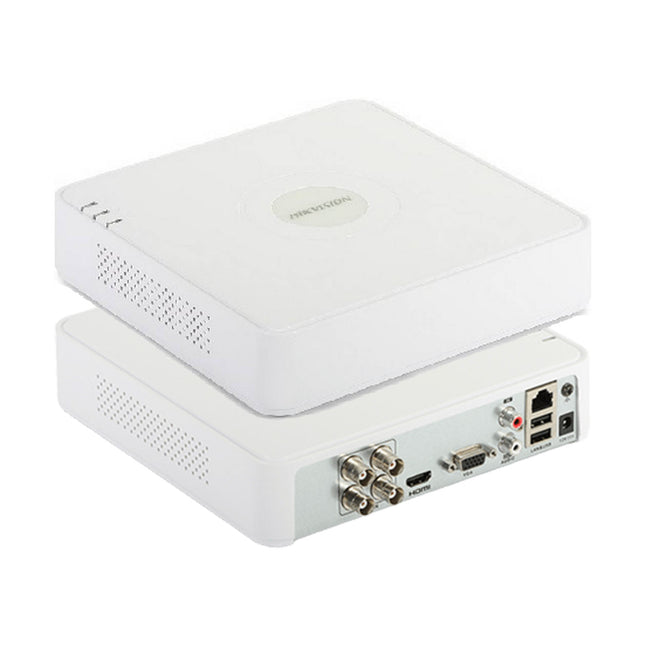

Video and Audio
IP Video Input
1-ch (up to 5-ch)
Up to 1080p resolution
Support H.265+/H.265/H.264+/H.264 IP cameras
Analog Video Input
4-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI Input1080p25, 1080p30, 720p25, 720p30
AHD Input1080p25, 1080p30, 720p25, 720p30
HDCVI Input1080p25, 1080p30, 720p25, 720p30
CVBS InputSupport
HDMI Output
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
VGA Output
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
Video Output ModeHDMI/VGA simultaneous output
Audio Input
1-ch RCA (2.0 Vp-p, 1 KΩ)
4-ch via coaxial cable
Audio Output1-ch, RCA (Linear, 1 KΩ)
Two-Way AudioReuse the first audio input
Synchronous playback4-ch
Network
Total Bandwidth64 Mbps
Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
Remote Connection32
Network Interface1, RJ45 10/100 Mbps self-adaptive Ethernet interface
Auxiliary Interface
SATA1 SATA interface
CapacityUp to 4 TB capacity for each disk
USB InterfaceRear panel: 2 × USB 2.0
Alarm In/OutN/A
General
Power Supply12 VDC, 1.5 A
Consumption≤ 16 W (without HDD)
Working Temperature-10 °C to 55 °C (14 °F to +31 °F)
Working Humidity10% to 90%
Dimension (W × D × H)200 × 200 × 45 mm (7.9 × 7.9 × 1.8 inch)
≤ 0.8 kg (without HDD, 1.8 lb.)
2 MP Fixed Dome Network Camera
High quality imaging with 2 MP resolution
Efficient H.265+ compression technology
Clear imaging against strong back light due to DWDR technology
Water and dust resistant (IP67) and vandal resistant (IK10)
EXIR 2.0: advanced infrared technology with long IR range
Specification
System
Operation system Linux
Screen
Size 2.4-inch
Type LCD-TFT display screen
Audio
Audio output 1 loudspeaker, 1 buzzer
Network
Wired network TCP/IP, 10/100Mbps, self-adaptive
Interface
Network interface 1
USB 1
Capacity
Card capacity 1000
Fingerprint capacity 1000
Event capacity 100,000
Authentication
Card type EM card
Card reading distance 0 to 3.5 cm
Fingerprint module Optical fingerprint module
Fingerprint comparing mode 1:1 and 1:N
Fingerprint recognition duration ＜ 1 s
Fingerprint False Acceptance
Rate (FAR) ≤ 0.001 %
Fingerprint False Rejection Rate
(FRR) ≤ 0.01 %
Others
Battery Support
Power supply 5 VDC/1 A
Working temperature -10 °C to +55 °C (14 °F to +131 °F)
Working humidity 10% to 90% (no condensing)
Color White
Dimensions 140 mm × 155 mm × 30 mm (5.51" × 6.01" × 1.18")
Application environment Indoor
Installation Wall mounting
High-quality 75Ω coaxial cable with oxygen-free copper conductor, FPE insulation, aluminum foil shielding, high-density braided shield, and stable performance across wide temperature ranges.
Product Specifications
General
Length 200 m
Operating Temperature -40 °C to 80 °C
Storage Temperature -20 °C to 70 °C
Impedance 75 Ω
Conductor
Material OFC (Oxygen Free Copper)
Diameter 0.81 ± 0.01 mm
Wire Gauge 20 AWG
Insulation
Material FPE
Diameter 3.66 ± 0.05 mm
Shielding
Tape Material Aluminum Foil (15 mm width)
Tape Thickness 0.04 mm
Braid Material CCA (Copper-Clad Aluminum)
Braiding Standard 8 × 16 × 0.12 mm
Braiding Density 95 ± 1%
