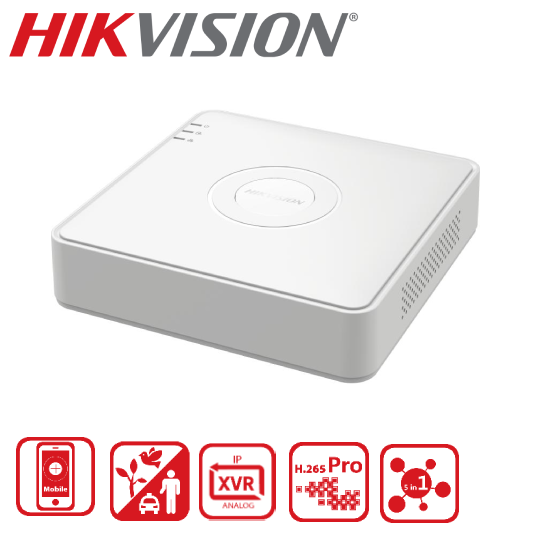

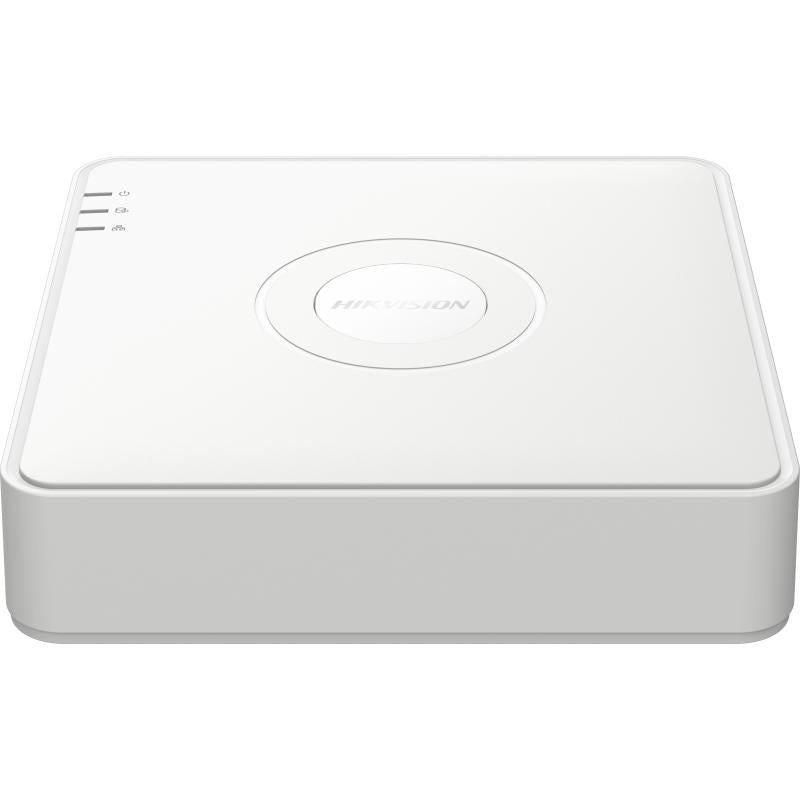

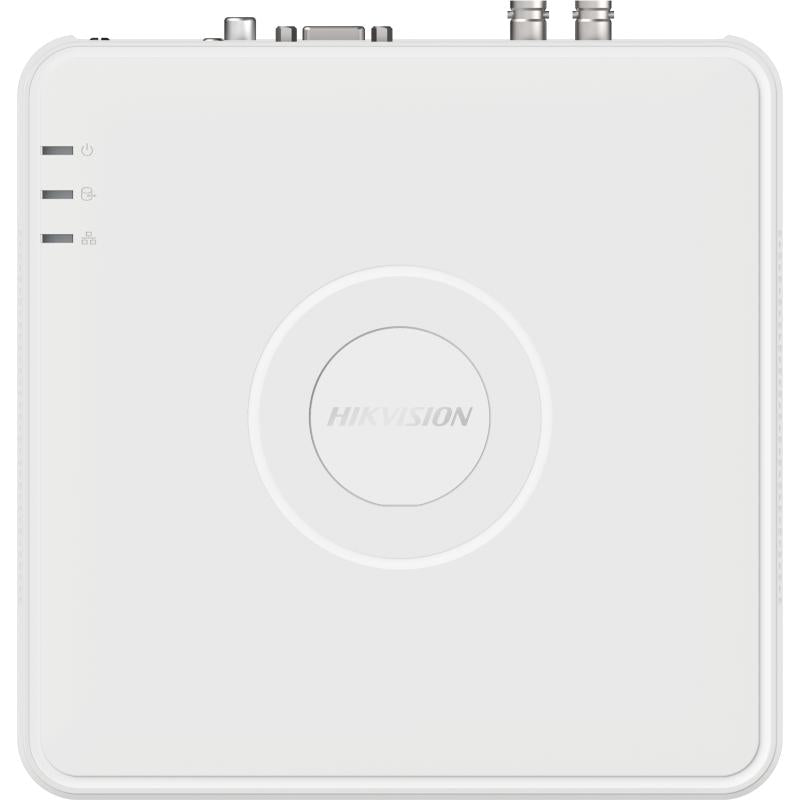

The Hikvision DS-7104HGHI-M1/T is a 4-channel 1080p Lite
Mini 1U DVR designed for reliable and efficient video
surveillance. Featuring H.265 Pro+ video compression,
Motion Detection 2.0 with deep learning-based human and
vehicle classification, and support for HDTVI, CVI,
AHD, IP, and CVBS camera inputs, this DVR delivers
enhanced security monitoring with reduced false alarms.
It also supports audio over coaxial cable, simultaneous
HDMI/VGA output, and up to 4TB HDD storage capacity.
Product Specifications
General
Brand
Hikvision
Model Number
DS-7104HGHI-M1/T
Product Type
4-ch 1080p Lite Mini 1U H.265 DVR
Analog Channels
4 Channels
Video Compression
H.265 Pro+ / H.265 Pro / H.265
Supported Video Inputs
HDTVI / CVI / AHD / IP / CVBS
Audio over Coaxial Cable
Supported
Motion Detection
Supported on All Analog Channels
Motion Detection 2.0
Human/Vehicle Analysis
Supported
Detection Technology
Deep Learning-Based Motion Detection 2.0
Default Detection
Enabled by Default for All Analog Channels
Object Classification
Human and Vehicle Classification
False Alarm Reduction
Reduces False Alarms Caused by Objects Such as
Leaves and Lights
Quick Search
Search by Object or Event Type
Video and Audio
IP Video Input
1-ch (Up to 5-ch)
IP Camera Resolution
Up to 2MP
IP Camera Compression
H.265+ / H.265 / H.264+ / H.264
Analog Video Input
4-ch
Analog Video Interface
BNC Interface (1.0 Vp-p, 75 Ω),
Supporting Coaxitron Connection
HDTVI Input
1080p25, 1080p30, 720p25, 720p30
AHD Input
1080p25, 1080p30, 720p25, 720p30
HDCVI Input
1080p25, 1080p30, 720p25, 720p30
CVBS Input
Supported
HDMI Output
1-ch, 1920 × 1080/60Hz,
1280 × 1024/60Hz, 1280 × 720/60Hz
VGA Output
1-ch, 1920 × 1080/60Hz,
1280 × 1024/60Hz, 1280 × 720/60Hz
Video Output Mode
HDMI/VGA Simultaneous Output
Audio Input
1-ch RCA (2.0 Vp-p, 1 KΩ);
4-ch via Coaxial Cable
Audio Output
1-ch RCA (Linear, 1 KΩ)
Two-Way Audio
Reuse the First Audio Input
Synchronous Playback
4-ch
Recording
Video Compression
H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264
Encoding Resolution - 1080p Stream
1080p Lite / 720p Lite / WD1 / 4CIF / VGA / CIF
Encoding Resolution - 720p Stream
720p / WD1 / 4CIF / VGA / CIF
Encoding Resolution - SD Stream
WD1 / 4CIF / VGA / CIF
Main Stream Frame Rate - 1080p
1080p Lite / 720p Lite / WD1 / 4CIF / VGA / CIF
@ 25 fps (P) / 30 fps (N)
Main Stream Frame Rate - 720p
720p / WD1 / 4CIF / VGA / CIF
@ 25 fps (P) / 30 fps (N)
Main Stream Frame Rate - SD
WD1 / 4CIF / VGA / CIF
@ 25 fps (P) / 30 fps (N)
Sub-Stream Frame Rate
4CIF @ 15 fps;
CIF/QVGA @ 25 fps (P) / 30 fps (N)
Video Bitrate
32 Kbps to 4 Mbps
Stream Type
Video, Video & Audio
Audio Compression
G.711u
Audio Bitrate
64 Kbps
Network
Total Bandwidth
64 Mbps
Network Protocol
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS,
NTP, SADP, SMTP, UPnP™, HTTPS
Remote Connection
32
Network Interface
1 × RJ45 10/100 Mbps Self-Adaptive Ethernet Interface
Storage
SATA Interface
1 SATA Interface
HDD Capacity
Up to 4TB Capacity for Each Disk
Auxiliary Interface
USB Interface
Rear Panel: 2 × USB 2.0
Alarm In/Out
N/A
Power
Power Supply
12 VDC, 1.5 A
Warranty
Warranty Period
2 Years
