The DS-1M01 connector is designed for reliable electrical performance, featuring gold-plated copper alloy contacts, durable polycarbonate housing, and long insertion life for professional networking and low-voltage applications.
Product Specifications
General
Model
DS-1M01
Max Current
1.5 A @ 25 ℃
Max Voltage
≤ 150 VAC
Electrical Characteristics
Insulation Resistance
≥ 1000 MΩ @ 100 V DC
Withstand Voltage
1 kV AC RMS
Contact Resistance
≤ 20 mΩ
Mechanical Performance
Tensile Strength
50 N for 60 s ± 5 s
Insert / Extraction Life
≥ 750 Cycles
Environmental
Operating Temperature
-25 ℃ to +55 ℃
Storage Temperature
-10 ℃ to +40 ℃
Relative Humidity
< 80%
Material Specifications
Plug Housing
Polycarbonate, UL94V-2
Conductor
Copper Alloy with 15 μinch Gold Plating
1U horizontal cable management panel designed for organized rack cabling, featuring durable cold-rolled steel construction and support for up to 24 ports in standard 19-inch racks.
Product Specifications
Category
Product Category
Horizontal Cable Management
General Specifications
Color
Black
Total Ports
24
Rack Unit
1U
Material Specifications
Material Type
Cold-Rolled Steel
Dimensions
Height
44.4 mm
Width
483 mm
Depth
74 mm
Packaging & Weights
Packaging Type
Box
Net Weight
80 g
Package Dimensions
500 × 105 × 58 mm
Packaging Quantity
1
Accessories
Included Accessories
Nuts: 4 pcs, Screws: 4 pcs
Cat 6 U/UTP outdoor network cable with solid bare copper conductors, PE sheath, separator structure, and weather-resistant design for outdoor installations.
Product Specifications
General
Category
Cat 6
Structure
U/UTP
Fire Resistance
None
Usage Scenario
Outdoor
Conductor
Material
Solid Bare Copper
Diameter
0.552 ± 0.005 mm (23 AWG)
Insulation
Insulation Diameter
0.98 ± 0.05 mm
Sheath
Sheath Material
PE
Sheath Color
Black
Structure & Packaging
Length
305 ± 1.5 m
Rip Cord
Yes
Separator
Yes
The Hikvision DS-2CE72DF0T-LPTS is a 2MP Smart Hybrid Light ColorVu fixed turret camera designed for 24/7 full-color and low-light surveillance. Featuring an advanced F1.0 aperture, smart dual-light illumination up to 20 meters, a built-in microphone and speaker for two-way audio, and IP67 weather resistance, it provides reliable audio-visual security for indoor and outdoor environments.
Product Specifications
Camera & Imaging
Image Sensor 2 MP CMOS Sensor
Max. Resolution 1920 (H) × 1080 (V)
Frame Rate 1080p @ 25fps / 30fps
Min. Illumination 0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light
Lens & Illumination
Lens Type 2.8 mm or 3.6 mm fixed focal lens
Field of View 92° (2.8 mm) / 81° (3.6 mm)
Smart Hybrid Light Range Up to 20 m white light and 30 m IR range
Audio & Interface
Audio Built-in microphone and speaker (Two-way audio)
General & Environment
Operating Power 12 VDC ± 25%
Protection Level IP67
Operating Conditions -40 °C to 60 °C, humidity: 90% or less
Material & Dimensions Plastic Body, Ø110 mm × 93 mm
Weight Approx. 265 g
The Hikvision DS-2CE78D0T-LFS is a 2MP Smart Hybrid Light fixed turret camera featuring a metal body structure for long-range outdoor and indoor monitoring. Equipped with extended IR up to 40 meters, a built-in microphone for coaxial audio, and IP67 weather resistance, it delivers crisp Full HD surveillance.
Product Specifications
Camera & Imaging
Image Sensor
2 MP CMOS Sensor
Max. Resolution
1920 (H) × 1080 (V)
Frame Rate
1080p @ 25fps / 30fps
Min. Illumination
0.01 Lux @ (F1.6, AGC ON), 0 Lux with IR
Lens & Night Vision
Lens Options
2.8 mm or 3.6 mm fixed focal lens
Field of View
100° (2.8 mm) / 80° (3.6 mm)
Smart Hybrid Light Range
IR up to 40 m, White Light up to 20 m
Audio & Interface
Audio
Built-in mic, audio over coaxial cable
Video Output
Switchable TVI / AHD / CVI / CVBS
General & Environment
Operating Power
12 VDC ± 25%
Protection Level
IP67
Operating Conditions
-40 °C to 60 °C, humidity: 90% or less
Material & Dimensions
Metal Body, 97.9 mm × Ø110 mm
Weight
Approx. 340 g
High-quality Cat.6 U/UTP network cable with solid bare copper conductors, HDPE insulation, separator design, and verified compliance with international cabling standards.
Product Specifications
General
Category Cat.6
Rip-cord Yes
Separator Yes
Fire Resistance No
Sheath Printing HIKVISION 4PR 23AWG 75°C U/UTP CAT6 VERIFIED TO ANSI/TIA-568-C.2 PVC ****m mm/dd/yyyy Tracing Code-HS
Reference Standard ISO/IEC 11801, ANSI/TIA-568-C.2, RoHS 2.0
Conductor
Material Solid Bare Copper (99.95%)
Diameter 0.55 ± 0.005 mm (23 AWG)
Insulation
Material HDPE
Diameter 0.98 ± 0.05 mm
Sheath Physical Properties
Before Aging – Tensile Strength ≥ 13.5 MPa
Before Aging – Elongation ≥ 150%
Aging Period 100 °C × 24 h × 10 days
After Aging – Tensile Strength ≥ 12.5 MPa
After Aging – Elongation ≥ 125%
Cold Bend Test -20 ± 2 °C × 4 h, 8 × cable O.D., no visible cracks
The Hikvision DS-1LC1SSA-305M is a 300-meter RG59 coaxial cable designed for CCTV and surveillance systems, offering stable 75-ohm impedance, durable PVC jacket, and reliable long-distance analog video transmission.
Product Specifications
General
Cable Type
RG59 Coaxial Cable
Application
CCTV and Surveillance Systems
Length
305 m
Impedance
75 Ω
Conductor & Shielding
Conductor Material
Copper Clad Steel
Braiding Material
Copper Clad Aluminum Magnesium
Jacket & Physical
Jacket Material
PVC (Polyvinyl Chloride)
Outer Diameter
Approximately 6.0 mm
Color
Black
Environmental
Operating Temperature
-20 °C to +60 °C
Standard tray designed for 600 mm width cabinets, compatible with 4U, 6U, 9U, and 12U wall-mounted cabinets. Constructed from high-strength SPCC cold-rolled steel to support stable equipment installation.
Product Specifications
General
Product Type
Standard Cabinet Tray / Shelf
Compatible Cabinet Width
600 mm
Compatible Cabinet Sizes
4U / 6U / 9U / 12U
Static Load Capacity
20 kg
Material Specifications
Material
SPCC Cold-Rolled Steel Sheet
The Hikvision DS-2CD1021G2-LIU is a 2MP Smart Hybrid Light Fixed Bullet Network Camera designed for reliable 24/7 network video surveillance. Featuring Powered by DarkFighter low-light technology, AcuSense-assisted human and vehicle target classification, smart dual-light illumination up to 30 meters, a built-in microphone for real-time audio, and IP67 weather resistance, it delivers crisp, intelligent IP security performance for outdoor environments.
Product Specifications
Camera & Imaging
Image Sensor 1/2.9" Progressive Scan CMOS
Max. Resolution 1920 × 1080 (2 MP)
Frame Rate 50 Hz: 25 fps (1920 × 1080, 1280 × 720)60 Hz: 30 fps (1920 × 1080, 1280 × 720)
Min. Illumination Color: 0.01 Lux @ (F2.2, AGC ON), B/W: 0 Lux with IR
Wide Dynamic Range (WDR) Digital WDR
Lens & Illumination
Lens Type 2.8 mm or 4 mm fixed focal lens
Field of View 101° (2.8 mm) / 80° (4 mm)
Smart Hybrid Light Range Up to 20 m IR and White Light up to 15 m
Smart & Video Analytics
Human & Vehicle Classification Motion detection 2.0 supporting human and vehicle target classification
Audio & Network
Audio Built-in microphone for real-time audio security
Network Interface 1 RJ45 10M/100M self-adaptive Ethernet port
Video Compression H.265+ / H.265 / H.264+ / H.264
General & Environment
Operating Power 12 VDC ± 25%, PoE (802.3af)
Protection Level IP67
Operating Conditions -30 °C to 45 °C, humidity: 95% or less
Material & Dimensions Front Cover: Metal, Body: Plastic, 170.8 mm × 66 mm × 69.1 mm
Weight Approx. 175 g
Motion Detection 2.0
Human/Vehicle Analysis
Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;
Quick search by object or event type is supported;
Recording
Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution
For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF
For 720p stream access: 720p/WD1/4CIF/VGA/CIF
For SD stream access: WD1/4CIF/VGA/CIF
Frame Rate
Main stream:
For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@25 fps(P)/30 fps (N)
For 720p stream access: 720p/WD1/4CIF/VGA/CIF@ 25fps (P)/30 fps (N)
For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
Sub-stream:
4CIF@15fps; CIF/QVGA@25 fps (P)/30 fps (N)
Video Bitrate32 Kbps to 4 Mbps
Stream TypeVideo, Video & Audio
Audio CompressionG.711u
Audio Bitrate64 Kbps
Video and Audio
IP Video Input
1-ch (up to 5-ch)
Up to 1080p resolution
Support H.265+/H.265/H.264+/H.264 IP cameras
Analog Video Input
4-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI Input1080p25, 1080p30, 720p25, 720p30
AHD Input1080p25, 1080p30, 720p25, 720p30
HDCVI Input1080p25, 1080p30, 720p25, 720p30
CVBS InputSupport
HDMI Output
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
VGA Output
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
Video Output ModeHDMI/VGA simultaneous output
Audio Input
1-ch RCA (2.0 Vp-p, 1 KΩ)
4-ch via coaxial cable
Audio Output1-ch, RCA (Linear, 1 KΩ)
Two-Way AudioReuse the first audio input
Synchronous playback4-ch
Network
Total Bandwidth64 Mbps
Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
Remote Connection32
Network Interface1, RJ45 10/100 Mbps self-adaptive Ethernet interface
Auxiliary Interface
SATA1 SATA interface
CapacityUp to 4 TB capacity for each disk
USB InterfaceRear panel: 2 × USB 2.0
Alarm In/OutN/A
General
Power Supply12 VDC, 1.5 A
Consumption≤ 16 W (without HDD)
Working Temperature-10 °C to 55 °C (14 °F to +31 °F)
Working Humidity10% to 90%
Dimension (W × D × H)200 × 200 × 45 mm (7.9 × 7.9 × 1.8 inch)
≤ 0.8 kg (without HDD, 1.8 lb.)

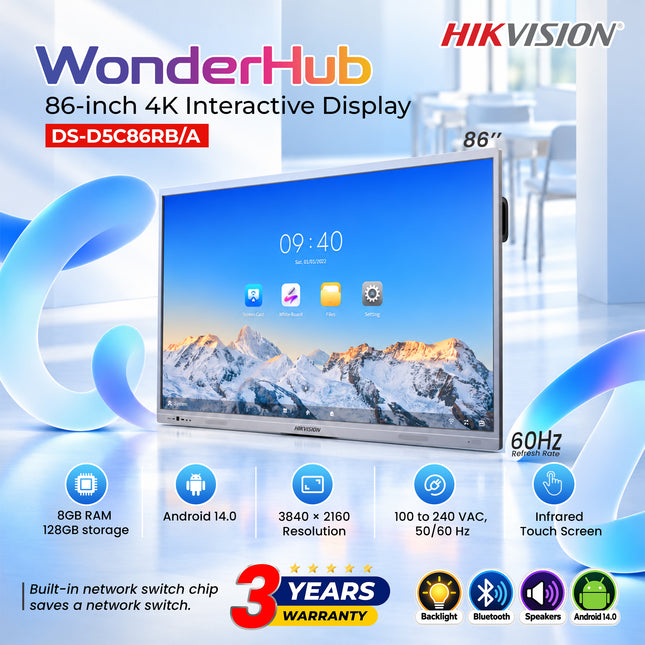

The DS-D5C86RB/A is an 86-inch 4K Interactive Display designed for modern classrooms, conference rooms, and collaborative workspaces. Featuring a 4K UHD VA display with DLED backlighting, 400 cd/m² brightness, zero-lamination anti-glare glass, and 50-point infrared multi-touch technology, it delivers an immersive and responsive interactive experience.
Product Specifications
General
Model Number DS-D5C86RB/A
Product Type 86-inch 4K Interactive Display
Display
Screen Size 86 inch
Backlight DLED
Pixel Pitch 0.1645 (H) × 0.4935 (V) mm
Resolution 3840 × 2160 @60 Hz (4K UHD)
Brightness 400 cd/m² (Typ.)
Color Depth 10 bit
Display Color 1.07 Billion Colors
Response Time 5 ms
Panel Type VA
Contrast Ratio 5000:1 (Static) | 30,000:1 (Dynamic)
Color Gamut 72% NTSC (CIE1931) (Typ.)
Refresh Rate 60 Hz
Viewing Angle 178° (H) / 178° (V)
Aspect Ratio 16:9
Surface Hardness 9H (Pencil) | 7 (Mohs)
Surface Glass Anti-Glare Glass
Surface Haze 25% Haze
Glass Bonding Method Zero Lamination
Display Area 1895.04 × 1067.96 mm
Working Duration 7 × 16 H
Transmittance 88% ± 3
Lifespan 50,000 hours
Touch
Touch Type Infrared Touch Screen
Touch Points 50-point Multi-touch
Touch Response Time < 2 ms
Minimum Touch Object ≥ 1.5 mm (≥ 90% touching area)
Touch Precision ± 0.5 mm (≥ 90% touching area)
Touch Resolution 32768 × 32768
Built-in System
Operating System Android 14.0
Memory 8 GB
Built-in Storage 128 GB
Processor Quad-core Cortex-A76 × 4 (2.4 GHz) and Quad-core Cortex-A55 × 4 (1.8 GHz)
Graphics (GPU) Mali-G610 MC4
HDCP Version HDCP 2.3
Internal Functions
Built-in Speakers 2 × 20 W + 25 W Loudspeaker
Bluetooth Built-in BLE (Bluetooth Low Energy), Bluetooth 5.1
NFC Supports Screen Mirroring by Android Phones
Light Sensor Yes
Video & Audio Interfaces
HDMI Input 3 × HDMI 2.0
VGA Input 1 × VGA In
DisplayPort Input 1 × DP 1.2 In
Audio Input 1 × Audio In
HDMI Output 1 × HDMI 2.0 Out
Audio Output 1 × Audio Out
SPDIF Output 1 × SPDIF Out
Control Interfaces
Touch USB 3 × TOUCH-USB 3.0
RS232 1 × RS232
Network & Connectivity
LAN 2 × LAN (1000 Mbps)
Wi-Fi Wi-Fi 6, IEEE 802.11 a/b/g/n/ac/ax
Wi-Fi Frequency 2.4 GHz / 5 GHz
Wi-Fi Mode Wi-Fi AP & Station
Wi-Fi Technology 2 × 2 MIMO
Wi-Fi Authentication WEP, WPA, WPA2, PSK, 802.1X EAP
Data Transmission Interfaces
USB 3.0 4 × USB 3.0
USB 2.0 1 × USB 2.0
USB Type-C 2 × Type-C
USB Type-C Features Supports USB 2.0, DP 1.2, and Charging Functions
Front Type-C Charging 65 W
Side Type-C Charging 15 W
Power
Power Supply 100 to 240 VAC, 50/60 Hz
Standby Consumption ≤ 0.5 W
Average Consumption < 205 W
Working Environment
Working Temperature 0°C to 40°C (32°F to 104°F)
Working Humidity 10%–90% RH
Dimensions & Physical Specifications
VESA Mounting 800 mm × 400 mm (4 × M8-25 mm)
Product Dimensions 1960.44 × 1158.24 × 82.4 mm
Package Dimensions 2147 × 1335 × 213 mm (W × H × D)
Net Weight 64.13 kg
Gross Weight 81.6 kg
Accessories
Included Accessories Wall Mount Bracket, Hook, User Manual, Touch Writing Pen, Packing List, 3 m Touch USB Cable, 3.5 m HDMI Cable (2.0), Power Cable, Bluetooth Remote Control
Warranty
Warranty Period 3 Years
2 MP Fixed Dome Network Camera
High quality imaging with 2 MP resolution
Efficient H.265+ compression technology
Clear imaging against strong back light due to DWDR technology
Water and dust resistant (IP67) and vandal resistant (IK10)
EXIR 2.0: advanced infrared technology with long IR range
High-quality 75Ω coaxial cable with oxygen-free copper conductor, FPE insulation, aluminum foil shielding, high-density braided shield, and stable performance across wide temperature ranges.
Product Specifications
General
Length 200 m
Operating Temperature -40 °C to 80 °C
Storage Temperature -20 °C to 70 °C
Impedance 75 Ω
Conductor
Material OFC (Oxygen Free Copper)
Diameter 0.81 ± 0.01 mm
Wire Gauge 20 AWG
Insulation
Material FPE
Diameter 3.66 ± 0.05 mm
Shielding
Tape Material Aluminum Foil (15 mm width)
Tape Thickness 0.04 mm
Braid Material CCA (Copper-Clad Aluminum)
Braiding Standard 8 × 16 × 0.12 mm
Braiding Density 95 ± 1%
Camera
Image Sensor2 MP CMOS
Max. Resolution1920 (H) × 1080 (V)
Min. Illumination0.0003 Lux @ (F1.0, AGC ON), 0 Lux with white light ON
Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Day & Night24/7 Color Imaging
Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360°
Signal SystemPAL/NTSC
Slow ShutterMax. 16 times
Light AlarmSolid Light Alarm (White Light)
Lens
Lens Type2.8 mm, 3.6 mm, 6 mm fixed focal lens
Focal Length & FOV
2.8 mm, horizontal FOV: 106°, vertical FOV: 56°, diagonal FOV: 129°
3.6 mm, horizontal FOV: 83°, vertical FOV: 44°, diagonal FOV: 100°
6 mm, horizontal FOV: 54°, vertical FOV: 30°, diagonal FOV: 64°
Lens MountM12
Illuminator
Supplement Light TypeWhite Light
Supplement Light RangeUp to 40 m
Smart Supplement LightYes
Image Parameters SwitchSTD/HIGH-SAT/HIGHLIGHT
Image SettingsBrightness;Contrast;Mirror;Sharpness;Anti-Banding
Frame Rate
TVI: 1080p@25fps/30fps
CVI: 1080p@25fps/30fps
AHD: 1080p@25fps/30fps
CVBS: PAL/NTSC
Day/Night ModeColor
Wide Dynamic Range (WDR)≥130 dB
Image EnhancementWDR;BLC;HLC;Global;HLS
Privacy Mask4 programmable privacy masks
Noise Reduction3D DNR/2D DNR
White BalanceAuto
White LightAuto/Off
AGCYes
Interface
Video OutputSwitchable TVI/AHD/CVI/CVBS
Event
Motion Detection4 programmable motion areas
General
MaterialMetal
Dimension194.2 mm × 78 mm × 74.5 mm (7.65" × 3.07" × 2.93")
Approx. 515 g (1.14 lb.)
Operating Condition-40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing)
CommunicationHIKVISION-C
LanguageEnglish
Power Supply
12 VDC ± 25%,
*You are recommended to use one power adapter to supply the power for one camera.
ConsumptionMax. 4.6 W
Approval
ProtectionIP68

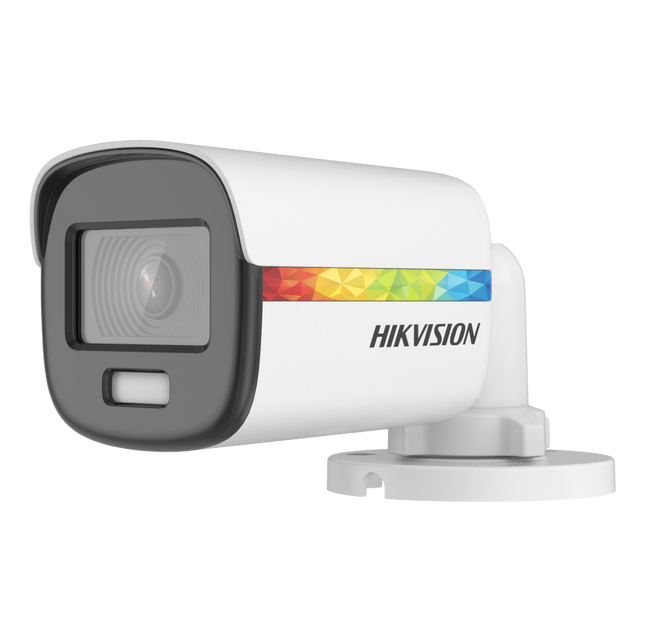

2MP Full HD security camera with ultra-low light sensitivity, 24/7 color imaging, slow shutter support, flexible angle adjustment, and optional 2.8mm or 3.6mm fixed focal lenses.
Product Specifications
Camera
Image Sensor
2 MP CMOS
Max. Resolution
1920 (H) × 1080 (V)
Minimum Illumination
0.0003 Lux @ (F1.0, AGC ON), 0 Lux with white light
Shutter Time
PAL: 1/25 s to 1/50,000 s
NTSC: 1/30 s to 1/50,000 s
Day & Night
24/7 Color Imaging
Angle Adjustment
Pan: 0°–360°, Tilt: 0°–90°, Rotation: 0°–360°
Signal System
PAL / NTSC
Slow Shutter
Max. 16 times
Lens
Lens Type
Fixed focal lens, 2.8 mm / 3.6 mm optional
Focal Length & FOV (2.8 mm)
Horizontal FOV: 106°
Vertical FOV: 56°
Diagonal FOV: 129°
Focal Length & FOV (3.6 mm)
Horizontal FOV: 83°
Vertical FOV: 44°
Diagonal FOV: 100°
Lens Mount
M12
CAMERA
Image Sensor2 MP CMOS
Max. Resolution1920 (H) × 1080 (V)
Min. Illumination0.0003 Lux @ (F1.0, AGC ON), 0 Lux with white light
Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Day & Night24/7 Color Imaging
Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360°
Signal SystemPAL/NTSC
Slow ShutterMax. 16 times
Light AlarmSolid Light Alarm (White Light)
Lens
Lens Type2.8 mm, 3.6 mm, 6 mm fixed focal lens
Focal Length & FOV
2.8 mm, horizontal FOV: 106°, vertical FOV: 56°, diagonal FOV: 129°
3.6 mm, horizontal FOV: 83°, vertical FOV: 44°, diagonal FOV: 100°
6 mm, horizontal FOV: 54°, vertical FOV: 30°, diagonal FOV: 64°
Lens MountM12
Illuminator
Supplement Light TypeWhite Light
Supplement Light RangeUp to 40 m
Smart Supplement LightYes
Image Parameters SwitchSTD/HIGH-SAT/HIGHLIGHT
Image SettingsBrightness;Contrast;Mirror;Sharpness;Anti-Banding;AGC
Frame Rate
TVI: 1080p @ 25 fps/30 fps
CVI: 1080p @ 25 fps/30 fps
AHD: 1080p @ 25 fps/30 fps
CVBS: PAL/NTSC
Day/Night ModeColor
Wide Dynamic Range (WDR)≥130 dB
Image EnhancementBLC;HLC;Global;HLS
Privacy Mask4 programmable privacy masks
Noise Reduction3D DNR/2D DNR
White BalanceAuto
White LightAuto/Off
Interface
Video OutputSwitchable TVI/AHD/CVI/CVBS
AudioLine-in
Built-In MicrophoneYes
Event
Motion Detection4 programmable motion areas
General
Power
12 VDC ± 25%, max. 6.3 W
*You are recommended to use one power adapter to supply the power for one camera.
MaterialMetal
Dimension194.2 mm × 78 mm × 74.5 mm (7.65" × 3.07" × 2.93")
Approx. 527 g (1.16 lb.)
Operating Condition-40°C to 50°C (-40°F to 122°F), Humidity: 90% or less (non-condensing)
CommunicationHIKVISION-C
LanguageEnglish
Approval
ProtectionIP67
