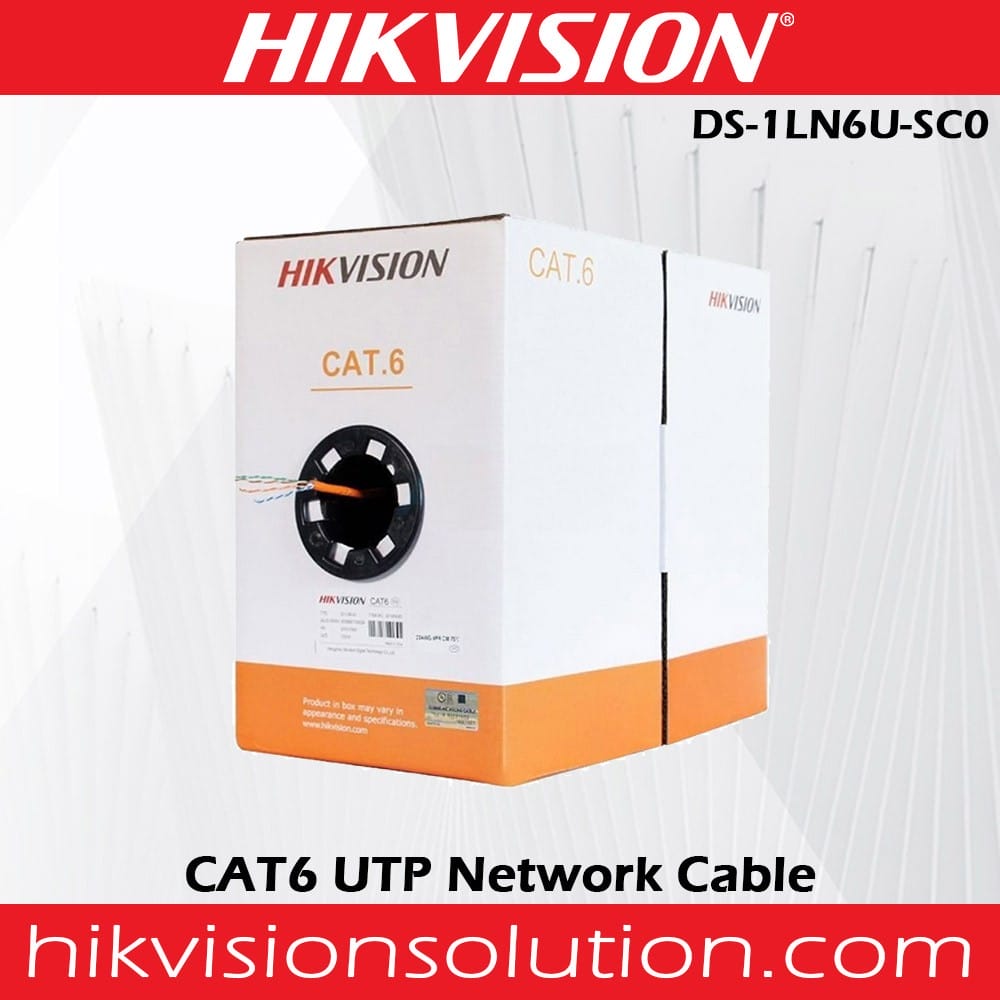

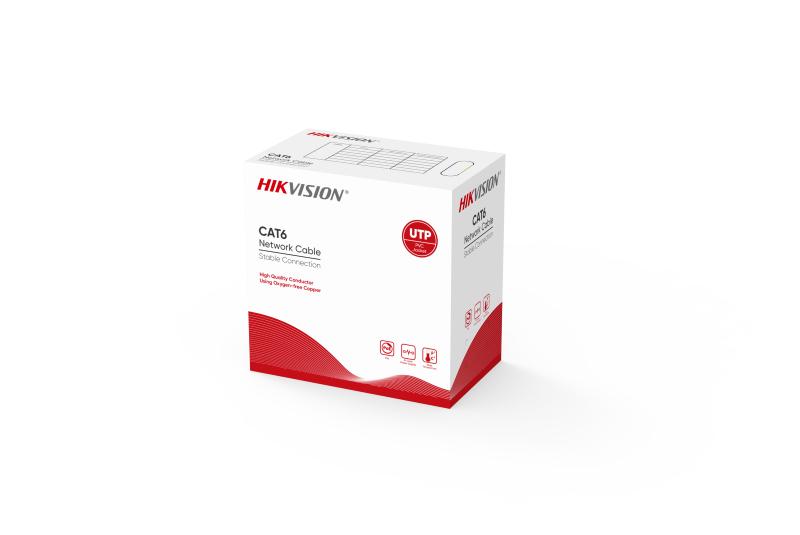

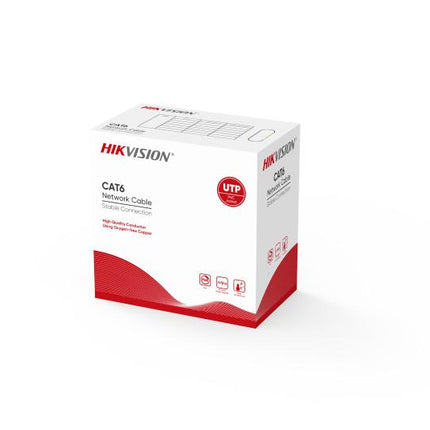

DS-1LN6U-SC0

Description

High-quality Cat.6 U/UTP network cable with solid bare copper conductors, HDPE insulation, separator design, and verified compliance with international cabling standards.

Product Specifications

General

Category Cat.6
Rip-cord Yes
Separator Yes
Fire Resistance No
Sheath Printing HIKVISION 4PR 23AWG 75°C U/UTP CAT6 VERIFIED TO ANSI/TIA-568-C.2 PVC ****m mm/dd/yyyy Tracing Code-HS
Reference Standard ISO/IEC 11801, ANSI/TIA-568-C.2, RoHS 2.0

Conductor

Material Solid Bare Copper (99.95%)
Diameter 0.55 ± 0.005 mm (23 AWG)

Insulation

Material HDPE
Diameter 0.98 ± 0.05 mm

Sheath Physical Properties

Before Aging – Tensile Strength ≥ 13.5 MPa
Before Aging – Elongation ≥ 150%
Aging Period 100 °C × 24 h × 10 days
After Aging – Tensile Strength ≥ 12.5 MPa
After Aging – Elongation ≥ 125%
Cold Bend Test -20 ± 2 °C × 4 h, 8 × cable O.D., no visible cracks
Product form

SKU: DS-1LN6U-SC0

DS-1LN6U-SC0

Rs 83,286.00

Price inclusive of VAT

or pay in 3 x Rs 29,705.34 with Koko Koko (incl. 7% convenience fee)

    Island-Wide Delivery

    Fast, tracked delivery across Sri Lanka

    2 Year Warranty

    Full manufacturer warranty included

    Genuine Products

    100% original with local warranty support

    Expert Support

    Talk to our IT specialists anytime

    Payment methods

    Visa

    Visa

    Mastercard

    Mastercard

    Amex

    Amex

    Koko : Buy now, pay later

    Koko : Buy now, pay later

    7% service fee

    Bank Details

    Commercial Bank of Ceylon PLC
    Bank NameCommercial Bank of Ceylon PLC
    Account NameIT Gallery Computers (PVT) Ltd
    Account No1810029986
    BranchJa-ela
    SWIFT CodeCCEYLKLX

    Please use your order number as the payment reference and email the transfer receipt to orders@itgallery.lk

    Description

    High-quality Cat.6 U/UTP network cable with solid bare copper conductors, HDPE insulation, separator design, and verified compliance with international cabling standards.

    Product Specifications

    General

    Category Cat.6
    Rip-cord Yes
    Separator Yes
    Fire Resistance No
    Sheath Printing HIKVISION 4PR 23AWG 75°C U/UTP CAT6 VERIFIED TO ANSI/TIA-568-C.2 PVC ****m mm/dd/yyyy Tracing Code-HS
    Reference Standard ISO/IEC 11801, ANSI/TIA-568-C.2, RoHS 2.0

    Conductor

    Material Solid Bare Copper (99.95%)
    Diameter 0.55 ± 0.005 mm (23 AWG)

    Insulation

    Material HDPE
    Diameter 0.98 ± 0.05 mm

    Sheath Physical Properties

    Before Aging – Tensile Strength ≥ 13.5 MPa
    Before Aging – Elongation ≥ 150%
    Aging Period 100 °C × 24 h × 10 days
    After Aging – Tensile Strength ≥ 12.5 MPa
    After Aging – Elongation ≥ 125%
    Cold Bend Test -20 ± 2 °C × 4 h, 8 × cable O.D., no visible cracks
