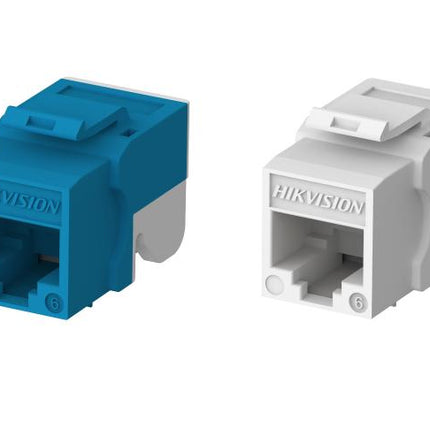

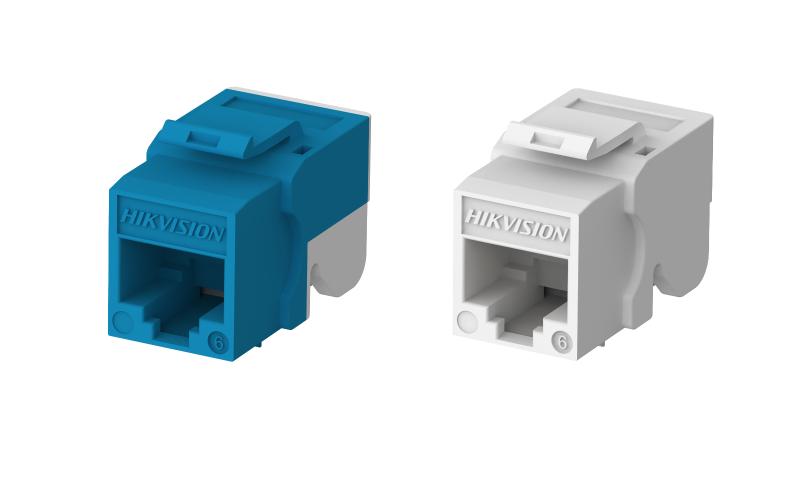

DS-1CK6U90N- Category 6 Keystone Jack - UL 94 V-0 Fire Resistant

Description

Cat 6 unshielded keystone jack with UL 94 V-0 fire resistance, gold-plated contacts, IDC termination, and long service life, designed for reliable structured cabling installations.

Product Specifications

Category

Product Category Keystone Jack
Fire Resistance UL 94 V-0

General Specifications

Color White, Blue
ANSI/TIA Category Category 6
Cable Type Unshielded
Conductor Type Solid, Stranded
Integrated Dust Cover None
Termination Type IDC
Wiring TIA 568A, TIA 568B

Material Specifications

Conductor Phosphor Bronze
Housing PC
IDC PC
IDC Cap PC
Termination Contact Plating 50 μinch Gold

Electrical Characteristics

DC Resistance ≤ 20 mΩ
Current Rating 1.5 A @ 20 °C
Dielectric Withstand Voltage (Conductive Surface) 1,000 Vac @ 60 s
Dielectric Withstand Voltage (Contact-to-Contact) 1,000 Vac @ 60 s
Insulation Resistance ≥ 500 MΩ

Mechanical Specifications

Plug to Jack Mating Cycles ≥ 750 Times
Compatible Conductor Gauge (Solid) 22–24 AWG
Compatible Conductor Gauge (Stranded) 22–24 AWG

Dimensions

Height 20.05 mm
Width 16.80 mm
Depth 32.55 mm
Product form

SKU: DS-1CK6U90N

DS-1CK6U90N- Category 6 Keystone Jack - UL 94 V-0 Fire Resistant

Rs 742.46

Price inclusive of VAT

or pay in 3 x Rs 264.81 with Koko Koko (incl. 7% convenience fee)

    Island-Wide Delivery

    Fast, tracked delivery across Sri Lanka

    2 Year Warranty

    Full manufacturer warranty included

    Genuine Products

    100% original with local warranty support

    Expert Support

    Talk to our IT specialists anytime

    Payment methods

    Visa

    Visa

    Mastercard

    Mastercard

    Amex

    Amex

    Koko : Buy now, pay later

    Koko : Buy now, pay later

    7% service fee

    Bank Details

    Commercial Bank of Ceylon PLC
    Bank NameCommercial Bank of Ceylon PLC
    Account NameIT Gallery Computers (PVT) Ltd
    Account No1810029986
    BranchJa-ela
    SWIFT CodeCCEYLKLX

    Please use your order number as the payment reference and email the transfer receipt to orders@itgallery.lk

    Description

    Cat 6 unshielded keystone jack with UL 94 V-0 fire resistance, gold-plated contacts, IDC termination, and long service life, designed for reliable structured cabling installations.

    Product Specifications

    Category

    Product Category Keystone Jack
    Fire Resistance UL 94 V-0

    General Specifications

    Color White, Blue
    ANSI/TIA Category Category 6
    Cable Type Unshielded
    Conductor Type Solid, Stranded
    Integrated Dust Cover None
    Termination Type IDC
    Wiring TIA 568A, TIA 568B

    Material Specifications

    Conductor Phosphor Bronze
    Housing PC
    IDC PC
    IDC Cap PC
    Termination Contact Plating 50 μinch Gold

    Electrical Characteristics

    DC Resistance ≤ 20 mΩ
    Current Rating 1.5 A @ 20 °C
    Dielectric Withstand Voltage (Conductive Surface) 1,000 Vac @ 60 s
    Dielectric Withstand Voltage (Contact-to-Contact) 1,000 Vac @ 60 s
    Insulation Resistance ≥ 500 MΩ

    Mechanical Specifications

    Plug to Jack Mating Cycles ≥ 750 Times
    Compatible Conductor Gauge (Solid) 22–24 AWG
    Compatible Conductor Gauge (Stranded) 22–24 AWG

    Dimensions

    Height 20.05 mm
    Width 16.80 mm
    Depth 32.55 mm
