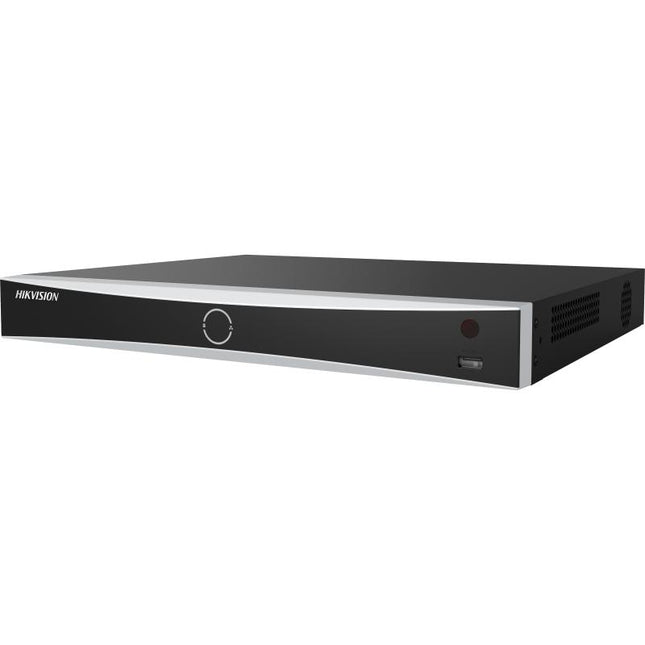

The Hikvision DS-7616NXI-I2/VPro is a 16-channel I/VPro Series Network Video Recorder featuring advanced AI-powered surveillance capabilities, including facial recognition, perimeter protection, Motion Detection 2.0, AcuSearch, and AcuSeek technology.
Product Specifications
General Information
Model DS-7616NXI-I2/VPro
Product Type 16-ch I/VPro Series NVR with AcuSeek
Intelligent Analytics
AI by NVR Facial recognition, perimeter protection, Motion Detection 2.0
AI by NVR and Camera Facial recognition, perimeter protection, video structuralization, AcuSearch, Motion Detection 2.0, ANPR, people counting, AcuSeek
AI Engine 2 AI enginesEngine 1: Face picture and AcuSearchEngine 2: AcuSeek
AcuSearch
Performance If the cameras support Hikvision AcuSense Technology and have enabled the AcuSearch function, the NVR supports AcuSearch in all channels, capable of modeling up to 300,000 targets per day.Supports 8-ch face picture comparison when cameras support face capture.Maximum resolution: 8 MP (4256 × 1888, 4096 × 2160)
AcuSeek
Performance If the cameras support Hikvision AcuSense Technology and have enabled the AcuSearch function, the NVR supports AcuSeek in all channels, capable of modeling up to 300,000 targets per day.Maximum resolution: 8 MP (4256 × 1888, 4096 × 2160)
Search Language English, French, Italian, German, Polish, Portuguese, Thai, Russian, Arabic, Turkish, Spanish, Dutch, Romanian, Czech, Swedish, Croatian, Latvian, Ukrainian, Hungarian, Danish, Japanese, Korean, Vietnamese, Indonesian, Brazilian Portuguese, Traditional Chinese
Perimeter Protection
By NVR 4-ch, 2 MP (H.264/H.265) video analysis
By Camera All channels
Target Recognition
Face Picture Library Up to 16 face picture libraries, with up to 50,000 face pictures in total.Maximum picture size: 512 KB eachTotal capacity: Up to 1 GB
Face Picture Comparison 8-ch
Facial Detection and Analytics Face picture comparison, human face capture, face picture search
Facial Detection and Analytics Performance 4-ch human face capture (HD network camera, H.264/H.265)2 MP: 4-ch4 MP: 2-ch8 MP: 1-ch
Motion Detection 2.0
By NVR All channels for Hikvision cameras
By Camera All channels
Devices and Servers
Heat Map Cameras Heat map data recording and presentation
Video & Audio
IP Video Input 16-ch
Incoming Bandwidth 160 Mbps
Outgoing Bandwidth 256 Mbps
HDMI Output 4K (3840 × 2160) @ 30 Hz2K (2560 × 1440) @ 60 Hz1920 × 1080 @ 60 Hz1280 × 720 @ 60 Hz
Decoding
Decoding Format H.265+ / H.265 / H.264+ / H.264
Network
Network Interface 2 × RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces
Remote Connection 128
Network Protocol TCP/IP, DHCP, IPv4, IPv6, DNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF (Version 2.2), OTAP
Auxiliary Interface
SATA 2 SATA interfaces
General
Power Supply 12 VDC, 5 A, 60 W
Certification
Obtained Certifications CE, CB, REACH, WEEE, UKCA, RCM, IC, LOA, KC
CE Standards EN 55032: 2015EN 61000-3-2EN 61000-3-3EN 50130-4
Warranty
Warranty Period 2 Years
2MP Full HD security camera with ultra-low light sensitivity, true day & night (ICR), flexible angle adjustment, and dual 2.8mm / 3.6mm fixed focal lens options.
Product Specifications
Camera
Image Sensor 2 MP CMOS
Max. Resolution 1920 (H) × 1080 (V)
Minimum Illumination 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
Shutter Time PAL: 1/25 s to 1/50,000 sNTSC: 1/30 s to 1/50,000 s
Day & Night ICR
Angle Adjustment Pan: 0°–360°, Tilt: 0°–90°, Rotation: 0°–360°
Signal System PAL / NTSC
Slow Shutter Max. 16 times
Lens
Lens Type 2.8 mm / 3.6 mm fixed focal lens
Focal Length & FOV (2.8 mm) Horizontal FOV: 105°Vertical FOV: 56°Diagonal FOV: 123°
Focal Length & FOV (3.6 mm) Horizontal FOV: 85°Vertical FOV: 46°Diagonal FOV: 98°
Lens Mount M12

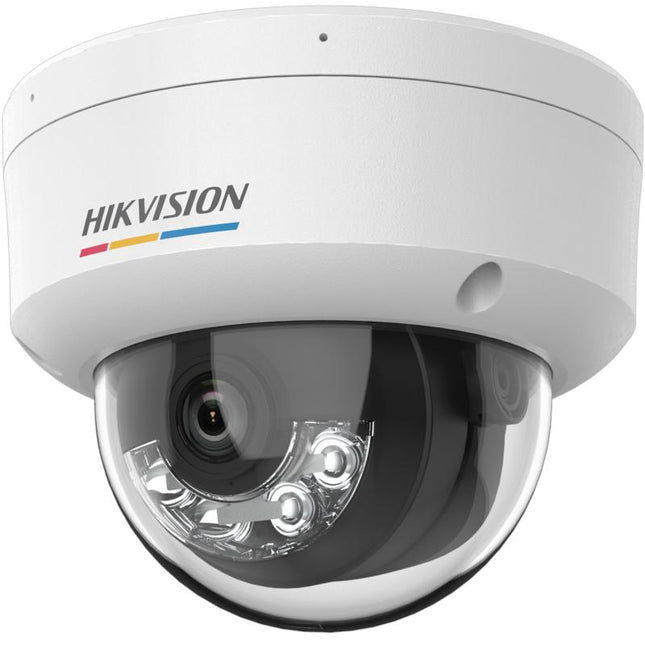

2 MP ColorVu with Smart Hybrid Light Fixed Dome Network Camera
High quality imaging with 2 MP resolution
Support Human and Vehicle Detection
Smart Hybrid Light: advanced technology with long range
Efficient H.265+ compression technology
Support on-board storage up to 512 GB (SD card slot) (Optional)
Built-in microphone for real-time audio security
Water and dust resistant (IP67) and vandal resistant (IK08)
2MP Full HD security camera with smart illumination technology, offering extended 40 m IR and white light range, clear night vision, and flexible pan–tilt–rotation adjustment for dependable 24/7 surveillance.
Technical Specifications
Camera
Image Sensor
2 MP CMOS
Maximum Resolution
1920 (H) × 1080 (V)
Minimum Illumination
0.02 Lux @ (F2.2, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/25 s to 1/50,000 s
NTSC: 1/30 s to 1/50,000 s
Day & Night
ICR (Infrared Cut Filter)
Signal System
PAL / NTSC
Lens
Lens Type
3.6 mm Fixed Focal Lens
Focal Length & FOV
3.6 mm – H: 77° | V: 43° | D: 90°
Lens Mount
M12
Angle Adjustment
Pan
0° to 360°
Tilt
0° to 75°
Rotation
0° to 360°
Illumination
Supplement Light Type
Smart Light / IR / White Light
IR Light Range
Up to 40 m
White Light Range
Up to 40 m
Advanced 2MP surveillance camera featuring Full HD resolution, smart illumination with IR and white light, wide-angle fixed lens, and flexible mounting angles for reliable day and night security monitoring.
Technical Specifications
Camera
Image Sensor 2 MP CMOS
Signal System PAL / NTSC
Maximum Resolution 1920 (H) × 1080 (V)
Minimum Illumination 0.02 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time PAL: 1/25 s to 1/50,000 sNTSC: 1/30 s to 1/50,000 s
Day & Night IR Cut Filter
Lens
Lens Type 3.6 mm Fixed Lens
Focal Length & FOV 3.6 mm – H: 76.9° | V: 40.6° | D: 92.0°
Lens Mount M12
Angle Adjustment
Pan 0° to 360°
Tilt 0° to 90°
Rotation 0° to 360°
Illumination
Supplement Light Range Up to 20 m
Supplement Light Type Smart Light / IR / White Light
High-performance 2K surveillance camera featuring a CMOS image sensor, wide-angle fixed focal lens, IR night vision, and extended 180° tilt for flexible and precise monitoring.
Technical Specifications
Camera
Image Sensor
2K CMOS
Maximum Resolution
2304 (H) × 1296 (V)
Minimum Illumination
0.01 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/25 s to 1/50,000 s
NTSC: 1/30 s to 1/50,000 s
Day & Night
ICR (Infrared Cut Filter)
Signal System
PAL / NTSC
Lens
Lens Type
3.6 mm Fixed Focal Lens
Focal Length & FOV
3.6 mm – H: 89° | V: 47° | D: 107°
Lens Mount
M12
Angle Adjustment
Pan
0° to 360°
Tilt
0° to 180°
Rotation
0° to 360°
Full HD 2MP surveillance camera featuring a wide-angle fixed lens, excellent low-light performance with IR night vision, and flexible pan-tilt-rotation adjustment for reliable indoor and outdoor monitoring.
Technical Specifications
Camera
Image Sensor
2 MP CMOS
Maximum Resolution
1920 (H) × 1080 (V)
Minimum Illumination
0.01 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/12.5 s to 1/50,000 s
NTSC: 1/15 s to 1/50,000 s
Day & Night
ICR (Infrared Cut Filter)
Signal System
PAL / NTSC
Lens
Lens Type
2.8 mm Fixed Lens
Focal Length & FOV
2.8 mm – H: 101° | V: 56° | D: 118°
Lens Mount
M12
Angle Adjustment
Pan
0° to 360°
Tilt
0° to 75°
Rotation
0° to 360°
Full HD 2MP surveillance camera featuring an ultra-large F1.0 aperture for exceptional low-light performance, white-light illumination for full-color night imaging, and a 3.6 mm fixed focal lens with flexible pan-tilt-rotation adjustment.
Technical Specifications
Camera
Image Sensor
2 MP CMOS
Maximum Resolution
1920 (H) × 1080 (V)
Minimum Illumination
0.001 Lux @ (F1.0, AGC ON), 0 Lux with White Light
Shutter Time
PAL: 1/25 s to 1/50,000 s
NTSC: 1/30 s to 1/50,000 s
Signal System
PAL / NTSC
Lens
Lens Type
3.6 mm Fixed Focal Lens
Focal Length & FOV
3.6 mm – H: 84° | V: 45° | D: 99°
Lens Mount
M12
Angle Adjustment
Pan
0° to 360°
Tilt
0° to 90°
Rotation
0° to 360°
Full HD 2MP surveillance camera featuring an ultra-wide 2.8 mm fixed lens, excellent low-light performance with IR night vision, and extended pan-tilt adjustment for flexible and accurate monitoring coverage.
Technical Specifications
Camera
Image Sensor
2 MP CMOS
Maximum Resolution
1920 (H) × 1080 (V)
Minimum Illumination
0.01 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/12.5 s to 1/50,000 s
NTSC: 1/15 s to 1/50,000 s
Day & Night
ICR (Infrared Cut Filter)
Signal System
PAL / NTSC
Lens
Lens Type
2.8 mm Fixed Lens
Focal Length & FOV
2.8 mm – H: 105° | V: 59° | D: 127°
Lens Mount
M12
Angle Adjustment
Pan
0° to 350°
Tilt
0° to 100°
Full HD 2MP surveillance camera with an ultra-large F1.0 aperture for superior low-light imaging, white-light illumination for full-color night vision, and a 3.6 mm fixed focal lens with flexible pan-tilt-rotation adjustment.
Technical Specifications
Camera
Image Sensor 2 MP CMOS
Maximum Resolution 1920 (H) × 1080 (V)
Minimum Illumination 0.001 Lux @ (F1.0, AGC ON), 0 Lux with White Light
Shutter Time PAL: 1/25 s to 1/50,000 sNTSC: 1/30 s to 1/50,000 s
Day & Night ICR (Infrared Cut Filter)
Signal System PAL / NTSC
Lens
Lens Type 3.6 mm Fixed Focal Lens
Focal Length & FOV 3.6 mm – H: 84° | V: 46° | D: 98°
Lens Mount M12
Angle Adjustment
Pan 0° to 360°
Tilt 0° to 90°
Rotation 0° to 360°
Full HD 2MP surveillance camera with an ultra-large F1.0 aperture for superior low-light performance, white-light illumination for full-color night imaging, and a 3.6 mm fixed focal lens with extended 180° tilt for maximum installation flexibility.
Technical Specifications
Camera
Image Sensor
2 MP CMOS
Maximum Resolution
1920 (H) × 1080 (V)
Minimum Illumination
0.001 Lux @ (F1.0, AGC ON), 0 Lux with White Light
Shutter Time
PAL: 1/25 s to 1/50,000 s
NTSC: 1/30 s to 1/50,000 s
Day & Night
ICR (Infrared Cut Filter)
Signal System
PAL / NTSC
Lens
Lens Type
3.6 mm Fixed Focal Lens
Focal Length & FOV
3.6 mm – H: 84° | V: 46° | D: 98°
Lens Mount
M12
Angle Adjustment
Pan
0° to 360°
Tilt
0° to 180°
Rotation
0° to 360°
The Hikvision iDS-7216HQHI-M2/XT is a 16-channel digital video recorder (DVR) designed for advanced video surveillance and security management. Featuring facial recognition, Motion Detection 2.0 with human and vehicle analysis, and H.265 Pro+ video compression, it delivers intelligent monitoring, efficient recording, and reliable security performance.
Product Specifications
General
Model Number
iDS-7216HQHI-M2/XT
Brand
Hikvision
Product Type
Digital Video Recorder (DVR)
Analog Channels
16-ch
Power Supply
12 VDC, 3.3 A
Facial Recognition
Face Picture Comparison
4-ch Face Picture Comparison Alarm (HD Analog Camera)
Motion Detection 2.0
Human/Vehicle Analysis
Supported
Recording
Video Compression
H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264
Video and Audio
IP Video Input
8-ch (up to 24-ch), each up to 6 MP
Analog Video Input
16-ch
Analog Video Interface
BNC Interface (1.0 Vp-p, 75 Ω)
Coaxitron Connection
Supported
Network
Total Bandwidth
256 Mbps
Network Protocol
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, ISUP
Power
Power Supply
12 VDC, 3.3 A
Warranty
Warranty Period
2 Years
The DS-U04P 4MP Web Camera delivers ultra-clear 1440p high-definition video for professional streaming, conferencing, and monitoring. Featuring a 3.6 mm fixed focal lens with an 80° horizontal field of view and a highly flexible 360° pan adjustment, it ensures comprehensive coverage in any setting. With 24/7 color imaging, exceptional low-light performance, and dual MJPG/YUV frame rate options, this webcam provides reliable, high-quality video exactly when you need it.
Product Specifications
Camera
Image Sensor
4 MP CMOS
Signal System
PAL / NTSC
Max. Resolution
2560 (H) × 1440 (V)
Min. Illumination
0.1 Lux @ (F1.2, AGC ON)
Day & Night
24/7 Color Imaging
Shutter Time
PAL: 1/25 s to 1/50,000 s / NTSC: 1/30 s to 1/50,000 s
Angle Adjustment
Pan: 360° / Tilt: -15° to 15° / Rotation: 0°
Lens
Lens Type
3.6 mm fixed focal lens
Field of View (FOV)
Horizontal: 80°, Vertical: 50°, Diagonal: 88°
Lens Mount
M8
Object Distance Range
10 cm to ∞
Image & Audio
Frame Rate (MJPG)
2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720, 640 × 480, 640 × 360 @30/25 fps
Frame Rate (YUV)
1920 × 1080, 1280 × 960 @5 fps; 1280 × 720 @10 fps; 640 × 480, 640 × 360 @30/25 fps
Audio Sampling Rate
16 kHz
The DS-U04(O-STD) 4MP Web Camera delivers ultra-clear 1440p high-definition video for professional streaming, conferencing, and monitoring. Featuring a 3.6 mm fixed focal lens with an 80° horizontal field of view and a highly flexible 360° pan adjustment, it ensures comprehensive coverage in any setting. With 24/7 color imaging, exceptional low-light performance, and dual MJPG/YUV frame rate options, this webcam provides reliable, high-quality video exactly when you need it.
Product Specifications
Camera
Image Sensor
4 MP CMOS
Signal System
PAL / NTSC
Max. Resolution
2560 (H) × 1440 (V)
Min. Illumination
0.1 Lux @ (F1.2, AGC ON)
Day & Night
24/7 Color Imaging
Shutter Time
PAL: 1/25 s to 1/50,000 s / NTSC: 1/30 s to 1/50,000 s
Angle Adjustment
Pan: 360° / Tilt: -15° to 15° / Rotation: 0°
Lens
Lens Type
3.6 mm fixed focal lens
Field of View (FOV)
Horizontal: 80°, Vertical: 50°, Diagonal: 88°
Lens Mount
M8
Object Distance Range
0.5 m to ∞
Image & Audio
Frame Rate (MJPG)
2560 × 1440 @25 fps; 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720, 640 × 480, 640 × 360 @30/25 fps
Frame Rate (YUV)
640 × 480, 640 × 360 @25 fps
Audio Sampling Rate
16 kHz
The DS-U02P(O-STD) 2MP Web Camera delivers crisp 1080p high-definition video for professional streaming, conferencing, and monitoring. Featuring a 3.6 mm fixed focal lens with an 80° horizontal field of view and a highly flexible 360° pan adjustment, it ensures comprehensive coverage in any setting. With 24/7 color imaging, exceptional low-light performance, and dual MJPG/YUV frame rate options, this webcam provides reliable, high-quality video exactly when you need it.
Product Specifications
Camera
Image Sensor
2 MP CMOS
Signal System
PAL / NTSC
Max. Resolution
1920 (H) × 1080 (V)
Min. Illumination
0.1 Lux @ (F1.2, AGC ON)
Day & Night
24/7 Color Imaging
Shutter Time
PAL: 1/25 s to 1/50,000 s / NTSC: 1/30 s to 1/50,000 s
Angle Adjustment
Pan: 360° / Tilt: -15° to 15° / Rotation: 0°
Lens
Lens Type
3.6 mm fixed focal lens
Field of View (FOV)
Horizontal: 80°, Vertical: 50°, Diagonal: 88°
Lens Mount
M8
Object Distance Range
10 cm to ∞
Image & Audio
Frame Rate (MJPG)
1920 × 1080, 1280 × 960, 1280 × 720, 640 × 480, 640 × 360 @30/25 fps
Frame Rate (YUV)
1920 × 1080, 1280 × 960, 1280 × 720 @5 fps; 640 × 480, 640 × 360 @30 fps
Audio Sampling Rate
16 kHz
The DS-U02 2 MP Web Camera delivers crisp 1080p high-definition video for professional streaming, conferencing, and monitoring. Featuring a 3.6 mm fixed focal lens with a wide 86° horizontal field of view and a highly flexible 360° pan adjustment, it ensures comprehensive coverage in any setting. With 24/7 color imaging, exceptional low-light performance, and clear audio sampling, this webcam provides reliable, high-quality video around the clock.
Product Specifications
Camera
Image Sensor
2 MP CMOS
Signal System
PAL / NTSC
Max. Resolution
1920 (H) × 1080 (V)
Min. Illumination
0.1 Lux @ (F1.2, AGC ON)
Day & Night
24/7 Color Imaging
Shutter Time
PAL: 1/25 s to 1/50,000 s / NTSC: 1/30 s to 1/50,000 s
Angle Adjustment
Pan: 360° / Tilt: -15° to 15° / Rotation: 0°
Lens
Lens Type
3.6 mm fixed focal lens
Field of View (FOV)
Horizontal: 86°, Vertical: 55°, Diagonal: 95°
Lens Mount
M8
Object Distance Range
0.5 m to ∞
Image & Audio
Frame Rate (MJPG)
1920 × 1080, 1280 × 960, 1280 × 720, 640 × 480, 640 × 360 @30/25 fps
Frame Rate (YUV)
1920 × 1080, 1280 × 960, 1280 × 720 @5 fps; 640 × 480, 640 × 360 @30 fps
White Balance
Auto
Audio Sampling Rate
16 kHz
The DS-PT1-WE Wireless Tag Reader offers reliable and convenient wireless identification for security and automation systems. Featuring an impressive 1200m open-area RF transmission range and up to 2 years of standby battery life on just three AA batteries, this wall-mountable device ensures long-lasting, dependable performance. Its intuitive multi-color LED indicators provide clear, at-a-glance status updates for area, arm/disarm, fault, and alarm conditions, making it an essential component for any modern setup.
Product Specifications
General
Model
DS-PT1-WE
Product Type
Wireless Tag Reader
Color
White
Installation Method
Wall-mounting
Dimensions (W x H x D)
75 x 124 x 21 mm
Weight
176 g (with battery)
Hardware Features
Power Switch
Power on/off
Display / Indicators
5 Indicators: Area (Blue), Fault (Orange), Arm (Blue), Disarm (Green), Alarm (Red), Signal (Red/Green)
Wireless Transmission
RF Frequency
868 MHz
RF Modulation
2GFSK
RF Distance
1200 m (Open area)
Power & Environmental
Battery Type
Three AA batteries
Battery Life Span
Up to 2 years (Standby time)
Voltage
1.5 VDC
Power Consumption
Quiescent current: 110 uA / Max current: 292mA
Operating Temperature
-10°C to 55°C (-4°F to +122°F)
Operating Humidity
10% to 90% (No condensing)
The DS-ZM5EUM-W Cat5E Tool-Free Unshielded Module offers a fast, hassle-free solution for your network termination needs. Designed for tool-free installation, this keystone module eliminates the need for a punch-down tool, saving significant time and effort during setup. Supporting up to 100 MHz transmission frequency and compatible with both T568A and T568B wiring standards, it is the perfect choice for structured cabling, LAN networking, and CCTV installations in standard indoor environments.
Product Specifications
General
Model
DS-ZM5EUM-W
Product Type
Cat5E Tool-Free Unshielded Module
Category
CAT5e
Color
Usually White (may vary by region/seller)
Technical Specifications
Shielding Type
U/UTP (Unshielded Twisted Pair)
Connector Type
RJ45
Transmission Frequency
Up to 100 MHz
Wiring Standard
T568A / T568B compatible
Construction
Unshielded design for standard indoor networking environments
Installation & Application
Module Type
Tool-free Keystone / Network Module
Installation
Tool-free termination (no punch-down tool required)
Mounting
Keystone compatible modular installation
Compatibility
Suitable for Cat5e Ethernet cables
Application
Structured cabling, LAN networking, wall plates, patch panels
Usage
Office networks, CCTV systems, data communication, networking installations
DS-PT031 CR123A Battery
Electrical Characteristics
Typical Capacity
1600 mAh
Typical Voltage
3V
Charge Cut-off Voltage
1.5V
General
Operation Temperature
-30°C to 60°C
Dimension (WxHxD)
16.8 mm × 34.3 mm (DxH)
Weight
16.3 g
DS-PK1-E-WE Wireless LED keypad
Electrical Characteristics
Battery Type
Four AA batteries
Power Supply
Battery Supply
Operation Humidity
10% to 90% (No condensing)
Operation Temperature
-10°C to +55°C (-4°F to +122°F)
Battery Life Span
Up to 2 years (standby time)
Wireless Transmission
RF Frequency
868 MHz
RF Modulation
2GFSK
RF Distance
1200 m (open area)
General
Installation Method
Screw mounting
Dimension (WxHxD)
140 (5.50") x 86 (3.38") x 22 (0.87") mm
Weight
151 g (5.33 oz) without battery
DS-PDTPH-E WE Wireless Temperature Detector
Product Specifications
Detection Performance
Detection Method
Temperature Sensor
Detection Range
-10°C to 55°C (standalone)
-35°C to 99°C (with included probe)
Feature
Digital Processing
Support
Tamper Protection
Front;Rear
Environment Temperature Indicator
Support
Signal Strength Indicator
Support
Interface
LED Indicator
On screen display
Display Size
2.7 inch
Transmission
Transmission Technology
Tri-X Wireless
Transmission Method
Two-Way RF Wireless
Transmission Frequency
868MHz
Transmission Security
AES-128 Encryption
Transmission Range (Free Space)
1.2Km
Frequency Hopping
Support
Enrolling Method
Power up;Remote ID;QR Code
Electrical Characteristics
Power Supply
Battery powered
Battery Type
AAA × 2
Typical Voltage
3V
Standard Battery Life
Up to 2 years (standby time)
General
Operation Temperature
-10°C to 55°C (14°F to 131°F)
Storage Temperature
-20°C to 60°C (-4°F to 140°F)
Operation Humidity
10% to 90%
Dimension (WxHxD)
62.6 mm × 62.6 mm × 18 mm
Weight
73.5 g
Mounting Method
Wall
Application Scenario
Indoor, Standalone / with included probe
DS-PDSMK-S WE Wireless Photoelectric Smoke Detector
Product Specifications
Detection Performance
Detection Method
Chamber With Photoelectric Sensor
Feature
Environment Temperature Indicator
Support
Signal Strength Indicator
Support
Interface
Power Switch
Power up enrolling
LED Indicator
Red (alarm)
Buzzer
≥ 85 dB @3 m
Transmission
Transmission Method
Two-Way RF Wireless
Transmission Frequency
868MHz
Transmission Security
AES-128 Encryption
Transmission Range (Free Space)
800m
Enrolling Method
Power up;Remote ID;QR Code
Electrical Characteristics
Standard Battery Life
Up to 10 years (standby time)
Power Supply
Battery powered
Battery Type
Non-Replaceable CR17450 × 1
Typical Voltage
3V
General
Operation Temperature
-10°C to 60°C (14°F to 140°F)
Storage Temperature
-20°C to 60°C (-4°F to 140°F)
Operation Humidity
10% to 90%
Dimension (WxHxD)
φ102 × 35 mm
Weight
125 g
Mounting Method
Ceiling
Application Scenario
Indoor
DS-PDMCK-EG2 WE Wireless Magnet Shock Detector
Product Specifications
Detection Performance
Detection Method
Opening Contact;Shock Sensor
Detection Gap
43 mm Max
Shock Sensitivity
High, Normal, Low
Tilt Detection
Up to 25°
Feature
Digital Processing
Support
Tamper Protection
Front;Rear
Environment Temperature Indicator
Support
Signal Strength Indicator
Support
Interface
Alarm Input
Normally Closed;Normally Open;Impulse Count
Power Switch
Power up enrolling
LED Indicator
Green (MC), Orange (tilt), Red (shock), Blue (alarm)
Transmission
Transmission Technology
Tri-X Wireless
Transmission Method
Two-Way RF Wireless
Transmission Frequency
868MHz
Transmission Security
AES-128 Encryption
Transmission Range (Free Space)
1.6Km
Frequency Hopping
Support
Enrolling Method
Power up;Remote ID;QR Code
Electrical Characteristics
Power Supply
Battery powered
Battery Type
CR123A × 1
Typical Voltage
3V
Standard Battery Life
Up to 3 years (standby time)
General
Operation Temperature
-10°C to 55°C (14°F to 131°F)
Storage Temperature
-20°C to 60°C (-4°F to 140°F)
Operation Humidity
10% to 90%
Dimension (Main Unit)
22.5 mm × 103 mm × 23.2 mm
Dimension (Sensor)
13 mm × 34.4 mm × 11.4 mm
Weight
60 g
Application Scenario
Indoor
DS-PDBG8-EG2 WE Wireless Glass Break Detector
Product Specifications
Detection Performance
Detection Method
Acoustic Sensor
Detection Range
8m
Detection Angle
120°
Sensitivity
2m;4m;6m;8m
Glass Type
Float;Plate;Tampered;Wired;Laminated Leaded;Double Glazing
Glass Thickness
2.4 mm to 6.4 mm
Glass Size
0.3 m × 0.3 m to 3 m × 3 m
Feature
Digital Processing
Support
Tamper Protection
Front;Rear
Environment Temperature Indicator
Support
Signal Strength Indicator
Support
Interface
Alarm Input
Normally Closed;Normally Open;Impulse Count
Power Switch
Power up unenrolling
LED Indicator
Blue (alarm)
Transmission
Transmission Technology
Tri-X Wireless
Transmission Method
Two-Way RF Wireless
Transmission Frequency
868MHz
Transmission Security
AES-128 Encryption
Transmission Range (Free Space)
1.6Km
Frequency Hopping
Support
Enrolling Method
Power up;Remote ID;QR Code
Electrical Characteristics
Power Supply
Battery powered
Battery Type
CR123A × 2
Typical Voltage
3V
Standard Battery Life
Up to 5 years (standby time)
General
Operation Temperature
-10°C to 55°C (14°F to 131°F)
Storage Temperature
-20°C to 60°C (-4°F to 140°F)
Operation Humidity
10% to 90%
Dimension (WxHxD)
38.8 mm × 107.0 mm × 24.5 mm
Weight
83 g
Mounting Method
Wall;Ceiling
Application Scenario
Indoor
DS-PDCL12-EG2 WE Wireless PIR Ceiling Detector
Product Specifications
Detection Performance
Detection Method
Passive Infrared
Detection Range
12m
Detection Angle
360°
Detection Zones
172
Detectable Speed
0.3～2m/s
Sensitivity
Auto;Low
White Light Filter
6500lux
Digital Temperature Compensation
Support
Creep Zone Protection
Support
Feature
Digital Processing
Support
Sealed Optics
Support
Tamper Protection
Front;Rear
Environment Temperature Indicator
Support
Signal Strength Indicator
Support
Interface
Power Switch
Power up enrolling
LED Indicator
Blue (alarm)
Transmission
Transmission Technology
Tri-X Wireless
Transmission Method
Two-Way RF Wireless
Transmission Frequency
868MHz
Transmission Security
AES-128 Encryption
Transmission Range (Free Space)
1.6Km
Frequency Hopping
Support
Enrolling Method
Power up;Remote ID;QR Code
Electrical Characteristics
Standard Battery Life
Up to 5 years (standby time)
Power Supply
Battery powered
Battery Type
CR123A × 1
Typical Voltage
3V
General
Operation Temperature
-10°C to 55°C (14°F to 131°F)
Storage Temperature
-20°C to 60°C (-4°F to 140°F)
Operation Humidity
10% to 90%
Dimension (WxHxD)
φ101.2 mm × 32.9 mm
Weight
109.5 g
Mounting Height
2.4 m to 4 m
Mounting Method
Ceiling
Application Scenario
Indoor
DS-PM1-O1H WE Wall Switch
Product Specifications
Software Features
Scenario Setting
By Alarm, By Operation, By Fault, By Schedule, By Manual
Learning Button
1, For register
Hardware Features
Serial Port
1, for debug
Display
LEDs status
LED Indicator
3, Register/Signal (Green/Red), Power (Green), Relay Status (Blue)
Electrical Characteristics
Power Supply
AC 100V – 240V, 50/60 Hz
Operation Humidity
10％~90％
Operation Temperature
﹣10℃~+55℃
Wireless Transmission
RF Frequency
868MHz
RF Method
Two way communication
RF Modulation
2GFSK
RF Distance
1600m
Wireless Security
AES-128
Device Management
Relay Output
1, NO/NC (AC 100~240V, Max 13A)
General
Installation Method
Wall Mounting or Inside 86 box
Dimension (WxHxD)
38 × 25 × 18 mm
Shell Material
Plastic
Color
White
Weight
31.5 g
DS-PDTT15AM-LM WE Wireless Triple Signal Detector
Product Specifications
Detection Performance
Detection Method
Passive Infrared;Microwave
Detection Range
15m
Detection Angle
90° @180° adjustable
Detection Zone
92
Detectable Speed
0.3～2m/s
General
Operation Temperature
-25°C to 60°C (-13°F to 140°F)
Storage Temperature
-25°C to 60°C (-13°F to 140°F)
Operation Humidity
10% to 90%
Dimension(WxHxD)
75 mm × 202 mm × 73 mm
Weight
600 g
Transmission
Transmission Technology
Tri-X Wireless
Transmission Method
Two-Way RF Wireless
Transmission Security
AES-128 Encryption
Transmission Range(Free Space)
1.6 km
DS-PDMC-EG2 WE Magnetic Contact
Product Specifications
Detection Performance
Detection Method
Opening Contact
Detection Gap
43 mm Max
General
Operation Temperature
-10°C to 55°C (14 °F to 131 °F)
Storage Temperature
-20°C to 60°C (-4 °F to 140 °F)
Operation Humidity
10% to 90%
Dimension(WxHxD)
24mm × 104mm × 24.4mm
13 mm × 34.4 mm × 11.4 mm
Weight
59 g
Transmission
Transmission Technology
Tri-X Wireless
Transmission Method
Two-Way RF Wireless
Transmission Security
AES-128 Encryption
Transmission Range(Free Space)
1.6 km
Interface
LED Indicator
Blue (alarm)
