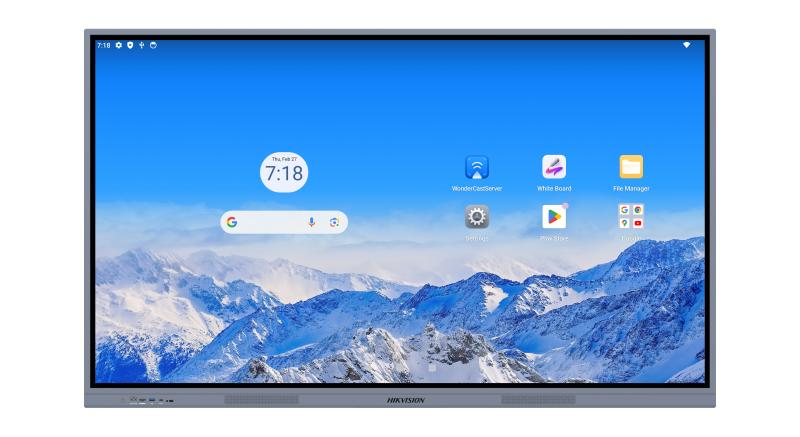

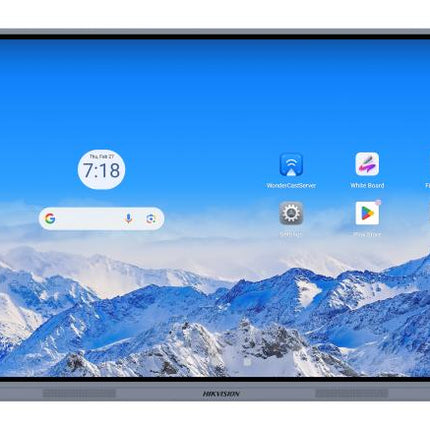

Elevate your presentations and interactive lessons with the DS-D5A65RB/A2 65-inch 4K Interactive Display. Featuring a professional-grade IPS panel with anti-glare zero-lamination glass, 40-point infrared touch, and a built-in Android 14 system, this display delivers stunning visuals and seamless collaboration. Equipped with Wi-Fi 6, dual 15W speakers, and versatile connectivity including HDMI 2.1 and USB-C with DP 1.2.
Product Specifications
General & System
Model
DS-D5A65RB/A2
Operating System
Android 14.0
Processor
Quad-core Cortex-A73 × 4 (1.5 GHz)
GPU
Mali-G52 MC1
Memory
8 GB
Built-in Storage
128 GB
HDCP Version
2.2 & 1.4
Display Specifications
Screen Size
65 inch
Panel Type
IPS
Backlight
DLED
Resolution
3840 × 2160 (4K UHD @ 60 Hz)
Display Area
1428.48 × 803.52 mm
Aspect Ratio
16:9
Pixel Pitch
0.3720 (H) × 0.3720 (V) mm
Brightness
400 cd/m² (Typ.)
Contrast Ratio
1200:1 (Static) / 15,000:1 (Dynamic)
Color Gamut
72% NTSC (CIE1931)
Color Depth
10 bit (1.07 G Colors)
Response Time
≤ 8 ms
Viewing Angle
178° (H) / 178° (V)
Lifespan
30,000 hours
Working Duration
7 × 18 Hours
Touch Specifications
Touch Type
Infrared Touch Screen
Touch Points
Up to 40-point multi-touch
Touch Resolution
32768 × 32768
Touch Response Time
≤ 5 ms
Touch Precision
± 1 mm (90% touching area)
Minimum Touch Object
≥ 3 mm
Screen Surface & Protection
Surface Glass
Anti-Glare Glass
Glass Bonding
Zero Lamination
Surface Hardness
≥ 9H (Pencil) / 5H (Mohs)
Transmittance
≥ 88%
Surface Haze
25%
Audio & Wireless
Loudspeaker
Built-in 2 × 15 W
Wi-Fi
Wi-Fi 6 (2.4 GHz / 5 GHz, AP & Station Mode)
Bluetooth
5.4 (BLE Module)
Light Sensor
Yes
Video & Audio I/O
HDMI Input
3 × HDMI 2.1 (2 Rear w/ CEC & ARC, 1 Front w/ CEC)
HDMI Output
1 × HDMI 2.1 (Rear)
Audio Input
1 × AUDIO IN (Rear)
Audio Output
1 × AUDIO OUT (Rear)
Data & Control I/O
USB Type-C
3 × Type-C (Rear x2: 15W Charging & DP 1.2; Front x1: USB 2.0)
USB 3.0
1 × USB 3.0 (Rear)
USB 2.0
2 × USB 2.0 (1 Front, 1 Rear)
Touch USB
2 × TOUCH-USB (1 Front, 1 Rear)
LAN
2 × LAN 100 Mbps (Rear)
RS232
1 × RS232 IN (Rear)
