The PD-402TBW Desktop Thermal Transfer Barcode Label Printer delivers high-performance, versatile printing for demanding commercial and industrial environments. Featuring dual Direct Thermal and Thermal Transfer methods, a rapid 152mm/s print speed, 203 DPI resolution, and seamless USB, Bluetooth, and WiFi connectivity, this robust printer supports multiple emulation languages (TSPL, ZPL, CPCL, DPL, EPL) and a wide variety of media to meet complex labeling needs.
Product Specifications
General
Model
PD-402TBW
Printing Method
Direct Thermal / Thermal Transfer
Resolution
203 DPI
Interface
USB + Bluetooth + WiFi
Emulation
TSPL, ZPL, CPCL, DPL, EPL
Sensors
Gap sensor, Open cover, Black label sensor, Carbon detection sensor
Tearing Mode
Paper knife (Standard); External cutter (full/half cut), Stripper (Optional)
Print Specifications
Print Speed
152 mm/s (Max)
Printing Width
108 mm (Max)
Printing Length
1778 mm (Max)
Character Size
9x17 dot, 12x24 dot, 24x24 dot
Character Enlargement/Rotation
1-10x Magnification, 0°/90°/180°/270° Rotation, Mirror printing
Supported Character Sets
GB18030, BIG5, ASCII
Extended Character Sets
PC437, Katakana, PC850, PC860, PC863, PC865, West Europe, Greek, Hebrew, East Europe, Iran, WPC1252, PC866, PC852, PC858, IranII, Latvian, Arabic, PT151, PC747, WPC1257
1D Barcodes
Code128, EAN128, ITF, Code39, Code93, EAN13, EAN13+2, EAN13+5, EAN8, EAN8+2, EAN8+5, CodeBar, Postnet, UPC-A, UPC-A+2, UPC-A+5, UPC-E, UPC-E+2, UPC-E+5, MSI, MSIC, PLESSEY, CPOST, ITF14, EAN14, Code11
2D Barcodes
QR code, PDF417, Micro PDF417, DataMatrix, AZTEC
Media & Ribbon Specifications
Paper Type
Gap Label, Continuous Label, Black Mark Label, Folded Label, Coated Label
Paper Roll Width (incl. backing)
20 mm to 118 mm
Paper Roll Thickness (incl. backing)
0.06 mm to 0.254 mm
Paper Reel Core
25.4 mm
Paper Max. Roll Diameter
127 mm (OD)
Ribbon Width
30 mm to 110 mm
Ribbon Length
300 m
Ribbon Axis Size
25.4 mm
Ribbon Max. Roll Diameter
67 mm (OD)
Ribbon Winding Form
Roll-out
Feed Method
Front exit
Memory
SDRAM
8 MB
FLASH
8 MB (Expandable)
Power & Environmental
Input Power
AC 100~240V, 50/60 Hz
Output Power
DC 24V, 2.5A
Operating Temperature
0 °C to 45 °C
Operating Humidity
20% to 90%
Storage Temperature
-10 °C to 60 °C
Storage Humidity
10% to 90%
Durability
Print Head Life
150 km (Print rate 18.5%)
Dimensions & Weight
Dimensions (D x W x H)
274 x 213 x 191 mm
Weight
2.54 kg
In the Box
Included Accessories
Power adapter, Power cord, USB cable, Quick installation guide, Labels, Ribbon strip axis x2, Ribbon
Optional Accessories
External roll holder

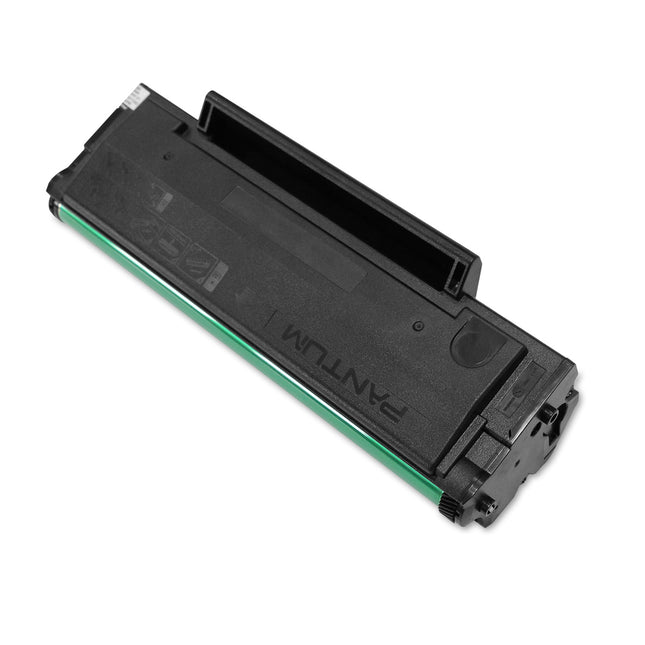

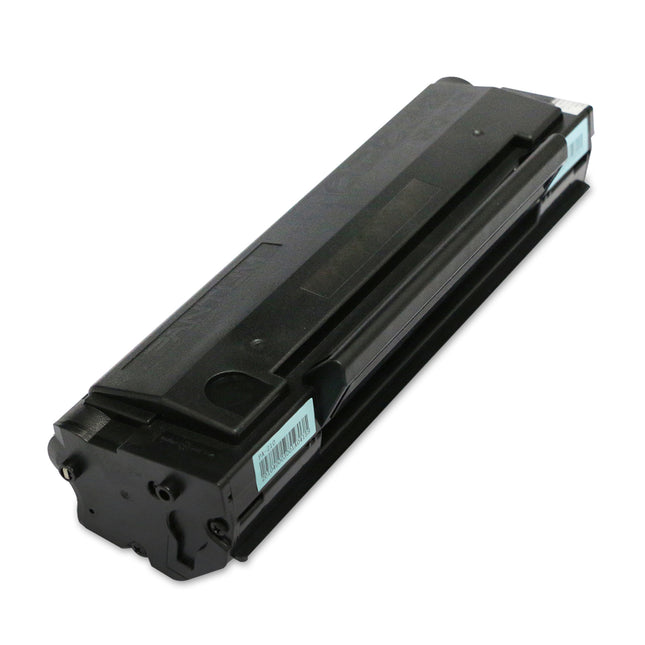

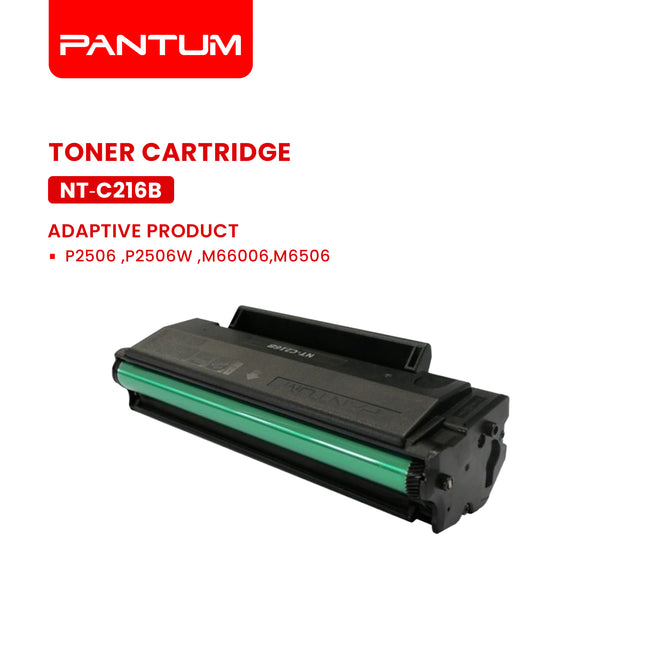

Pantum NT-C216B high-capacity black toner cartridge is designed for compatible Pantum printers, delivering consistent monochrome print quality with a page yield of up to 1,800 pages.
Product Specifications
Product Details
Product Type Toner Cartridge
Model Pantum NT-C216B
Printing Color Black
Page Yield Up to 1,800 pages
Compatibility
Supported Printers Pantum P2506, P2506W, M6506, M6506NW, M6556NW

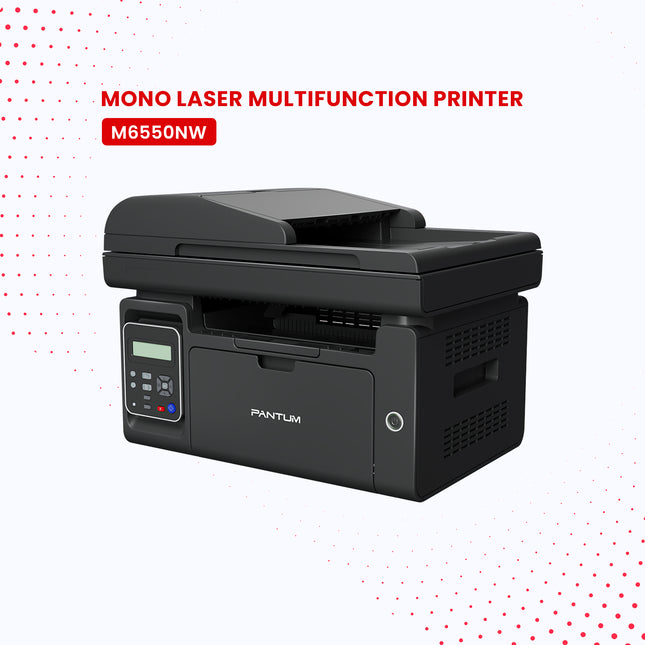

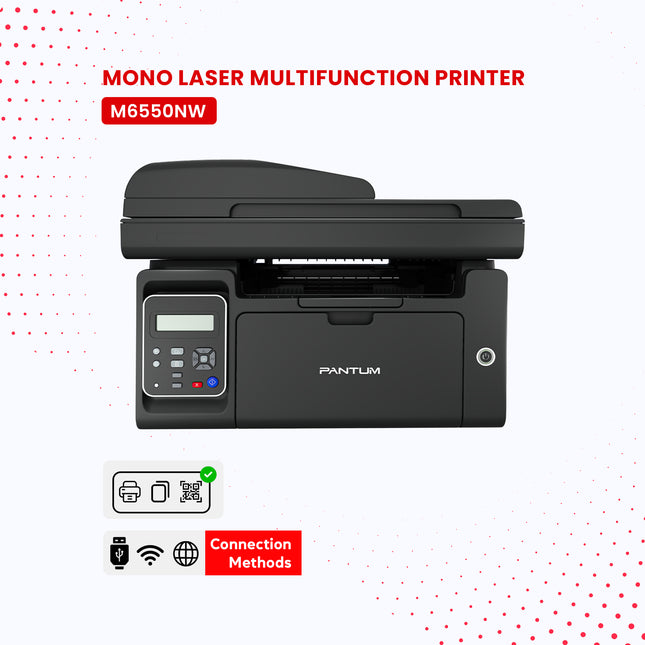

M6550NW 3-in-1 multifunction laser printer with Print, Copy, and Scan
capabilities, delivering up to 22 ppm printing speed with USB, Ethernet,
and Wi-Fi connectivity. Designed for efficient office workflows with
flatbed and ADF scanning, network connectivity, and convenient
scan-to-email, PC, and FTP functions.
Product Specifications
General
Product Model
M6550NW
Product Type
3-in-1 Multifunction Printer
Basic Functions
Print / Copy / Scan
Printing Speed
22 ppm
Connectivity
USB + Ethernet + Wi-Fi
Maximum Monthly Volume
Up to 20,000 pages
Printing
Print Speed
22 ppm (A4) / 23 ppm (Letter)
First Print Out Time
Less than 7.8 seconds
Processor
600 MHz
Memory
128 MB
Duplex Mode
Manual
USB Connectivity
Hi-Speed USB 2.0
Ethernet Connectivity
10/100Base-TX Ethernet
Wireless Connectivity
Wi-Fi 802.11b/g/n
Maximum Monthly Volume
Up to 20,000 pages
Copying
Copy Speed
22 cpm (A4) / 23 cpm (Letter)
First Copy Out Time
Less than 10 seconds
Zoom
25% – 400%
Maximum Copy Pages
1 – 99 pages
Scanning
Scanner Type
Flatbed + ADF
Maximum Scan Size (Flatbed)
216 × 297 mm
Maximum Scan Size (ADF)
216 × 356 mm
Scan Speed
22 ppm (A4) / 23 ppm (Letter)
Color Scanning
Yes
Scan to E-mail
Supported
Scan to PC
Supported
Scan to FTP
Supported
Interfaces
USB
Hi-Speed USB 2.0
Ethernet
10/100Base-TX
Wireless
Wi-Fi 802.11b/g/n
The PD-401W Desktop Barcode Label Printer delivers efficient, high-speed labeling for retail, logistics, and healthcare environments. Featuring direct thermal printing at up to 152mm/s, 203 DPI resolution, and seamless USB, Bluetooth, and WiFi connectivity, this versatile printer supports multiple emulation languages (TSPL, ZPL, CPCL, DPL, EPL) and a wide variety of media to easily integrate into any workflow.
Product Specifications
General
Model
PD-401W
Printing Method
Direct Thermal
Resolution
203 DPI
Interface
USB + Bluetooth + WiFi
Emulation
TSPL, ZPL, CPCL, DPL, EPL
Sensors
Gap sensor, Open cover, Black label sensor
Print Specifications
Print Speed
152 mm/s (Max)
Printing Width
108 mm (Max)
Printing Length
1778 mm (Max)
Character Size
9x17 dot, 12x24 dot, 24x24 dot
Character Enlargement/Rotation
1-10x Magnification, 0°/90°/180°/270° Rotation, Mirror printing
Supported Character Sets
GB18030, BIG5, ASCII
Extended Character Sets
PC437, Katakana, PC850, PC860, PC863, PC865, West Europe, Greek, Hebrew, East Europe, Iran, WPC1252, PC866, PC852, PC858, IranII, Latvian, Arabic, PT151, PC747, WPC1257
1D Barcodes
Code128, EAN128, ITF, Code39, Code93, EAN13, EAN13+2, EAN13+5, EAN8, EAN8+2, EAN8+5, CodeBar, Postnet, UPC-A, UPC-A+2, UPC-A+5, UPC-E, UPC-E+2, UPC-E+5, MSI, MSIC, PLESSEY, CPOST, ITF14, EAN14, Code11
2D Barcodes
QR code, PDF417, Micro PDF417, DataMatrix, AZTEC
Media Specifications
Paper Type
Gap Label, Continuous Label, Black Mark Label, Folded Label
Roll Width (incl. backing)
30 mm to 114 mm
Roll Thickness (incl. backing)
0.12 mm to 0.26 mm
Paper Axis Size
25.4 mm
Max. Roll Diameter
120 mm (OD)
Feed Method
Front exit
Memory
SDRAM
8 MB
FLASH
8 MB (Expandable)
Power & Environmental
Input Power
AC 100~240V, 50/60 Hz
Output Power
DC 24V, 2.5A
Operating Temperature
5 °C to 40 °C
Operating Humidity
25% to 85%
Storage Temperature
-10 °C to 60 °C
Storage Humidity
10% to 90%
Durability
Print Head Life
150 km (Print rate 18.5%)
Dimensions & Weight
Dimensions (D x W x H)
210 x 178 x 153 mm
Weight
1.2 kg
In the Box
Included Accessories
Power adapter, Power cord, USB cable, Quick installation guide, Labels, Paper reel, Paper roll baffle x2
Optional Accessories
External roll holder

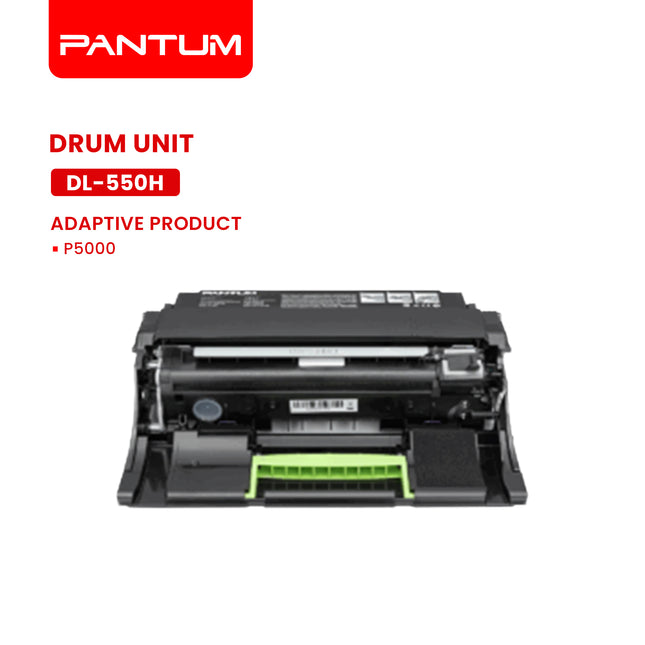

The Pantum DL-550H Drum Unit is engineered for exceptional durability and long-lasting performance in high-volume monochrome printing environments. Delivering an impressive yield of up to 60,000 pages, this robust drum unit ensures consistently sharp, professional text while significantly reducing downtime and maintenance. It is the perfect, reliable partner for your P5500DN and M7650DN printers, effortlessly handling heavy-duty office workloads.
Product Specifications
General
Model
DL-550H
Product Type
Drum Unit
Color
Black
Page Yield
60,000 pages*
Yield Standard
ISO/IEC 19752 (Individual users will experience different results based on their environment and page coverage)
Compatibility
Compatible Printers
P5500DN, M7650DN
P310H black toner cartridge is designed for compatible Pantum printers, delivering reliable monochrome printing performance with a page yield of up to 6,000 pages.
Product Specifications
Product Details
Product Type Toner Cartridge
Model P310H
Color Black
Page Yield 6,000 pages
Compatibility
For Use In P3100DL, P3255DN, P3500DN, P3500DW
PC-211RB black toner cartridge is designed for compatible Pantum printers, delivering consistent monochrome printing performance with a page yield of up to 1,600 pages based on ISO/IEC 19752 standards.
Product Specifications
Product Details
Product Type Toner Cartridge
Model PC-211RB
Color Black
Page Yield 1,600 pages*Average yield per toner cartridge in accordance with ISO/IEC 19752 (individual users will experience different results based on their environment and page coverage).
Compatibility
For Use In P2200, P2500, P2500W, M6500NW, M6550NW, M6600NW
