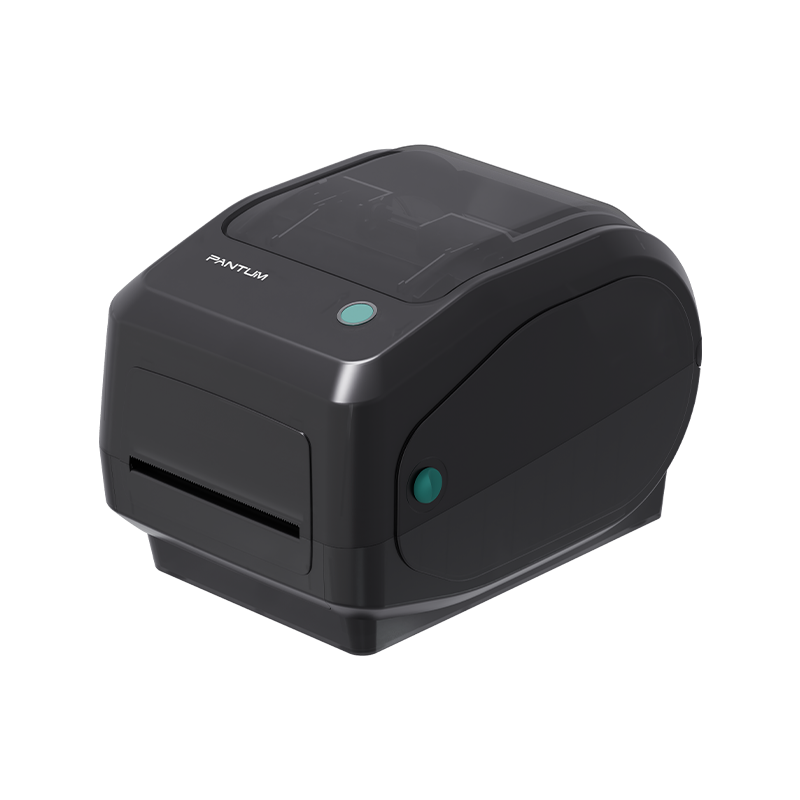

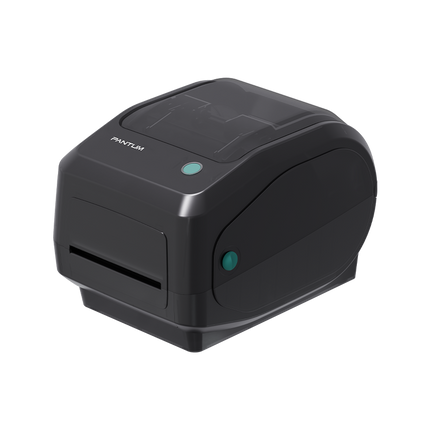

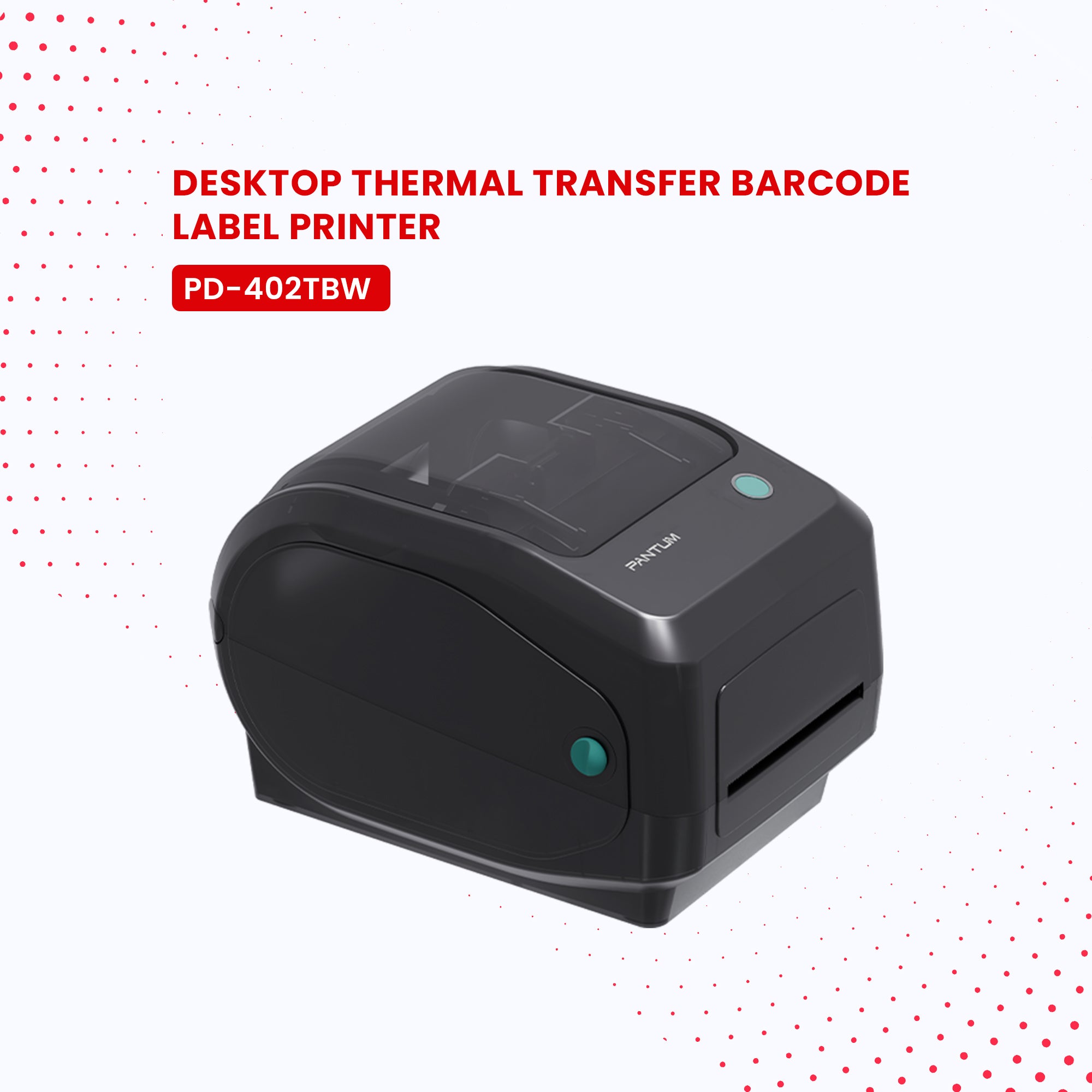

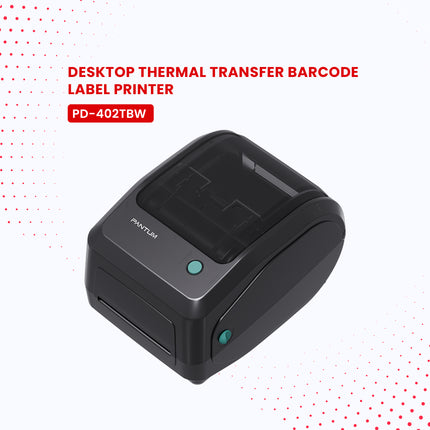

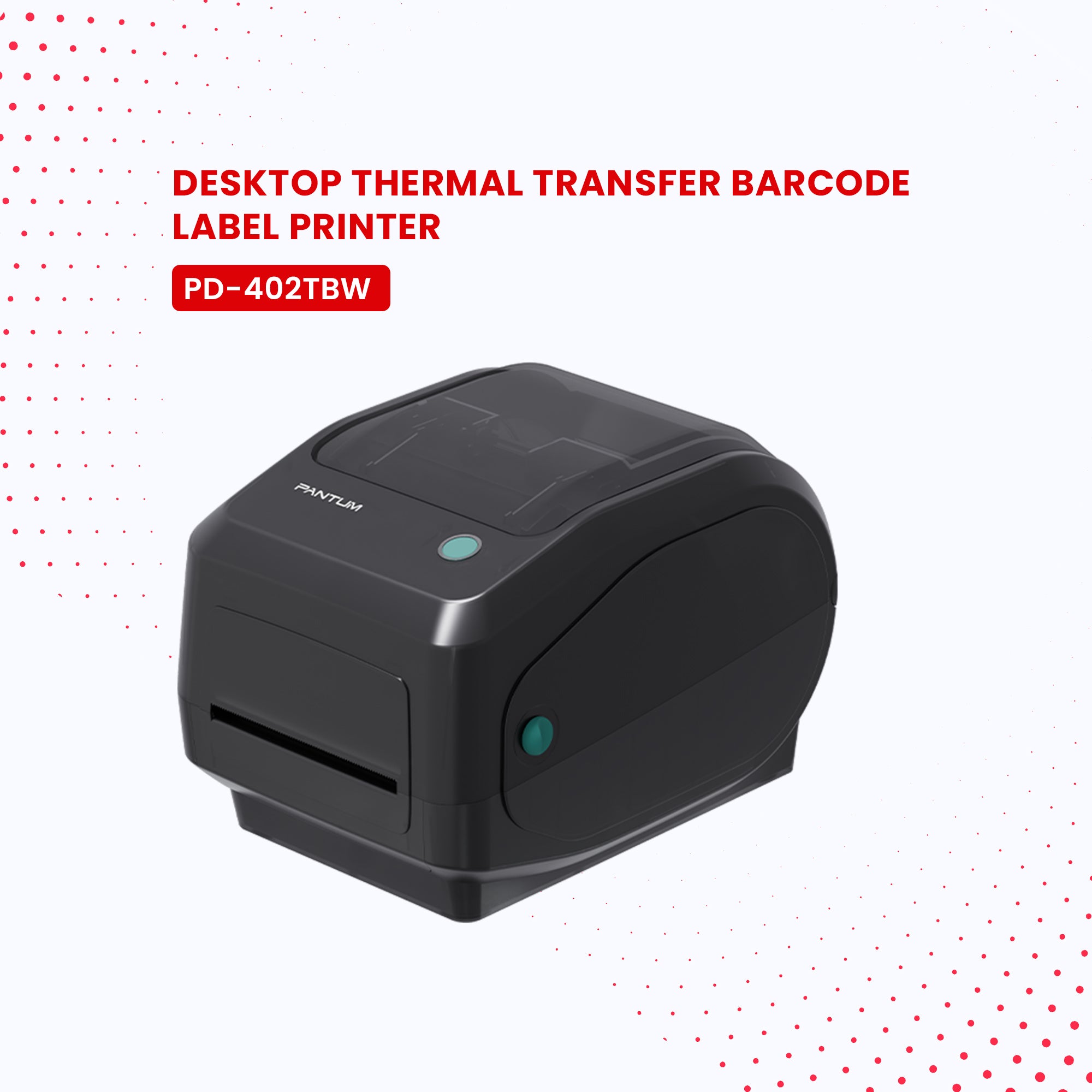

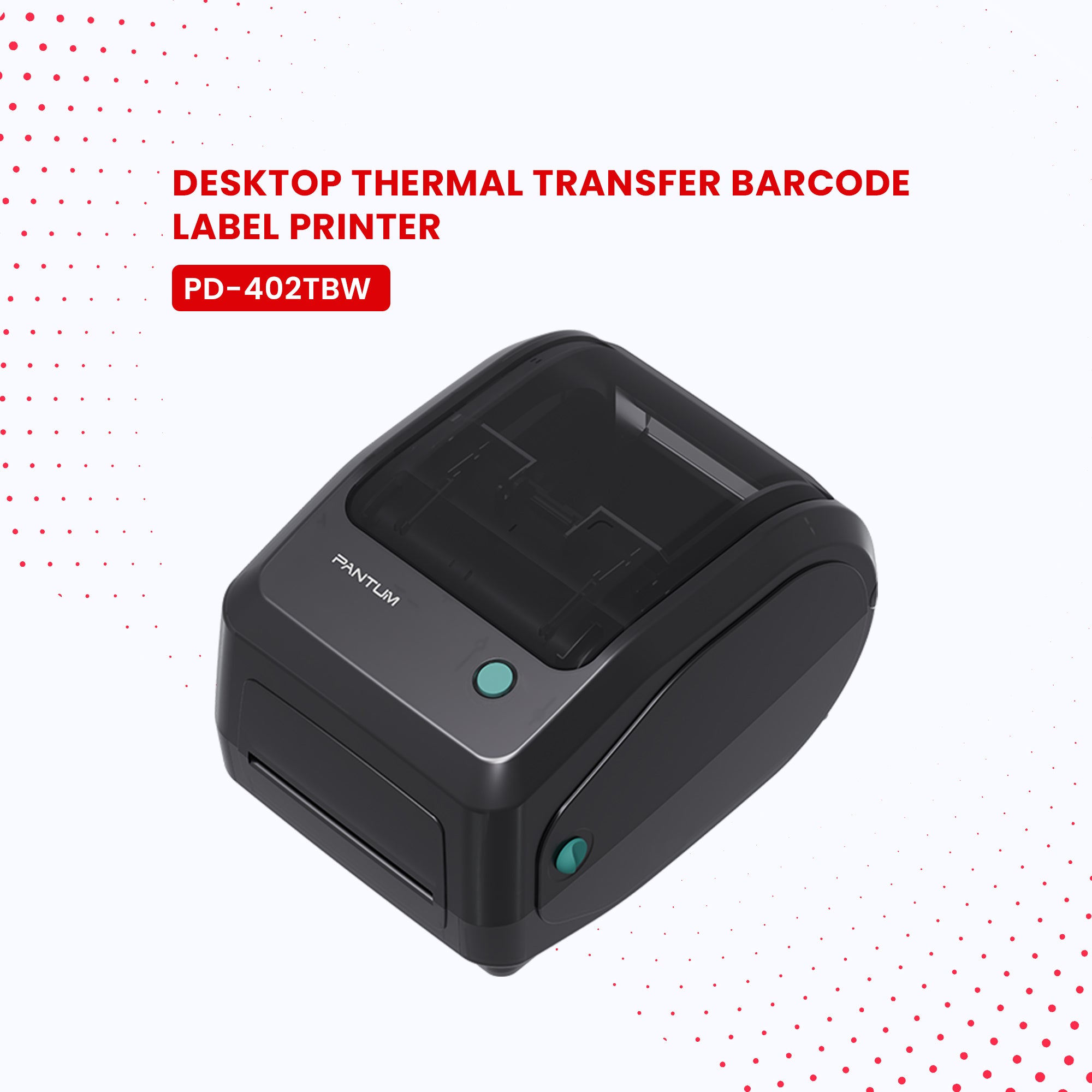

The PD-402TBW Desktop Thermal Transfer Barcode Label Printer delivers high-performance, versatile printing for demanding commercial and industrial environments. Featuring dual Direct Thermal and Thermal Transfer methods, a rapid 152mm/s print speed, 203 DPI resolution, and seamless USB, Bluetooth, and WiFi connectivity, this robust printer supports multiple emulation languages (TSPL, ZPL, CPCL, DPL, EPL) and a wide variety of media to meet complex labeling needs.
Product Specifications
General
Model
PD-402TBW
Printing Method
Direct Thermal / Thermal Transfer
Resolution
203 DPI

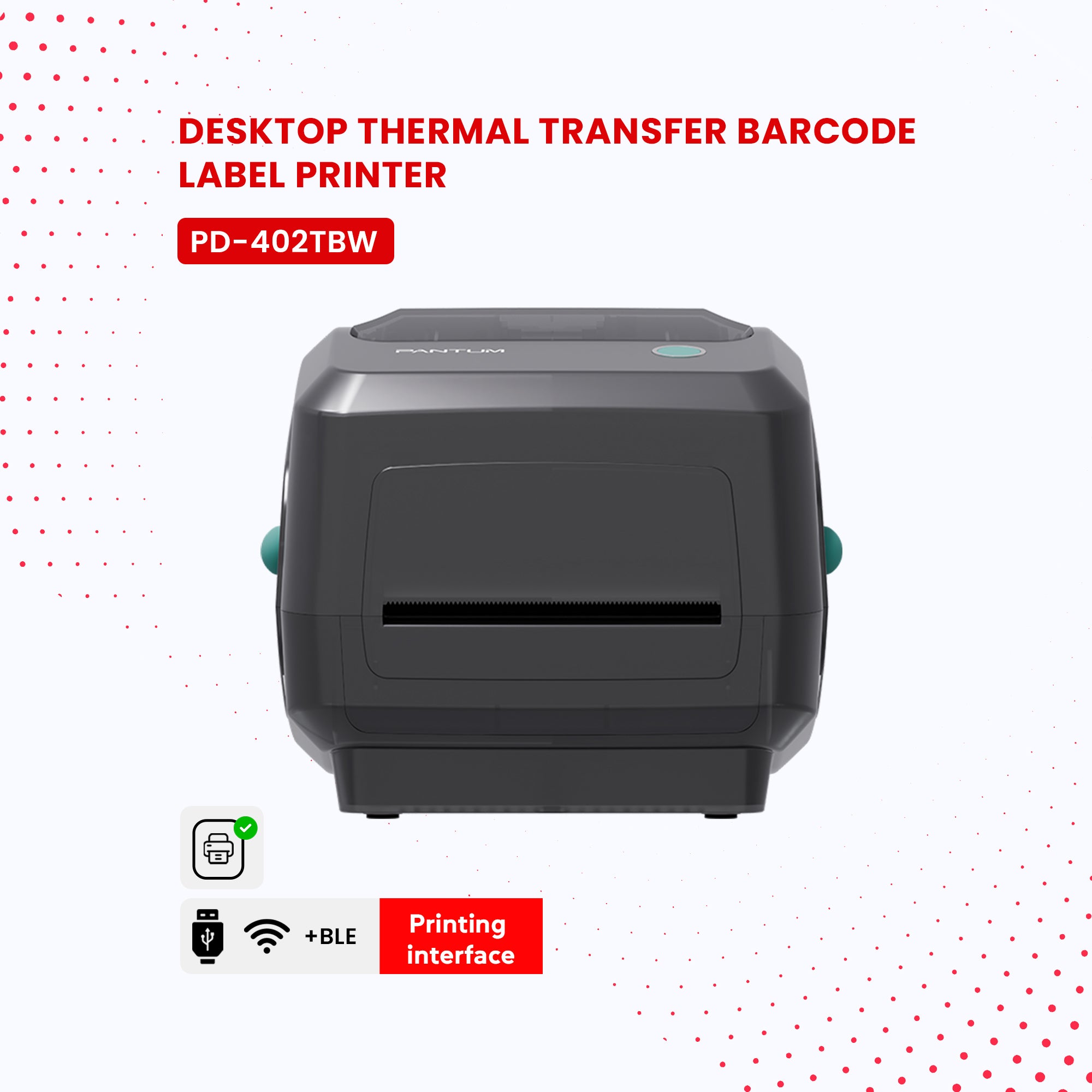

Interface
USB + Bluetooth + WiFi
Emulation
TSPL, ZPL, CPCL, DPL, EPL
Sensors
Gap sensor, Open cover, Black label sensor, Carbon detection sensor
Tearing Mode
Paper knife (Standard); External cutter (full/half cut), Stripper (Optional)
Print Specifications
Print Speed
152 mm/s (Max)
Printing Width
108 mm (Max)
Printing Length
1778 mm (Max)
Character Size
9x17 dot, 12x24 dot, 24x24 dot
Character Enlargement/Rotation
1-10x Magnification, 0°/90°/180°/270° Rotation, Mirror printing
Supported Character Sets
GB18030, BIG5, ASCII
Extended Character Sets
PC437, Katakana, PC850, PC860, PC863, PC865, West Europe, Greek, Hebrew, East Europe, Iran, WPC1252, PC866, PC852, PC858, IranII, Latvian, Arabic, PT151, PC747, WPC1257
1D Barcodes
Code128, EAN128, ITF, Code39, Code93, EAN13, EAN13+2, EAN13+5, EAN8, EAN8+2, EAN8+5, CodeBar, Postnet, UPC-A, UPC-A+2, UPC-A+5, UPC-E, UPC-E+2, UPC-E+5, MSI, MSIC, PLESSEY, CPOST, ITF14, EAN14, Code11
2D Barcodes
QR code, PDF417, Micro PDF417, DataMatrix, AZTEC
Media & Ribbon Specifications
Paper Type
Gap Label, Continuous Label, Black Mark Label, Folded Label, Coated Label
Paper Roll Width (incl. backing)
20 mm to 118 mm
Paper Roll Thickness (incl. backing)
0.06 mm to 0.254 mm
Paper Reel Core
25.4 mm
Paper Max. Roll Diameter
127 mm (OD)
Ribbon Width
30 mm to 110 mm
Ribbon Length
300 m
Ribbon Axis Size
25.4 mm
Ribbon Max. Roll Diameter
67 mm (OD)
Ribbon Winding Form
Roll-out
Feed Method
Front exit
Memory
SDRAM
8 MB
FLASH
8 MB (Expandable)
Power & Environmental
Input Power
AC 100~240V, 50/60 Hz
Output Power
DC 24V, 2.5A
Operating Temperature
0 °C to 45 °C
Operating Humidity
20% to 90%
Storage Temperature
-10 °C to 60 °C
Storage Humidity
10% to 90%
Durability
Print Head Life
150 km (Print rate 18.5%)
Dimensions & Weight
Dimensions (D x W x H)
274 x 213 x 191 mm
Weight
2.54 kg
In the Box
Included Accessories
Power adapter, Power cord, USB cable, Quick installation guide, Labels, Ribbon strip axis x2, Ribbon
Optional Accessories
External roll holder
