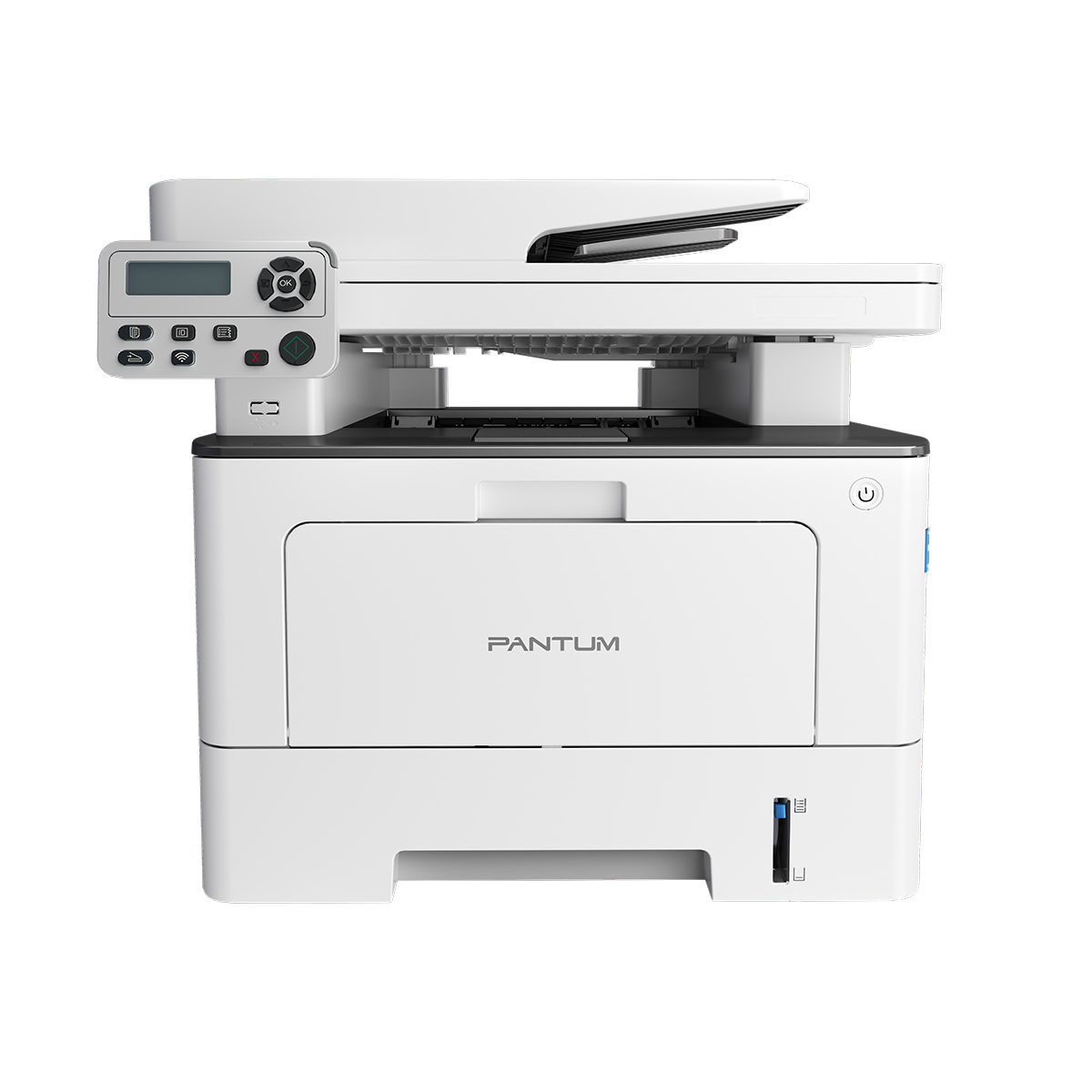

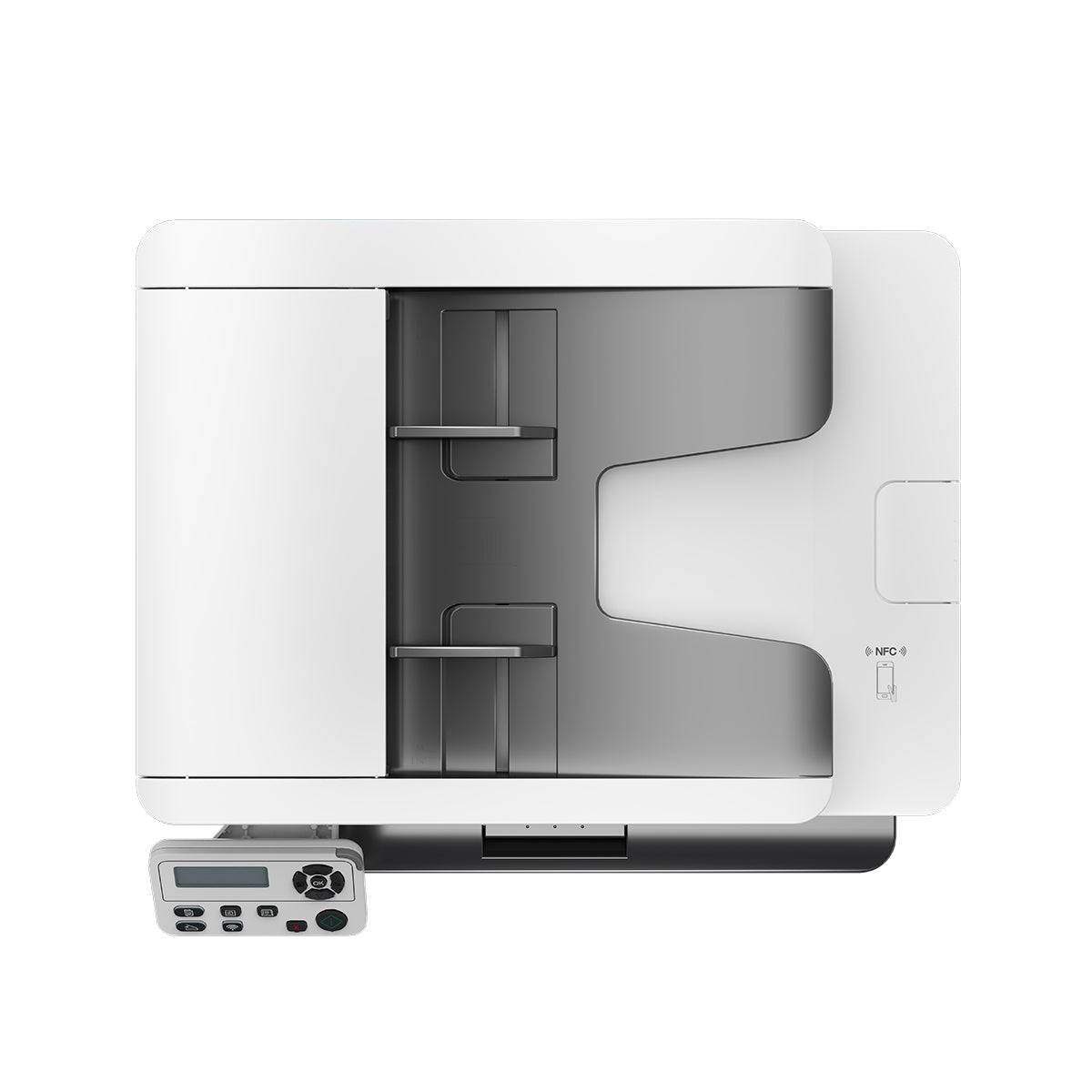

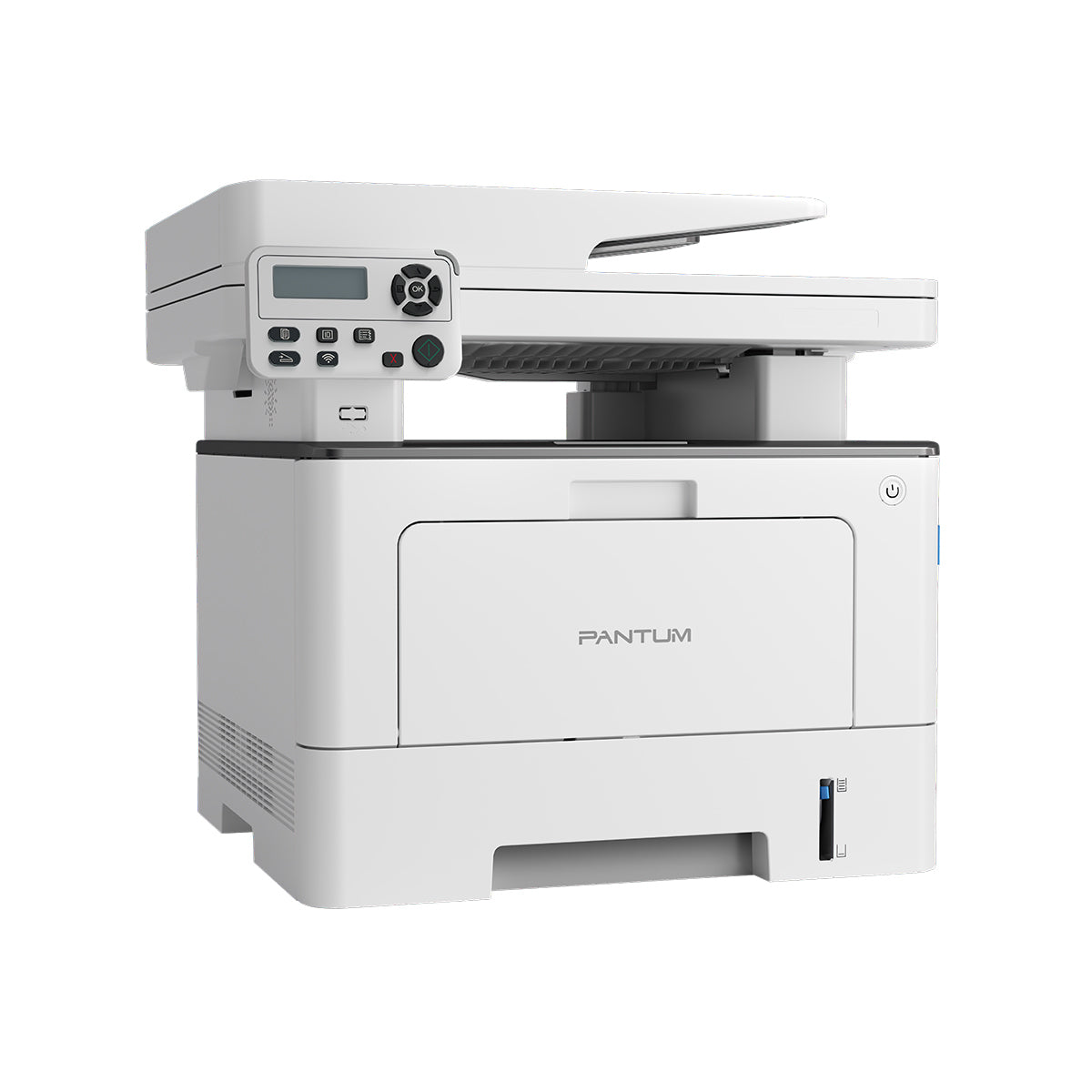

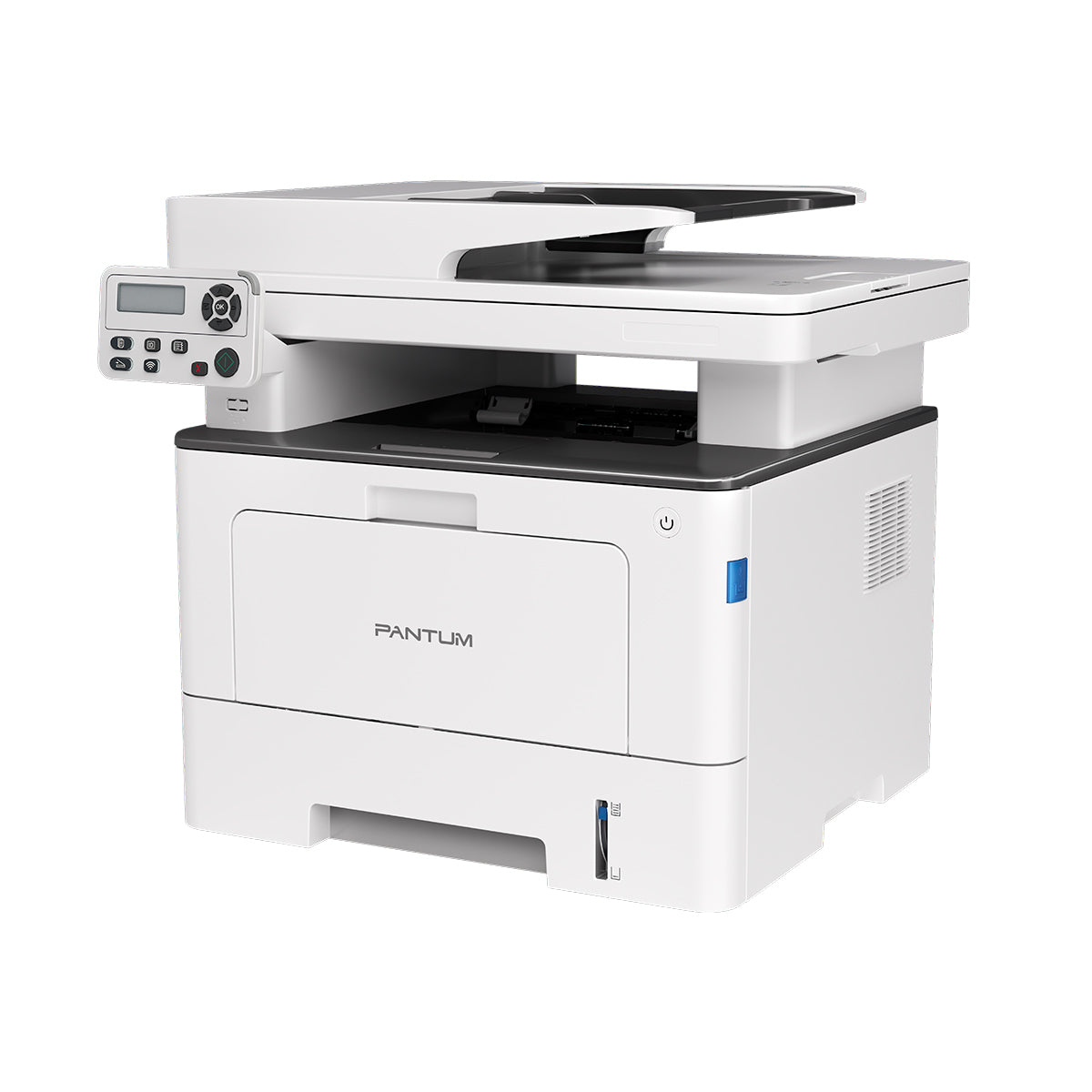

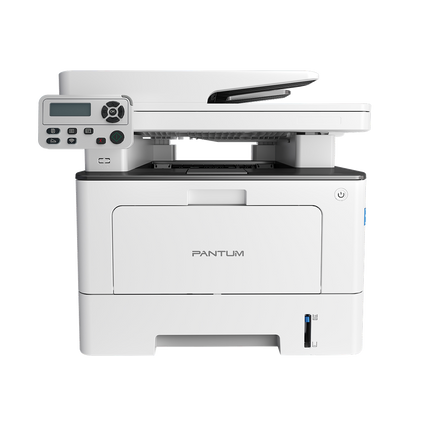

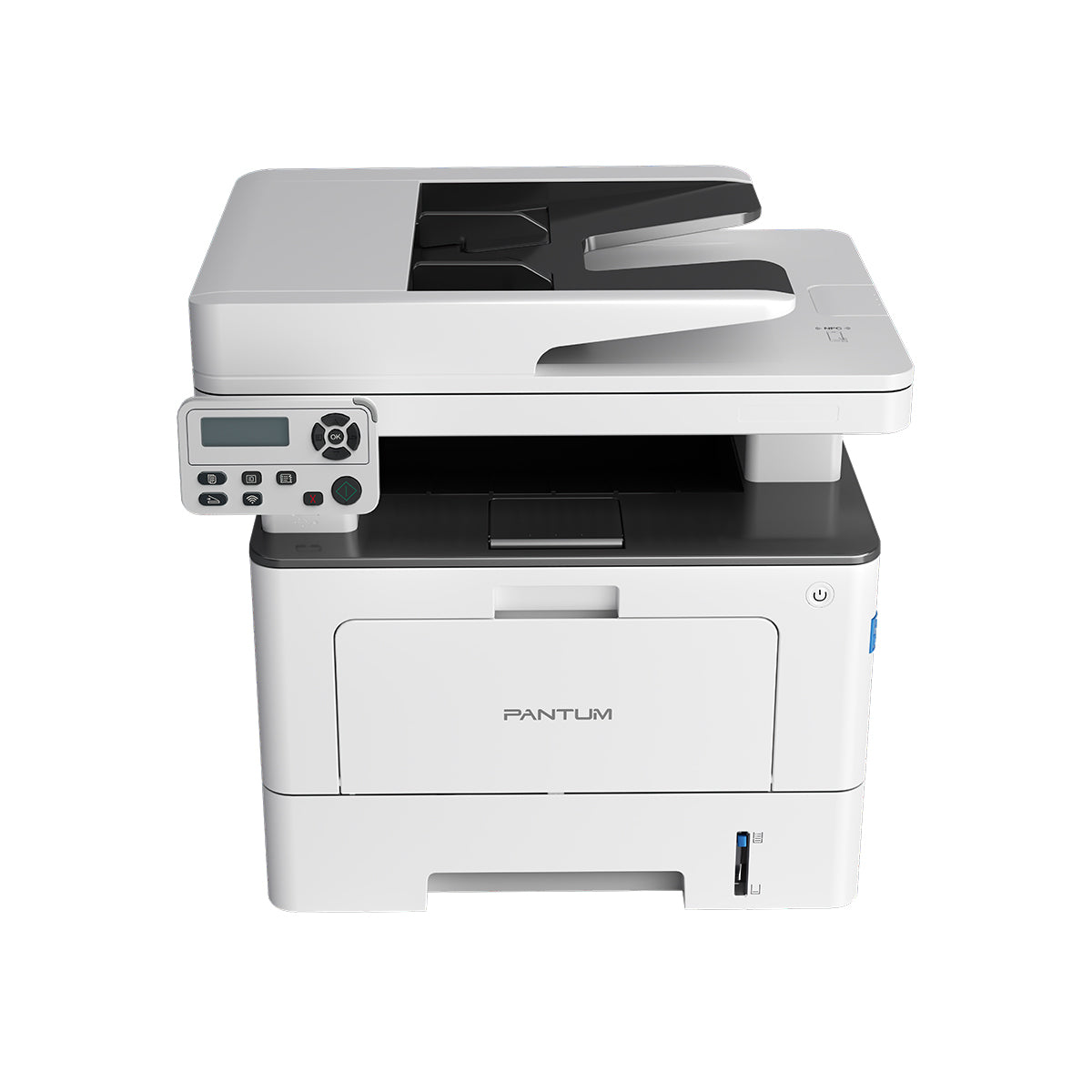

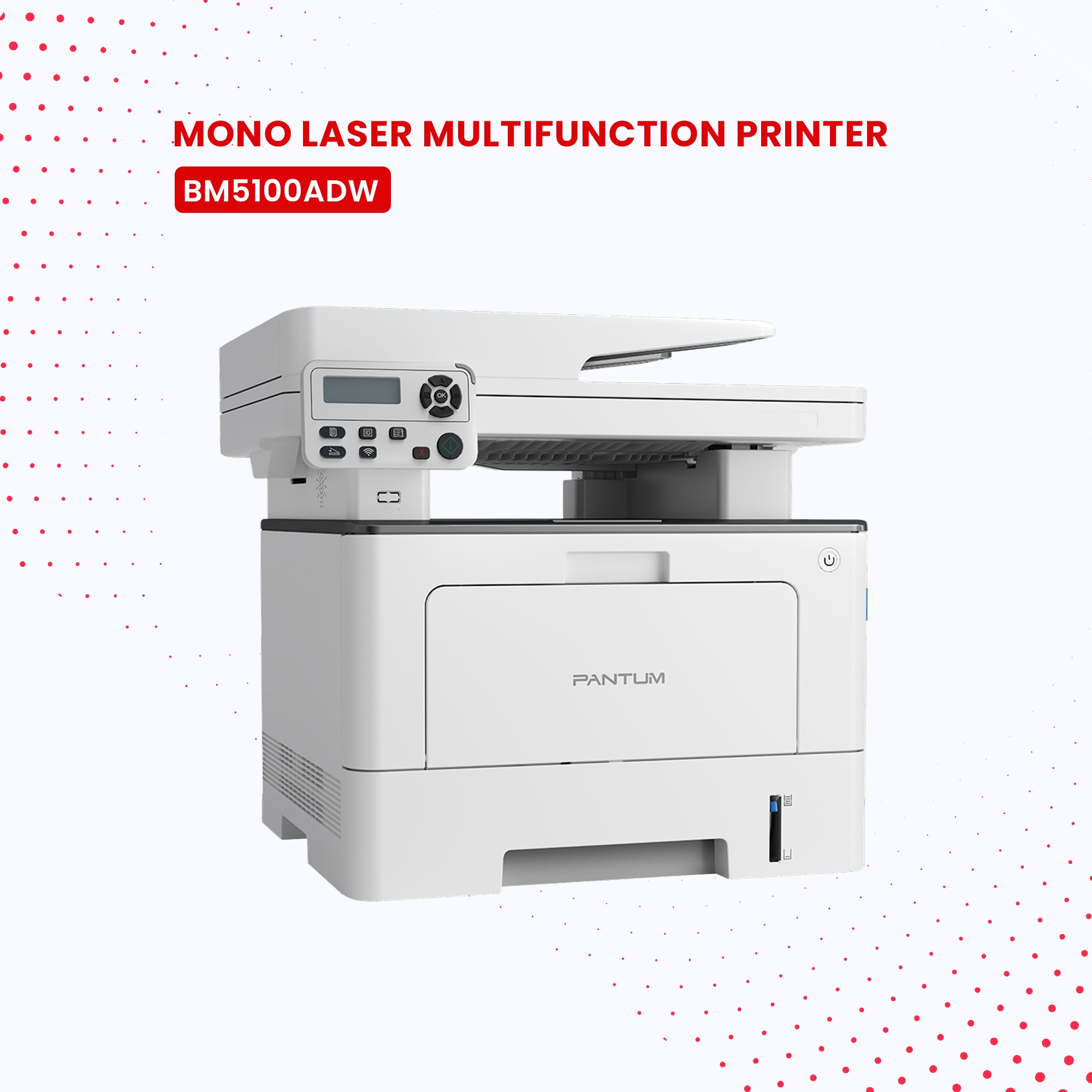

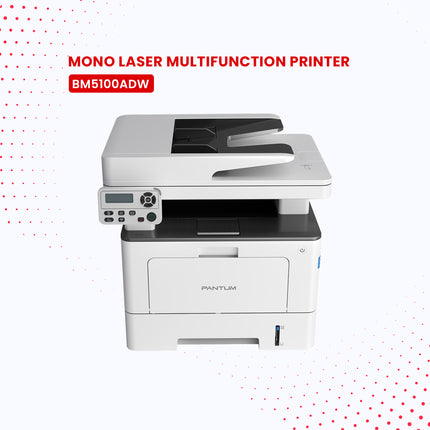

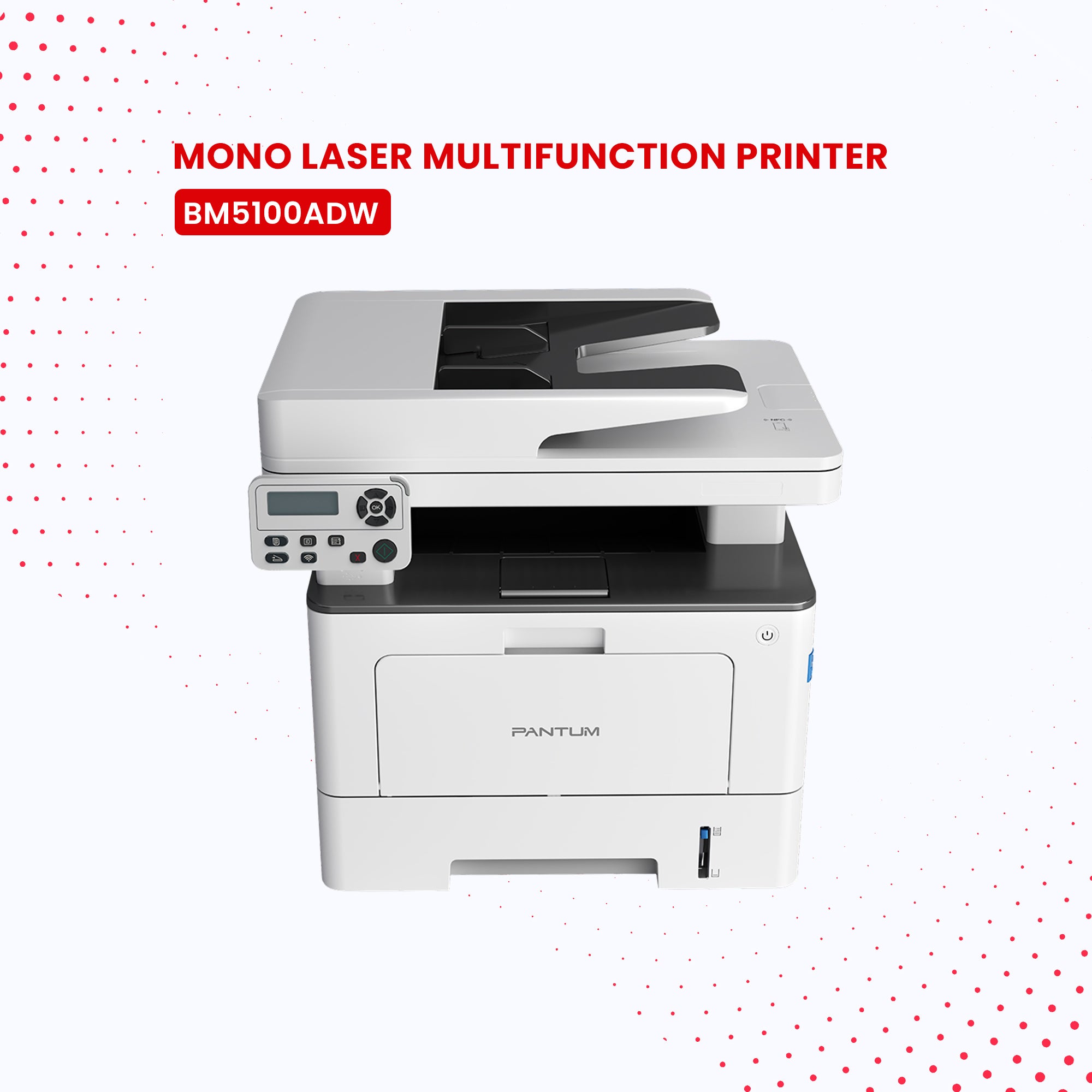

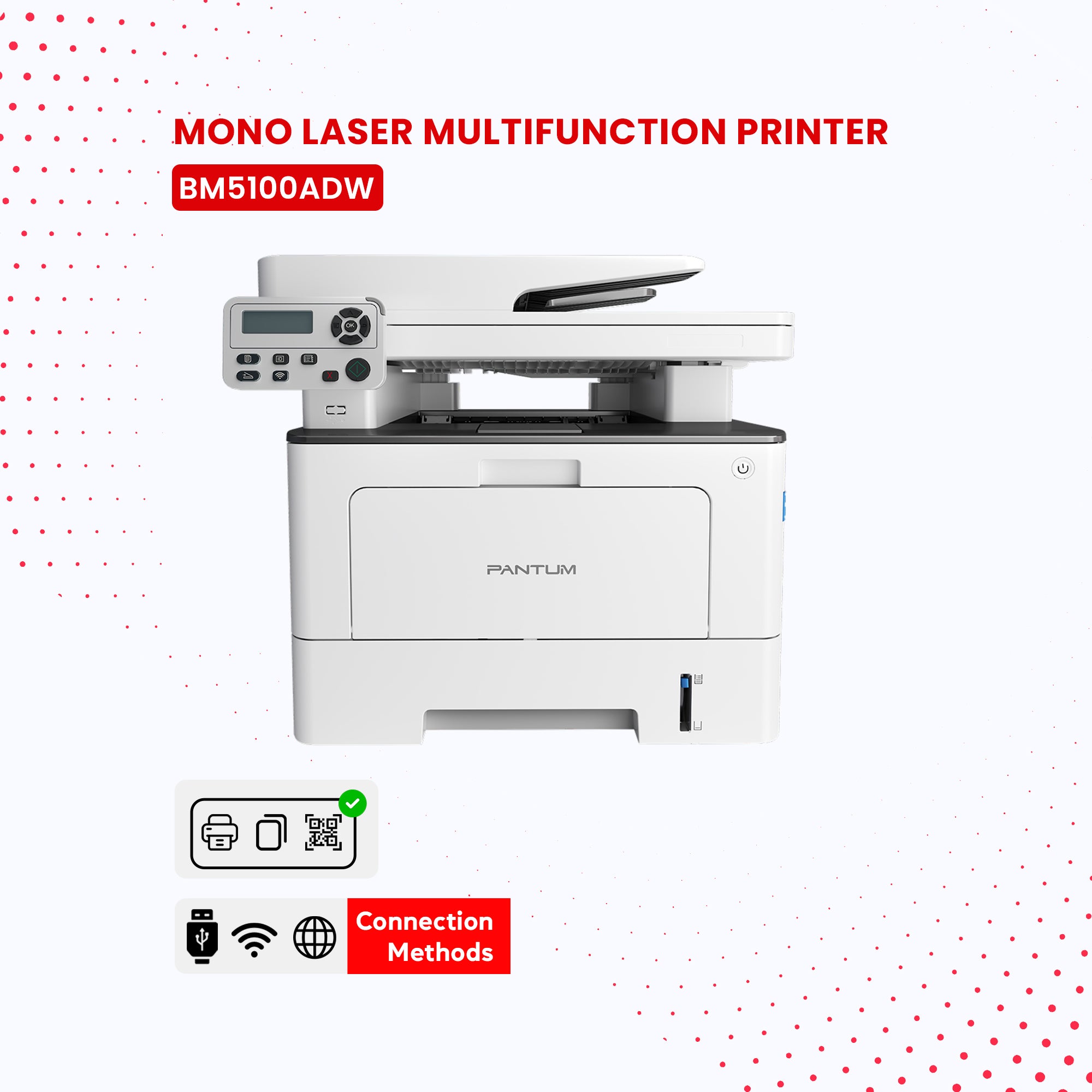

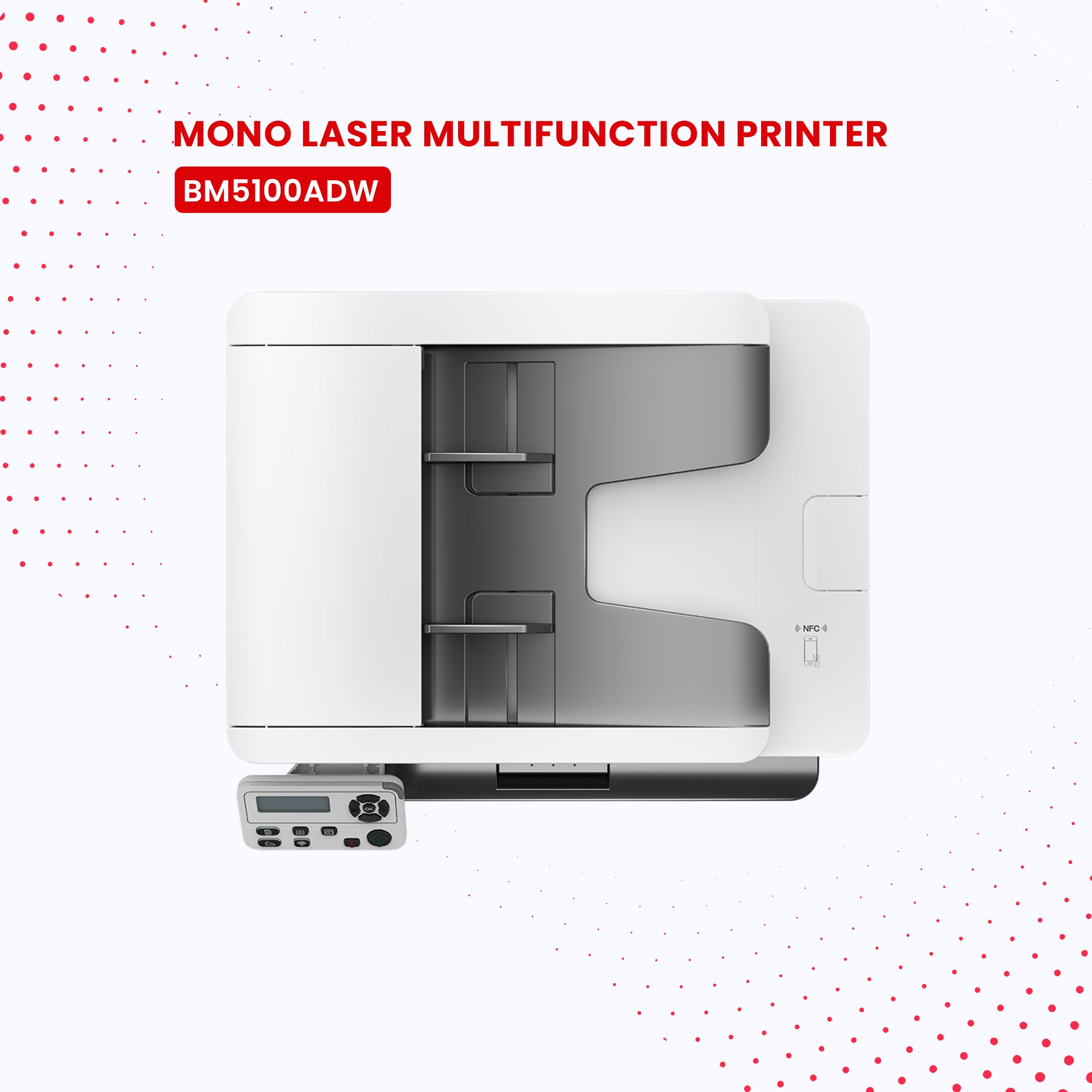

The BM5100ADW Mono Laser Multifunction Printer is a high-performance monochrome laser printer designed for demanding business and office environments.
Product Specifications
General
Model BM5100ADW
Printer Type Mono Laser Multifunction Printer
Functions Print, Copy, Scan
Print Technology Monochrome Laser
Control Panel 2-Line LCD
Print Performance
Printing Speed 40 ppm (A4) / 42 ppm (Letter)
First Print Out Time ≤ 6.9 seconds
Recommended Monthly Page Volume 1,000 - 10,000 pages
Monthly Duty Cycle 100,000 pages
Print Languages PCL5e, PCL6, PS
Duplex Print Speed 20 spm (A4) / 21 spm (Letter)
Automatic Duplex Printing Yes
Copy
Copy Speed 40 ppm (A4) / 42 ppm (Letter)
First Copy Out Time Flatbed: Less than 10 seconds
ADF: Less than 11 seconds
Maximum Copy Pages 99 pages
Copy Reduction / Enlargement 25% - 400%
Special Copy Features ID Copy
Receipt Copy
N-up Copy
Clone Copy
Poster Copy
Collated Copy
Watermark Copy
Scan
Scan Type Flatbed + DADF
ADF Capacity 50 sheets
Scan Destinations Scan to PC
Scan to E-mail
Scan to FTP
Scan to SMB
Scan to USB Thumb Drive
Scan to App (iOS / Android / iPadOS)
Automatic Duplex Scanning Yes
Scan Speed A4: 24 ppm / 48 ipm
Letter: 25 ppm / 50 ipm
Maximum Scan Size Flatbed: 216 × 297 mm
ADF: 216 × 356 mm
Color Scanning Yes
Paper Handling
Standard Paper Input Tray 250 sheets
Optional Paper Input Tray PT-511H, 550 sheets per tray
Maximum: 2 optional trays
Multipurpose Tray 60 sheets
Maximum Paper Input Capacity 1,410 sheets
Paper Output Tray 150 sheets
Media Weight Input Tray: 60 - 120 g/m²
Multipurpose Tray: 60 - 200 g/m²
Optional Tray: 60 - 120 g/m²
Supported Media Sizes A4, A5, JIS B5, ISO B5, A6, Letter, Legal, Executive, Folio, Oficio, Statement, Japanese Postcard, Monarch Envelope, DL Envelope, C5 Envelope, C6 Envelope, No. 10 Envelope, ZL, Big 16K, Big 32K, 16K, 32K, B6, Yougata4, Postcard, Younaga3, Nagagata3, Yougata2
Supported Media Types Plain Paper, Thick Paper, Thin Paper, Recycled Paper, Transparency, Cardstock, Label, Envelope
Performance & Memory
Processor Speed 1.2 GHz
Memory 512 MB
Connectivity
USB Interface High-Speed USB 2.0
Ethernet IEEE 802.3 10/100/1000Base-TX
Wireless Connectivity Dual-Band Wi-Fi (2.4 GHz / 5 GHz)
IEEE 802.11a/b/g/n
Operating System Compatibility
Windows Windows Server 2008 / 2012 / 2016
Windows XP / Vista / 7 / 8 / 8.1 / 10 / 11
(32-bit & 64-bit)
macOS Mac OS 10.8 / 10.9 / 10.10 / 10.11 / 10.12 / 10.13 / 10.14 / 10.15 / 11 / 12
Linux Ubuntu 14.04 / 16.04 / 18.04
Debian 10.0 / CentOS 7 (32-bit & 64-bit)
Astra Linux Special Edition V1.6
Red Hat 8.0 / CentOS 8.2 (64-bit)
Physical Specifications
Product Dimensions (W × D × H) 415 × 365 × 370 mm
Product Weight (With Cartridge) 12.5 kg
Package Dimensions (W × D × H) 559 × 444 × 488 mm
Package Weight (With Cartridge) 14.7 kg
Recommended Operating Temperature 10 - 32°C
Operating Humidity 20% - 80% RH
Noise Level Ready: ≤ 30 dB(A)
Printing: ≤ 54 dB(A)
Scanning: ≤ 54 dB(A)
Copying: ≤ 57 dB(A)
Power Requirements
Input Voltage 110 V: AC 100 - 127 V, 50/60 Hz, 14 A
220 V: AC 220 - 240 V, 50/60 Hz, 7 A
Printing Power Consumption Average ≤ 650 W
Ready Power Consumption ≤ 60 W
Sleep Power Consumption ≤ 1 W
Consumables
Cartridge Style Toner Cartridge & Drum Unit
Starter Toner Cartridge TL-5120: 3,000 pages
Starter Drum Unit DL-5120: 30,000 pages
Standard Toner Cartridges TL-5120: 3,000 pages
TL-5120H: 6,000 pages
TL-5120X: 15,000 pages
Standard Drum Unit DL-5120: 30,000 pages
Warranty
Warranty Period 1 Year Warranty
