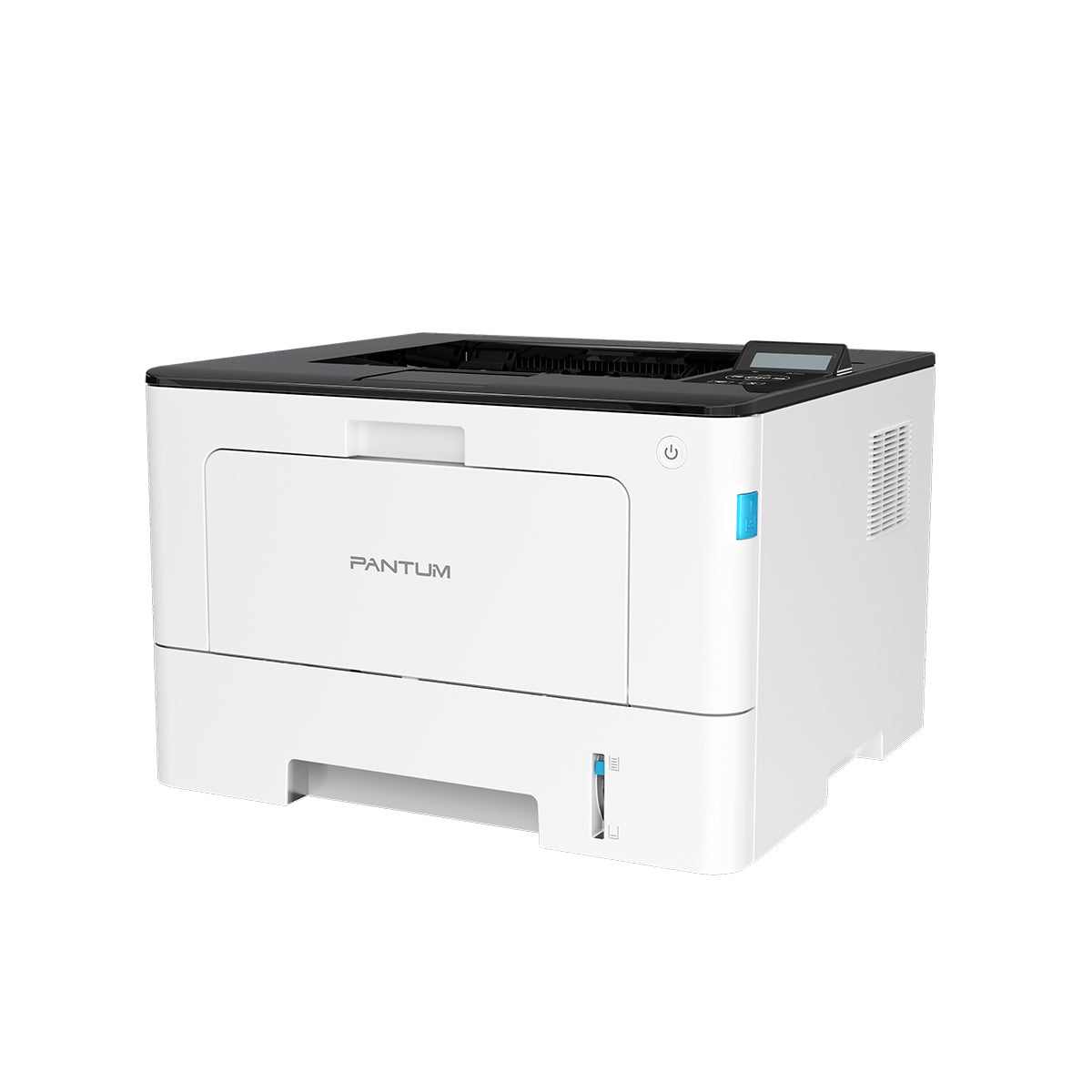

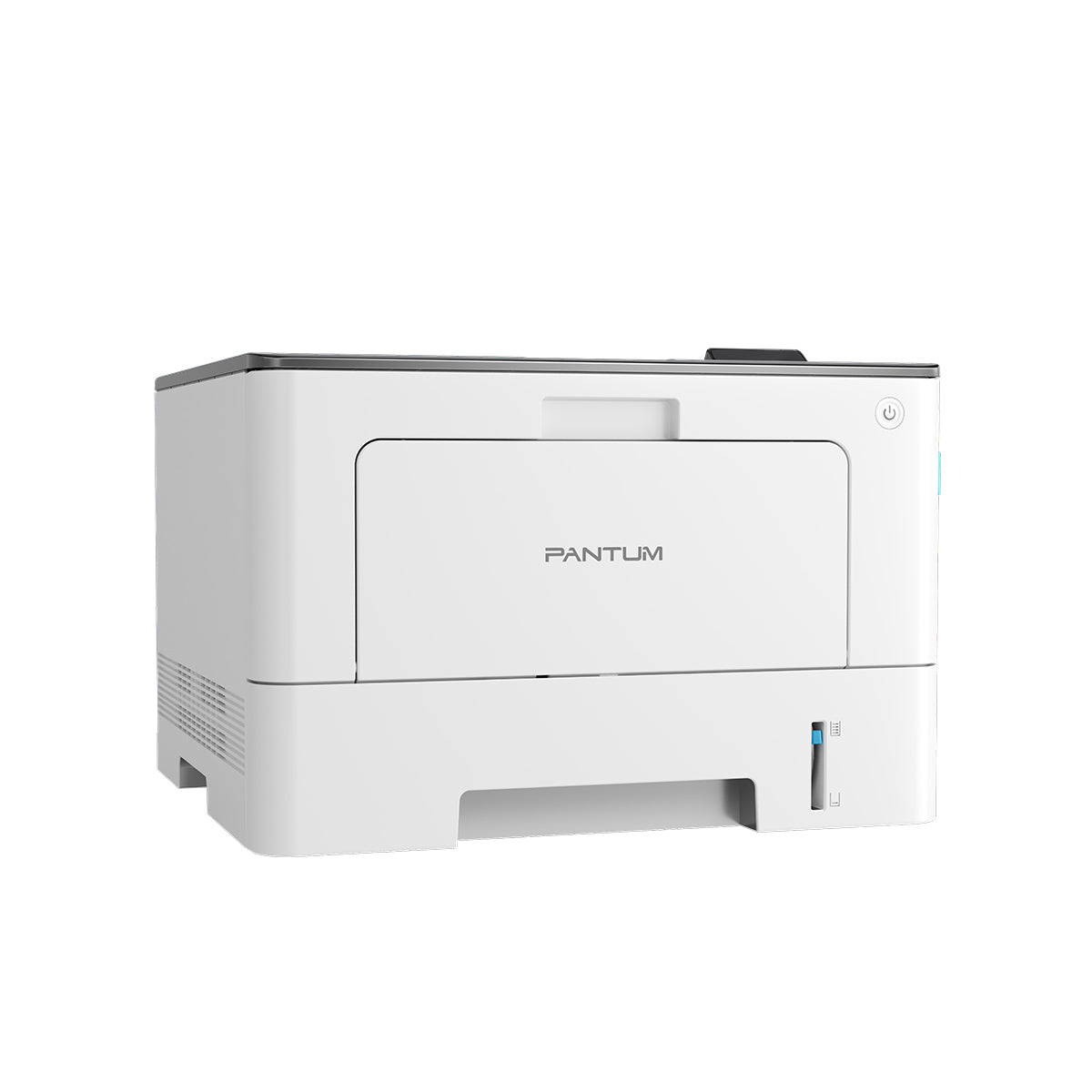

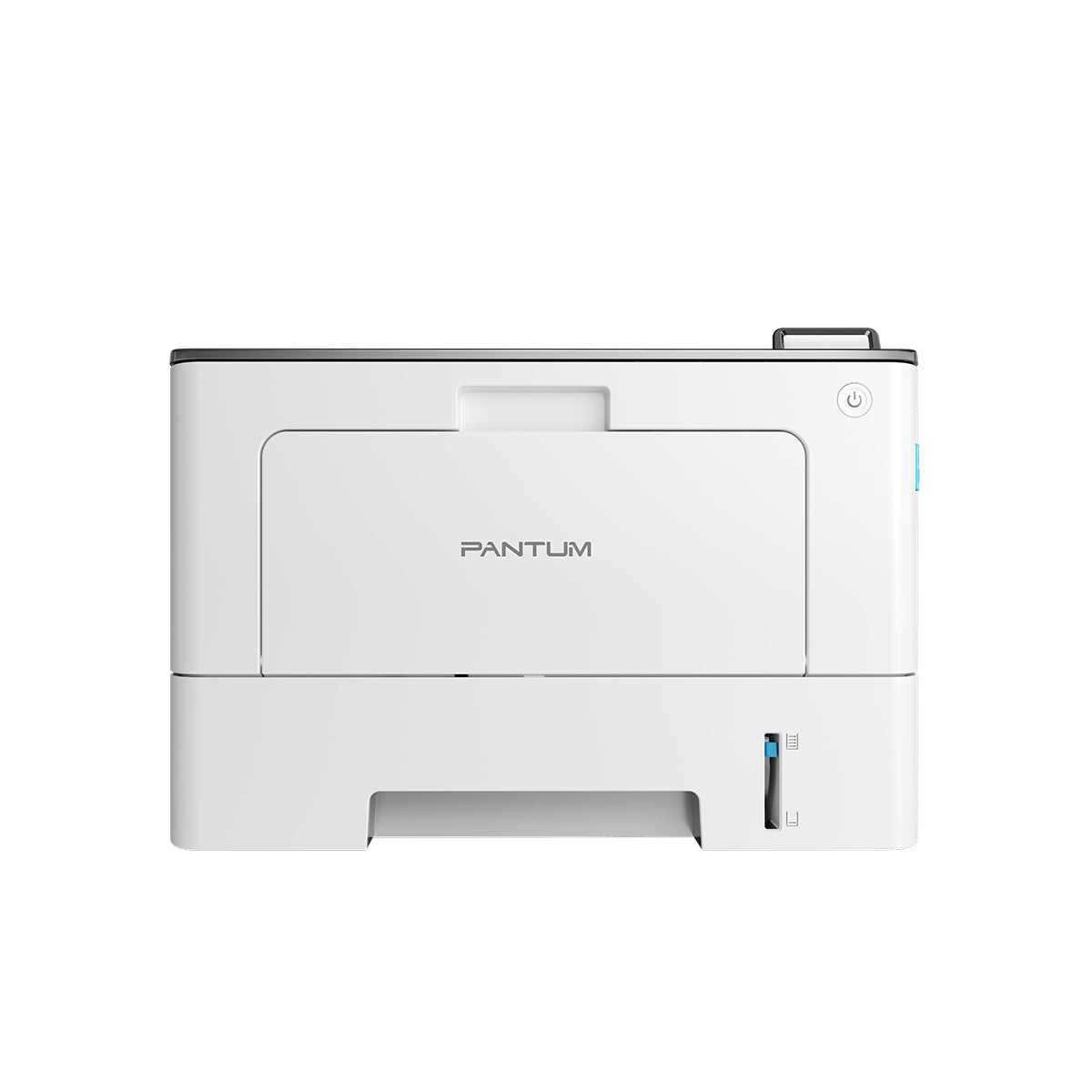

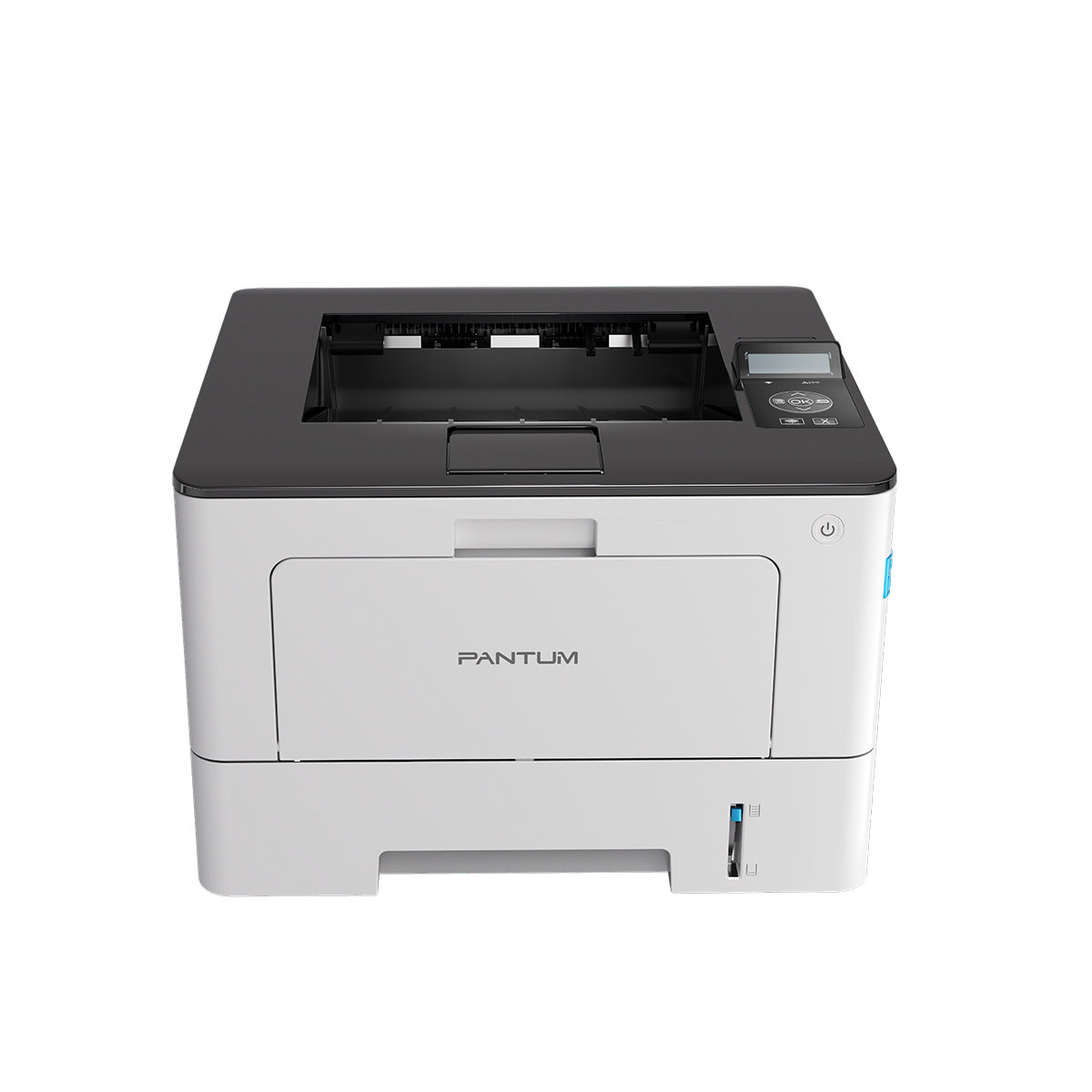

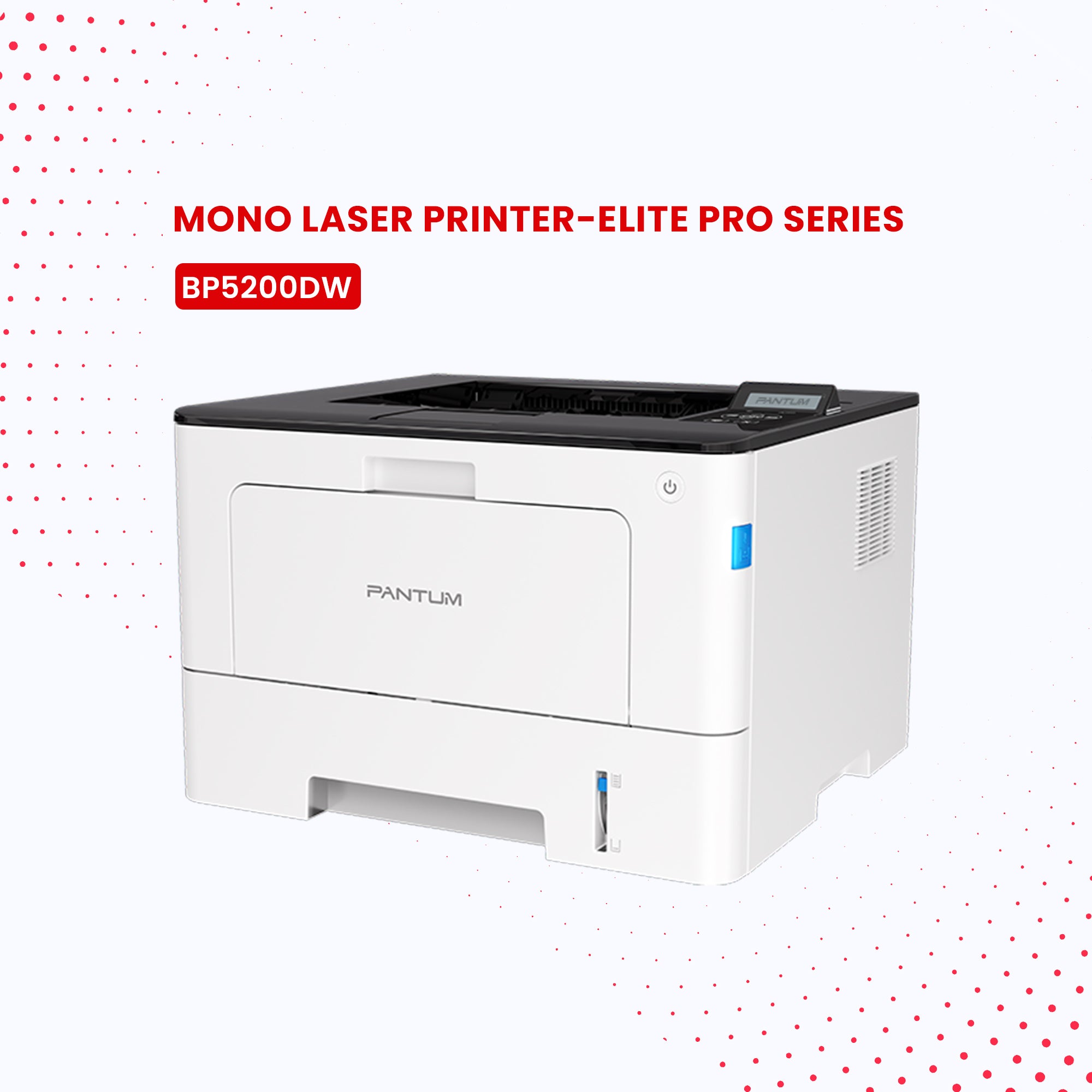

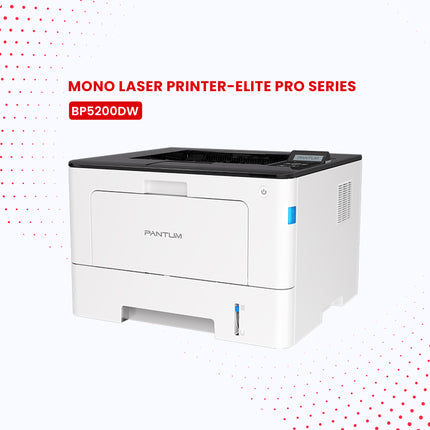

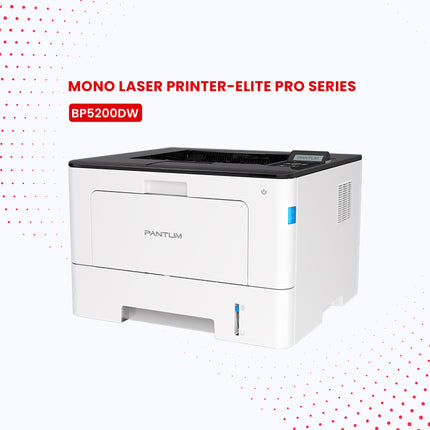

The BP5200DW Mono Laser Printer from the Elite Pro Series is a high-performance monochrome laser printer designed for demanding business and office environments.
Product Specifications
General
Model BP5200DW
Product Series Elite Pro Series
Printer Type Mono Laser Printer
Print Technology Monochrome Laser

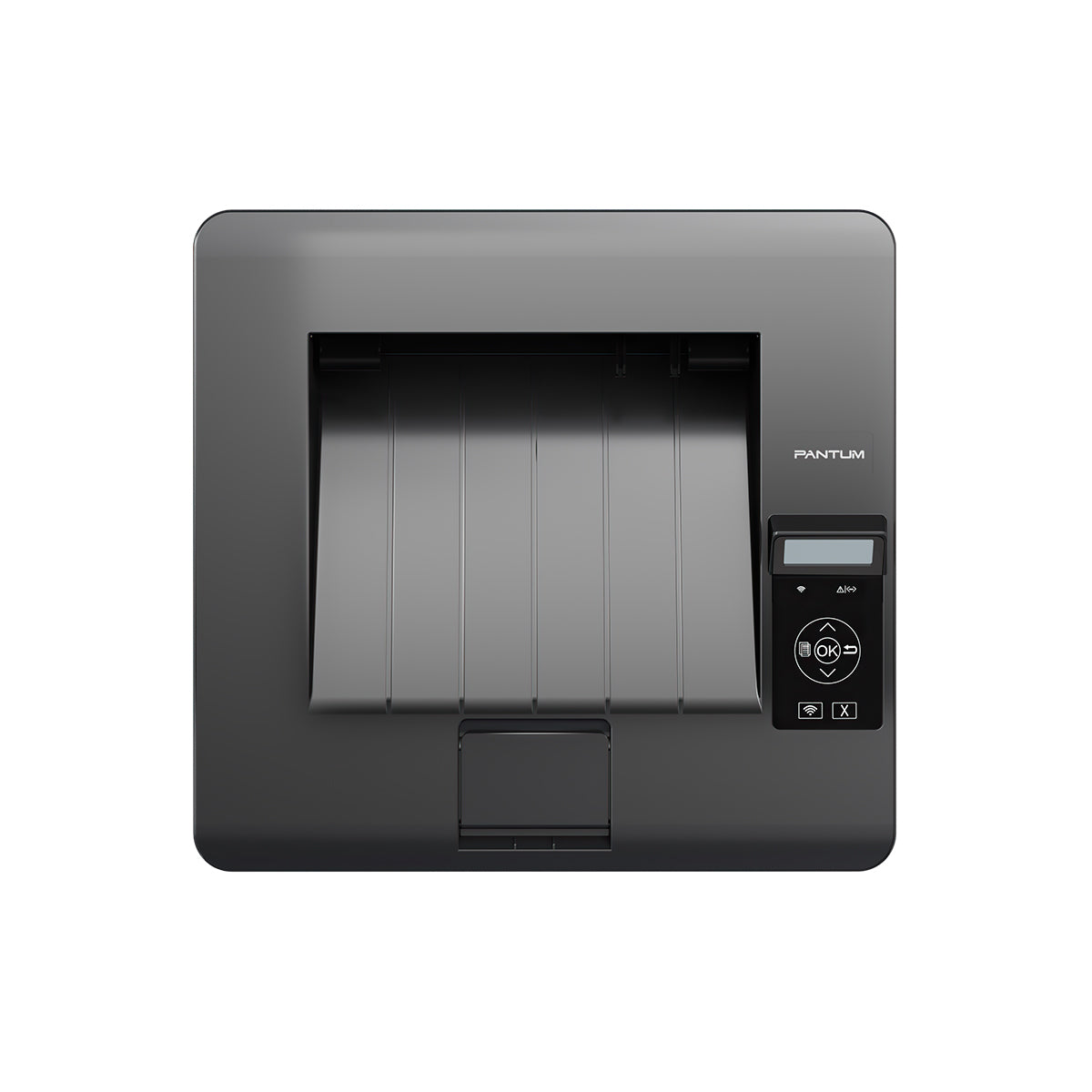

Control Panel 2-Line LCD
Hard Disk No
Print Performance
Print Speed A4 Single-Sided: 42 ppm
Letter Single-Sided: 44 ppm
A5 Long Edge Single-Sided: 70 ppm
A5 Short Edge: 9 ppm
Duplex Print Speed 20 spm (A4)
First Print Out Time ≤ 5.9 seconds
Printer Languages PCL5e, PCL6, PS, GDI
Duplex Printing Automatic
U-Disk Printing No
NFC Function Yes (Except iOS)
Mobile Printing Apple AirPrint
Mopria™ Print Service
iOS App / Android App Printing
Additional Printing Functions Booklet Printing
Mute Printing
Wrinkle-Free Envelope Printing
Confidential Printing
PDF Printing
Monthly Duty Cycle
Recommended Monthly Duty Cycle 1,000 - 10,000 pages
Maximum Monthly Duty Cycle 100,000 pages
Paper Handling
Standard Input Tray 250 sheets
Multipurpose Input Tray 60 sheets
Optional Paper Tray 550 sheets per tray
Maximum: 2 optional trays
Maximum Paper Input Capacity 1,410 sheets
Paper Output Tray 150 sheets
Paper Output Full Detection Yes
Optional Accessory PT-511H Optional Paper Tray
550 Sheets (Maximum: 2)
Automatic Paper Feeder Media Types Plain Paper, Thick Paper, Transparent Film, Thin Paper, Recycled Paper
Multipurpose Feeder Media Types Plain Paper, Thick Paper, Card Paper, Label Paper, Envelope, Thin Paper, Extra Thick Paper
Optional Tray Media Types Plain Paper, Thick Paper, Thin Paper
Supported Media Sizes A4, A5, JIS B5, ISO B5, A6, Letter, Legal, Executive, Folio, Oficio, Statement, Japanese Postcard, Monarch Envelope, DL Envelope, C5 Envelope, C6 Envelope, No. 10 Envelope, ZL, Big 16K, Big 32K, 16K, 32K, B6, Yougata4, Postcard, Younaga3, Nagagata3, Yougata2
Minimum Media Size 80 × 148 mm
Maximum Media Size 216 × 356 mm
Media Weight Input Tray: 60 - 120 g/m²
Multipurpose Tray: 60 - 200 g/m²
Optional Tray: 60 - 120 g/m²
Performance & Memory
Processor Speed 1.2 GHz
Memory 1 GB
Hard Disk No
Connectivity
USB Interface High-Speed USB 2.0
Rear USB Device Port (1)
Ethernet IEEE 802.3 10/100/1000Base-TX
Wireless Connectivity Dual-Band Wi-Fi (2.4 GHz / 5 GHz)
IEEE 802.11a/b/g/n
Bluetooth Supported
NFC Connectivity Supported (Except iOS)
Operating System Compatibility
Windows Windows Server 2008 / 2012 / 2016 / 2019 / 2022
Windows XP / 7 / 8 / 8.1 / 10 / 11
(32-bit & 64-bit)
macOS Mac OS 10.10 - 14.3
Linux Ubuntu 16.04 / 18.04 / 20.04 / 22.04
Debian 10.0 / CentOS 7
(32-bit & 64-bit, Intel Processor)
Astra Linux Special Edition V1.6
Red Hat 8.2.0 / CentOS 8.2
(64-bit, Intel Processor)
Android Android 8.0 and Later
iOS App iOS 13 and Later
HarmonyOS HarmonyOS 2 - 4
HarmonyOS NEXT
Power Requirements
Input Voltage 110 V: AC 110 - 127 V, 50/60 Hz, 13 A
220 V: AC 220 - 240 V, 50/60 Hz, 6.5 A
Printing Power Consumption Average ≤ 650 W
Ready Power Consumption ≤ 8 W
Sleep Power Consumption ≤ 1.4 W
Shutdown Power Consumption ≤ 0.5 W
Energy Star Standard Energy Star 3.2
Operating Environment
Recommended Operating Temperature 10 - 32°C
Basic Operating Temperature 5 - 35°C
Operating Humidity 20% - 80% RH
Operating Altitude ≤ 3,000 m
Noise Level Printing: ≤ 54 dB(A)
Ready: ≤ 30 dB(A)
Mute Mode: ≤ 50 dB(A)
Consumables
Consumable Type Toner Cartridge & Drum Unit
Starter Toner Cartridge TL-*5220: 3,000 pages
Starter Drum Unit DL-*5220: 30,000 pages
Standard Toner Cartridges TL-*5220: 3,000 pages
TL-*5220H: 6,000 pages
TL-*5220X: 15,000 pages
Standard Drum Unit DL-*5220: 30,000 pages
Dimensions & Packaging
Printer Dimensions (W × D × H) 366 × 350 × 260 mm
Package Dimensions (W × D × H) 452 × 428 × 333 mm
Printer Net Weight 9.3 kg (With Consumables)
Printer Gross Weight 11.2 kg
Standard Consumable Dimensions (W × D × H) Toner Cartridge (3K / 6K): 330 × 447 × 331 mm
Toner Cartridge (15K): 356 × 395 × 516 mm
Drum Unit: 361 × 362 × 506 mm
Standard Consumable Package Dimensions (W × D × H) Toner Cartridge (3K / 6K): 344 × 475 × 375 mm
Toner Cartridge (15K): 370 × 423 × 530 mm
Drum Unit: 375 × 390 × 520 mm
Warranty
Warranty Period 1 Year Warranty
