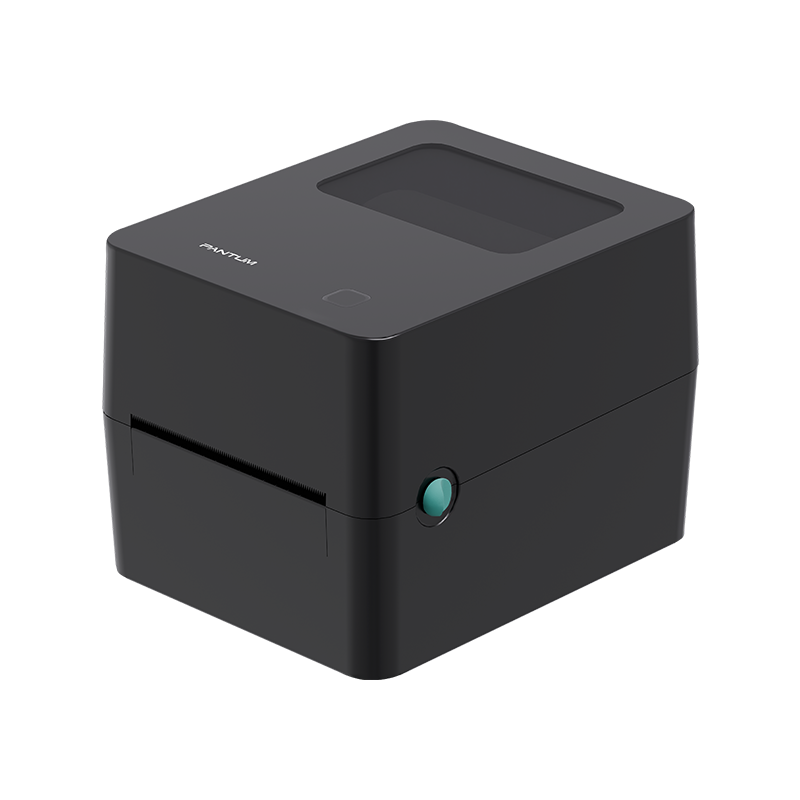

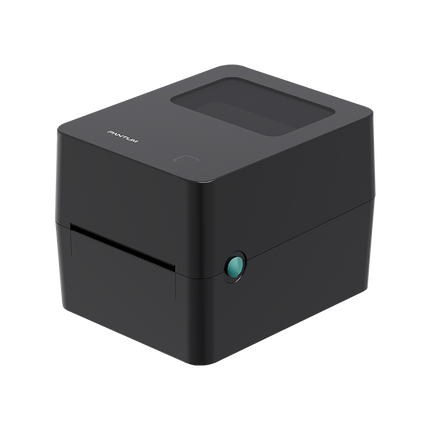

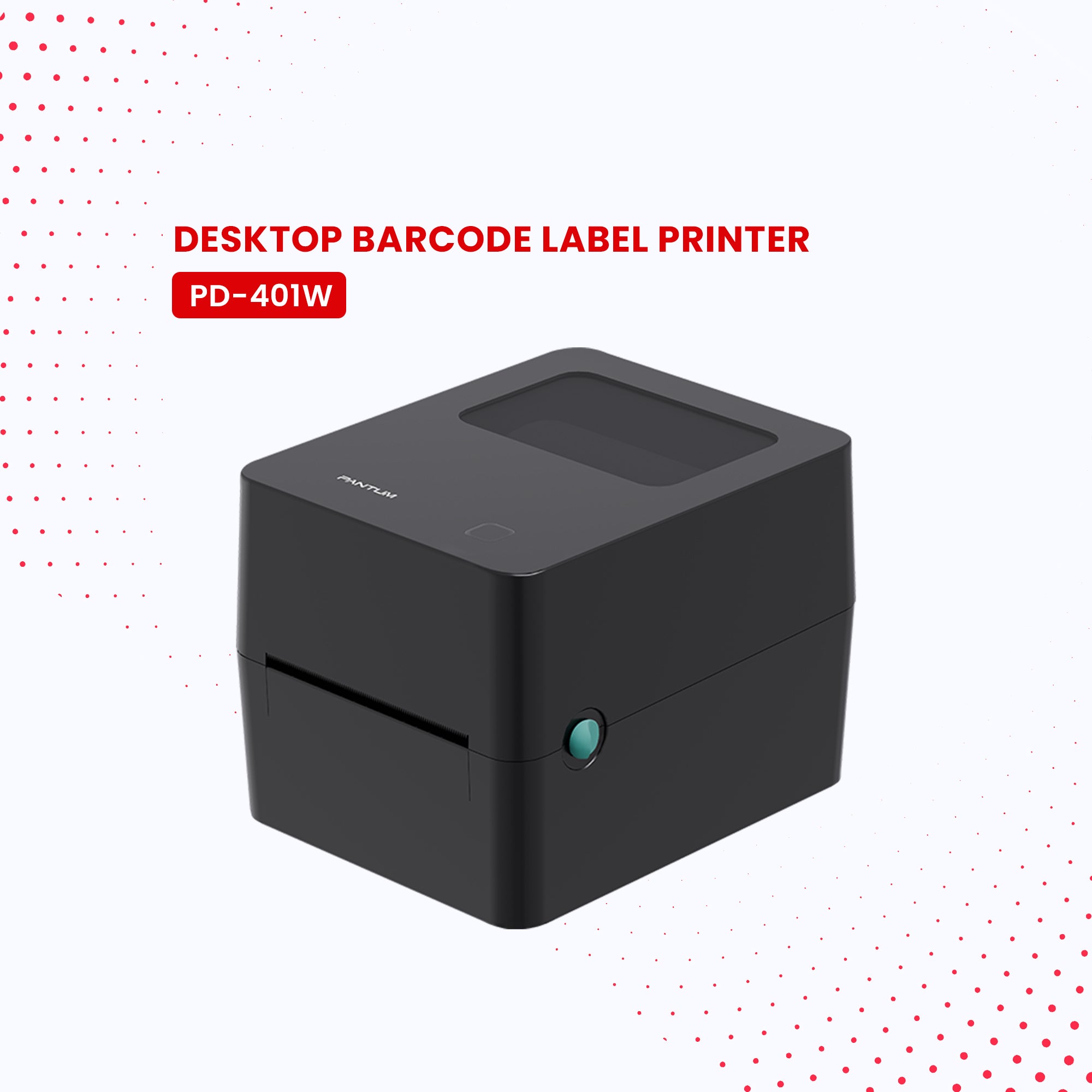

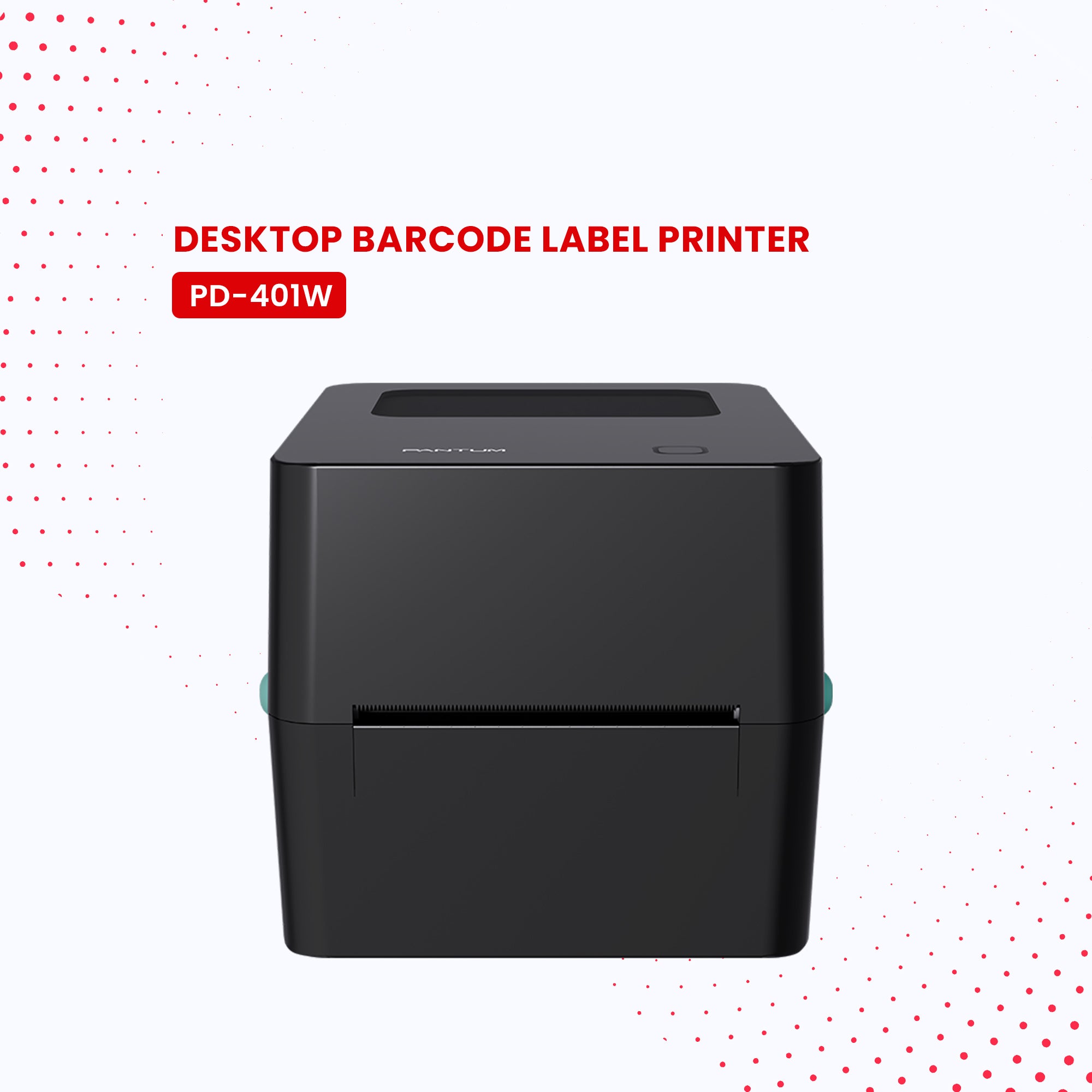

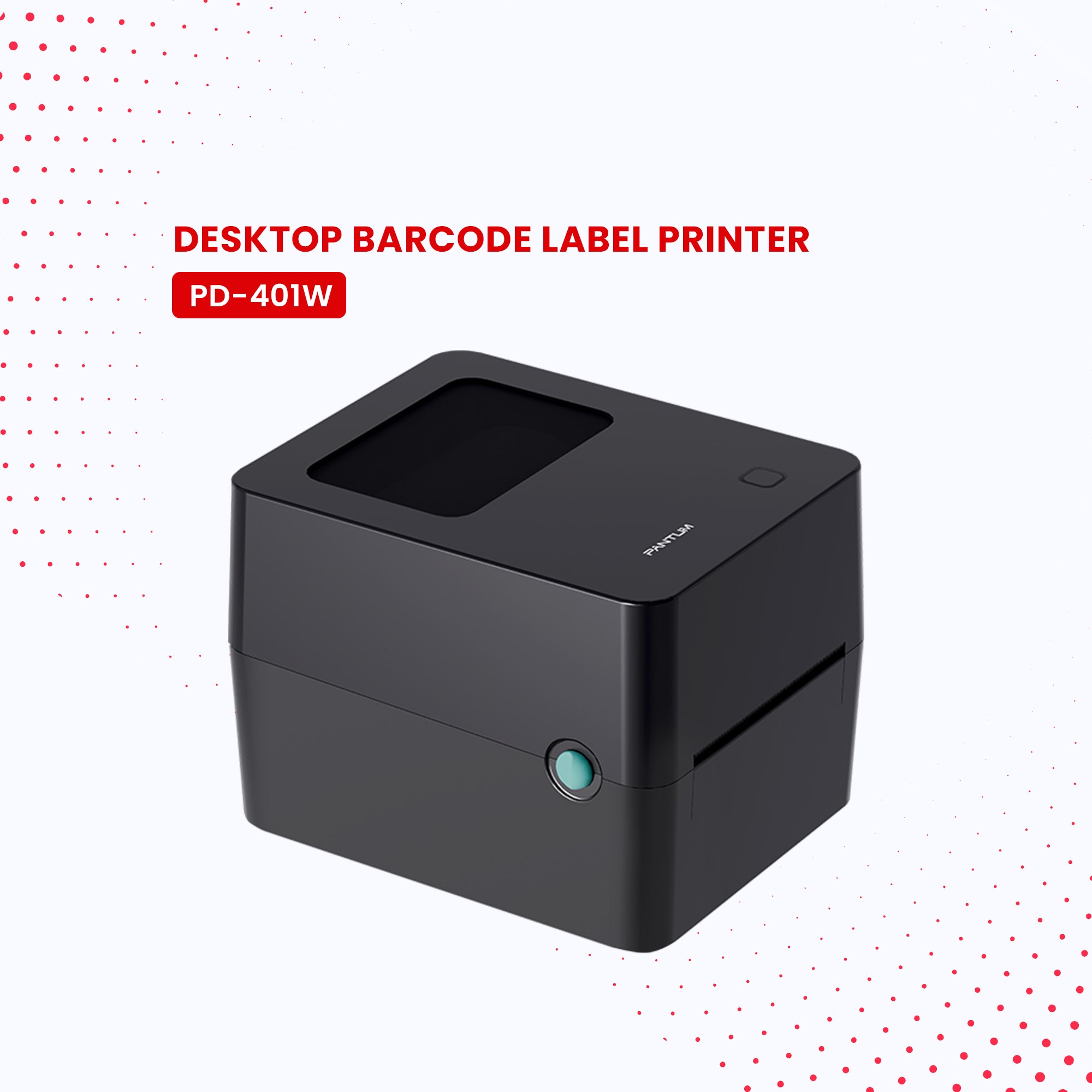

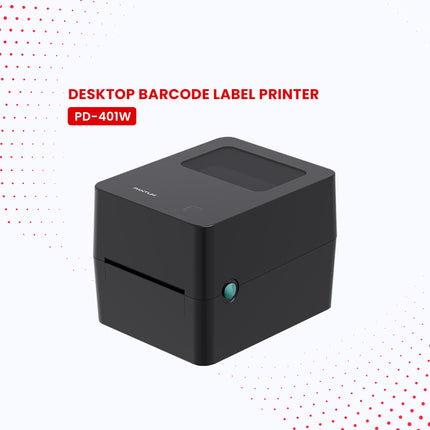

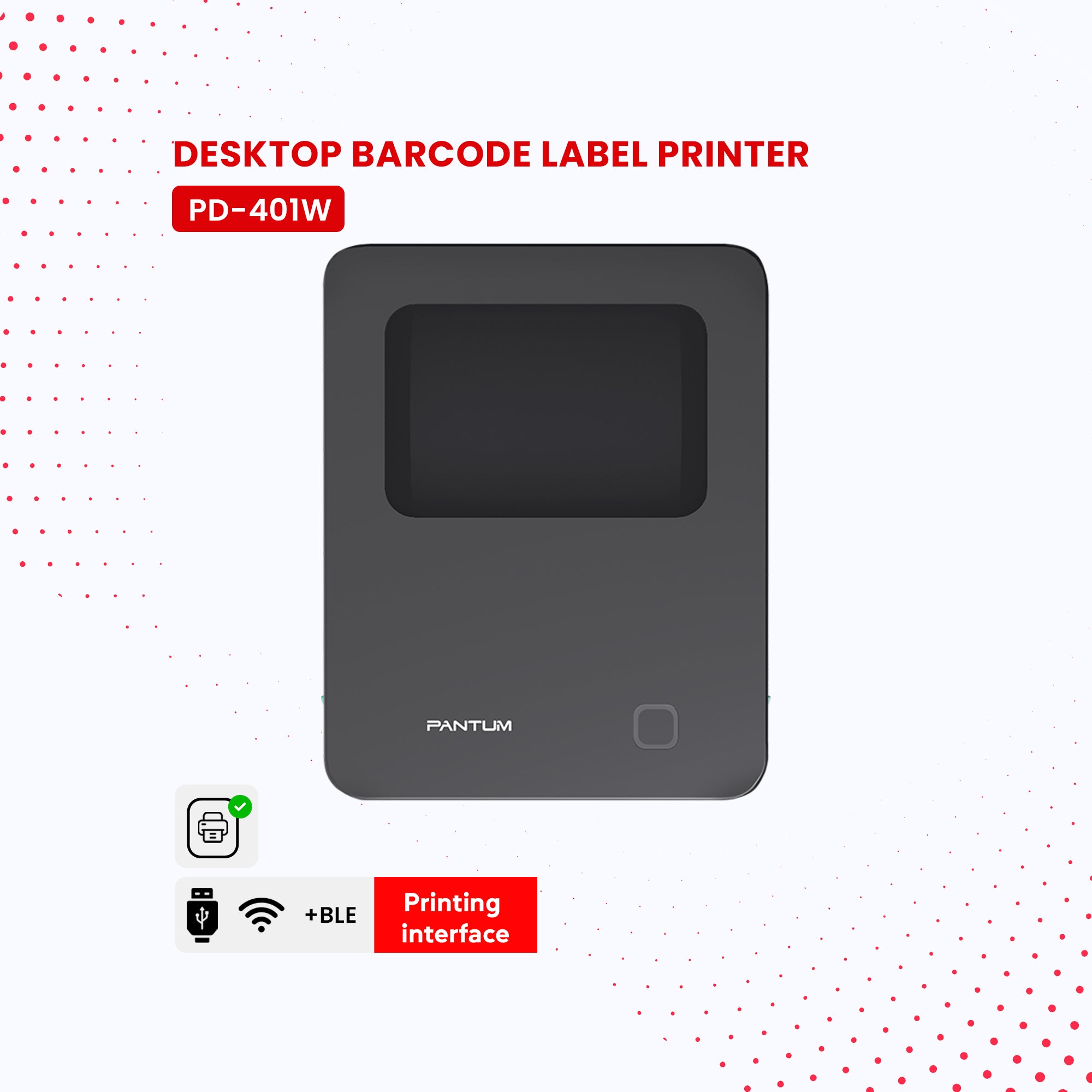

The PD-401W Desktop Barcode Label Printer delivers efficient, high-speed labeling for retail, logistics, and healthcare environments. Featuring direct thermal printing at up to 152mm/s, 203 DPI resolution, and seamless USB, Bluetooth, and WiFi connectivity, this versatile printer supports multiple emulation languages (TSPL, ZPL, CPCL, DPL, EPL) and a wide variety of media to easily integrate into any workflow.
General
Model
PD-401W
Printing Method
Direct Thermal
Resolution
203 DPI
Interface
USB + Bluetooth + WiFi
Emulation
TSPL, ZPL, CPCL, DPL, EPL
Sensors
Gap sensor, Open cover, Black label sensor
Print Specifications
Print Speed
152 mm/s (Max)
Printing Width
108 mm (Max)
Printing Length
1778 mm (Max)
Character Size
9x17 dot, 12x24 dot, 24x24 dot
Character Enlargement/Rotation
1-10x Magnification, 0°/90°/180°/270° Rotation, Mirror printing
Supported Character Sets
GB18030, BIG5, ASCII
Extended Character Sets
PC437, Katakana, PC850, PC860, PC863, PC865, West Europe, Greek, Hebrew, East Europe, Iran, WPC1252, PC866, PC852, PC858, IranII, Latvian, Arabic, PT151, PC747, WPC1257
1D Barcodes
Code128, EAN128, ITF, Code39, Code93, EAN13, EAN13+2, EAN13+5, EAN8, EAN8+2, EAN8+5, CodeBar, Postnet, UPC-A, UPC-A+2, UPC-A+5, UPC-E, UPC-E+2, UPC-E+5, MSI, MSIC, PLESSEY, CPOST, ITF14, EAN14, Code11
2D Barcodes
QR code, PDF417, Micro PDF417, DataMatrix, AZTEC
Media Specifications
Paper Type
Gap Label, Continuous Label, Black Mark Label, Folded Label
Roll Width (incl. backing)
30 mm to 114 mm
Roll Thickness (incl. backing)
0.12 mm to 0.26 mm
Paper Axis Size
25.4 mm
Max. Roll Diameter
120 mm (OD)
Feed Method
Front exit
Power & Environmental
Input Power
AC 100~240V, 50/60 Hz
Output Power
DC 24V, 2.5A
Operating Temperature
5 °C to 40 °C
Operating Humidity
25% to 85%
Storage Temperature
-10 °C to 60 °C
Storage Humidity
10% to 90%
