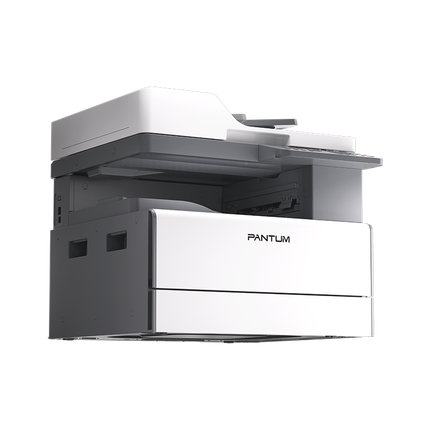

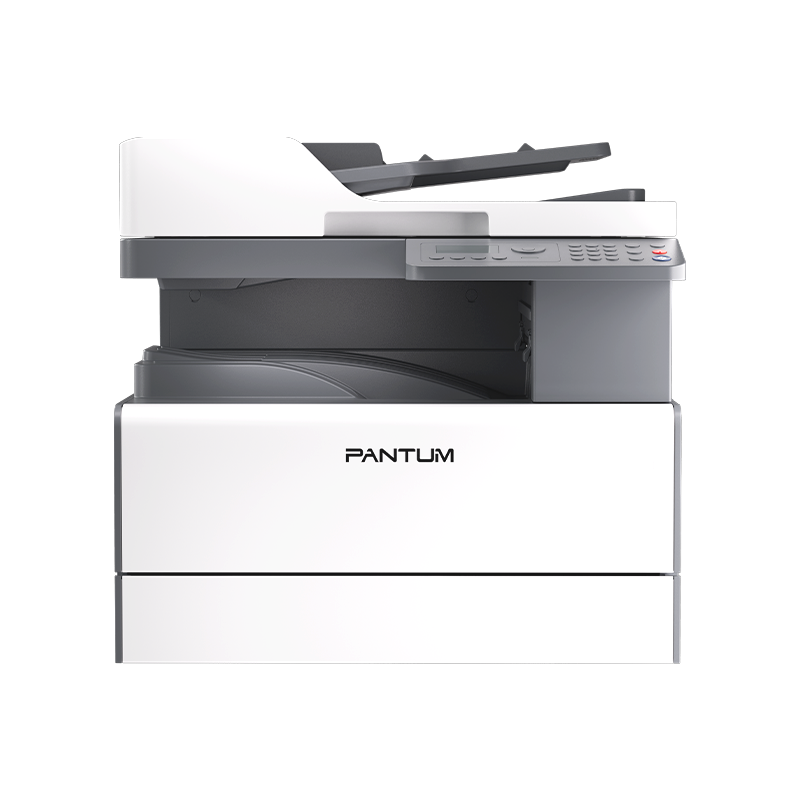

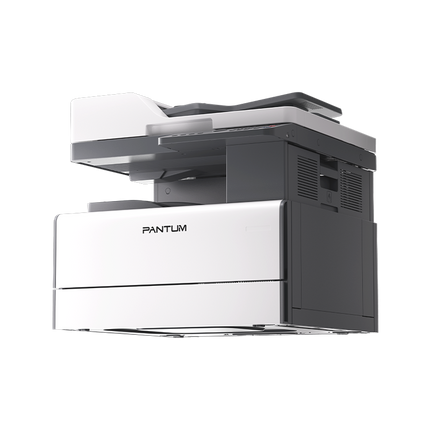

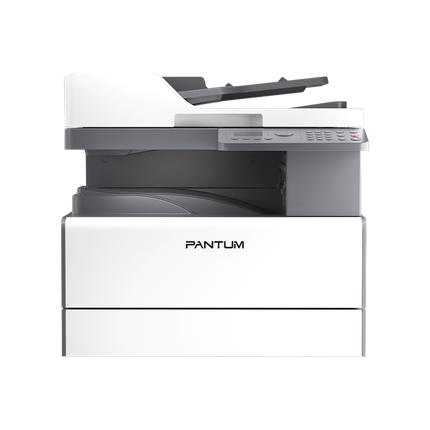

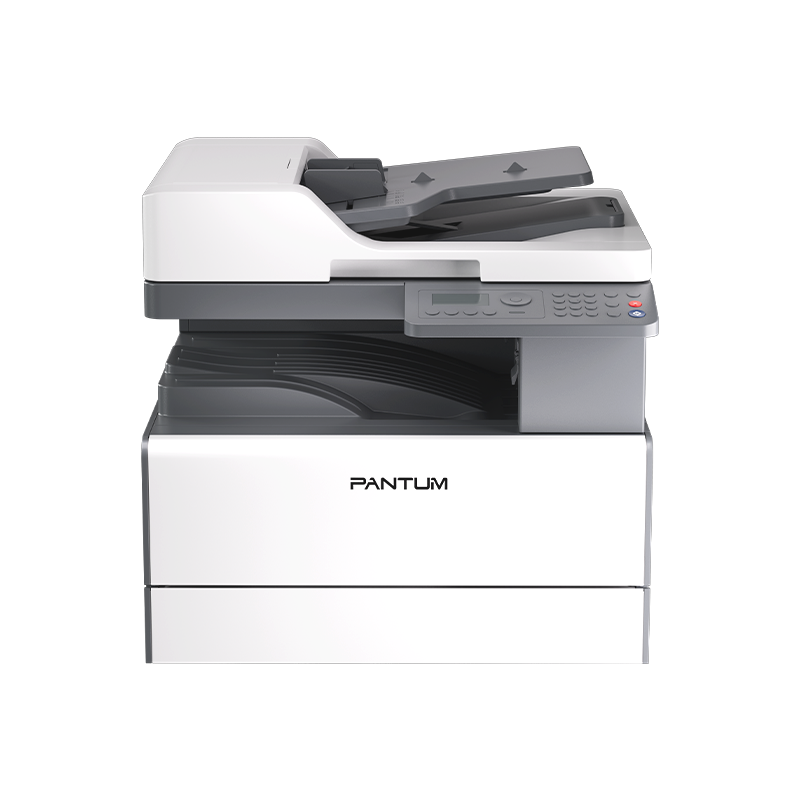

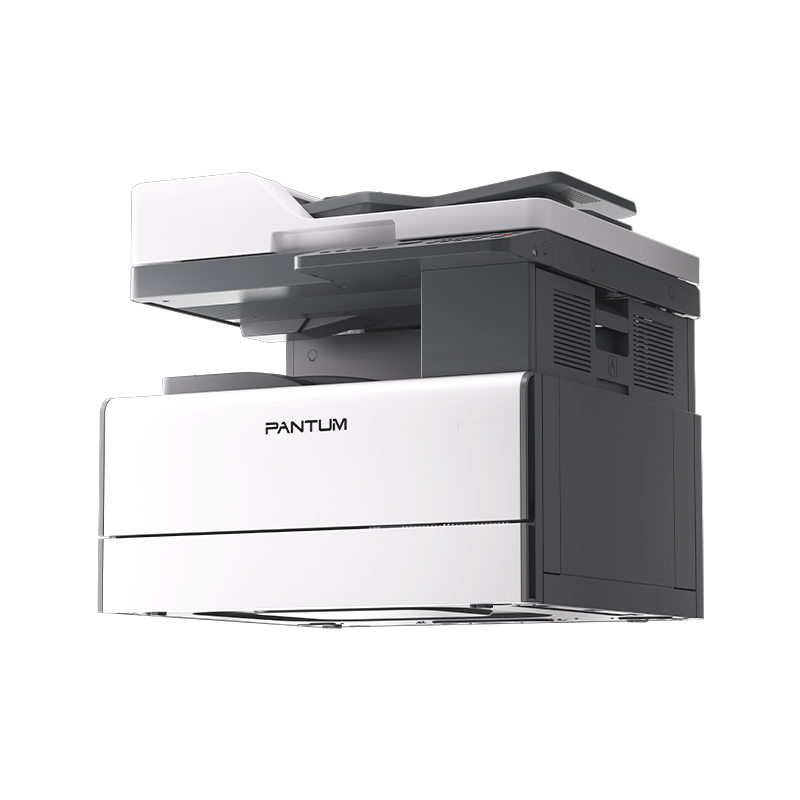

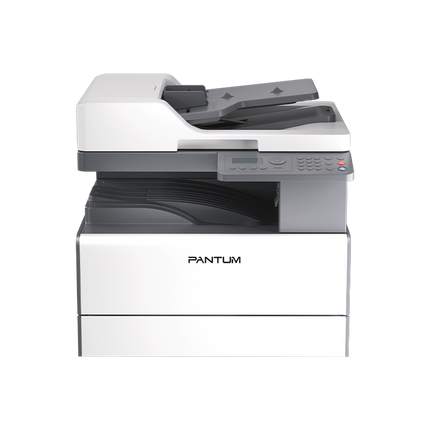

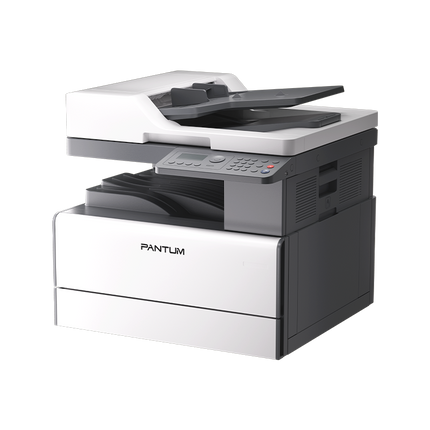

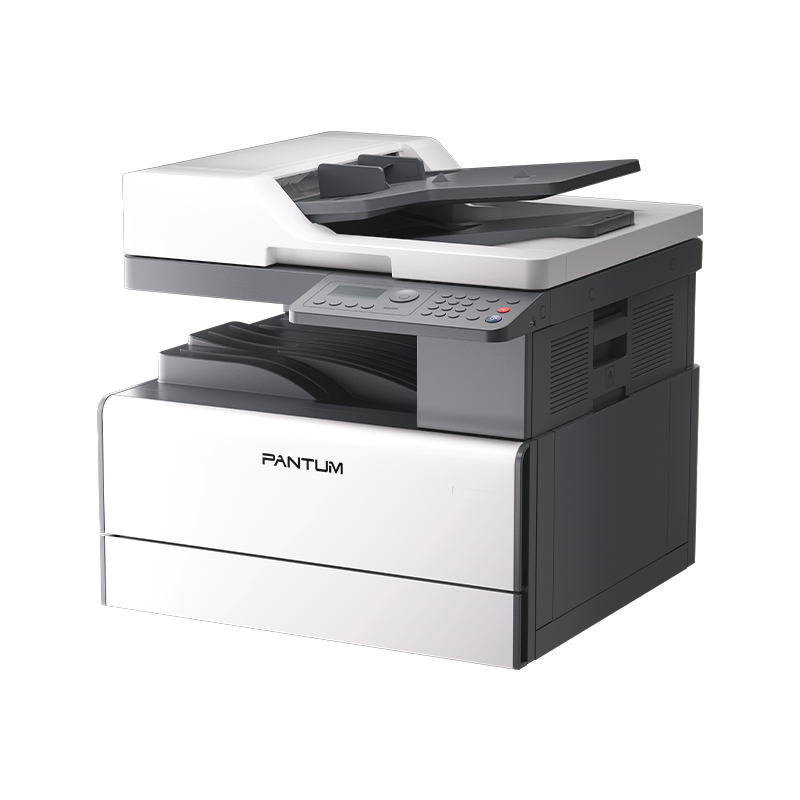

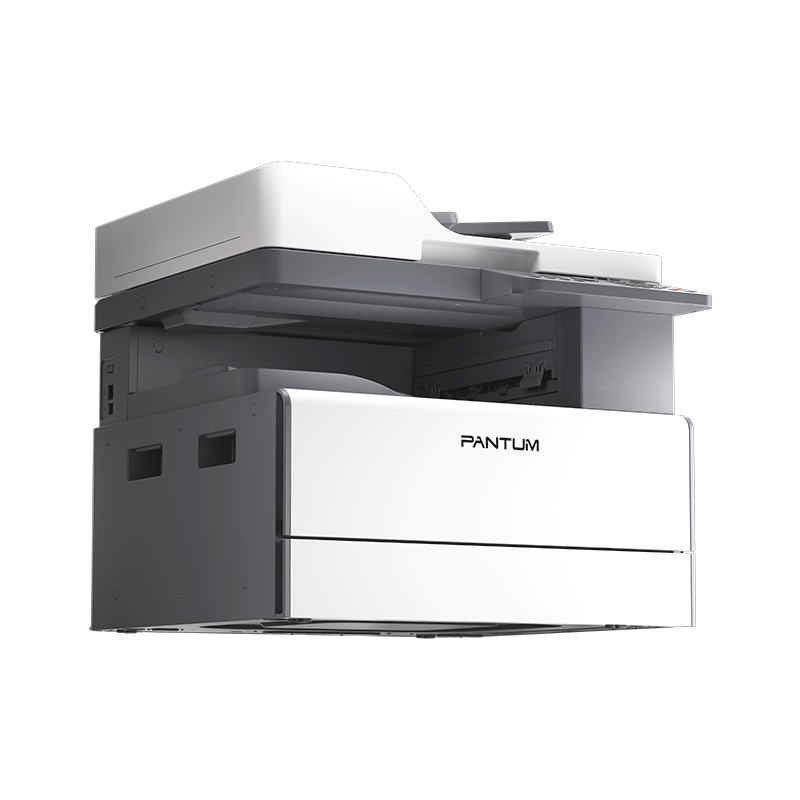

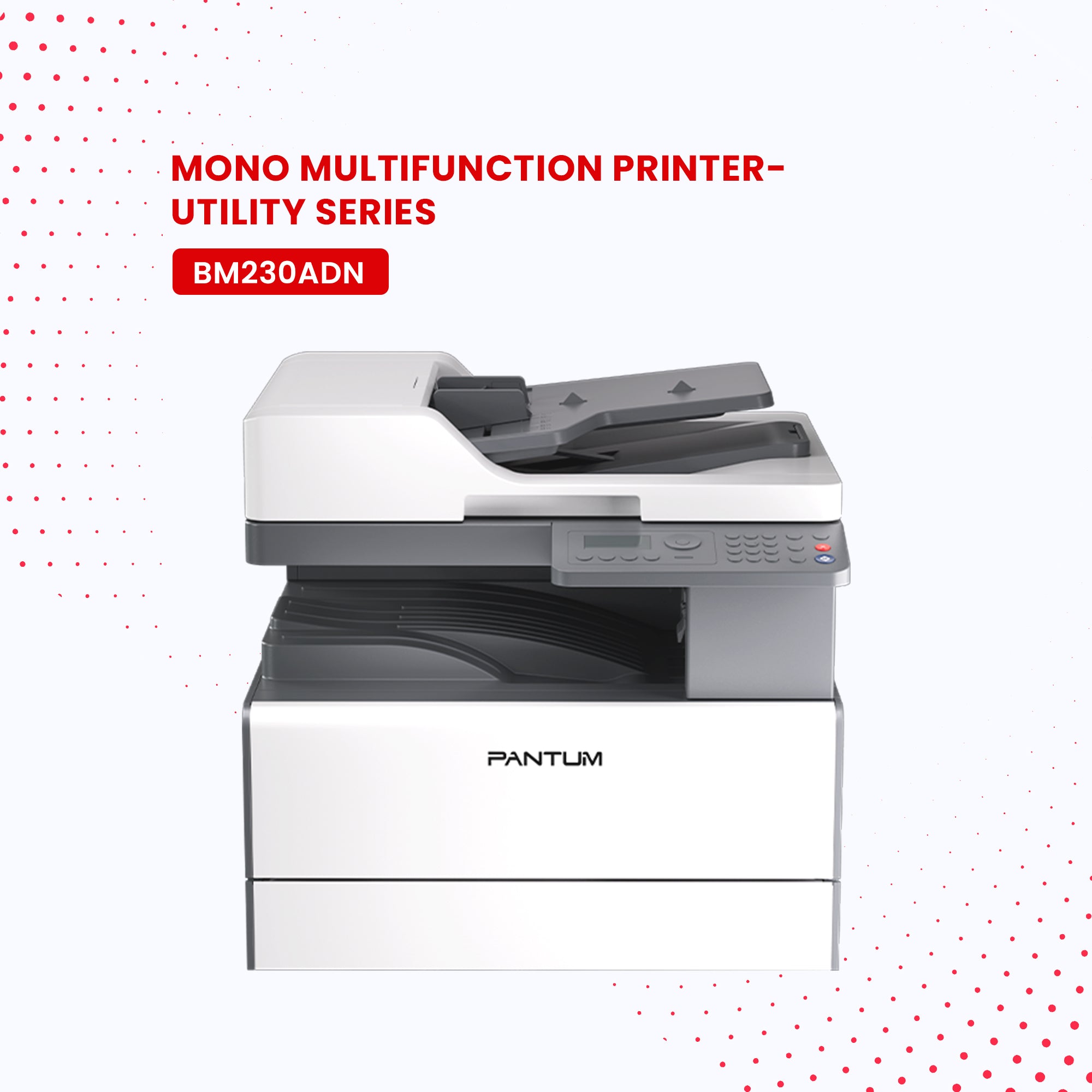

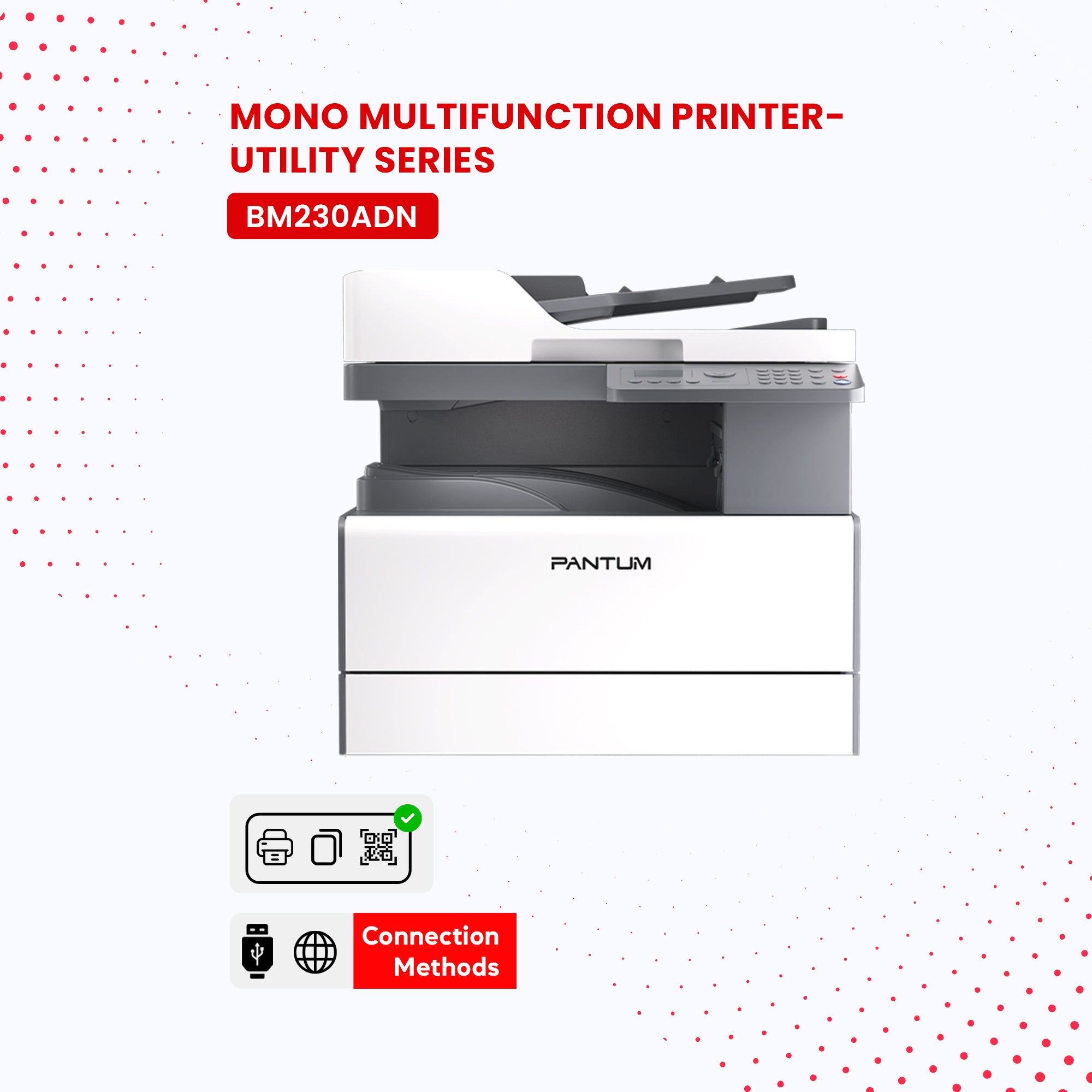

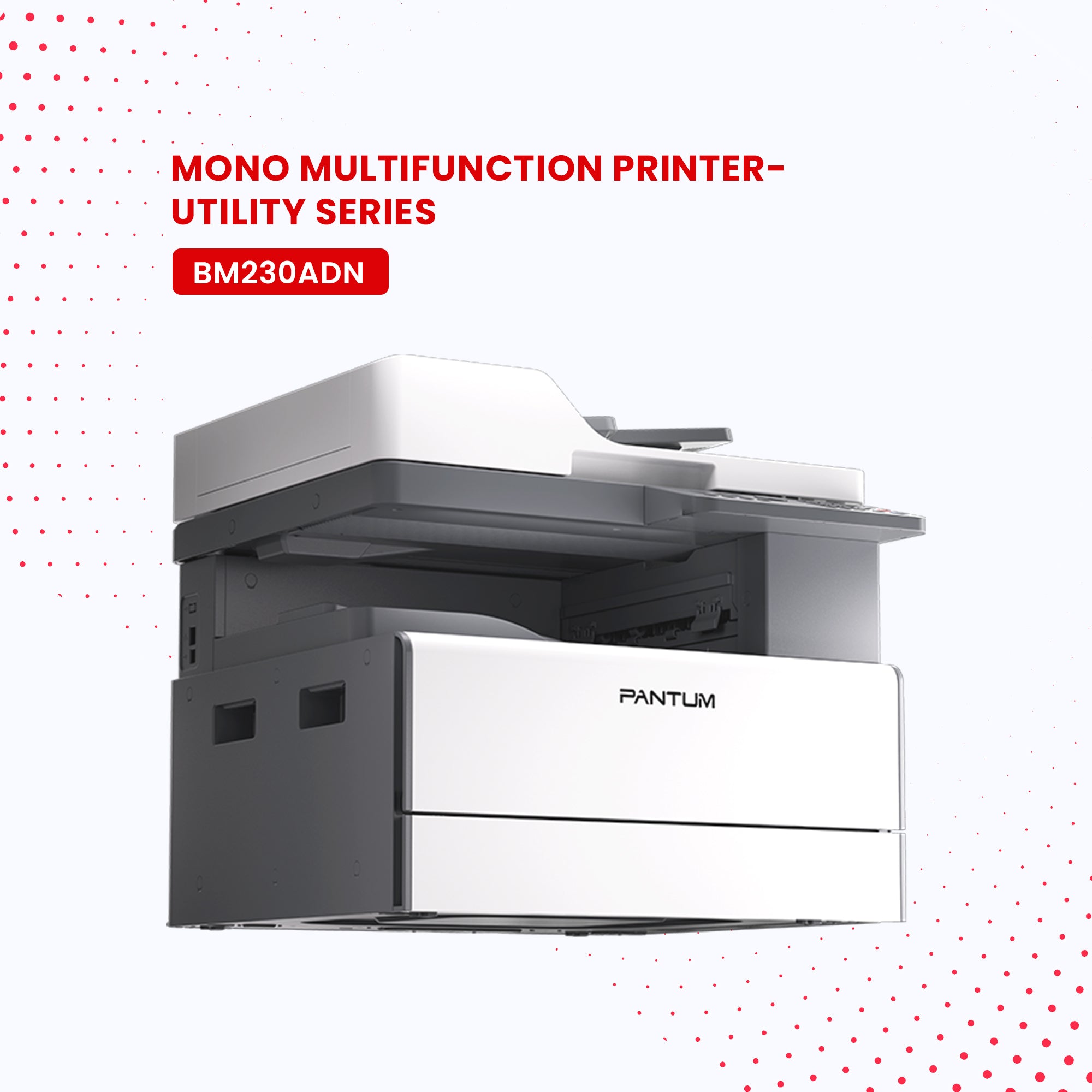

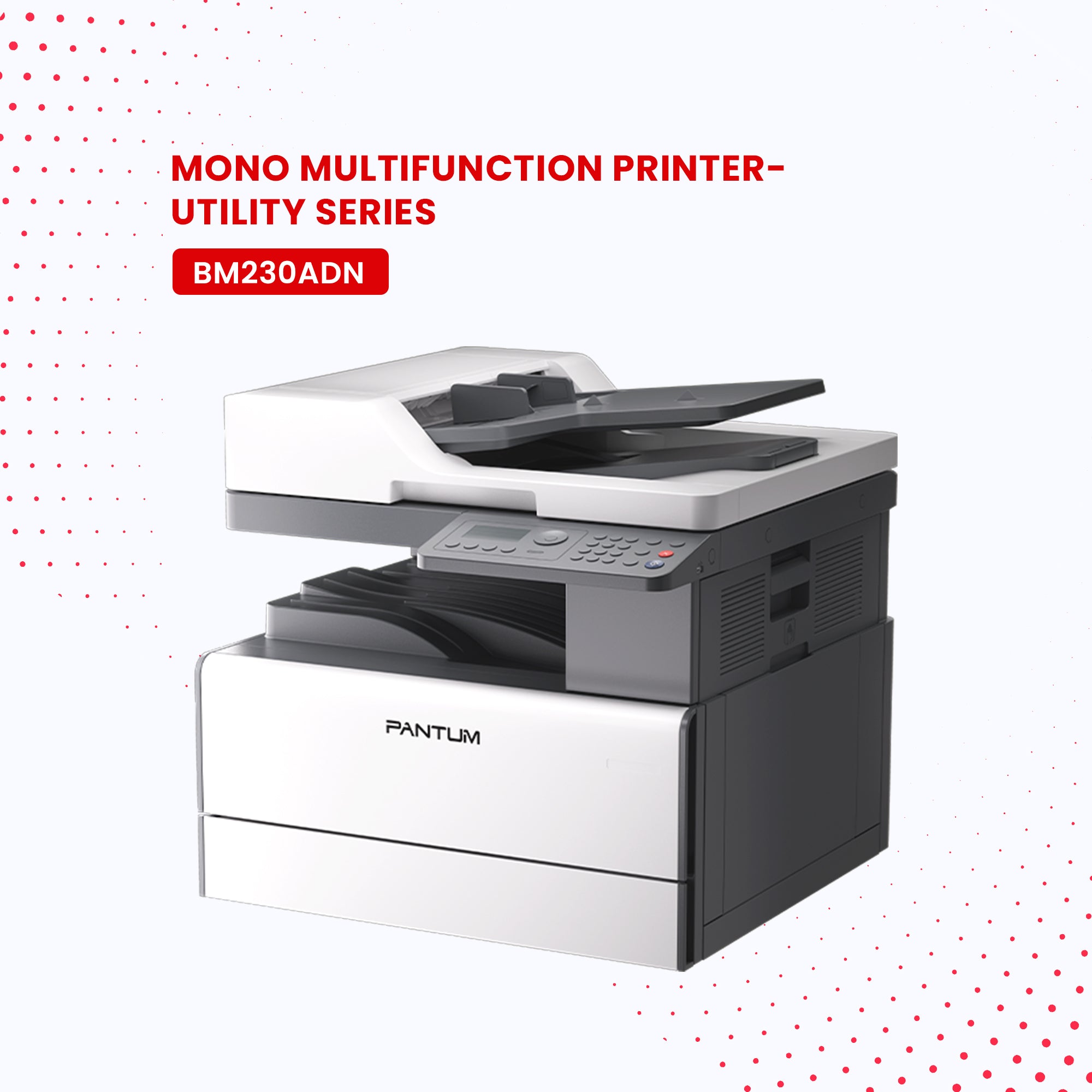

BM230ADN mono multifunction printer from the Utility Series is a cost-effective and practical A3 office solution, delivering print, copy, and scan functions with up to 22 ppm output, automatic duplex printing, standard RADF, confidential printing, and flexible paper handling for everyday business needs.
Product Specifications
Display
Control Panel 4-Line LCD
Product Type Mono Laser Multifunction Printer
Functions Print / Copy / Scan
Print Format Up to A3
Print Resolution 1200 × 1200 dpi
Print Speed 22 ppm (A4) / 12 ppm (A3)
Duplex Print Speed 16 ipm
First Print Out Time Less than 8.5 seconds
Automatic Duplex Printing Standard
Monthly Duty Cycle Up to 60,000 pages
Recommended Monthly Volume 4,000 pages
Interfaces
USB USB 2.0
Ethernet IEEE 802.3 10/100/1000 Base-TX
Wireless Optional Wi-Fi (2.4G / 5G)
Mobile Printing Pantum App, AirPrint, Mopria (Optional)
USB Disk Printing Not Supported (Scan to USB Supported)
Security Printing Confidential Printing
Mounting
Installation Type Desktop / Floor Placement
General
Paper Input Capacity 250 pages (Standard Tray)
Multipurpose Tray 100 pages
Maximum Paper Capacity Up to 1,450 pages
ADF Type RADF with Automatic Duplex Scanning
Noise Level Print < 52 dB(A), Copy < 55 dB(A)
Power Consumption Average < 550W, Sleep < 1W
Operating Environment 10–32°C, 20–80% Humidity
Consumables TL-3200 / TL-3200H Toner, DL-3200 Drum Unit
