The Hikvision DS-7608NXI-I2/VPro is an 8-channel I/VPro Series Network Video Recorder featuring advanced AI-powered surveillance capabilities, including facial recognition, perimeter protection, Motion Detection 2.0, AcuSearch, and AcuSeek technology.
Product Specifications
General Information
Model DS-7608NXI-I2/VPro
Product Type I/VPro Series NVR with AcuSeek
Intelligent Analytics
AI by NVR Facial recognition, perimeter protection, Motion Detection 2.0
AI by NVR and Camera Facial recognition, perimeter protection, video structuralization, AcuSearch, Motion Detection 2.0, ANPR, people counting, AcuSeek
AI Engine 2 AI enginesEngine 1: Face picture and AcuSearchEngine 2: AcuSeek
AcuSearch
Performance If the cameras support Hikvision AcuSense Technology and have enabled the AcuSearch function, the NVR supports AcuSearch in all channels, capable of modeling up to 300,000 targets per day.Supports 8-ch face picture comparison when cameras support face capture.Maximum resolution: 8 MP (4256 × 1888, 4096 × 2160)
AcuSeek
Performance If the cameras support Hikvision AcuSense Technology and have enabled the AcuSearch function, the NVR supports AcuSeek in all channels, capable of modeling up to 300,000 targets per day.Maximum resolution: 8 MP (4256 × 1888, 4096 × 2160)
Perimeter Protection
By NVR 4-ch, 2 MP (H.264/H.265) video analysis
By Camera All channels
Target Recognition
Face Picture Library Up to 16 face picture libraries, with up to 50,000 face pictures in total.Maximum picture size: 512 KB eachTotal capacity: Up to 1 GB
Face Picture Comparison 8-ch
Facial Detection and Analytics Face picture comparison, human face capture, face picture search
Facial Detection and Analytics Performance 4-ch human face capture (HD network camera, H.264/H.265)2 MP: 4-ch4 MP: 2-ch8 MP: 1-ch
Motion Detection 2.0
By NVR All channels for Hikvision cameras
By Camera All channels
Devices and Servers
Heat Map Cameras Heat map data recording and presentation
Video & Audio
IP Video Input 8-ch
Incoming Bandwidth 96 Mbps
Outgoing Bandwidth 256 Mbps
HDMI Output 4K (3840 × 2160) @ 30 Hz2K (2560 × 1440) @ 60 Hz1920 × 1080 @ 60 Hz1280 × 720 @ 60 Hz
Decoding
Decoding Format H.265 / H.265+ / H.264 / H.264+
Network
Network Interface 2 × RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces
Remote Connection 128
Network Protocol TCP/IP, DHCP, IPv4, IPv6, DNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF (Version 2.2), OTAP
Auxiliary Interface
SATA 2 SATA interfaces
General
Power Supply 12 VDC, 5 A, 60 W
Certification
Obtained Certifications CE, CB, REACH, WEEE, UKCA, RCM, IC, LOA, KC
CE Standards EN 55032: 2015EN 61000-3-2EN 61000-3-3EN 50130-4
Warranty
Warranty Period 2 Years
The Hikvision DS-7716NXI-K4(E) is a 16-channel 1.5U K Series AcuSense 4K Network Video Recorder featuring advanced AI-powered facial recognition, perimeter protection, Motion Detection 2.0, and AcuSearch.
Product Specifications
General Information
Model DS-7716NXI-K4(E)
Product Type 16-ch 1.5U K Series AcuSense 4K NVR
Intelligent Analytics
AI by NVR Facial recognition, perimeter protection, Motion Detection 2.0, AcuSearch
AI by Camera Facial recognition, perimeter protection, Motion Detection 2.0, ANPR
AcuSearch
By Camera All channels
Perimeter Protection
By NVR Video analysis (HD network camera, H.264/H.265) for human and vehicle recognition to reduce false alarms.Up to 4 MP: 2-ch5 MP to 8 MP: 1-ch
By Camera All channels
Target Recognition
Facial Detection and Analytics Face picture comparison, human face capture, face picture search
Facial Detection and Analytics Performance Up to 4 MP: 2-ch5 MP to 8 MP: 1-ch
Face Picture Comparison 8-ch
Face Picture Library Up to 16 face picture libraries, with up to 50,000 face pictures in total.Maximum picture size: 1 MB eachTotal capacity: Up to 1 GB
Motion Detection 2.0
By NVR All channels, up to 4 MP video analysis for human and vehicle recognition to reduce false alarms. When enhanced SVC mode is enabled, supports up to 8 MP.
By Camera All channels
Video & Audio
IP Video Input 16-ch
IP Speaker Input 4-ch
Incoming Bandwidth 160 Mbps
Outgoing Bandwidth 160 Mbps
HDMI Output 1-ch HDMI4K (3840 × 2160) @ 30 Hz2K (2560 × 1440) @ 60 Hz1920 × 1080 @ 60 Hz1600 × 1200 @ 60 Hz1280 × 1024 @ 60 Hz1280 × 720 @ 60 Hz1024 × 768 @ 60 Hz
VGA Output 1-ch VGA1920 × 1080 @ 60 Hz1600 × 1200 @ 60 Hz1280 × 1024 @ 60 Hz1280 × 720 @ 60 Hz
Video Output Mode HDMI / VGA independent output
Audio Output 1-ch, RCA (Linear, 1 kΩ)
Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 kΩ, using the audio input)
Decoding
Decoding Format H.265 / H.265+ / H.264 / H.264+
Network
Remote Connection 128
API ONVIF (Profile S/G), SDK, ISAPI
Compatible Browser IE 11, Chrome 91, Firefox 88, Safari 12, Edge 91 or above
Network Protocol TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, iSCSI, ISUP, UPnP™, HTTP, HTTPS
Network Interface 2 × RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces
Auxiliary Interface
SATA 4 SATA interfaces
HDD Capacity Up to 16 TB capacity for each HDD
Serial Interface 2 × RS-485 (half-duplex)1 × RS-232
Alarm In / Out 16/9; 16/4
eSATA 1 eSATA interface / N/A
USB Interface Front Panel: 2 × USB 2.0Rear Panel: 1 × USB 3.0
Ctrl 12V Supported / N/A
DC 12V Supported
General
Power Supply 100 to 240 VAC, 50 to 60 Hz
Certification
CE Standards EN 55032: 2015EN 61000-3-2EN 61000-3-3EN 55035: 2017
Obtained Certifications CE, CB, REACH, WEEE, UKCA, RCM, IC
Warranty
Warranty Period 2 Years
The Hikvision DS-7616NI-Q1(E) is a 16-channel 1U Q Series Network Video Recorder (NVR) designed for reliable IP video surveillance and efficient security management.
Product Specifications
General
Model Number DS-7616NI-Q1(E)
Product Type 16-ch 1U Q Series NVR
Power Supply 12 VDC or 18W
Motion Detection 2.0
Human/Vehicle Analysis 4-ch
Video and Audio
IP Video Input 16-ch
Incoming Bandwidth 160 Mbps
Outgoing Bandwidth 80 Mbps
Recording
Stream Type Video, Video & Audio
Decoding
Decoding Format H.265+/H.265/H.264+/H.264
Network
Remote Connection 32
Auxiliary Interface
SATA 1 SATA interface
Certification
Certification CE
Certification Standards 55032/55035/61000-3-2/61000-3-3/50130-4
Warranty
Warranty Period 2 Years
The Hikvision DS-7608NI-Q2(E) is an 8-channel 1U 4K Q Series Network Video Recorder (NVR) designed for reliable IP video surveillance and efficient security management.
Product Specifications
General
Model Number DS-7608NI-Q2(E)
Product Type 1U 4K Q Series NVR
Power Supply 12 VDC or ≤ 40 W
Motion Detection 2.0
Human/Vehicle Analysis 4-ch
Video and Audio
IP Video Input 8-ch
Incoming Bandwidth 80 Mbps
Outgoing Bandwidth 80 Mbps
HDMI Output 1-ch, 4K (4096 × 2160)/30Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
Recording
Stream Type Video, Video & Audio
Audio Compression G.711ulaw/G.711alaw/G.722/G.726
Decoding
Decoding Format H.265+/H.265/H.264+/H.264
Recording Resolution 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Network
Remote Connection 32
Network Protocol TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
Auxiliary Interface
SATA 2 SATA interfaces
Certification
Certification CE
Certification Standards 55032/55035/61000-3-2/61000-3-3/50130-4
Warranty
Warranty Period 2 Years
The Hikvision DS-7604NXI-K1(B) is a 4-channel 1U K Series AcuSense 4K Network Video Recorder (NVR) designed for intelligent IP surveillance and advanced security management.
Product Specifications
General
Model Number DS-7604NXI-K1(B)
Product Type 4-ch 1U K Series AcuSense 4K NVR
Power Supply 12 VDC, 1.5 A
Intelligent Analytics
AI by Device Perimeter protection, motion detection 2.0; Facial recognition, perimeter protection, motion detection 2.0
AI by Camera Facial recognition, perimeter protection, throwing objects from building, motion detection 2.0, ANPR, VCA; Perimeter protection, throwing objects from building, motion detection 2.0, ANPR, VCA
Perimeter Protection
By Device 1-ch, 4 MP (HD network camera, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarms
By Camera All channels
Target Recognition
Face Attributes N/A
Facial Detection and Analytics Face picture comparison, human face capture, face picture search; N/A
Motion Detection 2.0
By Device All channels, 4 MP (when enhanced SVC mode is enabled, up to 8 MP) video analysis for human and vehicle recognition to reduce false alarms
By Camera All channels
Video and Audio
IP Video Input 4-ch
Incoming Bandwidth 40 Mbps
Outgoing Bandwidth 80 Mbps
HDMI Output 1-ch, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
Decoding
Decoding Format H.265/H.265+/H.264+/H.264
Network
Remote Connection 128
Network Protocol TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
Network Interface 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
Auxiliary Interface
SATA 1 SATA interface
Certification
Certification CE
Certification Standards EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
Obtained Certification CE, FCC, IC, CB, KC, UL, RoHS, REACH, WEEE, RCM, UKCA, LOA, BIS; CE, CB, KC, REACH, WEEE, RCM, UKCA, LOA
Warranty
Warranty Period 2 Years
The Hikvision DS-7616NI-Q2(E) is a 16-channel 1U Q Series Network Video Recorder (NVR) designed for reliable IP video surveillance and efficient security management.
Product Specifications
General
Model Number DS-7616NI-Q2(E)
Product Type 16-ch 1U Q Series NVR
Power Supply 12 VDC or ≤ 40 W
Motion Detection 2.0
Human/Vehicle Analysis 4-ch
Video and Audio
IP Video Input 16-ch
Incoming Bandwidth 160 Mbps
Outgoing Bandwidth 80 Mbps
HDMI Output 1-ch, 4K (4096 × 2160)/30Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
Recording
Stream Type Video, Video & Audio
Audio Compression G.711ulaw/G.711alaw/G.722/G.726
Decoding
Decoding Format H.265+/H.265/H.264+/H.264
Recording Resolution 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Network
Remote Connection 32
Network Protocol TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
Auxiliary Interface
SATA 2 SATA interfaces
Certification
Certification CE
Certification Standards 55032/55035/61000-3-2/61000-3-3/50130-4
Warranty
Warranty Period 2 Years
The Hikvision DS-7608NI-Q1(E) is an 8-channel 1U Q Series Network Video Recorder (NVR) designed for reliable IP video surveillance and security management.
Product Specifications
General
Model Number DS-7608NI-Q1(E)
Product Type 8-ch 1U Q Series NVR
Power Supply 12 VDC or ≤ 18 W
Motion Detection 2.0
Human/Vehicle Analysis 4-ch
Video and Audio
IP Video Input 8-ch
Incoming Bandwidth 80 Mbps
Outgoing Bandwidth 80 Mbps
HDMI Output 1-ch, 4K (4096 × 2160)/30Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
Recording
Stream Type Video, Video & Audio
Decoding
Decoding Format H.265+/H.265/H.264+/H.264
Network
Remote Connection 32
Network Protocol TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
Auxiliary Interface
SATA 1 SATA interface
Certification
Certification CE
Certification Standards 55032/55035/61000-3-2/61000-3-3/50130-4
Warranty
Warranty Period 2 Years
The DS-U04P 4MP Web Camera delivers ultra-clear 1440p high-definition video for professional streaming, conferencing, and monitoring. Featuring a 3.6 mm fixed focal lens with an 80° horizontal field of view and a highly flexible 360° pan adjustment, it ensures comprehensive coverage in any setting. With 24/7 color imaging, exceptional low-light performance, and dual MJPG/YUV frame rate options, this webcam provides reliable, high-quality video exactly when you need it.
Product Specifications
Camera
Image Sensor
4 MP CMOS
Signal System
PAL / NTSC
Max. Resolution
2560 (H) × 1440 (V)
Min. Illumination
0.1 Lux @ (F1.2, AGC ON)
Day & Night
24/7 Color Imaging
Shutter Time
PAL: 1/25 s to 1/50,000 s / NTSC: 1/30 s to 1/50,000 s
Angle Adjustment
Pan: 360° / Tilt: -15° to 15° / Rotation: 0°
Lens
Lens Type
3.6 mm fixed focal lens
Field of View (FOV)
Horizontal: 80°, Vertical: 50°, Diagonal: 88°
Lens Mount
M8
Object Distance Range
10 cm to ∞
Image & Audio
Frame Rate (MJPG)
2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720, 640 × 480, 640 × 360 @30/25 fps
Frame Rate (YUV)
1920 × 1080, 1280 × 960 @5 fps; 1280 × 720 @10 fps; 640 × 480, 640 × 360 @30/25 fps
Audio Sampling Rate
16 kHz

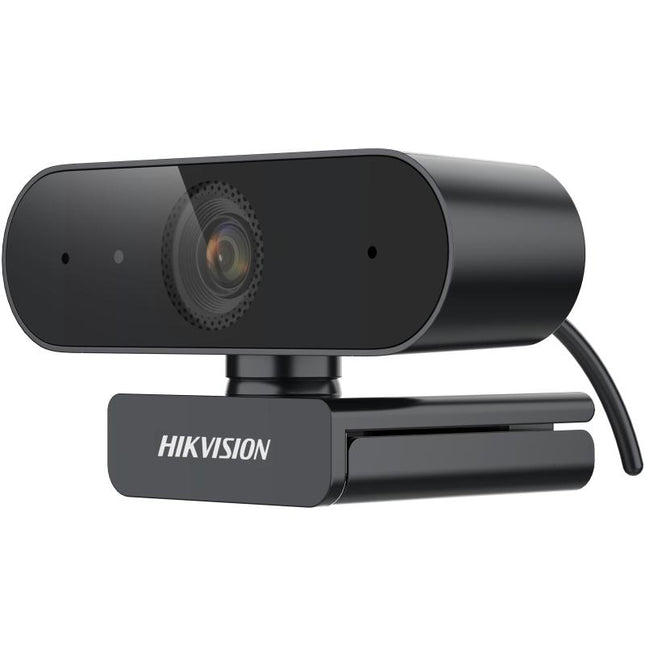

The DS-U04(O-STD) 4MP Web Camera delivers ultra-clear 1440p high-definition video for professional streaming, conferencing, and monitoring. Featuring a 3.6 mm fixed focal lens with an 80° horizontal field of view and a highly flexible 360° pan adjustment, it ensures comprehensive coverage in any setting. With 24/7 color imaging, exceptional low-light performance, and dual MJPG/YUV frame rate options, this webcam provides reliable, high-quality video exactly when you need it.
Product Specifications
Camera
Image Sensor
4 MP CMOS
Signal System
PAL / NTSC
Max. Resolution
2560 (H) × 1440 (V)
Min. Illumination
0.1 Lux @ (F1.2, AGC ON)
Day & Night
24/7 Color Imaging
Shutter Time
PAL: 1/25 s to 1/50,000 s / NTSC: 1/30 s to 1/50,000 s
Angle Adjustment
Pan: 360° / Tilt: -15° to 15° / Rotation: 0°
Lens
Lens Type
3.6 mm fixed focal lens
Field of View (FOV)
Horizontal: 80°, Vertical: 50°, Diagonal: 88°
Lens Mount
M8
Object Distance Range
0.5 m to ∞
Image & Audio
Frame Rate (MJPG)
2560 × 1440 @25 fps; 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720, 640 × 480, 640 × 360 @30/25 fps
Frame Rate (YUV)
640 × 480, 640 × 360 @25 fps
Audio Sampling Rate
16 kHz
The DS-U02P(O-STD) 2MP Web Camera delivers crisp 1080p high-definition video for professional streaming, conferencing, and monitoring. Featuring a 3.6 mm fixed focal lens with an 80° horizontal field of view and a highly flexible 360° pan adjustment, it ensures comprehensive coverage in any setting. With 24/7 color imaging, exceptional low-light performance, and dual MJPG/YUV frame rate options, this webcam provides reliable, high-quality video exactly when you need it.
Product Specifications
Camera
Image Sensor
2 MP CMOS
Signal System
PAL / NTSC
Max. Resolution
1920 (H) × 1080 (V)
Min. Illumination
0.1 Lux @ (F1.2, AGC ON)
Day & Night
24/7 Color Imaging
Shutter Time
PAL: 1/25 s to 1/50,000 s / NTSC: 1/30 s to 1/50,000 s
Angle Adjustment
Pan: 360° / Tilt: -15° to 15° / Rotation: 0°
Lens
Lens Type
3.6 mm fixed focal lens
Field of View (FOV)
Horizontal: 80°, Vertical: 50°, Diagonal: 88°
Lens Mount
M8
Object Distance Range
10 cm to ∞
Image & Audio
Frame Rate (MJPG)
1920 × 1080, 1280 × 960, 1280 × 720, 640 × 480, 640 × 360 @30/25 fps
Frame Rate (YUV)
1920 × 1080, 1280 × 960, 1280 × 720 @5 fps; 640 × 480, 640 × 360 @30 fps
Audio Sampling Rate
16 kHz
The DS-U02 2 MP Web Camera delivers crisp 1080p high-definition video for professional streaming, conferencing, and monitoring. Featuring a 3.6 mm fixed focal lens with a wide 86° horizontal field of view and a highly flexible 360° pan adjustment, it ensures comprehensive coverage in any setting. With 24/7 color imaging, exceptional low-light performance, and clear audio sampling, this webcam provides reliable, high-quality video around the clock.
Product Specifications
Camera
Image Sensor
2 MP CMOS
Signal System
PAL / NTSC
Max. Resolution
1920 (H) × 1080 (V)
Min. Illumination
0.1 Lux @ (F1.2, AGC ON)
Day & Night
24/7 Color Imaging
Shutter Time
PAL: 1/25 s to 1/50,000 s / NTSC: 1/30 s to 1/50,000 s
Angle Adjustment
Pan: 360° / Tilt: -15° to 15° / Rotation: 0°
Lens
Lens Type
3.6 mm fixed focal lens
Field of View (FOV)
Horizontal: 86°, Vertical: 55°, Diagonal: 95°
Lens Mount
M8
Object Distance Range
0.5 m to ∞
Image & Audio
Frame Rate (MJPG)
1920 × 1080, 1280 × 960, 1280 × 720, 640 × 480, 640 × 360 @30/25 fps
Frame Rate (YUV)
1920 × 1080, 1280 × 960, 1280 × 720 @5 fps; 640 × 480, 640 × 360 @30 fps
White Balance
Auto
Audio Sampling Rate
16 kHz
The DS-PT1-WE Wireless Tag Reader offers reliable and convenient wireless identification for security and automation systems. Featuring an impressive 1200m open-area RF transmission range and up to 2 years of standby battery life on just three AA batteries, this wall-mountable device ensures long-lasting, dependable performance. Its intuitive multi-color LED indicators provide clear, at-a-glance status updates for area, arm/disarm, fault, and alarm conditions, making it an essential component for any modern setup.
Product Specifications
General
Model
DS-PT1-WE
Product Type
Wireless Tag Reader
Color
White
Installation Method
Wall-mounting
Dimensions (W x H x D)
75 x 124 x 21 mm
Weight
176 g (with battery)
Hardware Features
Power Switch
Power on/off
Display / Indicators
5 Indicators: Area (Blue), Fault (Orange), Arm (Blue), Disarm (Green), Alarm (Red), Signal (Red/Green)
Wireless Transmission
RF Frequency
868 MHz
RF Modulation
2GFSK
RF Distance
1200 m (Open area)
Power & Environmental
Battery Type
Three AA batteries
Battery Life Span
Up to 2 years (Standby time)
Voltage
1.5 VDC
Power Consumption
Quiescent current: 110 uA / Max current: 292mA
Operating Temperature
-10°C to 55°C (-4°F to +122°F)
Operating Humidity
10% to 90% (No condensing)

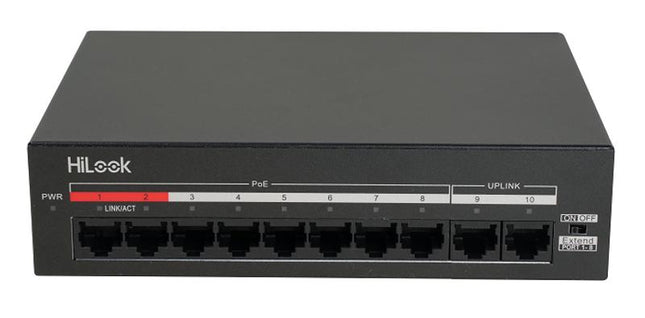

High-performance PoE network switch with durable metal housing, enhanced power capacity, flexible mounting options, and surge protection for reliable networking.
Product Specifications
General
Shell
Metal Material
Net Weight
0.56 kg (1.23 lb)
Gross Weight
0.64 kg (1.41 lb)
Dimensions (W × H × D)
175.0 × 44.0 × 124.0 mm (6.89 × 1.73 × 4.88 in)
Installation Mode
Desk-Mounted, Wall-Mounted
Environmental
Operating Temperature
0 °C to 40 °C (32 °F to 104 °F)
Storage Temperature
–40 °C to 85 °C (–40 °F to 185 °F)
Operating Humidity
5% to 95% (no condensation)
Relative Humidity
5% to 95% (no condensation)
Power
Power Supply
220 VAC, 50 Hz, 1.5 A
Max Power Consumption
60 W
Power Consumption (Idle)
3.4 W
Surge Protection
2 KV
Network Parameters
Ports
8 × 10/100 Mbps PoE ports, 2 × 10/100 Mbps RJ45 ports
MAC Address Table
2 K
Switching Capacity
2 Gbps
Packet Forwarding Rate
1.49 Mpps
Internal Cache
0.77 Mbits
