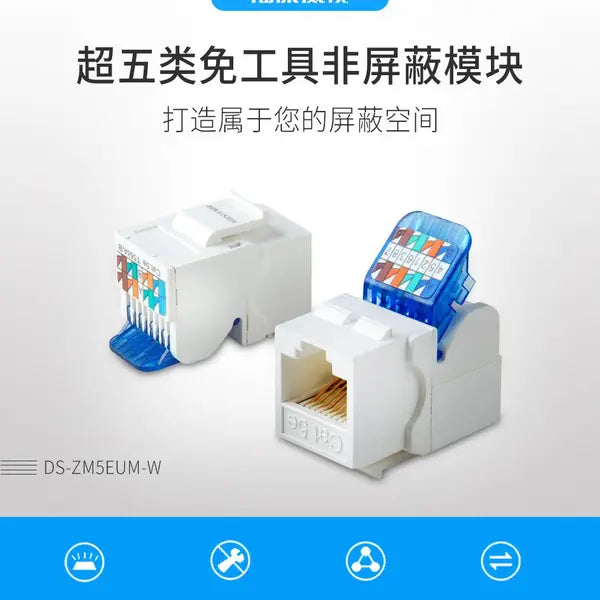

The DS-ZM5EUM-W Cat5E Tool-Free Unshielded Module offers a fast, hassle-free solution for your network termination needs. Designed for tool-free installation, this keystone module eliminates the need for a punch-down tool, saving significant time and effort during setup. Supporting up to 100 MHz transmission frequency and compatible with both T568A and T568B wiring standards, it is the perfect choice for structured cabling, LAN networking, and CCTV installations in standard indoor environments. Product Specifications General Model DS-ZM5EUM-W Product Type Cat5E Tool-Free Unshielded Module Category CAT5e Color Usually White (may vary by region/seller) Technical Specifications Shielding Type U/UTP (Unshielded Twisted Pair) Connector Type RJ45 Transmission Frequency Up to 100 MHz Wiring Standard T568A / T568B compatible Construction Unshielded design for standard indoor networking environments Installation & Application Module Type Tool-free Keystone / Network Module Installation Tool-free termination (no punch-down tool required) Mounting Keystone compatible modular installation Compatibility Suitable for Cat5e Ethernet cables Application Structured cabling, LAN networking, wall plates, patch panels Usage Office networks, CCTV systems, data communication, networking installations

Read more less

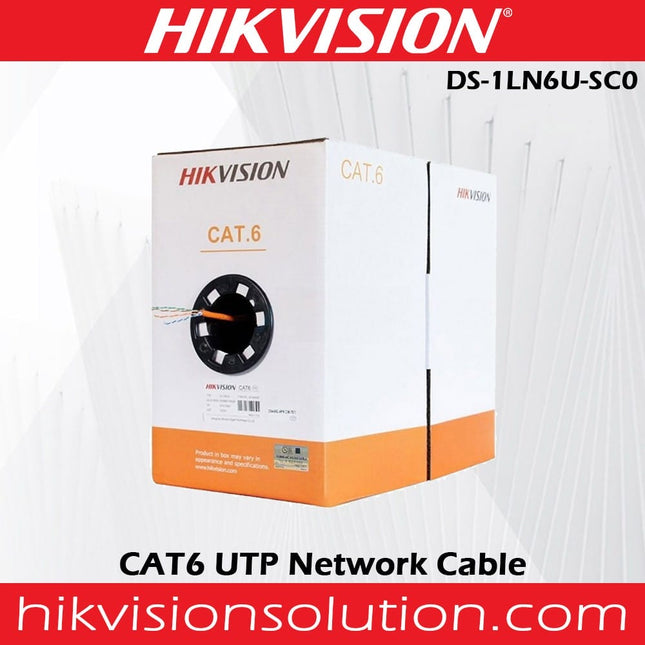

The CAT6 U/UTP Network Cable offers a cost-effective solution for indoor Ethernet installations. Utilizing Copper Clad Aluminum (CCA) conductors and unshielded twisted pair technology, this cable supports reliable Gigabit Ethernet speeds over distances up to 100 meters, making it perfectly suited for connecting routers, switches, PCs, and IP cameras. Product Specifications General Cable Category CAT6 Cable Type U/UTP Application Network / Ethernet Cable Usage Scenario Indoor Conductor Specifications Conductor Material CCA (Copper Clad Aluminum) Conductor Diameter 0.55 mm Pair Type Twisted Pair Shielding Unshielded Performance Transmission Type Data / LAN Supported Network Ethernet / Gigabit Ethernet Max Distance Up to 100 m Compatibility Compatible Devices Routers, Switches, PCs, IP Cameras, NVRs

Read more less

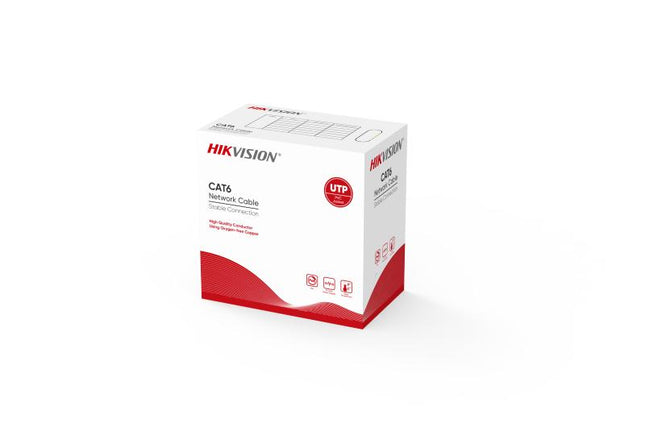

Ensure reliable, high-speed network connectivity with the CAT6 U/UTP Network Cable. Featuring solid bare copper conductors for superior signal integrity and minimal interference, this durable PVC-jacketed cable is specifically designed for indoor LAN installations, providing a robust foundation for your home or office network infrastructure. Product Specifications General Model DS-1LN6UZC0 Category Cat 6 Structure U/UTP (Unshielded Twisted Pair) Usage Scenario Indoor Fire Resistance CPR Fca Conductor Specifications Conductor Material Solid-Bare Copper Conductor Diameter 0.50 ± 0.01 mm (24 AWG) Insulation Diameter 0.88 ± 0.05 mm Cable Characteristics Sheath Material PVC Sheath Color Grey Box Length 305 ± 1.5 m Rip Cord Yes Separator Yes

Read more less

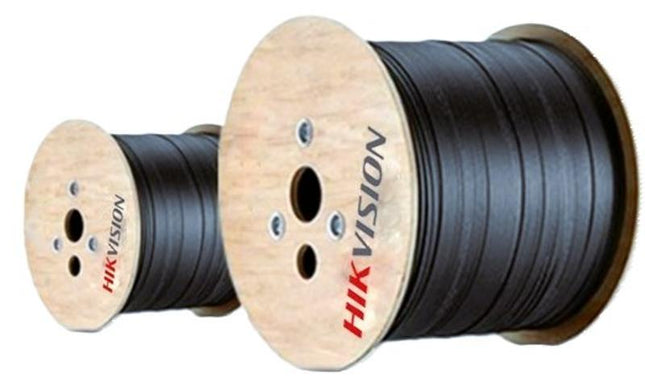

GJYXFCH fiber optic cable with G657A1 single-mode fiber, FRP strength member, steel messenger wire, and LSZH jacket, designed for reliable indoor and outdoor FTTH applications. Product Specifications General Specifications Cable Type GJYXFCH Core Number 2 / 1 Fiber Type 9/125 μm G657A1 Strength Members Strength Member Material FRP Strength Member Diameter 0.5 mm Messenger Wire Material Steel Wire Messenger Wire Diameter 1.0 mm Jacket Sheath Material LSZH Sheath Color Black Mechanical Specifications Min. Bending Radius 120 mm Min. Bending Radius (Messenger Removed) 15 mm (Static), 30 mm (Dynamic) Tensile Performance (Short Term) 600 N Tensile Performance (Long Term) 300 N Crush Resistance (Short Term) 2200 N / 100 mm Crush Resistance (Long Term) 1000 N / 100 mm

Read more less

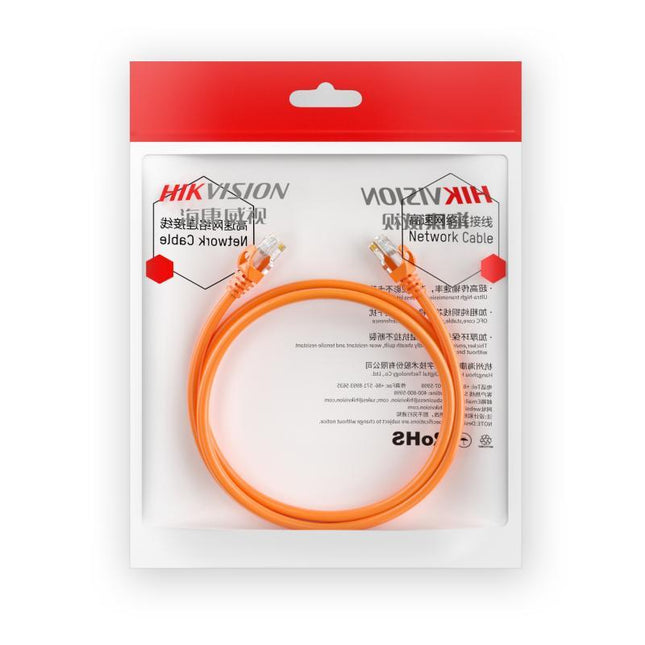

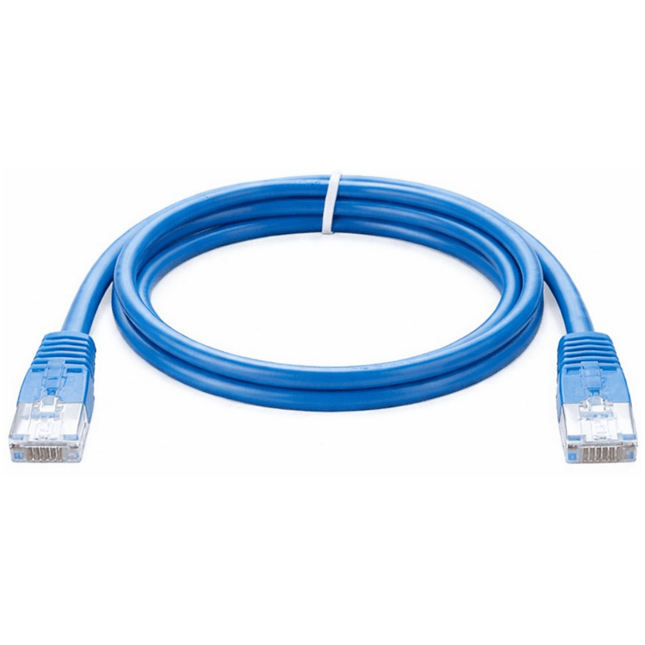

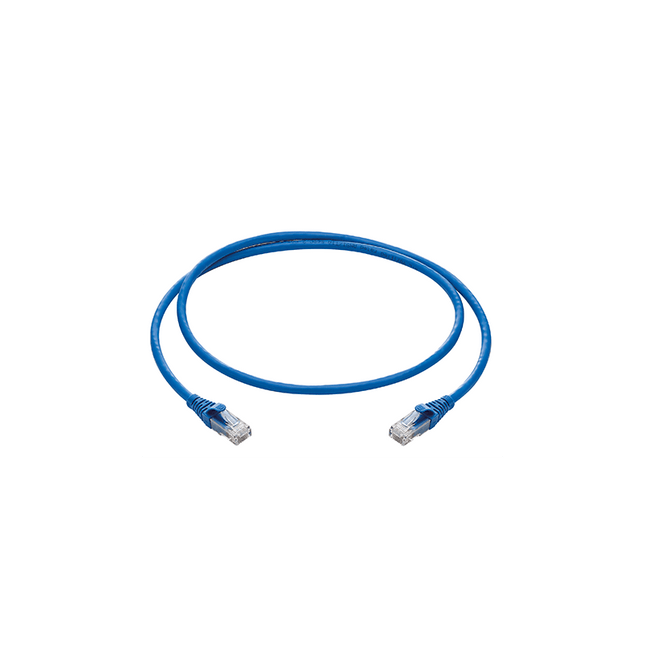

Cat 6 patch cord with high-purity bare copper conductors, HDPE insulation, durable PVC sheath, and gold-plated plugs, designed for stable high-speed network connections. Product Specifications General Category Cat 6 Available Lengths 0.5 m, 1 m, 2 m, 3 m, 5 m, 10 m Operating Voltage 57 V Conductor Conductor Material Bare Copper (99.95%) Conductor Diameter 7 × 0.2 mm (24 AWG) Insulation Insulation Material HDPE Sheath Sheath Material PVC Sheath Thickness 0.50 ± 0.05 mm Sheath Diameter 5.8 ± 0.20 mm Sheath Color Orange / Gray Plug Plug Material PC UL94V-0 Gold Plating 30 μinch Electrical Characteristics Impedance 100 ± 15 Ω DC Resistance ≤ 9.4 Ω / 100 m

Read more less

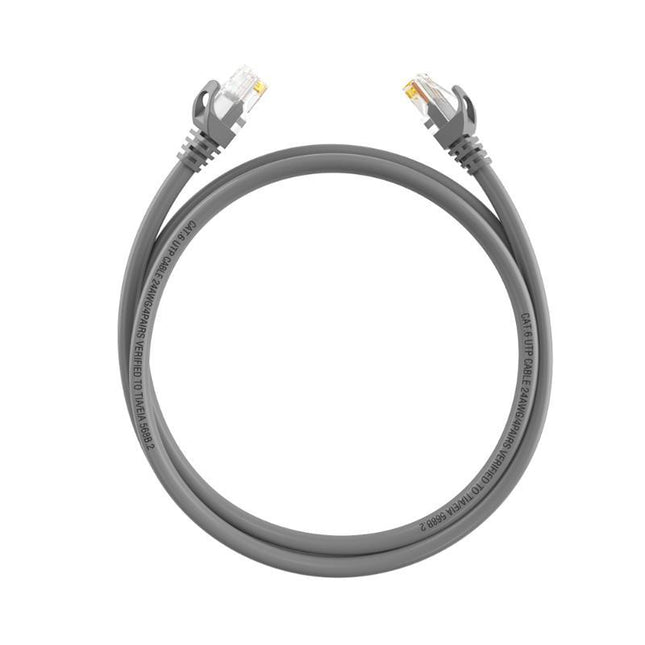

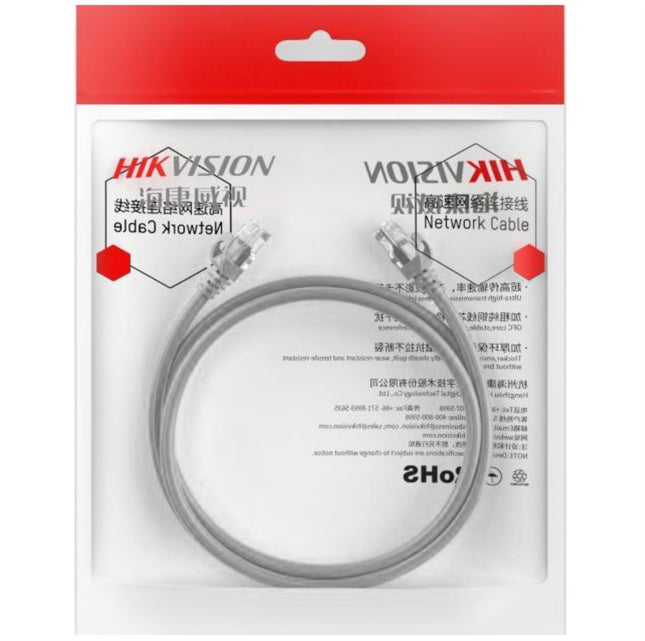

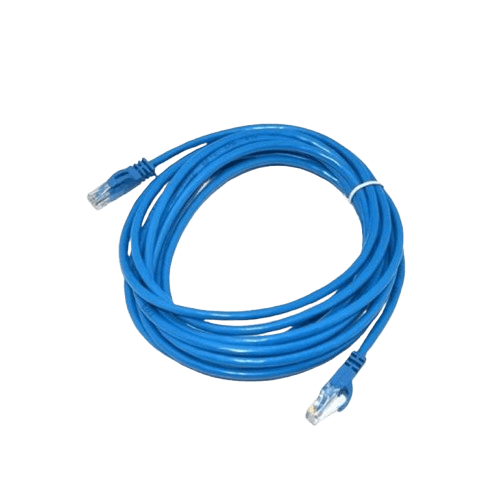

Cat 6 patch cord with high-purity bare copper conductors, HDPE insulation, durable PVC sheath, and gold-plated plugs, designed for stable high-speed network connections. Product Specifications General Category Cat 6 Available Lengths 0.5 m, 1 m, 2 m, 3 m, 5 m, 10 m Operating Voltage 57 V Conductor Conductor Material Bare Copper (99.95%) Conductor Diameter 7 × 0.2 mm (24 AWG) Insulation Insulation Material HDPE Sheath Sheath Material PVC Sheath Thickness 0.50 ± 0.05 mm Sheath Diameter 5.8 ± 0.20 mm Sheath Color Orange / Gray Plug Plug Material PC UL94V-0 Gold Plating 30 μinch Electrical Characteristics Impedance 100 ± 15 Ω DC Resistance ≤ 9.4 Ω / 100 m

Read more less

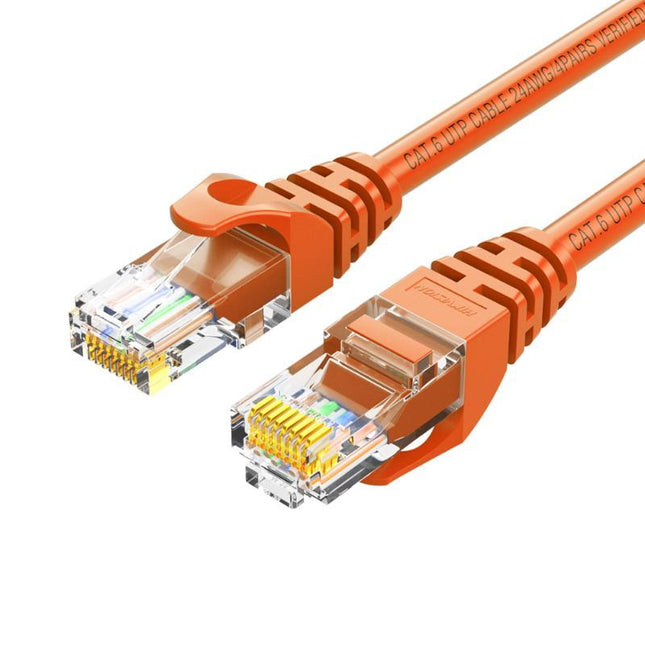

Cat 6 patch cord with high-purity bare copper conductors, HDPE insulation, durable PVC sheath, and gold-plated plugs, designed for stable high-speed network connections. Product Specifications General Category Cat 6 Available Lengths 0.5 m, 1 m, 2 m, 3 m, 5 m, 10 m Operating Voltage 57 V Conductor Conductor Material Bare Copper (99.95%) Conductor Diameter 7 × 0.2 mm (24 AWG) Insulation Insulation Material HDPE Sheath Sheath Material PVC Sheath Thickness 0.50 ± 0.05 mm Sheath Diameter 5.8 ± 0.20 mm Sheath Color Orange / Gray Plug Plug Material PC UL94V-0 Gold Plating 30 μinch Electrical Characteristics Impedance 100 ± 15 Ω DC Resistance ≤ 9.4 Ω / 100 m

Read more less

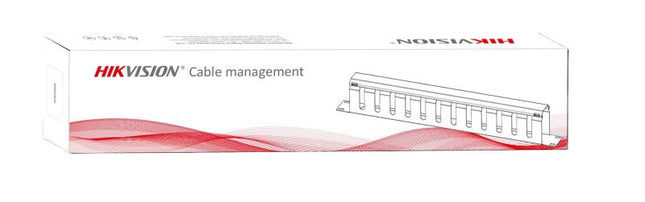

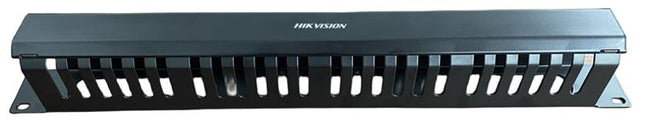

1U horizontal cable management panel designed for organized rack cabling, featuring durable cold-rolled steel construction and support for up to 24 ports in standard 19-inch racks. Product Specifications Category Product Category Horizontal Cable Management General Specifications Color Black Total Ports 24 Rack Unit 1U Material Specifications Material Type Cold-Rolled Steel Dimensions Height 44.4 mm Width 483 mm Depth 74 mm Packaging & Weights Packaging Type Box Net Weight 80 g Package Dimensions 500 × 105 × 58 mm Packaging Quantity 1 Accessories Included Accessories Nuts: 4 pcs, Screws: 4 pcs

Read more less

Cat 6 U/UTP outdoor network cable with solid bare copper conductors, PE sheath, separator structure, and weather-resistant design for outdoor installations. Product Specifications General Category Cat 6 Structure U/UTP Fire Resistance None Usage Scenario Outdoor Conductor Material Solid Bare Copper Diameter 0.552 ± 0.005 mm (23 AWG) Insulation Insulation Diameter 0.98 ± 0.05 mm Sheath Sheath Material PE Sheath Color Black Structure & Packaging Length 305 ± 1.5 m Rip Cord Yes Separator Yes

Read more less

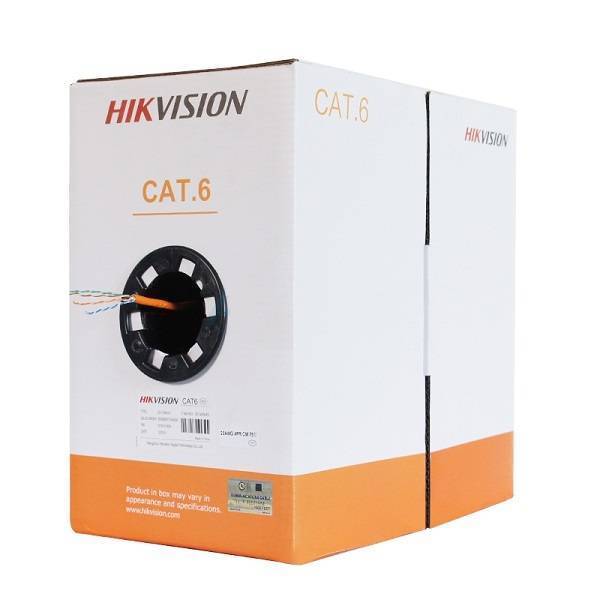

High-quality Cat.6 U/UTP network cable with solid bare copper conductors, HDPE insulation, separator design, and verified compliance with international cabling standards. Product Specifications General Category Cat.6 Rip-cord Yes Separator Yes Fire Resistance No Sheath Printing HIKVISION 4PR 23AWG 75°C U/UTP CAT6 VERIFIED TO ANSI/TIA-568-C.2 PVC ****m mm/dd/yyyy Tracing Code-HS Reference Standard ISO/IEC 11801, ANSI/TIA-568-C.2, RoHS 2.0 Conductor Material Solid Bare Copper (99.95%) Diameter 0.55 ± 0.005 mm (23 AWG) Insulation Material HDPE Diameter 0.98 ± 0.05 mm Sheath Physical Properties Before Aging – Tensile Strength ≥ 13.5 MPa Before Aging – Elongation ≥ 150% Aging Period 100 °C × 24 h × 10 days After Aging – Tensile Strength ≥ 12.5 MPa After Aging – Elongation ≥ 125% Cold Bend Test -20 ± 2 °C × 4 h, 8 × cable O.D., no visible cracks
