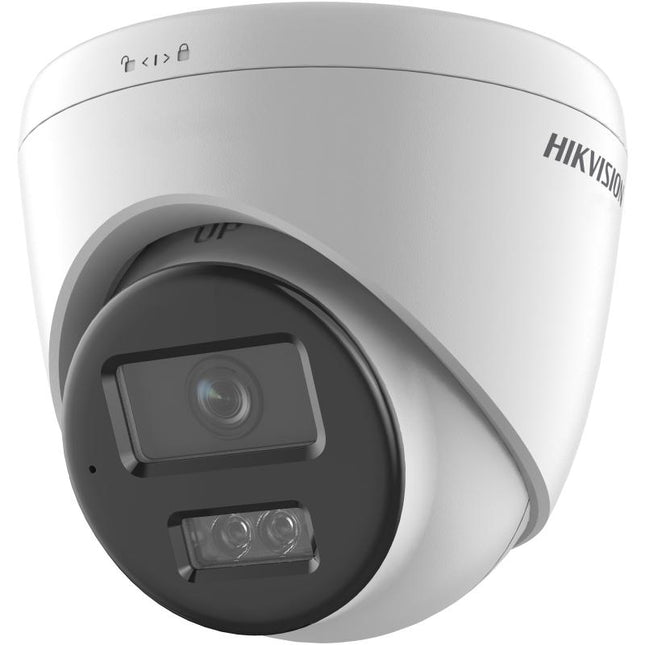

The Hikvision DS-2CD1363G2-LIU is a 6MP Smart Hybrid Light Fixed Turret Network Camera designed for ultra-high-definition 24/7 network video surveillance. Featuring Motion Detection 2.0 with human and vehicle target classification, smart dual-light illumination up to 20 meters, a built-in microphone for real-time audio, and IP67 weather resistance, it delivers crisp, detailed 6MP indoor or outdoor IP security performance around the clock.
Product Specifications
Camera & Imaging
Image Sensor 1/2.4" Progressive Scan CMOS
Max. Resolution 3200 × 1800 (6 MP)
Frame Rate 50 Hz: 20 fps (3200 × 1800), 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)60 Hz: 20 fps (3200 × 1800), 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Wide Dynamic Range (WDR) 120 dB WDR
Lens & Illumination
Lens Type 2.8 mm or 4 mm fixed focal lens
Field of View 105° (2.8 mm) / 78° (4 mm)
Smart Hybrid Light Range Up to 30 m IR / White Light range
Smart & Video Analytics
Human & Vehicle Classification Motion detection 2.0 supporting human and vehicle target classification
Audio & Network
Audio Built-in microphone for real-time audio security
Network Interface 1 RJ45 10M/100M self-adaptive Ethernet port
Video Compression H.265+ / H.265 / H.264+ / H.264
General & Environment
Operating Power 12 VDC ± 25%, PoE (802.3af)
Protection Level IP67
Operating Conditions -30 °C to 60 °C, humidity: 95% or less
Material & Dimensions Enclosure: Metal & plastic, Ø 110 mm × 93 mm
Weight Approx. 340 g
The Hikvision DS-2CD1347G3-LIU is a 4MP ColorVu Smart Hybrid Light Fixed Turret Network Camera engineered for 24/7 vivid color imaging in low-light environments. Featuring an advanced F1.0 large aperture lens, ColorVu technology for full-color performance around the clock, Motion Detection 3.0 with deep-learning-based human and vehicle classification, smart dual-light illumination up to 20 meters, a built-in microphone for real-time audio, and IP67 weather resistance, it delivers crisp, intelligent 4MP security monitoring day and night.
Product Specifications
Camera & Imaging
Image Sensor 1/3" Progressive Scan CMOS
Max. Resolution 2560 × 1440 (4 MP)
Frame Rate 50 Hz: 20 fps (2560 × 1440), 25 fps (1920 × 1080, 1280 × 720)60 Hz: 20 fps (2560 × 1440), 30 fps (1920 × 1080, 1280 × 720)
Min. Illumination Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
Wide Dynamic Range (WDR) Digital WDR
Lens & Illumination
Lens Type 2.8 mm or 4 mm fixed focal lens
Field of View 101.5° (2.8 mm) / 84.1° (4 mm)
Smart Hybrid Light Range Up to 30 m white light / IR range
Smart & Video Analytics
Human & Vehicle Classification Motion detection 3.0 supporting human and vehicle target classification
Audio & Network
Audio Built-in microphone for real-time audio security
Network Interface 1 RJ45 10M/100M self-adaptive Ethernet port
Video Compression H.265+ / H.265 / H.264+ / H.264
General & Environment
Operating Power 12 VDC ± 25%, PoE (802.3af)
Protection Level IP67
Operating Conditions -30 °C to 60 °C, humidity: 95% or less
Material & Dimensions Enclosure: Metal & plastic, Ø 110 mm × 102.7 mm
Weight Approx. 405 g

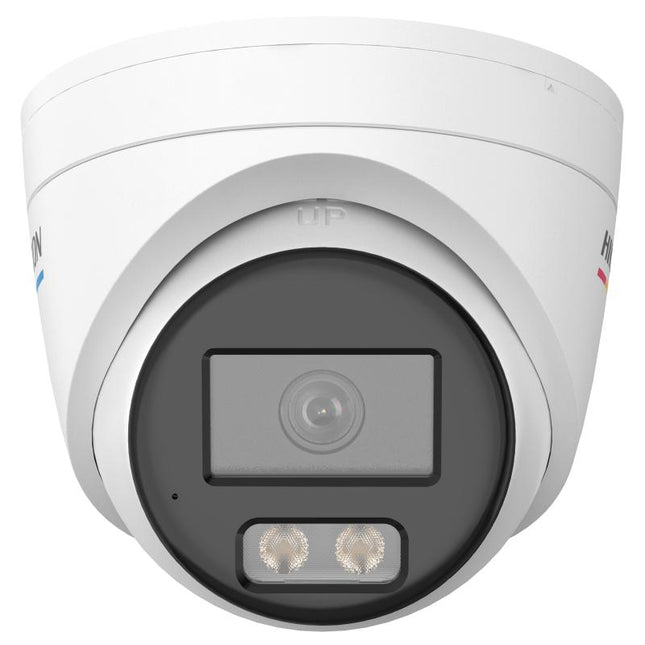

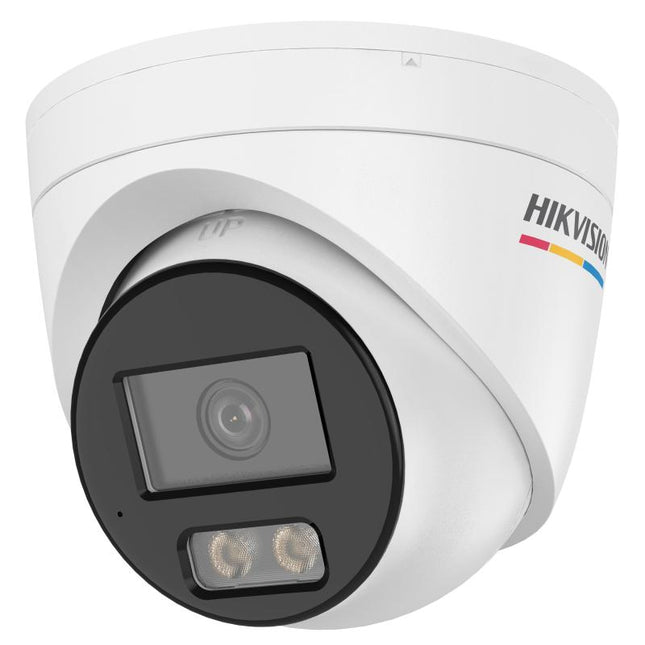

The Hikvision DS-2CD1347G3H-LIU is a 4MP ColorVu Smart Hybrid Light Fixed Turret Network Camera engineered for 24/7 vivid color imaging in low-light environments. Featuring an advanced F1.0 large aperture lens, ColorVu technology for full-color performance around the clock, Motion Detection 3.0 with deep-learning-based human and vehicle classification, smart dual-light illumination up to 20 meters, a built-in microphone for real-time audio, and IP67 weather resistance, it delivers crisp, intelligent 4MP security monitoring day and night.
Product Specifications
Camera & Imaging
Image Sensor 1/1.8" Progressive Scan CMOS
Max. Resolution 2560 × 1440 (4 MP)
Frame Rate 50 Hz: 20 fps (2560 × 1440), 25 fps (1920 × 1080, 1280 × 720)60 Hz: 20 fps (2560 × 1440), 30 fps (1920 × 1080, 1280 × 720)
Min. Illumination Color: 0.0001 Lux @ (F1.0, AGC ON), 0 Lux with white light
Wide Dynamic Range (WDR) Digital WDR
Lens & Illumination
Lens Type 2.8 mm or 4 mm fixed focal lens
Field of View 104° (2.8 mm) / 89.3° (4 mm)
Smart Hybrid Light Range Up to 30 m white light / IR range
Smart & Video Analytics
Human & Vehicle Classification Motion detection 3.0 supporting human and vehicle target classification
Audio & Network
Audio Built-in microphone for real-time audio security
Network Interface 1 RJ45 10M/100M self-adaptive Ethernet port
Video Compression H.265+ / H.265 / H.264+ / H.264
General & Environment
Operating Power 12 VDC ± 25%, PoE (802.3af)
Protection Level IP67
Operating Conditions -30 °C to 60 °C, humidity: 95% or less
Material & Dimensions Enclosure: Metal & plastic, Ø 130.1 mm × 103.1 mm
Weight Approx. 580 g
High-quality 2 MP ColorVu Fixed Turret Network Camera delivering 24/7 colorful imaging with excellent low-light performance. Features H.265+ compression, 120 dB WDR, deep-learning-based human and vehicle classification, built-in microphone, 30 m white light illumination, and IP67 water and dust resistance.
Technical Specifications
Key Features
Product Model
DS-2CD2327G2-LU 2MP
Product Type
2 MP ColorVu Fixed Turret Network Camera
Resolution
2 MP
Compression Technology
H.265+ / H.265 / H.264+ / H.264
WDR
120 dB
Smart Classification
Human and Vehicle Classification based on Deep Learning
Built-in Microphone
Yes (-U)
Color Imaging
24/7 Colorful Imaging
Weather Protection
IP67 Water and Dust Resistant
Camera
Image Sensor
1/2.8" Progressive Scan CMOS
Maximum Resolution
1920 × 1080
Minimum Illumination
Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with Light
Shutter Time
1/3 s to 1/100,000 s
Angle Adjustment
Pan: 0° to 360°
Tilt: 0° to 75°
Rotate: 0° to 360°
Lens
Lens Type
Fixed Focal Lens, 2.8 mm / 4 mm Optional
Focal Length & FOV
2.8 mm: H: 107°, V: 56°, D: 127°
4 mm: H: 84°, V: 45°, D: 99°
Lens Mount
M12
Iris Type
Fixed
Aperture
F1.0
Depth of Field
2.8 mm: 1.7 m to ∞
4 mm: 2.3 m to ∞
DORI
2.8 mm
D: 46 m, O: 18 m, R: 9 m, I: 4 m
4 mm
D: 56 m, O: 22 m, R: 11 m, I: 5 m
Illuminator
Supplement Light Type
White Light
Supplement Light Range
30 m
Smart Supplement Light
Yes
Video
Main Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 720)
60 Hz: 30 fps (1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360)
Third Stream
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
Third stream is supported under certain settings.
Video Compression
Main Stream: H.265 / H.264 / H.264+ / H.265+
Sub-Stream: H.265 / H.264 / MJPEG
Third Stream: H.265 / H.264
Third stream is supported under certain settings.
Video Bit Rate
32 Kbps to 8 Mbps
H.264 Type
Baseline Profile / Main Profile / High Profile
H.265 Type
Main Profile
Bit Rate Control
CBR / VBR
Scalable Video Coding (SVC)
H.264 and H.265 Encoding
Region of Interest (ROI)
1 Fixed Region for Main Stream and Sub-Stream
Audio
Audio Compression
-U: G.711ulaw / G.711alaw / G.722.1 / G.726 / MP2L2 / PCM / MP3 / AAC-LC
Audio Bit Rate
-U: 64 Kbps (G.711ulaw / G.711alaw)
16 Kbps (G.722.1)
16 Kbps (G.726)
32 to 192 Kbps (MP2L2)
8 to 320 Kbps (MP3)
16 to 64 Kbps (AAC-LC)
Audio Sampling Rate
-U: 8 kHz / 16 kHz / 32 kHz / 44.1 kHz / 48 kHz
Environment Noise Filtering
-U: Yes
High-quality 2MP AcuSense Fixed Turret Network Camera with excellent low-light performance powered by DarkFighter technology. Features 120 dB True WDR, deep-learning-based human and vehicle classification, H.265+ compression, advanced streaming technology, IR illumination up to 40 m, and IP67 water and dust resistance.
Technical Specifications
Camera
Image Sensor
1/2.8" Progressive Scan CMOS
Maximum Resolution
1920 × 1080
Minimum Illumination
Color: 0.002 Lux @ (F1.4, AGC ON)
B/W: 0 Lux with IR
Shutter Time
1/3 s to 1/100,000 s
Day & Night
IR Cut Filter
Angle Adjustment
Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°
Lens
Lens Type
Fixed focal lens, 2.8, 4, and 6 mm optional
Focal Length & FOV (2.8 mm)
Horizontal FOV: 107°
Vertical FOV: 57°
Diagonal FOV: 129°
Focal Length & FOV (4 mm)
Horizontal FOV: 86°
Vertical FOV: 47°
Diagonal FOV: 102°
Focal Length & FOV (6 mm)
Horizontal FOV: 55°
Vertical FOV: 29°
Diagonal FOV: 65°
Lens Mount
M12
Iris Type
Fixed
Aperture
F1.4
DORI
DORI (2.8 mm)
Detect: 44 m | Observe: 17 m | Recognize: 8 m | Identify: 4 m
DORI (4 mm)
Detect: 53 m | Observe: 21 m | Recognize: 10 m | Identify: 5 m
DORI (6 mm)
Detect: 86 m | Observe: 34 m | Recognize: 17 m | Identify: 8 m
Illuminator
Supplement Light Type
IR
Supplement Light Range
Up to 40 m
Smart Supplement Light
Yes
IR Wavelength
850 nm
Video
Main Stream
50 Hz: up to 50 fps (1920 × 1080, 1280 × 720)
60 Hz: up to 60 fps (1920 × 1080, 1280 × 720)
*High frame rate is supported under certain settings.
Sub-Stream
50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360)
Third Stream
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*Third stream is supported under certain settings.
Fourth Stream
50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)
*Fourth stream is supported under certain settings.
Video Compression
Main Stream: H.265 / H.264 / H.264+ / H.265+
Sub-Stream: H.265 / H.264 / MJPEG
Third Stream: H.265 / H.264
Fourth Stream: H.265 / H.264 / MJPEG
*Third stream and fourth stream are supported under certain settings.
Video Bit Rate
32 Kbps to 8 Mbps
H.264 Type
Baseline Profile / Main Profile / High Profile
H.265 Type
Main Profile
Bit Rate Control
CBR / VBR
Scalable Video Coding (SVC)
H.264 and H.265 encoding
Region of Interest (ROI)
5 fixed regions for main stream and sub-stream
Target Cropping
Yes
Audio
Audio Compression
G.711ulaw / G.711alaw / G.722.1 / G.726 / MP2L2 / PCM / MP3 / AAC-LC
Audio Bit Rate
64 Kbps (G.711ulaw / G.711alaw)
16 Kbps (G.722.1)
16 Kbps (G.726)
32 to 192 Kbps (MP2L2)
8 to 320 Kbps (MP3)
16 to 64 Kbps (AAC-LC)
Audio Sampling Rate
8 kHz / 16 kHz / 32 kHz / 44.1 kHz / 48 kHz
Environment Noise Filtering
Yes
Network
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP,
NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour,
SSL/TLS, PPPoE, ARP, SNMP, WebSocket, WebSockets
Simultaneous Live View
Up to 6 channels
API
Open Network Video Interface
(Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
User / Host
Up to 32 users
3 user levels: administrator, operator and user
Security
Password protection, complicated password, HTTPS encryption,
IP address filter, Security Audit Log, basic and digest
authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest
authentication for Open Network Video Interface
Network Storage
NAS (NFS, SMB/CIFS), auto network replenishment (ANR).
Together with high-end Hikvision memory card, memory card
encryption and health detection are supported.
Client
iVMS-4200, Hik-Connect, Hik-Central
Web Browser
Plug-in required live view: IE 10, IE 11
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Image Parameters Switch
Yes
Image Settings
Rotate mode, saturation, brightness, contrast, sharpness,
gain, white balance adjustable by client software or web browser
Day / Night Switch
Day, Night, Auto, Schedule
Wide Dynamic Range (WDR)
120 dB
SNR
≥ 52 dB
Image Enhancement
BLC, HLC, 3D DNR
Interface
Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port
Key Features
AcuSense
False alarm reduction through human and vehicle target
classification based on deep learning
Low-Light Performance
Excellent low-light performance with powered-by-DarkFighter technology
Backlight Compensation
120 dB True WDR
Compression
Efficient H.265+ compression technology
Advanced Streaming
Advanced streaming technology for smooth live view and
data self-correcting in poor network conditions
IR Illumination
IR range up to 40 m
Weather Protection
IP67 water and dust resistant
High-quality 2MP ColorVu Fixed Turret Network Camera designed for 24/7 colorful imaging and excellent low-light performance. Features an F1.0 large-aperture lens, 120 dB WDR, efficient H.265+ compression, human and vehicle detection, white light illumination, and IP67 water and dust resistance.
Technical Specifications
Camera
Image Sensor
1/2.8" Progressive Scan CMOS
Maximum Resolution
1920 × 1080
Minimum Illumination
Color: 0.001 Lux @ (F1.0, AGC ON)
0 Lux with light
Shutter Time
1/3 s to 1/100,000 s
Day & Night
24/7 Color Imaging
Angle Adjustment
Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°
Lens
Lens Type
Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV (2.8 mm)
Horizontal FOV: 106°
Vertical FOV: 57°
Diagonal FOV: 127°
Focal Length & FOV (4 mm)
Horizontal FOV: 84°
Vertical FOV: 45°
Diagonal FOV: 99°
Lens Mount
M12
Iris Type
Fixed
Aperture
F1.0
DORI
DORI (2.8 mm)
Detect: 44 m | Observe: 17 m | Recognize: 8 m | Identify: 4 m
DORI (4 mm)
Detect: 56 m | Observe: 22 m | Recognize: 11 m | Identify: 5 m
Illuminator
Supplement Light Type
White Light
Supplement Light Range
Up to 30 m
Smart Supplement Light
Yes
Video
Main Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 720)
60 Hz: 30 fps (1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360)
Third Stream
50 Hz: 1 fps (640 × 360)
60 Hz: 1 fps (640 × 360)
Video Compression
Main Stream: H.265+ / H.265 / H.264+ / H.264
Sub-Stream: H.265 / H.264 / MJPEG
Third Stream: H.265 / H.264
Video Bit Rate
32 Kbps to 8 Mbps
H.264 Type
Baseline Profile, Main Profile, High Profile
H.265 Type
Main Profile
Bit Rate Control
CBR, VBR
Region of Interest (ROI)
1 fixed region for main stream and sub-stream
Audio
Audio Type
Mono sound
Environment Noise Filtering
Yes
Audio Sampling Rate
8 kHz / 16 kHz
Audio Compression
G.711ulaw / G.711alaw / G.722.1 / G.726 / MP2L2 / PCM / AAC-LC
Audio Bit Rate
64 Kbps (G.711 ulaw) / 64 Kbps (G.711 alaw)
16 Kbps (G.722.1) / 16 Kbps (G.726)
32 to 160 Kbps (MP2L2)
16 to 64 Kbps (AAC-LC)
Network
Security
Password protection, complicated password, HTTPS encryption,
802.1X authentication (EAP-MD5), watermark, basic and digest
authentication for HTTP/HTTPS, WSSE and digest authentication
for Open Network Video Interface, RTP/RTSP over HTTPS,
security audit log, TLS 1.2, TLS 1.3, host authentication
(MAC address)
Simultaneous Live View
Up to 6 channels
API
Open Network Video Interface
(Profile S, Profile T, Profile G), ISAPI, SDK
Protocols
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP,
IPv4, IPv6, UDP, QoS, FTP, SMTP, HTTPS, DDNS, UPnP, 802.1X
User / Host
Up to 32 users
3 user levels: administrator, operator, and user
Client
iVMS-4200, Hik-Connect
Web Browser
Plug-in required live view: IE 10, IE 11
Local service: Chrome 57.0+, Firefox 52.0+
Wide Dynamic Range (WDR)
120 dB
SNR
≥ 52 dB
Day / Night Switch
Day, Night, Auto, Schedule
Image Enhancement
BLC, HLC, 3D DNR
Image Settings
Rotate mode, saturation, brightness, contrast, sharpness,
gain, white balance, adjustable by client software or web browser
Privacy Mask
4 programmable polygon privacy masks
Interface
Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port
Key Features
ColorVu
24/7 colorful imaging with excellent low-light performance
Intelligent Detection
Human and Vehicle Detection
Compression
Efficient H.265+ compression technology to save bandwidth and storage
Backlight Compensation
120 dB WDR
Image Enhancement
3D DNR technology
Illumination
White Light, up to 30 m
Weather Protection
IP67 water and dust resistant

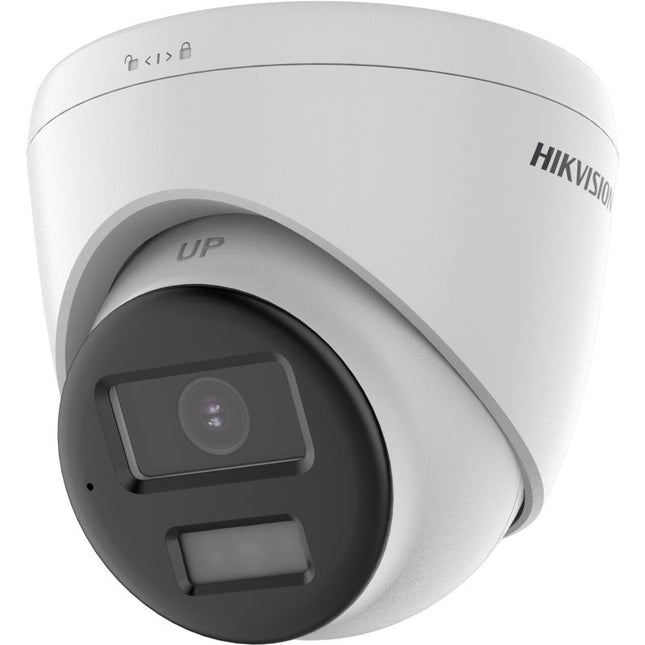

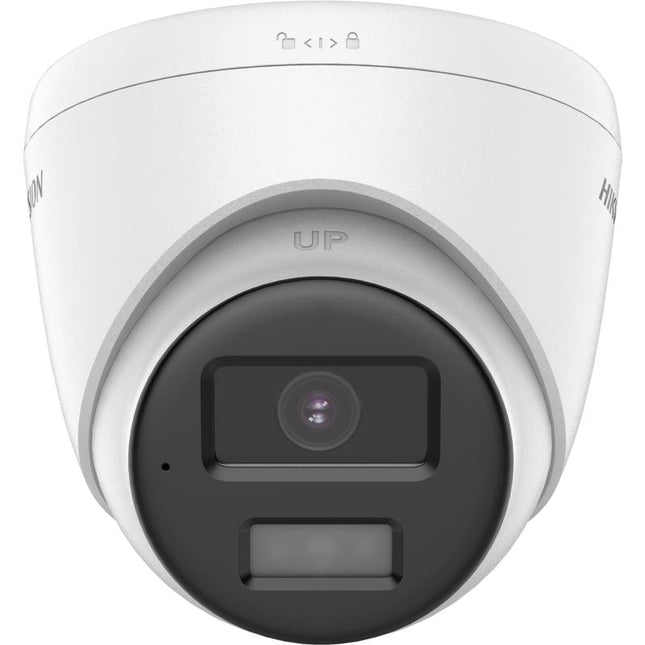

The Hikvision DS-2CE78D0T-LPTS is a 2MP Smart Hybrid Light fixed indoor/outdoor turret camera featuring built-in two-way audio for real-time communication. Equipped with up to 40 meters of infrared range, a built-in microphone and speaker, and durable IP67 weather resistance, it provides advanced audio-visual surveillance.
Product Specifications
Camera & Imaging
Image Sensor 2 MP CMOS Sensor
Max. Resolution 1920 (H) × 1080 (V)
Frame Rate 1080p @ 25fps / 30fps
Min. Illumination 0.01 Lux @ (F1.6, AGC ON), 0 Lux with IR
Lens & Night Vision
Lens Options 2.8 mm or 3.6 mm fixed focal lens
Smart Hybrid Light Range IR up to 30 m, White Light up to 20 m
Audio & Interface
Audio Built-in microphone and speaker (Two-way audio)
General & Environment
Operating Power 12 VDC ± 25%
Protection Level IP67
Operating Conditions -40 °C to 60 °C, humidity: 90% or less
Material & Dimensions Plastic Body, Ø110 mm × 93 mm
Weight Approx. 270 g

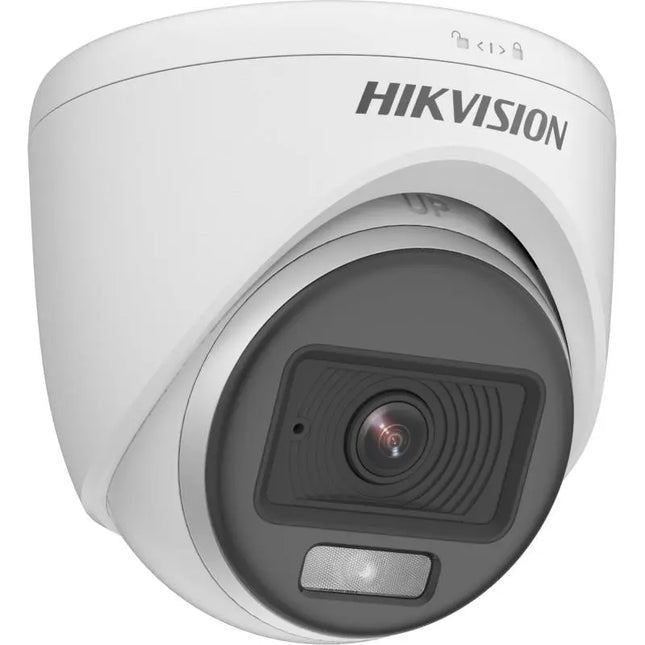

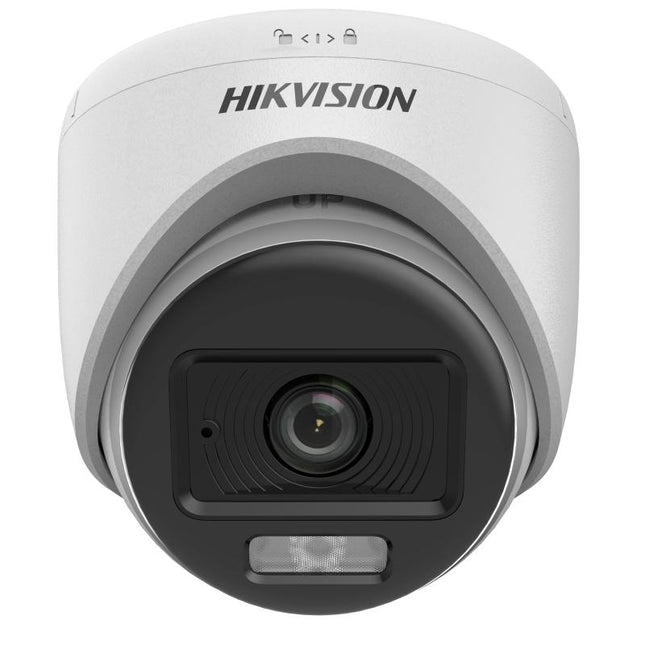

The Hikvision DS-2CE70DF0T-LPFS is a 2MP Smart Hybrid Light fixed indoor turret camera designed for flexible 24/7 color and low-light surveillance. Featuring an advanced F1.0 aperture, smart dual-light illumination up to 20 meters, a built-in microphone for coaxial audio, and a compact indoor form factor, it ensures bright and clear monitoring around the clock.
Product Specifications
Camera & Imaging
Image Sensor 2 MP CMOS Sensor
Max. Resolution 1920 (H) × 1080 (V)
Frame Rate 1080p @ 25fps / 30fps
Min. Illumination 0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light
Lens & Illumination
Lens Type 2.8 mm or 3.6 mm fixed focal lens
Field of View 105° (2.8 mm) / 84° (3.6 mm)
Smart Hybrid Light Range Up to 20 m white light / IR range
Audio & Interface
Audio Built-in mic, audio over coaxial cable
Video Output Switchable TVI / AHD / CVI / CVBS
General & Environment
Operating Power 12 VDC ± 25%
Operating Conditions -40 °C to 60 °C, humidity: 90% or less
Material & Dimensions Plastic Body, Ø85.02 mm × 81.25 mm
Weight Approx. 155 g

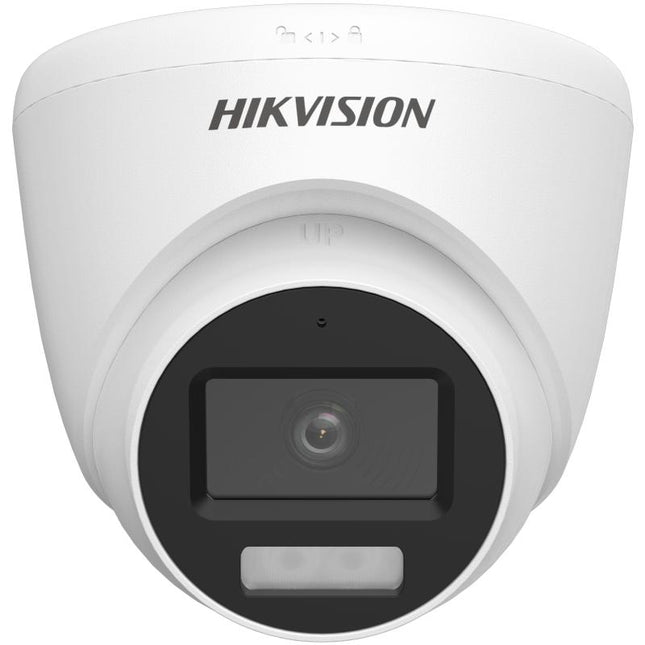

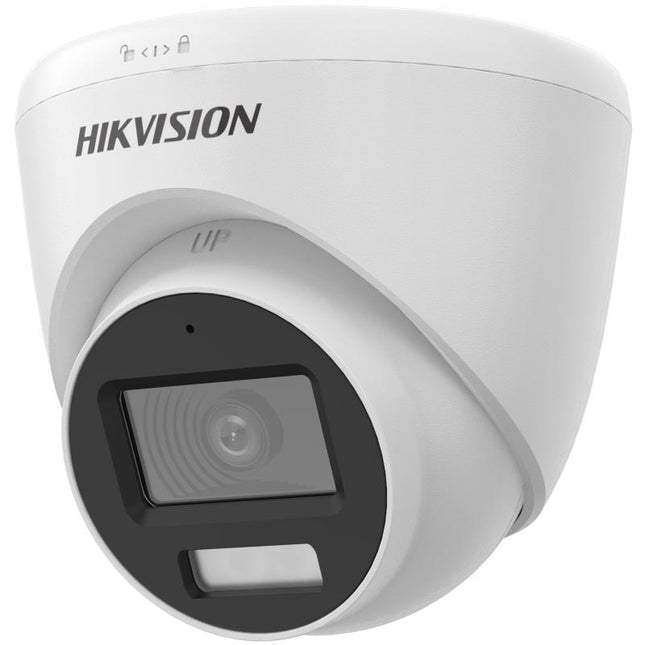

The Hikvision DS-2CE78D0T-LFS is a 2MP Smart Hybrid Light fixed turret camera featuring a metal body structure for long-range outdoor and indoor monitoring. Equipped with extended IR up to 40 meters, a built-in microphone for coaxial audio, and IP67 weather resistance, it delivers crisp Full HD surveillance.
Product Specifications
Camera & Imaging
Image Sensor
2 MP CMOS Sensor
Max. Resolution
1920 (H) × 1080 (V)
Frame Rate
1080p @ 25fps / 30fps
Min. Illumination
0.01 Lux @ (F1.6, AGC ON), 0 Lux with IR
Lens & Night Vision
Lens Options
2.8 mm or 3.6 mm fixed focal lens
Field of View
100° (2.8 mm) / 80° (3.6 mm)
Smart Hybrid Light Range
IR up to 40 m, White Light up to 20 m
Audio & Interface
Audio
Built-in mic, audio over coaxial cable
Video Output
Switchable TVI / AHD / CVI / CVBS
General & Environment
Operating Power
12 VDC ± 25%
Protection Level
IP67
Operating Conditions
-40 °C to 60 °C, humidity: 90% or less
Material & Dimensions
Metal Body, 97.9 mm × Ø110 mm
Weight
Approx. 340 g
The Hikvision DS-2CE72DF0T-LPTS is a 2MP Smart Hybrid Light ColorVu fixed turret camera designed for 24/7 full-color and low-light surveillance. Featuring an advanced F1.0 aperture, smart dual-light illumination up to 20 meters, a built-in microphone and speaker for two-way audio, and IP67 weather resistance, it provides reliable audio-visual security for indoor and outdoor environments.
Product Specifications
Camera & Imaging
Image Sensor 2 MP CMOS Sensor
Max. Resolution 1920 (H) × 1080 (V)
Frame Rate 1080p @ 25fps / 30fps
Min. Illumination 0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light
Lens & Illumination
Lens Type 2.8 mm or 3.6 mm fixed focal lens
Field of View 92° (2.8 mm) / 81° (3.6 mm)
Smart Hybrid Light Range Up to 20 m white light and 30 m IR range
Audio & Interface
Audio Built-in microphone and speaker (Two-way audio)
General & Environment
Operating Power 12 VDC ± 25%
Protection Level IP67
Operating Conditions -40 °C to 60 °C, humidity: 90% or less
Material & Dimensions Plastic Body, Ø110 mm × 93 mm
Weight Approx. 265 g
Product Specifications
Camera
Image Sensor
1/3″ Progressive Scan CMOS
Maximum Resolution
2560 × 1440
Minimum Illumination
Color: 0.005 Lux @ (F1.6, AGC ON)
B/W: 0 Lux with IR
Shutter Time
1/3 s to 1/100,000 s
Day & Night
IR cut filter
Angle Adjustment
Pan: 0° to 360°
Tilt: 0° to 75°
Rotate: 0° to 360°
Lens
Lens Type
Fixed focal lens (2.8 mm / 4 mm optional)
Focal Length & FOV
2.8 mm — H: 98°, V: 54°, D: 114°
4 mm — H: 78°, V: 42°, D: 93°
Lens Mount
M12
Iris Type
Fixed
Aperture
F1.6
Product Specifications
Camera
Image Sensor
1/2.7″ Progressive Scan CMOS
Maximum Resolution
2560 × 1440
Minimum Illumination
Color: 0.01 Lux @ (F2.2, AGC ON)
B/W: 0 Lux with IR
Shutter Time
1/3 s to 1/100,000 s
Day & Night
IR cut filter
Angle Adjustment
Pan: 0° to 360°
Tilt: 0° to 75°
Rotate: 0° to 360°
Lens
Lens Type
Fixed focal lens (2.8 mm / 4 mm optional)
Focal Length & FOV
2.8 mm — H: 112°, V: 61°, D: 135°
4 mm — H: 89°, V: 48°, D: 105°
Depth of Field
2.8 mm: 0.9 m to ∞
4 mm: 1.1 m to ∞
Lens Mount
M12
Iris Type
Fixed
Aperture
F2.2
High-definition network camera with a progressive scan CMOS sensor,
adjustable mounting angles, and flexible lens options, designed for
reliable day and night surveillance.
Product Specifications
Camera
Image Sensor
1/3" Progressive Scan CMOS
Max. Resolution
1920 × 1080
Minimum Illumination
Color: 0.01 Lux @ (F2.2, AGC ON)
B/W: 0 Lux with IR
Shutter Time
1/3 s to 1/100,000 s
Day & Night
IR cut filter
Angle Adjustment
Pan: 0° to 360°
Tilt: 0° to 75°
Rotate: 0° to 360°
Lens
Lens Type
Fixed focal lens, 2.8 mm and 4 mm optional
Focal Length & FOV
2.8 mm: Horizontal 97°, Vertical 54°, Diagonal 113°
4 mm: Horizontal 76°, Vertical 42°, Diagonal 90°
Lens Mount
M12
Iris Type
Fixed
Aperture
F2.2
Depth of Field
2.8 mm: 0.8 m to ∞
4 mm: 1 m to ∞
High-performance security camera featuring a 1/2.4″ Progressive Scan CMOS sensor, sharp 3200 × 1800 resolution, excellent low-light sensitivity with F1.0 aperture, and a 2.8 mm fixed focal lens option for wide-angle surveillance coverage.
Product Specifications
Camera
Image Sensor
1/2.4″ Progressive Scan CMOS
Maximum Resolution
3200 × 1800
Minimum Illumination
Color: 0.0005 Lux @ (F1.0, AGC ON)
0 Lux with light
Shutter Time
1 s to 1/100,000 s
Day & Night
IR cut filter
Angle Adjustment
Pan: 0° to 360°
Tilt: 0° to 75°
Rotate: 0° to 360°
Lens
Lens Type
Fixed focal lens (2.8 mm optional)
Focal Length & FOV
2.8 mm — Horizontal: 109°, Vertical: 60°, Diagonal: 130°
Depth of Field
2.8 mm: 1.9 m to ∞
Lens Mount
M12
Iris Type
Fixed
Aperture
F1.0
High-performance security camera featuring a 1/2.4″ Progressive Scan CMOS sensor, detailed 3200 × 1800 resolution, excellent low-light sensitivity, and a 2.8 mm fixed focal lens option for ultra-wide surveillance coverage.
Product Specifications
Camera
Image Sensor
1/2.4″ Progressive Scan CMOS
Maximum Resolution
3200 × 1800
Minimum Illumination
Color: 0.001 Lux @ (F1., AGC ON)
0 Lux with light
Shutter Time
1/3 s to 1/100,000 s
Day & Night
IR cut filter
Angle Adjustment
Pan: 0° to 360°
Tilt: 0° to 75°
Rotate: 0° to 360°
Lens
Lens Type
Fixed focal lens (2.8 mm optional)
Focal Length & FOV
2.8 mm — Horizontal: 115°, Vertical: 60°, Diagonal: 143°
Lens Mount
M12
Iris Type
Fixed
Aperture
F1.
High-performance 2K security camera with a 1/3″ Progressive Scan CMOS sensor, ultra-low-light sensitivity with F1.0 aperture, and a wide-angle 2.8 mm fixed focal lens option for reliable surveillance coverage.
Product Specifications
Camera
Image Sensor
1/3″ Progressive Scan CMOS
Maximum Resolution
2560 × 1440
Minimum Illumination
Color: 0.001 Lux @ (F1.0, AGC ON)
0 Lux with light
Shutter Time
1/3 s to 1/100,000 s
Day & Night
IR cut filter
Angle Adjustment
Pan: 0° to 360°
Tilt: 0° to 75°
Rotate: 0° to 360°
Lens
Lens Type
Fixed focal lens (2.8 mm optional)
Focal Length & FOV
2.8 mm — Horizontal: 96°, Vertical: 52°, Diagonal: 114°
Lens Mount
M12
Iris Type
Fixed
Aperture
F1.0
High-performance 2K security camera with a 1/3″ Progressive Scan CMOS sensor, enhanced low-light sensitivity, and a wide-angle 2.8 mm fixed focal lens for clear and reliable surveillance coverage.
Product Specifications
Camera
Image Sensor
1/3″ Progressive Scan CMOS
Maximum Resolution
2560 × 1440
Minimum Illumination
Color: 0.005 Lux @ (F1.6, AGC ON)
B/W: 0 Lux with IR
Shutter Time
1/3 s to 1/100,000 s
Day & Night
IR cut filter
Angle Adjustment
Pan: 0° to 360°
Tilt: 0° to 75°
Rotate: 0° to 360°
Lens
Lens Type
Fixed focal lens (2.8 mm)
Focal Length & FOV
2.8 mm — Horizontal: 98°, Vertical: 54°, Diagonal: 114°
Lens Mount
M12
Iris Type
Fixed
Aperture
F1.6
High-resolution 2K security camera with a 1/3″ Progressive Scan CMOS sensor, excellent low-light performance, and a wide-angle 2.8 mm lens for clear and reliable surveillance coverage.
Product Specifications
Camera
Image Sensor
1/3″ Progressive Scan CMOS
Maximum Resolution
2560 × 1440
Minimum Illumination
Color: 0.01 Lux @ (F2.0, AGC ON)
B/W: 0 Lux with IR
Shutter Time
1/3 s to 1/100,000 s
Day & Night
IR cut filter
Angle Adjustment
Pan: 0° to 360°
Tilt: 0° to 75°
Rotate: 0° to 360°
Lens
Lens Type
Fixed focal lens (2.8 mm)
Focal Length & FOV
2.8 mm — Horizontal: 98.0°, Vertical: 53.1°, Diagonal: 114.7°
Lens Mount
M12
Iris Type
Fixed
Aperture
F2.0
Full HD security camera with 1/2.8″ Progressive Scan CMOS sensor, ultra-low light performance with F1.0 aperture, wide-angle coverage, and flexible mounting support.
Product Specifications
Camera
Image Sensor 1/2.8″ Progressive Scan CMOS
Maximum Resolution 1920 × 1080
Minimum Illumination Color: 0.001 Lux @ (F1.0, AGC ON)0 Lux with light
Shutter Time 1/3 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 360°Tilt: 0° to 75°Rotate: 0° to 360°
Lens
Lens Type Fixed focal lens (2.8 mm / 4 mm optional)
Focal Length & FOV 2.8 mm — Horizontal: 106°, Vertical: 56°, Diagonal: 129°
Lens Mount M12
Iris Type Fixed
Aperture F1.0
Full HD security camera with 1/2.9″ Progressive Scan CMOS sensor, 1080p resolution, ultra-low light performance, wide viewing angles, and flexible installation support.
Product Specifications
Camera
Image Sensor
1/2.9″ Progressive Scan CMOS
Maximum Resolution
1920 × 1080
Minimum Illumination
Color: 0.005 Lux @ (F1.6, AGC ON)
B/W: 0 Lux with IR
Shutter Time
1/3 s to 1/100,000 s
Day & Night
IR cut filter
Angle Adjustment
Pan: 0° to 360°
Tilt: 0° to 75°
Rotate: 0° to 360°
Lens
Lens Type
Fixed focal lens (2.8 mm / 4 mm optional)
Focal Length & FOV
2.8 mm — Horizontal: 103°, Vertical: 56°, Diagonal: 121°
Lens Mount
M12
Iris Type
Fixed
Aperture
F1.6
Full HD surveillance camera with a 1/2.9″ progressive scan CMOS sensor, F1.6 ultra-low-light performance, optional 2.8 mm or 4 mm fixed lens, and reliable IR day/night functionality for enhanced visibility in dark environments.
Product Specifications
Camera
Image Sensor
1/2.9″ Progressive Scan CMOS
Max. Resolution
1920 × 1080
Minimum Illumination
Color: 0.005 Lux @ (F1.6, AGC ON)
B/W: 0 Lux with IR
Shutter Time
1/3 s to 1/100,000 s
Day & Night
IR Cut Filter
Angle Adjustment
Pan: 0° to 360°
Tilt: 0° to 75°
Rotate: 0° to 360°
Lens
Lens Type
Fixed focal lens, 2.8 mm and 4 mm optional
Focal Length & FOV
2.8 mm
Horizontal FOV: 103°
Vertical FOV: 56°
Diagonal FOV: 121°
Lens Mount
M12
Iris Type
Fixed
Aperture
F1.6
Full HD surveillance camera with a 1/2.7" progressive scan CMOS sensor, wide-angle 2.8 mm lens, IR night vision, and flexible angle adjustment for reliable indoor or outdoor monitoring.
Product Specifications
Camera
Image Sensor
1/2.7" Progressive Scan CMOS
Max. Resolution
1920 × 1080
Minimum Illumination
Color: 0.01 Lux @ (F2.0, AGC ON)
B/W: 0 Lux with IR
Shutter Time
1/3 s to 1/100,000 s
Day & Night
IR Cut Filter
Angle Adjustment
Pan: 0° to 360°
Tilt: 0° to 75°
Rotate: 0° to 360°
Lens
Focal Length & FOV
2.8 mm
Horizontal FOV: 105°
Vertical FOV: 58°
Diagonal FOV: 123°
Lens Mount
M12
Iris Type
Fixed
Aperture
F2.0

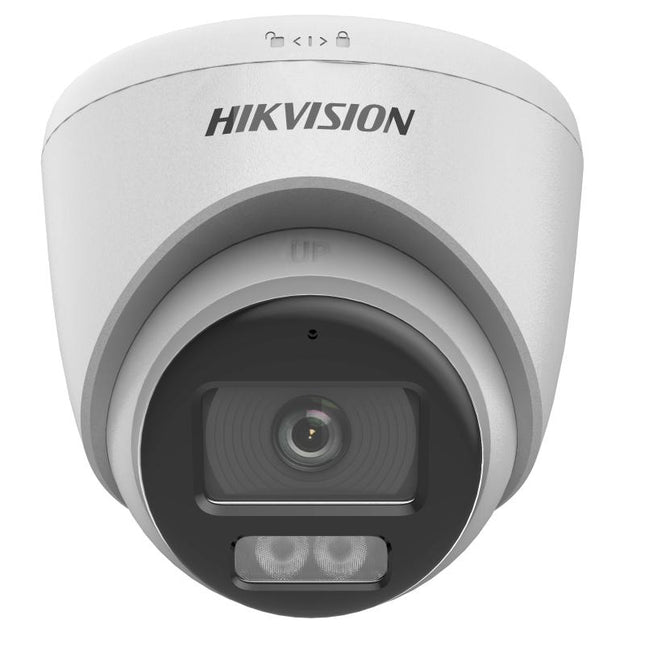

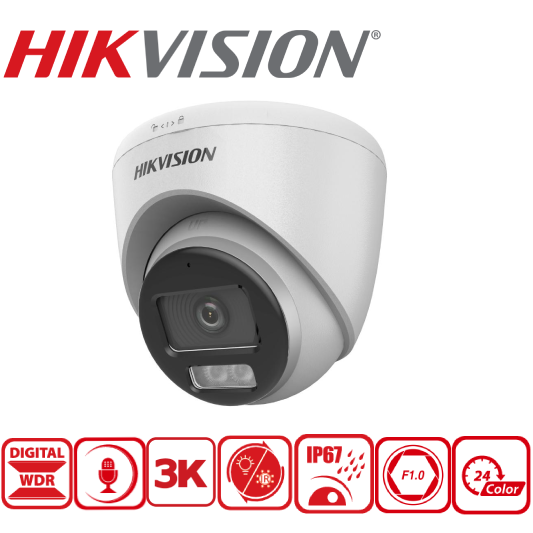

High-performance 3K security camera with 24/7 color imaging, ultra-low light sensitivity down to 0.0003 Lux, slow shutter support up to 16×, and a 2.8 mm fixed focal lens for wide-angle surveillance.
Product Specifications
Camera
Image Sensor
3K CMOS
Max. Resolution
2960 (H) × 1665 (V)
Minimum Illumination
0.0003 Lux @ (F1.0, AGC ON), 0 Lux with white light
Shutter Time
PAL: 1/25 s to 1/50,000 s
NTSC: 1/30 s to 1/50,000 s
Day & Night
24/7 Color Imaging
Signal System
PAL / NTSC
Slow Shutter
Max. 16 times
Angle Adjustment
Pan: 0°–360°, Tilt: 0°–75°, Rotation: 0°–360°
Lens
Lens Type
2.8 mm fixed focal lens
Focal Length & FOV
Horizontal FOV: 109°
Vertical FOV: 58°
Diagonal FOV: 129°
Lens Mount
M16

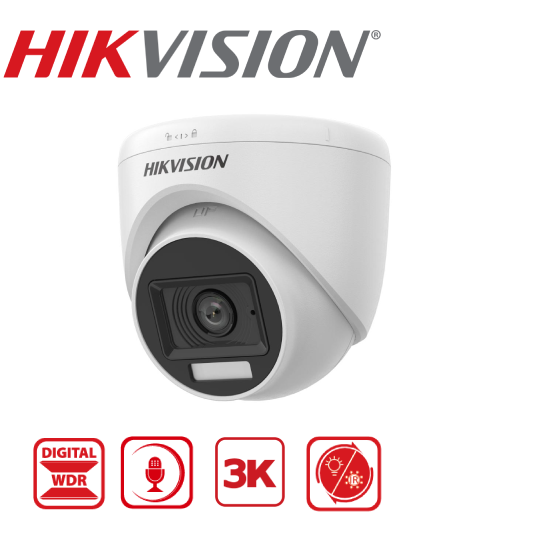

High-resolution 3K security camera with advanced CMOS imaging, infrared night vision, true day & night (ICR), and a wide-angle 2.8 mm fixed focal lens for detailed monitoring.
Product Specifications
Camera
Image Sensor
3K CMOS
Max. Resolution
2960 (H) × 1665 (V)
Minimum Illumination
0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/25 s to 1/50,000 s
NTSC: 1/30 s to 1/50,000 s
Day & Night
ICR
Angle Adjustment
Pan: 0°–360°, Tilt: 0°–75°, Rotation: 0°–360°
Signal System
PAL / NTSC
Lens
Lens Type
2.8 mm fixed focal lens
Focal Length & FOV
Horizontal FOV: 105°
Vertical FOV: 62°
Diagonal FOV: 132°
Lens Mount
M12

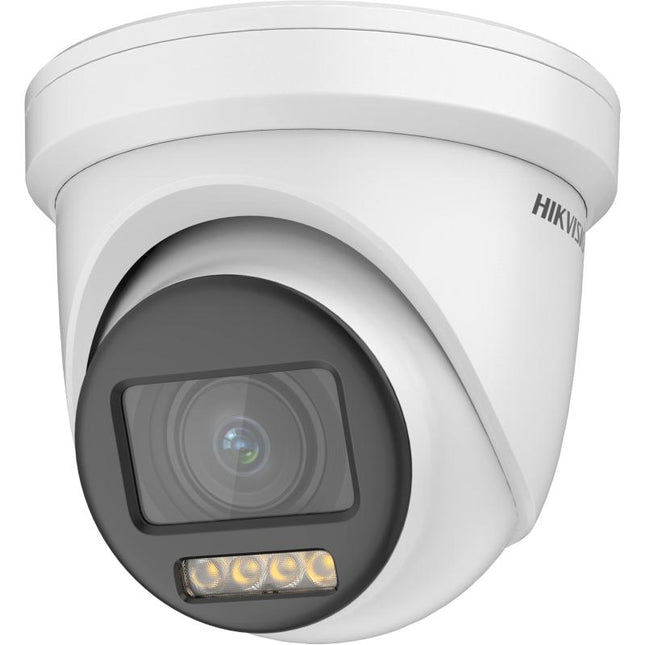

2MP Full HD security camera with ultra-low light sensitivity, 24/7 color imaging, and a motorized auto-focus varifocal lens for flexible and precise surveillance coverage.
Product Specifications
Camera
Image Sensor
2 MP CMOS
Max. Resolution
1920 (H) × 1080 (V)
Minimum Illumination
0.0003 Lux @ (F1.29, AGC ON), 0 Lux with white light
Shutter Time
PAL: 1/25 s to 1/50,000 s
NTSC: 1/30 s to 1/50,000 s
Day & Night
24/7 Color Imaging
Angle Adjustment
Pan: 0°–360°, Tilt: 0°–75°, Rotation: 0°–360°
Signal System
PAL / NTSC
Lens
Lens Type
2.8 mm to 12 mm motorized lens, auto focus
Focal Length & FOV
Horizontal FOV: 92.3° to 34.2°
Vertical FOV: 48.4° to 19°
Diagonal FOV: 112.2° to 39.2°
Lens Mount
Φ24

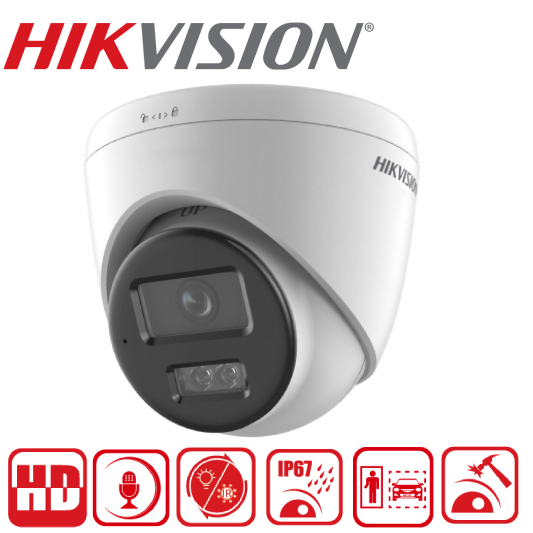

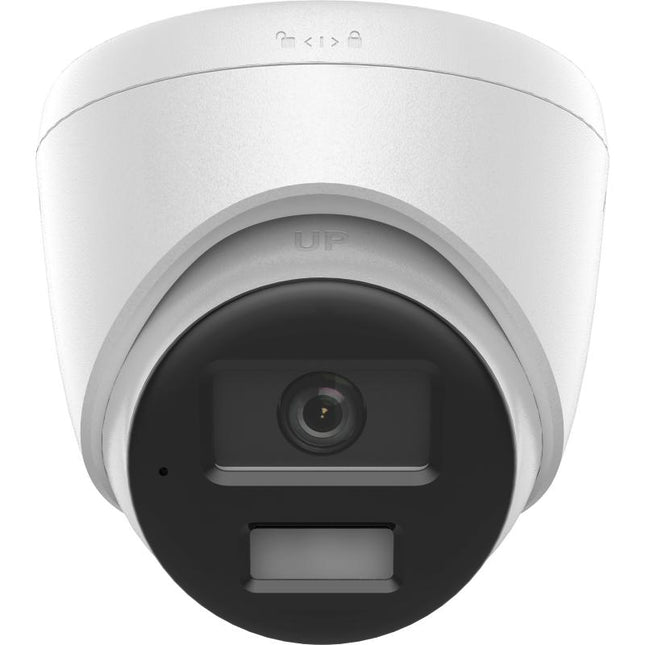

The Hikvision DS-2CD1383G2-LIU is an 8MP 4K Smart Hybrid Light Fixed Turret Network Camera designed for ultra-high-definition 4K 24/7 network video surveillance. Featuring Motion Detection 2.0 with human and vehicle target classification, smart dual-light illumination up to 20 meters, a built-in microphone for real-time audio, and IP67 weather resistance, it delivers crisp, detailed 4K indoor or outdoor IP security performance around the clock.
Product Specifications
Camera & Imaging
Image Sensor 1/2.7" Progressive Scan CMOS
Max. Resolution 3840 × 2160 (8 MP)
Frame Rate 50 Hz: 20 fps (3840 × 2160), 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)60 Hz: 20 fps (3840 × 2160), 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Min. Illumination Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR
Wide Dynamic Range (WDR) 120 dB WDR
Lens & Illumination
Lens Type 2.8 mm or 4 mm fixed focal lens
Field of View 113° (2.8 mm) / 90° (4 mm)
Smart Hybrid Light Range Up to 30 m IR / White Light range
Smart & Video Analytics
Human & Vehicle Classification Motion detection 2.0 supporting human and vehicle target classification
Audio & Network
Audio Built-in microphone for real-time audio security
Network Interface 1 RJ45 10M/100M self-adaptive Ethernet port
Video Compression H.265+ / H.265 / H.264+ / H.264
General & Environment
Operating Power 12 VDC ± 25%, PoE (802.3af)
Protection Level IP67
Operating Conditions -30 °C to 60 °C, humidity: 95% or less
Material & Dimensions Enclosure: Metal & plastic, Ø 110 mm × 93 mm
Weight Approx. 385 g
High-performance security camera equipped with a 1/2.4″ Progressive Scan CMOS sensor, sharp 3200 × 1800 resolution, excellent low-light performance with F1.0 aperture, and flexible 2.8 mm or 4 mm fixed focal lens options.
Product Specifications
Camera
Image Sensor
1/2.4″ Progressive Scan CMOS
Maximum Resolution
3200 × 1800
Minimum Illumination
Color: 0.001 Lux @ (F1.0, AGC ON)
0 Lux with light
Shutter Time
1/3 s to 1/100,000 s
Day & Night
IR cut filter
Angle Adjustment
Pan: 0° to 360°
Tilt: 0° to 75°
Rotate: 0° to 360°
Lens
Lens Type
Fixed focal lens (2.8 mm / 4 mm optional)
Focal Length & FOV
2.8 mm — Horizontal: 115°, Vertical: 60°, Diagonal: 144°
4 mm — Horizontal: 94°, Vertical: 50°, Diagonal: 112°
Lens Mount
M12
Iris Type
Fixed
Aperture
F1.0
High-performance 2K security camera with a 1/3″ Progressive Scan CMOS sensor, strong low-light capability with F1.0 aperture, and flexible 2.8 mm or 4 mm fixed focal lens options for wide or focused surveillance coverage.
Product Specifications
Camera
Image Sensor
1/3″ Progressive Scan CMOS
Maximum Resolution
2560 × 1440
Minimum Illumination
Color: 0.001 Lux @ (F1.0, AGC ON)
0 Lux with light
Shutter Time
1/3 s to 1/100,000 s
Day & Night
IR cut filter
Angle Adjustment
Pan: 0° to 360°
Tilt: 0° to 75°
Rotate: 0° to 360°
Lens
Lens Type
Fixed focal lens (2.8 mm / 4 mm optional)
Focal Length & FOV
2.8 mm: Horizontal 96°, Vertical 52°, Diagonal 114°
4 mm: Horizontal 80°, Vertical 43°, Diagonal 93°
Lens Mount
M12
Iris Type
Fixed
Aperture
F1.0
Full HD security camera with 1/2.8″ Progressive Scan CMOS sensor, ultra-low light performance with F1.0 aperture, and flexible 2.8 mm or 4 mm lens options for wide or standard coverage.
Product Specifications
Camera
Image Sensor
1/2.8″ Progressive Scan CMOS
Maximum Resolution
1920 × 1080
Minimum Illumination
Color: 0.001 Lux @ (F1.0, AGC ON)
0 Lux with light
Shutter Time
1/3 s to 1/100,000 s
Day & Night
IR cut filter
Angle Adjustment
Pan: 0° to 360°
Tilt: 0° to 75°
Rotate: 0° to 360°
Lens
Lens Type
Fixed focal lens (2.8 mm / 4 mm optional)
Focal Length & FOV
2.8 mm — Horizontal: 106°, Vertical: 56°, Diagonal: 129°
4 mm — Horizontal: 88°, Vertical: 47°, Diagonal: 103°
Lens Mount
M12
Iris Type
Fixed
Aperture
F1.0

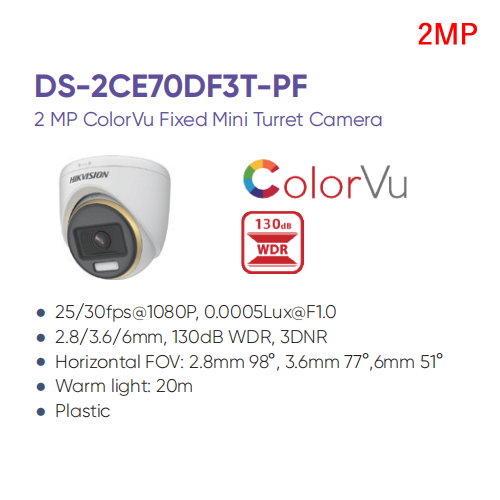

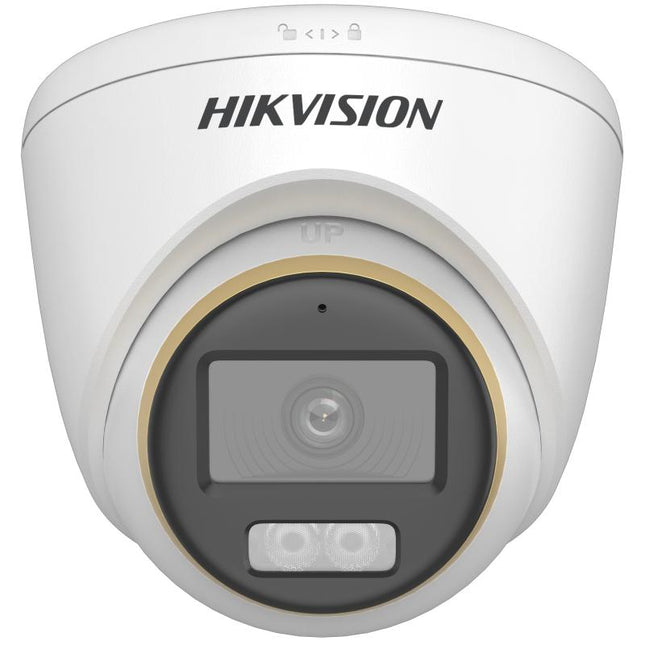

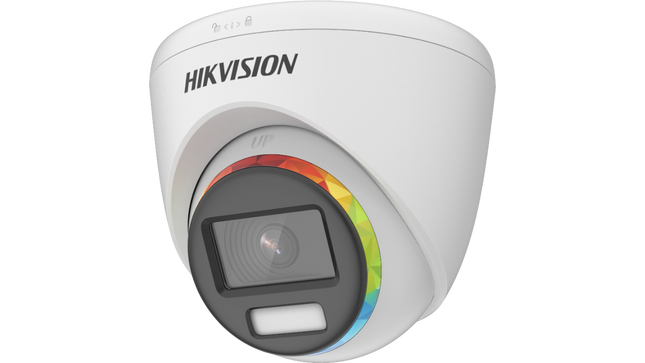

High-performance 2 MP security camera with 24/7 color imaging, ultra-low light sensitivity, slow shutter support up to 16×, and dual fixed focal lens options for reliable day and night surveillance.
Product Specifications
Camera
Image Sensor
2 MP CMOS
Max. Resolution
1920 (H) × 1080 (V)
Minimum Illumination
0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
Shutter Time
PAL: 1/25 s to 1/50,000 s
NTSC: 1/30 s to 1/50,000 s
Day & Night
24/7 Color Imaging
Signal System
PAL / NTSC
Slow Shutter
Max. 16 times
Angle Adjustment
Pan: 0°–360°, Tilt: 0°–75°, Rotation: 0°–360°
Lens
Lens Type
2.8 mm / 3.6 mm fixed focal lens
Field of View (2.8 mm)
Horizontal FOV: 98°
Vertical FOV: 52°
Diagonal FOV: 116°
Field of View (3.6 mm)
Horizontal FOV: 77°
Vertical FOV: 42°
Diagonal FOV: 91°
Lens Mount
M12
