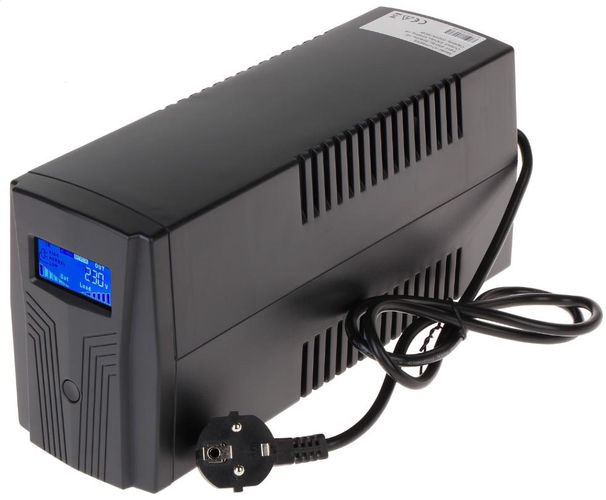

850VA / 510W UPS with multiple power connections, reliable charging performance, and durable plastic body for everyday power backup needs.
Product Specifications
General
Capacity 850VA / 510W
Body Material Plastic
Reload Button Yes
Connections & Ports
Power Sockets 2 x Schuko
USB Port Yes
Network Protection 2 x RJ45
Battery & Charging
Charging Time 6 – 8 hours
2000VA / 1200W UPS with tower enclosure, LED status indicators, and microprocessor-based digital control for stable and reliable power protection.
Product Specifications
General
Power Capacity 2000 VA / 1200 W
Enclosure Type Tower
Display & Control
Display LCD
Control System Microprocessor digital control
EA901PSRT online UPS with 1000VA / 900W capacity, rack/tower design, pure sinewave output, LCD display, and flexible connectivity for IT and network applications.
Product Specifications
General
Type UPS
Model EA901PSRT
UPS Technology Online
Design Rack / Tower
Power & Output
Power Capacity 1000VA / 900W
Output Waveform Pure Sine Wave
Display & Interface
Display LCD
Communication Ports RS232, USB Type-B
LAN Card Compatibility ST200P
Connections
Output Connectors 4 × IEC C13
Battery System
Internal Batteries 2 × 12V / 9Ah
External Battery Packs Up to 2 × EA901RT
Physical
Dimensions (W × H × D) 440 × 88 × 338 mm
Housing Metal
EAST online UPS with 6000VA / 6000W capacity, wide input voltage range, LCD & LED display, and advanced protection features designed for critical power applications.
Product Specifications
General
Brand EAST
Type Online UPS
Maximum Power 6000 VA
Active Power 6000 W
Electrical Specifications
Input Voltage 208 / 220 / 230 / 240 VAC
Input Voltage Range 110 ~ 176 VAC (linear derating 50–100% load); 176 ~ 288 VAC (no derating)
Output Voltage 208 (PF=0.9) / 220 / 230 / 240 VAC
Frequency Range 40 ~ 70 Hz (auto-sensing)
Output Frequency Synchronized to bypass (mains); 50 / 60 Hz ± 0.1% (battery mode)
Battery System
Number of Batteries 16
Battery Voltage 12 V
Battery Capacity 7 Ah
Interface & Display
Interface RS-232
Display LCD + LED
Physical & Environmental
Operating Temperature 0 – 40 °C
Weight 53 kg
Color Black
Protection Class IP20
EAST online UPS with 6000VA / 6000W capacity, wide input voltage range, LCD & LED display, and multiple communication interfaces, designed for professional and industrial power protection applications.
Product Specifications
General
Brand EAST
Type Online UPS
Maximum Power 6000 VA
Active Power 6000 W
Electrical Specifications
Input Voltage 208 / 220 / 230 / 240 VAC
Input Voltage Range 110 ~ 176 VAC (linear derating 50–100% load); 176 ~ 288 VAC
Output Voltage 208 (PF=0.9) / 220 / 230 / 240 VAC
Frequency Range 40 ~ 70 Hz; 50 / 60 Hz (auto-sensing)
Output Frequency Synchronized to bypass (mains); 50 / 60 Hz ± 0.1% (battery mode)
Interface & Display
Interface USB, RS-485, RS-232
Display LCD + LED
Physical
Dimensions (W × D × H) 191 × 465 × 350 mm
Weight 16 kg
Color Black
Additional Information
Battery Not included

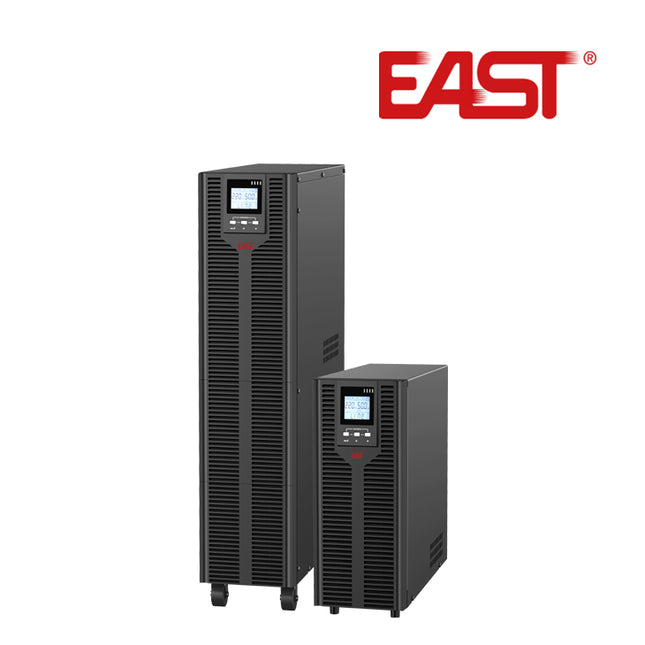

EAST EA-9010-S G4 online UPS with 10000 VA capacity, pure sine wave output, manual bypass, advanced protection features, and robust battery system for high-load critical power applications.
Product Specifications
General
Brand EAST
Model EA-9010-S G4
UPS Type Online (Inverter)
Form Factor Tower
Power & Output
Rated Power 10000 VA / 10000 W
Peak Output Power 10000 VA
Output Voltage 1-phase 230 V
Output Frequency 50 / 60 Hz
Output Waveform Pure Sine Wave (PSW)
Input & Bypass
Input Voltage 1-phase 230 V
Input Voltage Range 176 – 288 V
Bypass Manual (direct connection)
Connection Type Terminal blocks
Battery System
Battery Capacity 9 Ah
Number of Batteries 16
Cold Start Supported
External Battery Connection Supported
Protection & Safety
Protection Features Short circuit, overload protection, noise filtering, emergency cut-off socket
Alarm Audible sound alarm
Fuse Automatic
Control & Communication
Interfaces RS-232, USB
Expansion Slot SmartSlot
Display Integrated screen
Physical & Environmental
Operating Temperature 0 – 40 °C
Dimensions (H × W × D) 711 × 191 × 465 mm
Weight 62 kg
Mobility Wheels for transportation
High-performance online UPS with three-phase input and single-phase output, designed for critical power applications, offering high efficiency, zero transfer time, advanced battery management, and comprehensive protection features.
Product Specifications
Input
Input Wiring Three-phase five-wire (3Φ + N + PE)
Rated Voltage 380 / 400 / 415 Vac
Voltage Range 190 ~ 305 Vac (Linear derating 50%–100% load)305 ~ 499 Vac (No derating)
Rated Frequency 50 / 60 Hz (Auto-sensing)
Frequency Range 40 ~ 70 Hz
Input Power Factor ≥ 0.99
Bypass Voltage Range -40% ~ +15% (Settable)
Input THDi ≤ 5%
Output
Output Wiring Single-phase three-wire (1Φ + N + PE)
Rated Output Voltage 208 (PF=0.9) / 220 / 230 / 240 Vac
Voltage Regulation ± 1%
Output Frequency Synchronized to bypass in mains mode50 / 60 Hz ± 0.1% in battery mode
Waveform Pure Sinusoidal
Output Power Factor 1.0
Output THDv ≤ 1% (Linear load)≤ 3% (Non-linear load)
Crest Factor 3 : 1
Overload Capacity 105%–110%: 10 min110%–125%: 1 min126%–150%: 30 s
Battery
DC Voltage 192 Vdc (192 ~ 240 Vdc settable)
Number of Batteries 16 pcs (16 ~ 20 settable)
Inbuilt Battery (Standard Model) 12 V / 9 Ah × 16
Charging Current Standard model: 1 ALong-time model: 5 A (Default), 1 ~ 5 A settableOptional: 10 A
Recharge Time Standard model: 90% capacity in 8 hoursLong-time model: Depends on battery capacity
System
Efficiency ≥ 94% at 100% loadMax. 95% at 60% load≥ 98% in ECO mode
Transfer Time 0 ms
Protections Short-circuit, output overload, overtemperature, battery low voltage, overvoltage / undervoltage, fan failure
Max. Parallel Units Up to 4 units
Communications RS232 (Standard)Optional: USB, RS485, Dry Contacts, SNMP, Battery Temperature Compensation
Display LCD + LED
Environmental & Physical
Operating Temperature 0 ℃ ~ 40 ℃
Storage Temperature -25 ℃ ~ 55 ℃ (Without battery)
Relative Humidity 0 ~ 95% (Non-condensing)
Altitude ≤ 1000 m (Derating 1% per additional 100 m)
IP Rating IP20
Noise Level (1 m) ≤ 58 dB
Dimensions & Weight
Dimensions (W × D × H) 191 × 495 × 711 mm (S)191 × 495 × 350 mm (H)191 × 495 × 515 mm (H)
Packaged Dimensions 310 × 685 × 941 mm (S)318 × 617 × 475 mm (H)285 × 593 × 618 mm (H)
Net Weight 64 kg (S), 18.5 kg (H), 26.5 kg (H)
Gross Weight 72 kg (S), 20 kg (H), 28 kg (H)
