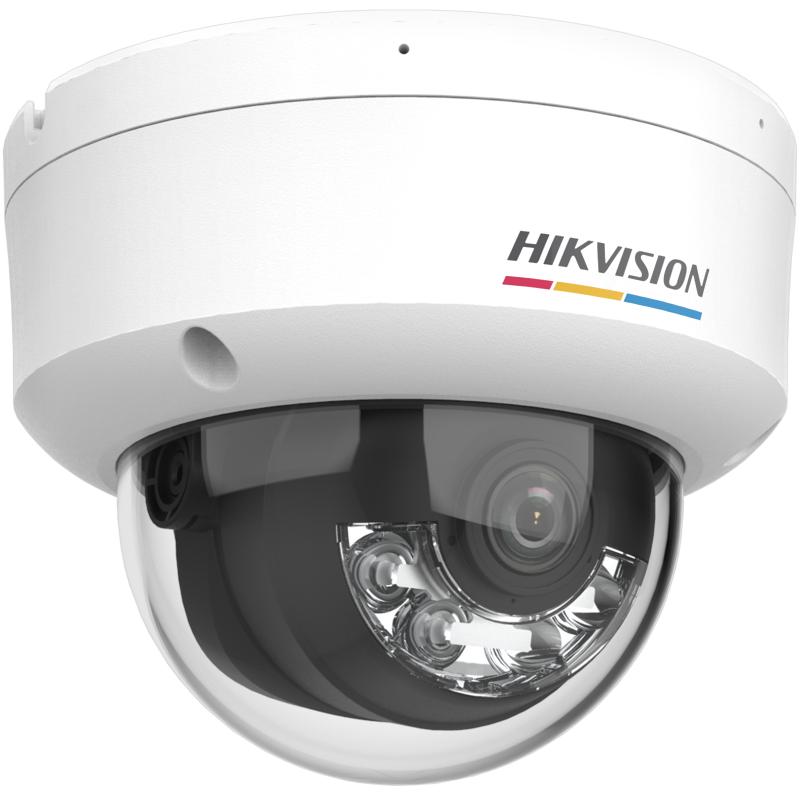

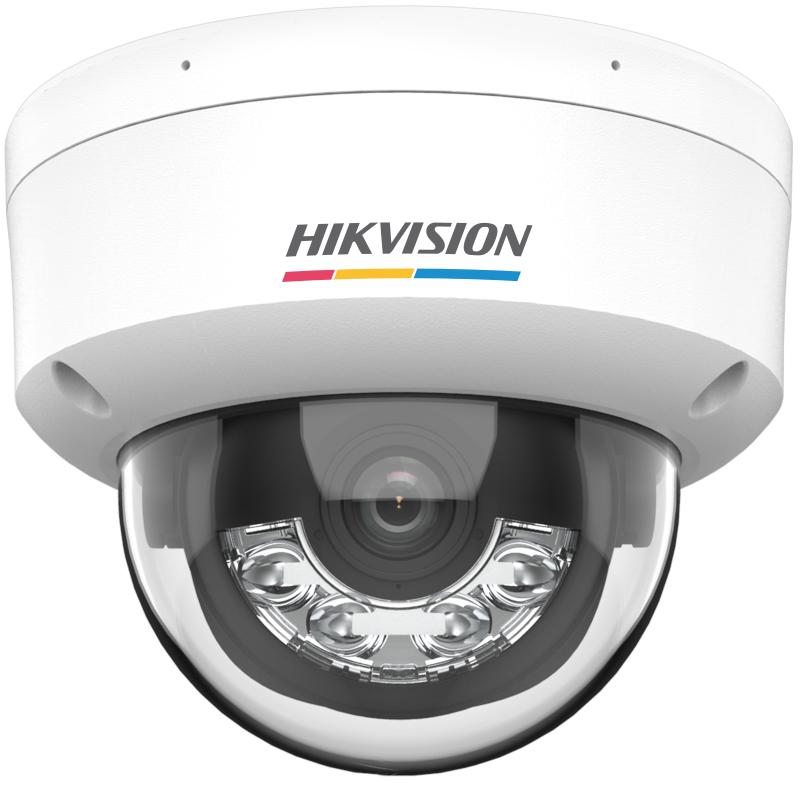

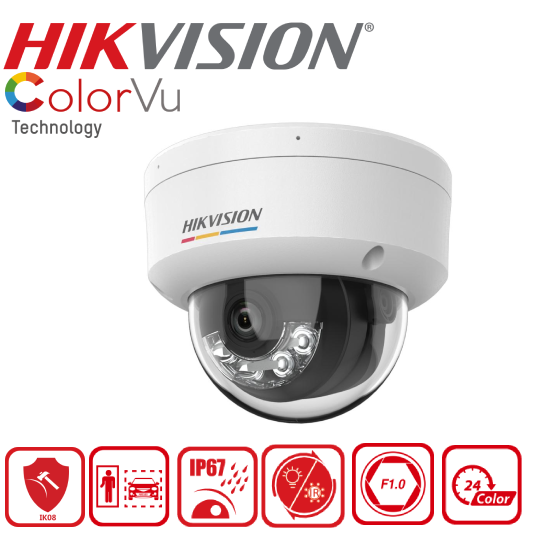

The Hikvision ColorVu 3.0 Pro (DS-2CD1147G3H-LIU) is a 4 MP fixed network dome camera designed for 24/7 vivid color imaging and intelligent security. Powered by an advanced 1/1.8" sensor, F1.0 super-aperture, and HIKAI-ISP intelligent image processing, it delivers high-definition 2560 × 1440 resolution video even in near-darkness. Featuring Motion Detection 3.0 with deep-learning human and vehicle classification, Smart Hybrid Light technology (combining IR and white light up to 30m), an integrated microphone, and an IP67 weatherproof / IK08 vandal-resistant housing, this camera is engineered for reliable perimeter and indoor-outdoor surveillance.
Product Specifications
General
Model Number DS-2CD1147G3H-LIU
Series ColorVu 3.0 Pro / Value Series
Product Type 4 MP Fixed Dome Network Camera
Protection IP67
Camera & Performance
Image Sensor 1/1.8" Progressive Scan CMOS
Max. Resolution 2560 × 1440
Focal Length & Options 2.8 mm or 4 mm Fixed Lens
Field of View (FOV) 104° (2.8mm) / 89.3° (4mm) Horizontal
Min. Illumination Colour: 0.0001 Lux @ (F1.0, AGC ON); 0 Lux with Light
Illumination & Night Vision
Supplement Light Type IR and White Light
Supplement Light Range Up to 30 m
ColorVu Technology 24/7 Full-Time Color Imaging with HIKAI-ISP
Video & Smart Features
Video Compression H.265+ / H.265 / H.264+ / H.264
Image Enhancement 120 dB WDR, 3D DNR, BLC, HLC
Motion Detection Motion Detection 3.0 (Human & Vehicle Classification)
Audio Built-in Microphone for Real-time Audio Monitoring
Network & Interface
Communication Interface 1 RJ45 10M/100M Self-Adaptive Ethernet Port
Protocols ONVIF (Profile S, Profile G), ISAPI, SDK
Client Software Hik-Connect, iVMS-4200, Hik-Central, Web Browser
Power & Environment
Power Supply 12 VDC ± 25%, PoE: IEEE 802.3af
Power Consumption Max. 7.2W / 7.5W
Operating Conditions -30°C to 60°C (-22°F to 140°F), Humidity 95% or less
Dimensions & Weight Ø 121.5 mm × 97.6 mm, Approx. 490 g
