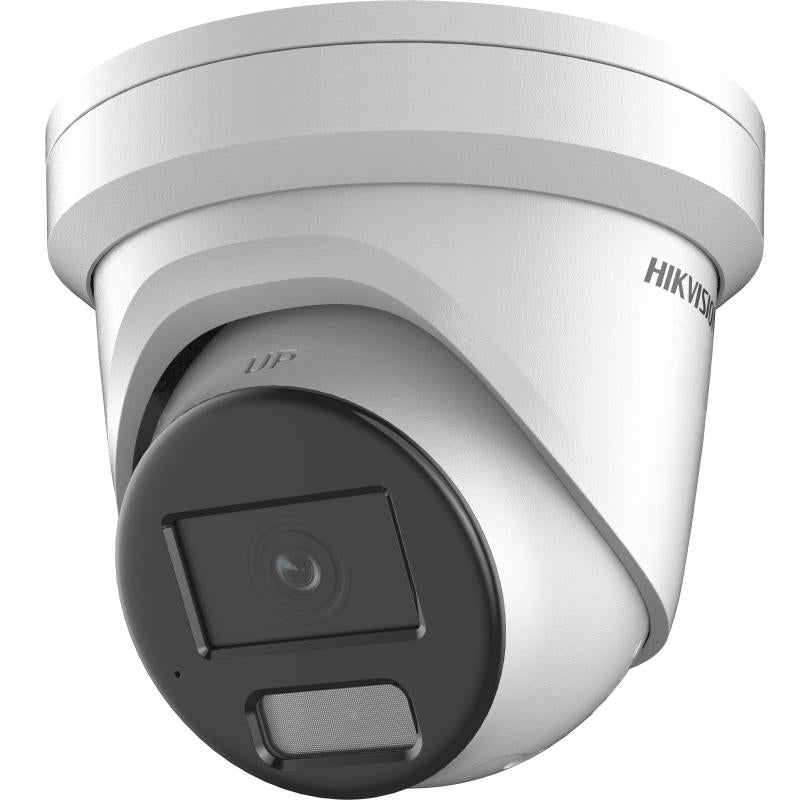

High-quality 2 MP ColorVu Fixed Turret Network Camera delivering 24/7 colorful imaging with excellent low-light performance. Features H.265+ compression, 120 dB WDR, deep-learning-based human and vehicle classification, built-in microphone, 30 m white light illumination, and IP67 water and dust resistance.
Technical Specifications
Key Features
Product Model
DS-2CD2327G2-LU 2MP
Product Type
2 MP ColorVu Fixed Turret Network Camera
Resolution
2 MP
Compression Technology
H.265+ / H.265 / H.264+ / H.264
WDR
120 dB
Smart Classification
Human and Vehicle Classification based on Deep Learning
Built-in Microphone
Yes (-U)
Color Imaging
24/7 Colorful Imaging
Weather Protection
IP67 Water and Dust Resistant
Camera
Image Sensor
1/2.8" Progressive Scan CMOS
Maximum Resolution
1920 × 1080
Minimum Illumination
Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with Light
Shutter Time
1/3 s to 1/100,000 s
Angle Adjustment
Pan: 0° to 360°
Tilt: 0° to 75°
Rotate: 0° to 360°
Lens
Lens Type
Fixed Focal Lens, 2.8 mm / 4 mm Optional
Focal Length & FOV
2.8 mm: H: 107°, V: 56°, D: 127°
4 mm: H: 84°, V: 45°, D: 99°
Lens Mount
M12
Iris Type
Fixed
Aperture
F1.0
Depth of Field
2.8 mm: 1.7 m to ∞
4 mm: 2.3 m to ∞
DORI
2.8 mm
D: 46 m, O: 18 m, R: 9 m, I: 4 m
4 mm
D: 56 m, O: 22 m, R: 11 m, I: 5 m
Illuminator
Supplement Light Type
White Light
Supplement Light Range
30 m
Smart Supplement Light
Yes
Video
Main Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 720)
60 Hz: 30 fps (1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360)
Third Stream
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
Third stream is supported under certain settings.
Video Compression
Main Stream: H.265 / H.264 / H.264+ / H.265+
Sub-Stream: H.265 / H.264 / MJPEG
Third Stream: H.265 / H.264
Third stream is supported under certain settings.
Video Bit Rate
32 Kbps to 8 Mbps
H.264 Type
Baseline Profile / Main Profile / High Profile
H.265 Type
Main Profile
Bit Rate Control
CBR / VBR
Scalable Video Coding (SVC)
H.264 and H.265 Encoding
Region of Interest (ROI)
1 Fixed Region for Main Stream and Sub-Stream
Audio
Audio Compression
-U: G.711ulaw / G.711alaw / G.722.1 / G.726 / MP2L2 / PCM / MP3 / AAC-LC
Audio Bit Rate
-U: 64 Kbps (G.711ulaw / G.711alaw)
16 Kbps (G.722.1)
16 Kbps (G.726)
32 to 192 Kbps (MP2L2)
8 to 320 Kbps (MP3)
16 to 64 Kbps (AAC-LC)
Audio Sampling Rate
-U: 8 kHz / 16 kHz / 32 kHz / 44.1 kHz / 48 kHz
Environment Noise Filtering
-U: Yes
