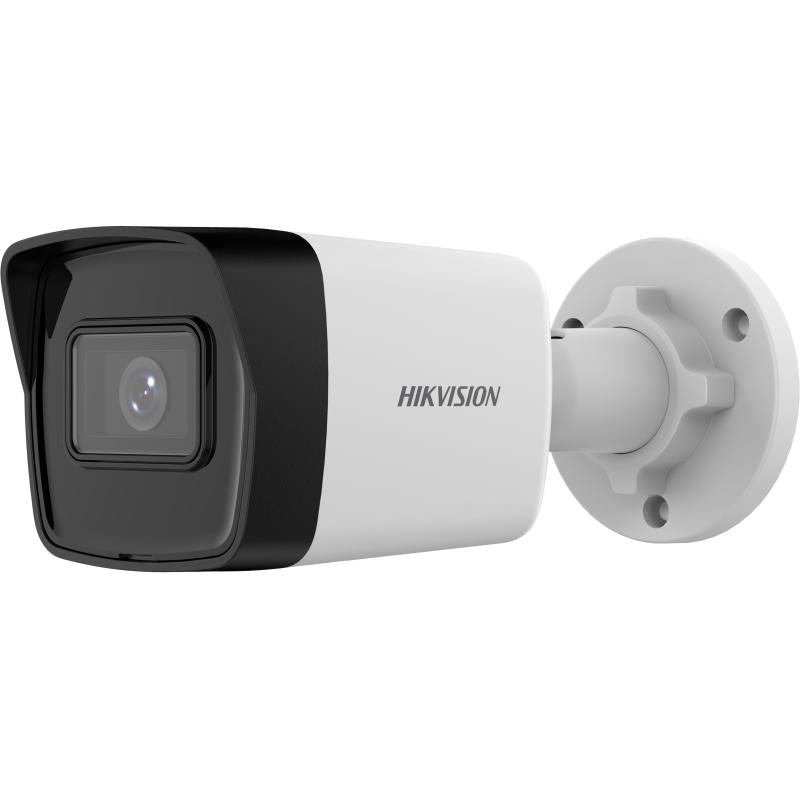

High-quality 2MP Fixed Mini Bullet Network Camera designed for reliable indoor and outdoor surveillance. Features Human and Vehicle Detection, DWDR technology, efficient H.265+ compression, advanced EXIR 2.0 infrared technology, and IP67 water and dust resistance.
Technical Specifications
Camera
Image Sensor
1/2.9" Progressive Scan CMOS
Maximum Resolution
1920 × 1080
Minimum Illumination
Color: 0.01 Lux @ (F2.0, AGC ON)
B/W: 0 Lux with IR
Shutter Time
1/3 s to 1/100,000 s
Day & Night
IR Cut Filter
Angle Adjustment
Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°
Lens
Lens Type
Fixed focal lens, 2.8 mm and 4 mm optional
Focal Length & FOV (2.8 mm)
Horizontal FOV: 104.9°
Vertical FOV: 58.3°
Diagonal FOV: 123.3°
Focal Length & FOV (4 mm)
Horizontal FOV: 81.3°
Vertical FOV: 43.7°
Diagonal FOV: 96.9°
Lens Mount
M12
Iris Type
Fixed
Aperture
F2.0
DORI
DORI (2.8 mm)
Detect: 42 m | Observe: 16 m | Recognize: 8 m | Identify: 4 m
DORI (4 mm)
Detect: 57 m | Observe: 22 m | Recognize: 11 m | Identify: 5 m
Illuminator
Supplement Light Type
IR
Supplement Light Range
Up to 40 m
Smart Supplement Light
Yes
IR Wavelength
850 nm
Video
Main Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 720)
60 Hz: 30 fps (1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360)
Video Compression
Main Stream: H.265+ / H.265 / H.264+ / H.264
Sub-Stream: H.265 / H.264 / MJPEG
Video Bit Rate
32 Kbps to 8 Mbps
H.264 Type
Baseline Profile, Main Profile, High Profile
H.265 Type
Main Profile
Bit Rate Control
CBR, VBR
Region of Interest (ROI)
1 fixed region for main stream and sub-stream
Network
Security
Password protection, complicated password, HTTPS encryption,
802.1X authentication (EAP-MD5), watermark, basic and digest
authentication for HTTP/HTTPS, WSSE and digest authentication
for Open Network Video Interface, RTP/RTSP over HTTPS,
security audit log, TLS 1.2, TLS 1.3, host authentication
(MAC address)
Simultaneous Live View
Up to 6 channels
API
Open Network Video Interface (Profile S, Profile T), ISAPI, SDK
Protocols
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP,
IPv4, IPv6, UDP, QoS, FTP, SMTP, HTTPS, DDNS, UPnP, 802.1X
User / Host
Up to 32 users
3 user levels: administrator, operator, and user
Client
iVMS-4200, Hik-Connect
Web Browser
Plug-in required live view: IE 10, IE 11
Local service: Chrome 57.0+, Firefox 52.0+
Wide Dynamic Range (WDR)
Digital WDR
SNR
≥ 52 dB
Day / Night Switch
Day, Night, Auto, Schedule
Image Enhancement
BLC, HLC, 3D DNR
Image Settings
Rotate mode, saturation, brightness, contrast, sharpness,
gain, white balance, adjustable by client software or web browser
Privacy Mask
4 programmable polygon privacy masks
Interface
Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port
Key Features
Detection
Human and Vehicle Detection
Backlight Compensation
DWDR technology
Compression
Efficient H.265+ compression technology
Infrared Technology
EXIR 2.0 advanced infrared technology
Weather Protection
IP67 water and dust resistant
