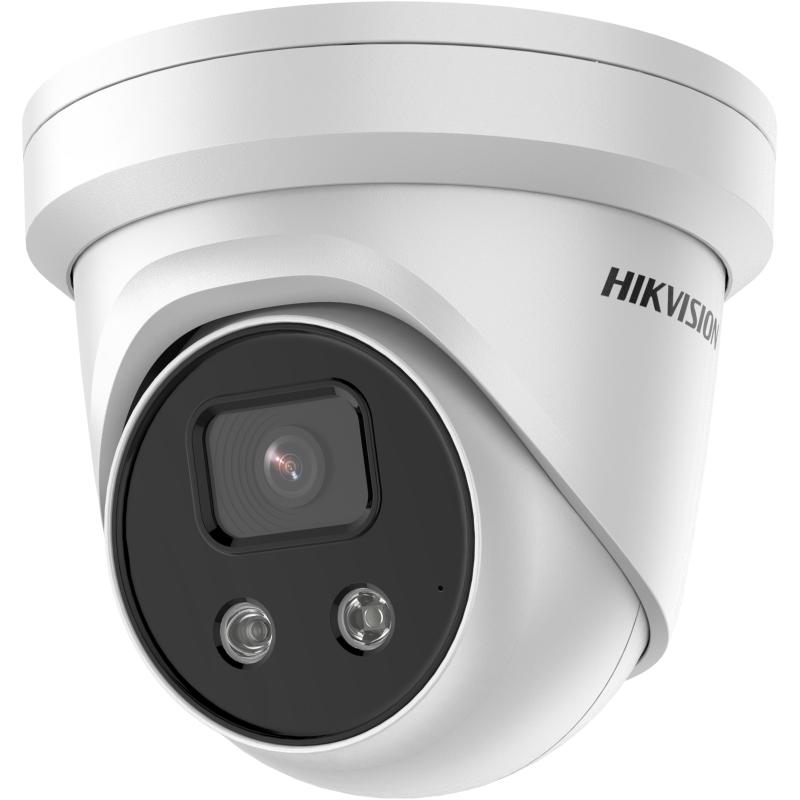

High-quality 2MP AcuSense Fixed Turret Network Camera with excellent low-light performance powered by DarkFighter technology. Features 120 dB True WDR, deep-learning-based human and vehicle classification, H.265+ compression, advanced streaming technology, IR illumination up to 40 m, and IP67 water and dust resistance.
Technical Specifications
Camera
Image Sensor
1/2.8" Progressive Scan CMOS
Maximum Resolution
1920 × 1080
Minimum Illumination
Color: 0.002 Lux @ (F1.4, AGC ON)
B/W: 0 Lux with IR
Shutter Time
1/3 s to 1/100,000 s
Day & Night
IR Cut Filter
Angle Adjustment
Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°
Lens
Lens Type
Fixed focal lens, 2.8, 4, and 6 mm optional
Focal Length & FOV (2.8 mm)
Horizontal FOV: 107°
Vertical FOV: 57°
Diagonal FOV: 129°
Focal Length & FOV (4 mm)
Horizontal FOV: 86°
Vertical FOV: 47°
Diagonal FOV: 102°
Focal Length & FOV (6 mm)
Horizontal FOV: 55°
Vertical FOV: 29°
Diagonal FOV: 65°
Lens Mount
M12
Iris Type
Fixed
Aperture
F1.4
DORI
DORI (2.8 mm)
Detect: 44 m | Observe: 17 m | Recognize: 8 m | Identify: 4 m
DORI (4 mm)
Detect: 53 m | Observe: 21 m | Recognize: 10 m | Identify: 5 m
DORI (6 mm)
Detect: 86 m | Observe: 34 m | Recognize: 17 m | Identify: 8 m
Illuminator
Supplement Light Type
IR
Supplement Light Range
Up to 40 m
Smart Supplement Light
Yes
IR Wavelength
850 nm
Video
Main Stream
50 Hz: up to 50 fps (1920 × 1080, 1280 × 720)
60 Hz: up to 60 fps (1920 × 1080, 1280 × 720)
*High frame rate is supported under certain settings.
Sub-Stream
50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360)
Third Stream
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*Third stream is supported under certain settings.
Fourth Stream
50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)
*Fourth stream is supported under certain settings.
Video Compression
Main Stream: H.265 / H.264 / H.264+ / H.265+
Sub-Stream: H.265 / H.264 / MJPEG
Third Stream: H.265 / H.264
Fourth Stream: H.265 / H.264 / MJPEG
*Third stream and fourth stream are supported under certain settings.
Video Bit Rate
32 Kbps to 8 Mbps
H.264 Type
Baseline Profile / Main Profile / High Profile
H.265 Type
Main Profile
Bit Rate Control
CBR / VBR
Scalable Video Coding (SVC)
H.264 and H.265 encoding
Region of Interest (ROI)
5 fixed regions for main stream and sub-stream
Target Cropping
Yes
Audio
Audio Compression
G.711ulaw / G.711alaw / G.722.1 / G.726 / MP2L2 / PCM / MP3 / AAC-LC
Audio Bit Rate
64 Kbps (G.711ulaw / G.711alaw)
16 Kbps (G.722.1)
16 Kbps (G.726)
32 to 192 Kbps (MP2L2)
8 to 320 Kbps (MP3)
16 to 64 Kbps (AAC-LC)
Audio Sampling Rate
8 kHz / 16 kHz / 32 kHz / 44.1 kHz / 48 kHz
Environment Noise Filtering
Yes
Network
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP,
NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour,
SSL/TLS, PPPoE, ARP, SNMP, WebSocket, WebSockets
Simultaneous Live View
Up to 6 channels
API
Open Network Video Interface
(Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
User / Host
Up to 32 users
3 user levels: administrator, operator and user
Security
Password protection, complicated password, HTTPS encryption,
IP address filter, Security Audit Log, basic and digest
authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest
authentication for Open Network Video Interface
Network Storage
NAS (NFS, SMB/CIFS), auto network replenishment (ANR).
Together with high-end Hikvision memory card, memory card
encryption and health detection are supported.
Client
iVMS-4200, Hik-Connect, Hik-Central
Web Browser
Plug-in required live view: IE 10, IE 11
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Image Parameters Switch
Yes
Image Settings
Rotate mode, saturation, brightness, contrast, sharpness,
gain, white balance adjustable by client software or web browser
Day / Night Switch
Day, Night, Auto, Schedule
Wide Dynamic Range (WDR)
120 dB
SNR
≥ 52 dB
Image Enhancement
BLC, HLC, 3D DNR
Interface
Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port
Key Features
AcuSense
False alarm reduction through human and vehicle target
classification based on deep learning
Low-Light Performance
Excellent low-light performance with powered-by-DarkFighter technology
Backlight Compensation
120 dB True WDR
Compression
Efficient H.265+ compression technology
Advanced Streaming
Advanced streaming technology for smooth live view and
data self-correcting in poor network conditions
IR Illumination
IR range up to 40 m
Weather Protection
IP67 water and dust resistant
