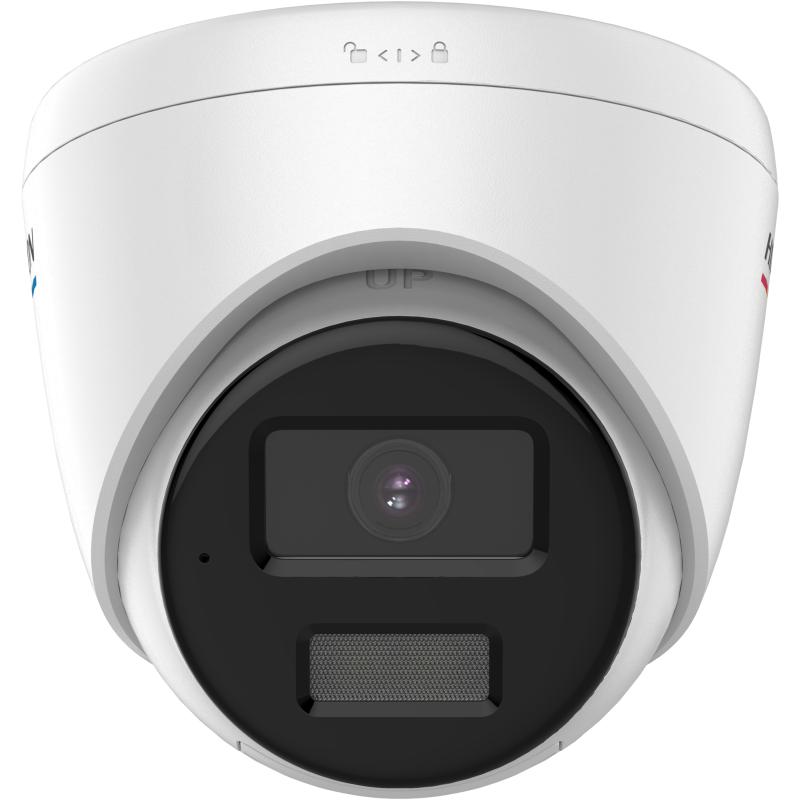

High-quality 2MP ColorVu Fixed Turret Network Camera designed for 24/7 colorful imaging and excellent low-light performance. Features an F1.0 large-aperture lens, 120 dB WDR, efficient H.265+ compression, human and vehicle detection, white light illumination, and IP67 water and dust resistance.
Technical Specifications
Camera
Image Sensor
1/2.8" Progressive Scan CMOS
Maximum Resolution
1920 × 1080
Minimum Illumination
Color: 0.001 Lux @ (F1.0, AGC ON)
0 Lux with light
Shutter Time
1/3 s to 1/100,000 s
Day & Night
24/7 Color Imaging
Angle Adjustment
Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°
Lens
Lens Type
Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV (2.8 mm)
Horizontal FOV: 106°
Vertical FOV: 57°
Diagonal FOV: 127°
Focal Length & FOV (4 mm)
Horizontal FOV: 84°
Vertical FOV: 45°
Diagonal FOV: 99°
Lens Mount
M12
Iris Type
Fixed
Aperture
F1.0
DORI
DORI (2.8 mm)
Detect: 44 m | Observe: 17 m | Recognize: 8 m | Identify: 4 m
DORI (4 mm)
Detect: 56 m | Observe: 22 m | Recognize: 11 m | Identify: 5 m
Illuminator
Supplement Light Type
White Light
Supplement Light Range
Up to 30 m
Smart Supplement Light
Yes
Video
Main Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 720)
60 Hz: 30 fps (1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360)
Third Stream
50 Hz: 1 fps (640 × 360)
60 Hz: 1 fps (640 × 360)
Video Compression
Main Stream: H.265+ / H.265 / H.264+ / H.264
Sub-Stream: H.265 / H.264 / MJPEG
Third Stream: H.265 / H.264
Video Bit Rate
32 Kbps to 8 Mbps
H.264 Type
Baseline Profile, Main Profile, High Profile
H.265 Type
Main Profile
Bit Rate Control
CBR, VBR
Region of Interest (ROI)
1 fixed region for main stream and sub-stream
Audio
Audio Type
Mono sound
Environment Noise Filtering
Yes
Audio Sampling Rate
8 kHz / 16 kHz
Audio Compression
G.711ulaw / G.711alaw / G.722.1 / G.726 / MP2L2 / PCM / AAC-LC
Audio Bit Rate
64 Kbps (G.711 ulaw) / 64 Kbps (G.711 alaw)
16 Kbps (G.722.1) / 16 Kbps (G.726)
32 to 160 Kbps (MP2L2)
16 to 64 Kbps (AAC-LC)
Network
Security
Password protection, complicated password, HTTPS encryption,
802.1X authentication (EAP-MD5), watermark, basic and digest
authentication for HTTP/HTTPS, WSSE and digest authentication
for Open Network Video Interface, RTP/RTSP over HTTPS,
security audit log, TLS 1.2, TLS 1.3, host authentication
(MAC address)
Simultaneous Live View
Up to 6 channels
API
Open Network Video Interface
(Profile S, Profile T, Profile G), ISAPI, SDK
Protocols
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP,
IPv4, IPv6, UDP, QoS, FTP, SMTP, HTTPS, DDNS, UPnP, 802.1X
User / Host
Up to 32 users
3 user levels: administrator, operator, and user
Client
iVMS-4200, Hik-Connect
Web Browser
Plug-in required live view: IE 10, IE 11
Local service: Chrome 57.0+, Firefox 52.0+
Wide Dynamic Range (WDR)
120 dB
SNR
≥ 52 dB
Day / Night Switch
Day, Night, Auto, Schedule
Image Enhancement
BLC, HLC, 3D DNR
Image Settings
Rotate mode, saturation, brightness, contrast, sharpness,
gain, white balance, adjustable by client software or web browser
Privacy Mask
4 programmable polygon privacy masks
Interface
Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port
Key Features
ColorVu
24/7 colorful imaging with excellent low-light performance
Intelligent Detection
Human and Vehicle Detection
Compression
Efficient H.265+ compression technology to save bandwidth and storage
Backlight Compensation
120 dB WDR
Image Enhancement
3D DNR technology
Illumination
White Light, up to 30 m
Weather Protection
IP67 water and dust resistant
