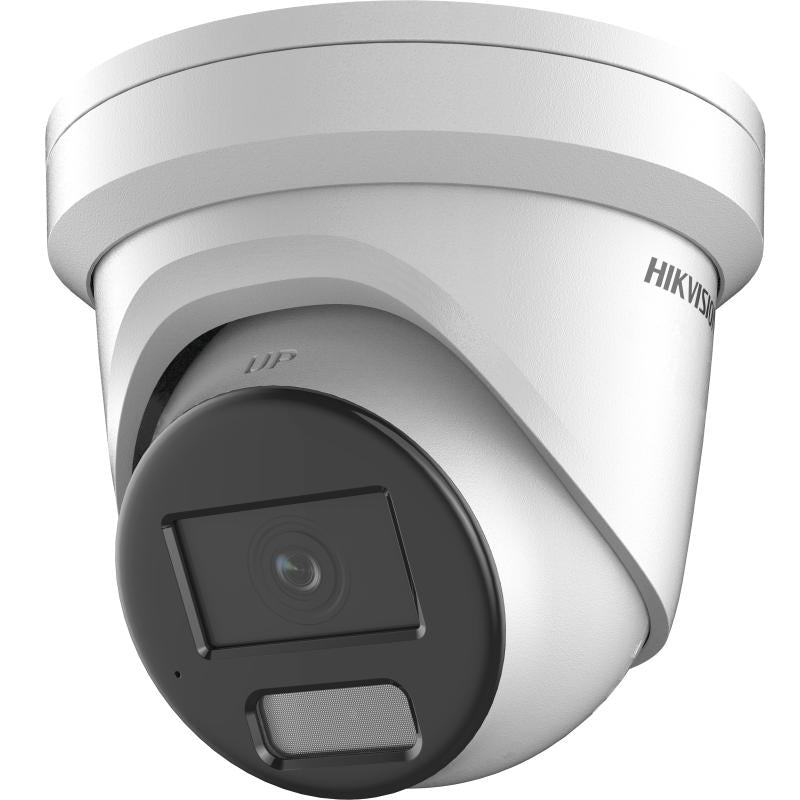

5MP AcuSense Fixed Turret Network Camera designed for advanced security and surveillance applications. It features Hikvision Embedded Open Platform (HEOP), 1.5 TOPS computing power, 60 MB system memory, 400 MB smart RAM, 2 GB eMMC storage, excellent DarkFighter low-light performance, 120 dB true WDR, deep-learning-based Human and Vehicle classification, advanced streaming technology, and IP67 water and dust resistance.
Technical Specifications
Camera
Model DS-2CD3356G2-ISU
Image Sensor 1/2.7" Progressive Scan CMOS
Maximum Resolution 2592 × 1944
Minimum Illumination Color: 0.003 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR
Shutter Time 1/3 s to 1/100,000 s
Day & Night IR Cut Filter
Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°
Smart Detection Human and Vehicle Target Classification based on Deep Learning
Low-Light Technology Powered-by-DarkFighter Technology
Advanced Streaming Smooth live view and data self-correcting in poor network conditions
Lens
Lens Type Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV (2.8 mm) Horizontal FOV: 98°
Vertical FOV: 71°
Diagonal FOV: 131°
Focal Length & FOV (4 mm) Horizontal FOV: 79°
Vertical FOV: 58°
Diagonal FOV: 104°
Lens Mount M12
Iris Type Fixed
Aperture F1.4
DORI
2.8 mm D: 64 m, O: 25 m, R: 12 m, I: 6 m
4 mm D: 77 m, O: 30 m, R: 15 m, I: 7 m
Illuminator
Supplement Light Type IR
Supplement Light Range Up to 40 m
Smart Supplement Light Yes
IR Wavelength 850 nm
HEOP
Open Resources Memory: 60 MB
Smart RAM: 400 MB
eMMC: 2 GB
Computing Power 1.5 TOPS
Deep Learning Structure Caffe, PyTorch, TensorFlow
Programming Language C, C++
Video
Main Stream 50 Hz: 25 fps (2592 × 1944, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 24 fps (2592 × 1944)
60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Third Stream 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*Third stream is supported under certain settings.
Fourth Stream 50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)
*Fourth stream is supported under certain settings.
Video Compression Main Stream: H.265 / H.264 / H.264+ / H.265+
Sub-Stream: H.265 / H.264 / MJPEG
Third Stream: H.265 / H.264
Fourth Stream: H.265 / H.264 / MJPEG
*Third stream and fourth stream are supported under certain settings.
Video Bit Rate 32 Kbps to 16 Mbps
H.264 Type Baseline Profile / Main Profile / High Profile
H.265 Type Main Profile
Bit Rate Control CBR / VBR
Scalable Video Coding (SVC) H.264 and H.265 encoding
Region of Interest (ROI) 5 fixed regions for main stream and sub-stream
Target Cropping Yes
Audio
Audio Type Mono sound
Audio Compression G.711ulaw / G.711alaw / G.722.1 / G.726 / MP2L2 / PCM / MP3 / AAC-LC
Audio Bit Rate 64 Kbps (G.711ulaw/G.711alaw) / 16 Kbps (G.722.1) / 16 Kbps (G.726) / 32 to 192 Kbps (MP2L2) / 8 to 320 Kbps (MP3) / 16 to 64 Kbps (AAC-LC)
Audio Sampling Rate 8 kHz / 16 kHz / 32 kHz / 44.1 kHz / 48 kHz
Environment Noise Filtering Yes
Network
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SFTP, ARP, SNMP, WebSocket, WebSockets
Simultaneous Live View Up to 6 channels
API Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
User / Host Up to 32 users
3 user levels: administrator, operator, and user
Security Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.2, WSSE and digest authentication for Open Network Video Interface, memory card encryption, SFTP encryption, SRTP encryption
Network Storage NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Client iVMS-4200, Hik-Connect, Hik-Central
Web Browser Plug-in required live view: IE 10, IE 11
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Image Parameters Switch Yes
Image Settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Day / Night Switch Day, Night, Auto, Schedule
Wide Dynamic Range (WDR) 120 dB True WDR
Image Enhancement BLC, HLC, 3D DNR
SNR ≥ 52 dB
Interface
Alarm 1 input, 1 output (max. 12 VDC, 30 mA)
Protection
Water & Dust Resistance IP67
