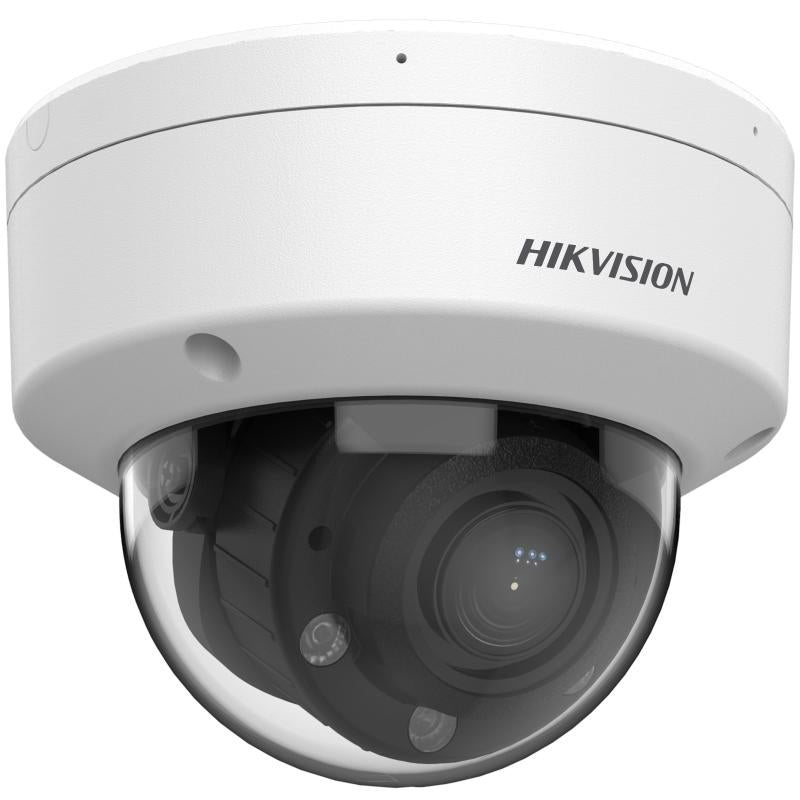

6 MP Smart Hybrid Light Motion 2.0 Motorized Varifocal Dome Network Camera designed for reliable indoor and outdoor surveillance. It delivers high-quality 6 MP imaging, Human and Vehicle Detection, long-range Smart Hybrid Light, efficient H.265+ compression, 120 dB WDR, 3D DNR, built-in microphone, motorized varifocal lens, and on-board storage support up to 512 GB. The camera is water and dust resistant with IP67 protection and vandal resistant with IK10 protection.
Technical Specifications
Camera
Model
DS-2CD3761G2-LIZSU(2.7-13.5mm)
Image Sensor
1/2.4" Progressive Scan CMOS
Maximum Resolution
3200 × 1800
Minimum Illumination
Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Shutter Time
1/3 s to 1/100,000 s
Day & Night
IR Cut Filter
Angle Adjustment
Pan: 0° to 355°, Tilt: 0° to 75°, Rotate: 0° to 355°
Detection
Human and Vehicle Detection
Lens
Lens Type
Varifocal lens, motorized lens, 2.7 to 13.5 mm
Focal Length & FOV
2.7 to 13.5 mm
Horizontal FOV: 106° to 35.6°
Vertical FOV: 55.9° to 20°
Diagonal FOV: 127.4° to 40.8°
Lens Mount
Ø14
Iris Type
Fixed
Aperture
Max. F1.6
Depth of Field
Wide: 1 m to ∞
Tele: 4 m to ∞
DORI
Wide
D: 68.1 m, O: 27 m, R: 13.6 m, I: 6.8 m
Tele
D: 200 m, O: 79.4 m, R: 40 m, I: 20 m
Illuminator
Supplement Light Type
IR, White Light
Supplement Light Range
Up to 30 m
Smart Supplement Light
Yes
IR Wavelength
850 nm
Video
Main Stream
50 Hz: 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
Third Stream
50 Hz: 1 fps (640 × 360)
60 Hz: 1 fps (640 × 360)
Video Compression
Main Stream: H.265+ / H.265 / H.264+ / H.264
Sub-Stream: H.265 / H.264 / MJPEG
Third Stream: H.265 / H.264
Video Bit Rate
32 Kbps to 8 Mbps
H.264 Type
Baseline Profile, Main Profile, High Profile
H.265 Type
Main Profile
Bit Rate Control
CBR, VBR
Region of Interest (ROI)
1 fixed region for main stream and sub-stream
Audio
Audio Type
Mono sound
Environment Noise Filtering
Yes
Audio Sampling Rate
8 kHz / 16 kHz
Audio Compression
G.711 / G.722.1 / G.726 / MP2L2 / PCM / AAC-LC
Audio Bit Rate
64 Kbps (G.711ulaw/G.711alaw) /
16 Kbps (G.722.1) /
16 Kbps (G.726) /
32 to 160 Kbps (MP2L2) /
16 to 64 Kbps (AAC-LC)
Key Features
Resolution
6 MP
Smart Hybrid Light
IR + White Light with long-range illumination
Motion Detection
Motion 2.0
Human & Vehicle Detection
Supported
Wide Dynamic Range
120 dB WDR
Noise Reduction
3D DNR
Audio
Built-in Microphone for real-time audio security
On-board Storage
Up to 512 GB SD Card
Installation
Power over Ethernet (PoE)
Protection
Water & Dust Resistance
IP67
Vandal Resistance
IK10
