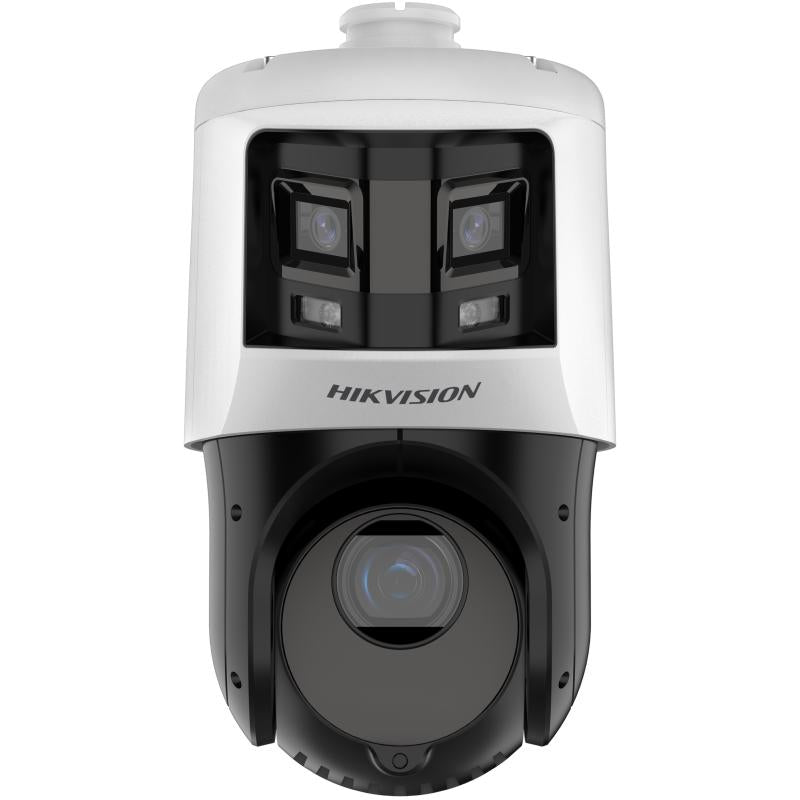

Advanced TandemVu panoramic network speed dome camera combining 6 MP panoramic imaging with 2 MP detailed imaging, ColorVu and DarkFighter technology, 25× optical zoom, AcuSense human and vehicle classification, and powerful IR and white-light illumination for comprehensive day and night surveillance.
Technical Specifications
Camera
Image Sensor
[Bullet channel]: 1/2.5" Progressive Scan CMOS
[PTZ channel]: 1/2.8" Progressive Scan CMOS
Maximum Resolution
[Bullet channel]: 3632 × 1632
[PTZ channel]: 1920 × 1080
Minimum Illumination
[Bullet channel]: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light
[PTZ channel]: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Speed
1 s to 1/30,000 s
Day & Night
ICR
Zoom
[PTZ channel]: 25× optical zoom, 16× digital zoom
Slow Shutter
Yes
Lens
Focal Length
[Bullet channel]: 2.8 mm
[PTZ channel]: 4.8 to 120 mm, 25× optical
Field of View (FOV)
[Bullet channel]: Horizontal: 180° ± 10°, Vertical: 80° ± 5°
[PTZ channel]:
Horizontal: 54.8° to 2.8° (wide-tele)
Vertical: 31.4° to 1.5° (wide-tele)
Diagonal: 62.2° to 3.2° (wide-tele)
Focus
Semi-auto / Manual / Auto
Aperture
[Bullet channel]: F1.0
[PTZ channel]: F1.6
Zoom Speed
[PTZ channel]: Approx. 3.6 s
Illuminator
Supplement Light Type
[PTZ channel]: IR
[Bullet channel]: White Light
Supplement Light Range
[PTZ channel]: Up to 100 m
[Bullet channel]: Up to 30 m
Smart Supplement Light
Yes
PTZ
Movement Range (Pan)
360°
Movement Range (Tilt)
-15° to 90° (Auto Flip)
Pan Speed
Configurable from 0.1° to 80°/s; preset speed: 80°/s
Tilt Speed
Configurable from 0.1° to 80°/s; preset speed: 80°/s
Proportional Pan
Yes
Presets
300
Preset Freezing
Yes
Patrol Scan
8 patrols, up to 32 presets for each patrol
Pattern Scan
4 pattern scans
Park Action
Preset / Pattern Scan / Patrol Scan / Auto Scan / Tilt Scan / Random Scan / Frame Scan / Panorama Scan
3D Positioning
Yes
PTZ Status Display
Yes
Scheduled Task
Preset / Pattern Scan / Patrol Scan / Auto Scan / Tilt Scan / Random Scan / Frame Scan / Panorama Scan / Dome Reboot / Dome Adjust / AUX Output
Power-off Memory
Yes
Video
Main Stream
[Bullet channel]
50 Hz: 25 fps (3632 × 1632, 3680 × 1656)
60 Hz: 30 fps (3632 × 1632, 3680 × 1656)
[PTZ channel]
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream
[Bullet channel]
50 Hz: 25 fps (1200 × 536, 960 × 432)
60 Hz: 30 fps (1200 × 536, 960 × 432)
[PTZ channel]
50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
Third Stream
[Bullet channel]: No
[PTZ channel]
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Video Compression
H.265 / H.264 / MJPEG
Video Bit Rate
32 Kbps to 16384 Kbps
H.264 Type
Baseline Profile / Main Profile / High Profile
H.265 Type
Main Profile
Scalable Video Coding (SVC)
H.264 and H.265 encoding
Region of Interest (ROI)
8 fixed regions for each stream
Audio
Audio Compression
G.711 / G.722.1 / G.726 / MP2L2 / PCM / AAC-LC / MP3
Audio Bit Rate
MP2L2: 32 Kbps, 40 Kbps, 48 Kbps, 56 Kbps, 64 Kbps, 80 Kbps, 96 Kbps, 112 Kbps, 128 Kbps, 144 Kbps, 160 Kbps, 192 Kbps
AAC-LC: 16 Kbps, 32 Kbps, 64 Kbps
MP3: 8 Kbps, 16 Kbps, 24 Kbps, 32 Kbps, 40 Kbps, 48 Kbps, 56 Kbps, 64 Kbps, 80 Kbps, 96 Kbps, 112 Kbps, 128 Kbps, 160 Kbps, 192 Kbps, 224 Kbps, 256 Kbps, 320 Kbps
Audio Sampling Rate
MP2L2: 16 kHz, 32 kHz, 48 kHz
AAC-LC: 16 kHz, 32 kHz, 48 kHz
PCM: 8 kHz, 16 kHz, 32 kHz, 48 kHz
MP3: 8 kHz, 16 kHz, 32 kHz, 48 kHz
Environment Noise Filtering
Yes
