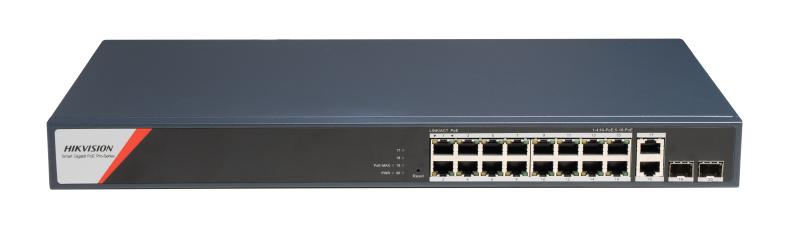

DS-3E1520HP-SI-16P2T2F 16-port Gigabit Smart PoE Switch

Description

16-port Gigabit Smart PoE Switch featuring 16 × 10/100/1000 Mbps PoE ports, 2 × Gigabit RJ45 ports, 2 × Gigabit SFP ports, a 230 W total PoE power budget, 802.3bt Hi-PoE with up to 90 W on a single port, 802.1Q VLAN, STP/RSTP loop prevention, storm control, cable detection, SNMP, QoS, DHCP snooping, and 6 kV surge protection for reliable network and surveillance applications.

Technical Specifications

Network Parameters

Ports 16 × Gigabit PoE ports, 2 × Gigabit RJ45 ports, 2 × Gigabit fiber optical ports
PoE Ports 16 × 10/100/1000 Mbps PoE ports
RJ45 Ports 2 × 10/100/1000 Mbps RJ45 ports
SFP Ports 2 × 10/100/1000 Mbps SFP ports
Total PoE Power Budget 230 W
MAC Address Table 8 K
Switching Capacity Whole-Device Performance: 56 Gbps
Port Performance: 40 Gbps
Packet Forwarding Rate Whole-Device Performance: 29.76 Mpps
Port Performance: 41.66 Mpps
Internal Cache 4.1 Mbits

PoE Features

PoE Standard Supports IEEE 802.3bt Hi-PoE
Maximum Power per Port Up to 90 W for one port
Total PoE Power Budget 230 W

Network Management

VLAN Supports 802.1Q VLAN
Loop Prevention Supports STP/RSTP
Storm Control Supported
Cable Detection Supports cable detection to locate failures
SNMP Supported
QoS Supported
DHCP Snooping Supported

Protection

Surge Protection 6 kV

General

Model DS-3E1520HP-SI-16P2T2F
Product Type 16 Port Gigabit Smart PoE Switch
Shell Metal material
Net Weight 2.735 kg (6.03 lb)
Gross Weight 3.31 kg (7.30 lb)
Dimensions (W × H × D) 440 mm × 44 mm × 220.8 mm
(17.32" × 1.73" × 8.69")
Operating Temperature 0 °C to 45 °C (0 °F to 113 °F)
Storage Temperature -40 °C to 85 °C (-40 °F to 185 °F)
Operating Humidity 5% to 95% (no condensation)
Relative Humidity 5% to 95% (no condensation)
Power Supply 100–240 V~ 50/60 Hz, 4 A
Installation Mode Desk-Mounted, Rack (equipped with mounting ears)
Maximum Power Consumption 250 W
Power Consumption in Idle 20 W
Product form

SKU: DS-3E1520HP-SI-16P2T2F

DS-3E1520HP-SI-16P2T2F 16-port Gigabit Smart PoE Switch

Rs 122,345.23

Price inclusive of VAT

or pay in 3 x Rs 43,636.46 with Koko Koko (incl. 7% convenience fee)

    Found the price a bit high?

    Call or WhatsApp us — we will connect you with a dealer or work out a special price for you. You can also split it with KOKO, pay in 3 easy installments.

    Call 0750900900

    Island-Wide Delivery

    Fast, tracked delivery across Sri Lanka

    2 Year Warranty

    Full manufacturer warranty included

    Genuine Products

    100% original with local warranty support

    Expert Support

    Talk to our IT specialists anytime

    Payment methods

    Visa

    Visa

    Mastercard

    Mastercard

    Amex

    Amex

    Koko : Buy now, pay later

    Koko : Buy now, pay later

    7% service fee

    Bank Details

    Commercial Bank of Ceylon PLC
    Bank NameCommercial Bank of Ceylon PLC
    Account NameIT Gallery Computers (PVT) Ltd
    Account No1810029986
    BranchJa-ela
    SWIFT CodeCCEYLKLX

    Please use your order number as the payment reference and email the transfer receipt to orders@itgallery.lk

    Description

    16-port Gigabit Smart PoE Switch featuring 16 × 10/100/1000 Mbps PoE ports, 2 × Gigabit RJ45 ports, 2 × Gigabit SFP ports, a 230 W total PoE power budget, 802.3bt Hi-PoE with up to 90 W on a single port, 802.1Q VLAN, STP/RSTP loop prevention, storm control, cable detection, SNMP, QoS, DHCP snooping, and 6 kV surge protection for reliable network and surveillance applications.

    Technical Specifications

    Network Parameters

    Ports 16 × Gigabit PoE ports, 2 × Gigabit RJ45 ports, 2 × Gigabit fiber optical ports
    PoE Ports 16 × 10/100/1000 Mbps PoE ports
    RJ45 Ports 2 × 10/100/1000 Mbps RJ45 ports
    SFP Ports 2 × 10/100/1000 Mbps SFP ports
    Total PoE Power Budget 230 W
    MAC Address Table 8 K
    Switching Capacity Whole-Device Performance: 56 Gbps
    Port Performance: 40 Gbps
    Packet Forwarding Rate Whole-Device Performance: 29.76 Mpps
    Port Performance: 41.66 Mpps
    Internal Cache 4.1 Mbits

    PoE Features

    PoE Standard Supports IEEE 802.3bt Hi-PoE
    Maximum Power per Port Up to 90 W for one port
    Total PoE Power Budget 230 W

    Network Management

    VLAN Supports 802.1Q VLAN
    Loop Prevention Supports STP/RSTP
    Storm Control Supported
    Cable Detection Supports cable detection to locate failures
    SNMP Supported
    QoS Supported
    DHCP Snooping Supported

    Protection

    Surge Protection 6 kV

    General

    Model DS-3E1520HP-SI-16P2T2F
    Product Type 16 Port Gigabit Smart PoE Switch
    Shell Metal material
    Net Weight 2.735 kg (6.03 lb)
    Gross Weight 3.31 kg (7.30 lb)
    Dimensions (W × H × D) 440 mm × 44 mm × 220.8 mm
    (17.32" × 1.73" × 8.69")
    Operating Temperature 0 °C to 45 °C (0 °F to 113 °F)
    Storage Temperature -40 °C to 85 °C (-40 °F to 185 °F)
    Operating Humidity 5% to 95% (no condensation)
    Relative Humidity 5% to 95% (no condensation)
    Power Supply 100–240 V~ 50/60 Hz, 4 A
    Installation Mode Desk-Mounted, Rack (equipped with mounting ears)
    Maximum Power Consumption 250 W
    Power Consumption in Idle 20 W
