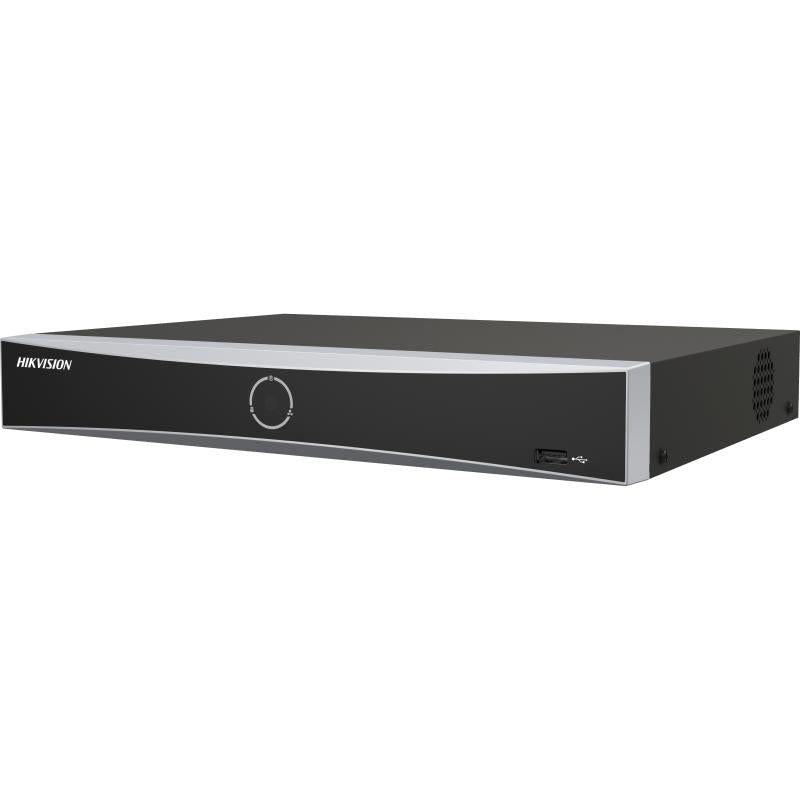

The Hikvision DS-7716NXI-K4(E) is a 16-channel 1.5U K Series AcuSense 4K Network Video Recorder featuring advanced AI-powered facial recognition, perimeter protection, Motion Detection 2.0, and AcuSearch.
Product Specifications
General Information
Model DS-7716NXI-K4(E)
Product Type 16-ch 1.5U K Series AcuSense 4K NVR
Intelligent Analytics
AI by NVR Facial recognition, perimeter protection, Motion Detection 2.0, AcuSearch
AI by Camera Facial recognition, perimeter protection, Motion Detection 2.0, ANPR
AcuSearch
By Camera All channels
Perimeter Protection
By NVR Video analysis (HD network camera, H.264/H.265) for human and vehicle recognition to reduce false alarms.
Up to 4 MP: 2-ch
5 MP to 8 MP: 1-ch
By Camera All channels
Target Recognition
Facial Detection and Analytics Face picture comparison, human face capture, face picture search
Facial Detection and Analytics Performance Up to 4 MP: 2-ch
5 MP to 8 MP: 1-ch
Face Picture Comparison 8-ch
Face Picture Library Up to 16 face picture libraries, with up to 50,000 face pictures in total.
Maximum picture size: 1 MB each
Total capacity: Up to 1 GB
Motion Detection 2.0
By NVR All channels, up to 4 MP video analysis for human and vehicle recognition to reduce false alarms. When enhanced SVC mode is enabled, supports up to 8 MP.
By Camera All channels
Video & Audio
IP Video Input 16-ch
IP Speaker Input 4-ch
Incoming Bandwidth 160 Mbps
Outgoing Bandwidth 160 Mbps
HDMI Output 1-ch HDMI
4K (3840 × 2160) @ 30 Hz
2K (2560 × 1440) @ 60 Hz
1920 × 1080 @ 60 Hz
1600 × 1200 @ 60 Hz
1280 × 1024 @ 60 Hz
1280 × 720 @ 60 Hz
1024 × 768 @ 60 Hz
VGA Output 1-ch VGA
1920 × 1080 @ 60 Hz
1600 × 1200 @ 60 Hz
1280 × 1024 @ 60 Hz
1280 × 720 @ 60 Hz
Video Output Mode HDMI / VGA independent output
Audio Output 1-ch, RCA (Linear, 1 kΩ)
Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 kΩ, using the audio input)
Decoding
Decoding Format H.265 / H.265+ / H.264 / H.264+
Network
Remote Connection 128
API ONVIF (Profile S/G), SDK, ISAPI
Compatible Browser IE 11, Chrome 91, Firefox 88, Safari 12, Edge 91 or above
Network Protocol TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, iSCSI, ISUP, UPnP™, HTTP, HTTPS
Network Interface 2 × RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces
Auxiliary Interface
SATA 4 SATA interfaces
HDD Capacity Up to 16 TB capacity for each HDD
Serial Interface 2 × RS-485 (half-duplex)
1 × RS-232
Alarm In / Out 16/9; 16/4
eSATA 1 eSATA interface / N/A
USB Interface Front Panel: 2 × USB 2.0
Rear Panel: 1 × USB 3.0
Ctrl 12V Supported / N/A
DC 12V Supported
General
Power Supply 100 to 240 VAC, 50 to 60 Hz
Certification
CE Standards EN 55032: 2015
EN 61000-3-2
EN 61000-3-3
EN 55035: 2017
Obtained Certifications CE, CB, REACH, WEEE, UKCA, RCM, IC
Warranty
Warranty Period 2 Years
