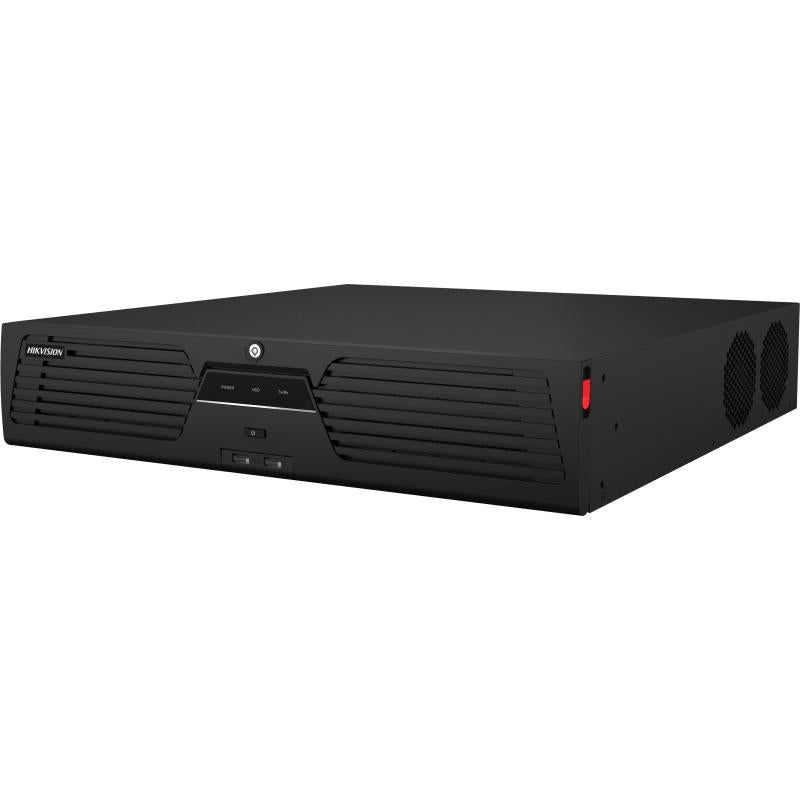

High-performance 64-channel 2U 8K NVR designed for continuous professional video surveillance, supporting up to 64 IP cameras, up to 32 MP resolution, 400 Mbps incoming and outgoing bandwidth, 8 HDDs for continuous recording, 8K video output, advanced streaming technology, RAID protection, specialist camera support, and up to 8-channel IP speakers.
Technical Specifications
Video and Audio
IP Video Input
64-ch
Maximum IP Video Resolution
Up to 32 MP
High-Resolution IP Inputs
Up to 8-ch 32/24/16 MP IP video inputs
Incoming Bandwidth
400 Mbps
Outgoing Bandwidth
400 Mbps
IP Speakers
Up to 8-ch IP speakers
Specialist Camera Support
People counting cameras, ANPR (Automatic Number Plate Recognition) cameras, and fisheye cameras
Streaming Technology
Advanced streaming technology enables smooth live view in poor network conditions
Live View / Storage / Playback
Up to 12 MP high-definition live view, storage and playback
Audio Output
2-ch, RCA (Linear, 1 KΩ)
Two-Way Audio
1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
Video Output
HDMI 1 Output
8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz,
4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz,
1920 × 1080/60Hz
HDMI 2 Output
4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz,
2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz
HDMI Output Limitation
When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p
VGA 1 Output
1920 × 1080/60Hz
VGA 2 Output
1920 × 1080/60Hz
Video Output Mode
HDMI 1 and VGA 1 provide simultaneous video output and work as the main output;
HDMI 2 and VGA 2 provide simultaneous video output and work as the auxiliary output
CVBS Output
1-ch, BNC (1.0 Vp-p, 75 Ω), resolution:
PAL: 704 × 576, NTSC: 704 × 480
Decoding
Decoding Format
H.265+ / H.265 / H.264+ / H.264
Decoding Capacity
Up to 40 × 1080p @ 30fps
Network
Network Bandwidth
400 Mbps incoming / 400 Mbps outgoing
IP Camera Connections
Up to 64 channel IP cameras
Advanced Streaming
Smooth live view in poor network conditions
Storage
Hard Disk Support
Up to 8 HDDs
Recording
Supports continuous video recording
RAID Support
RAID 0, RAID 1, RAID 5, RAID 6, RAID 10
Hot Spare
N+1 hot spare
Storage Protection
RAID and N+1 hot spare technology provides reliable data storage and helps reduce data loss risks
General
Model
DS-9664NI-M8/R
NVR Type
64-ch 2U 8K NVR
Maximum IP Camera Inputs
Up to 64 channels
Maximum Live View / Storage / Playback
Up to 12 MP high-definition
Video Outputs
2 × HDMI (different source) and 2 × VGA (different source)
Maximum Video Output
8K or dual 4K
