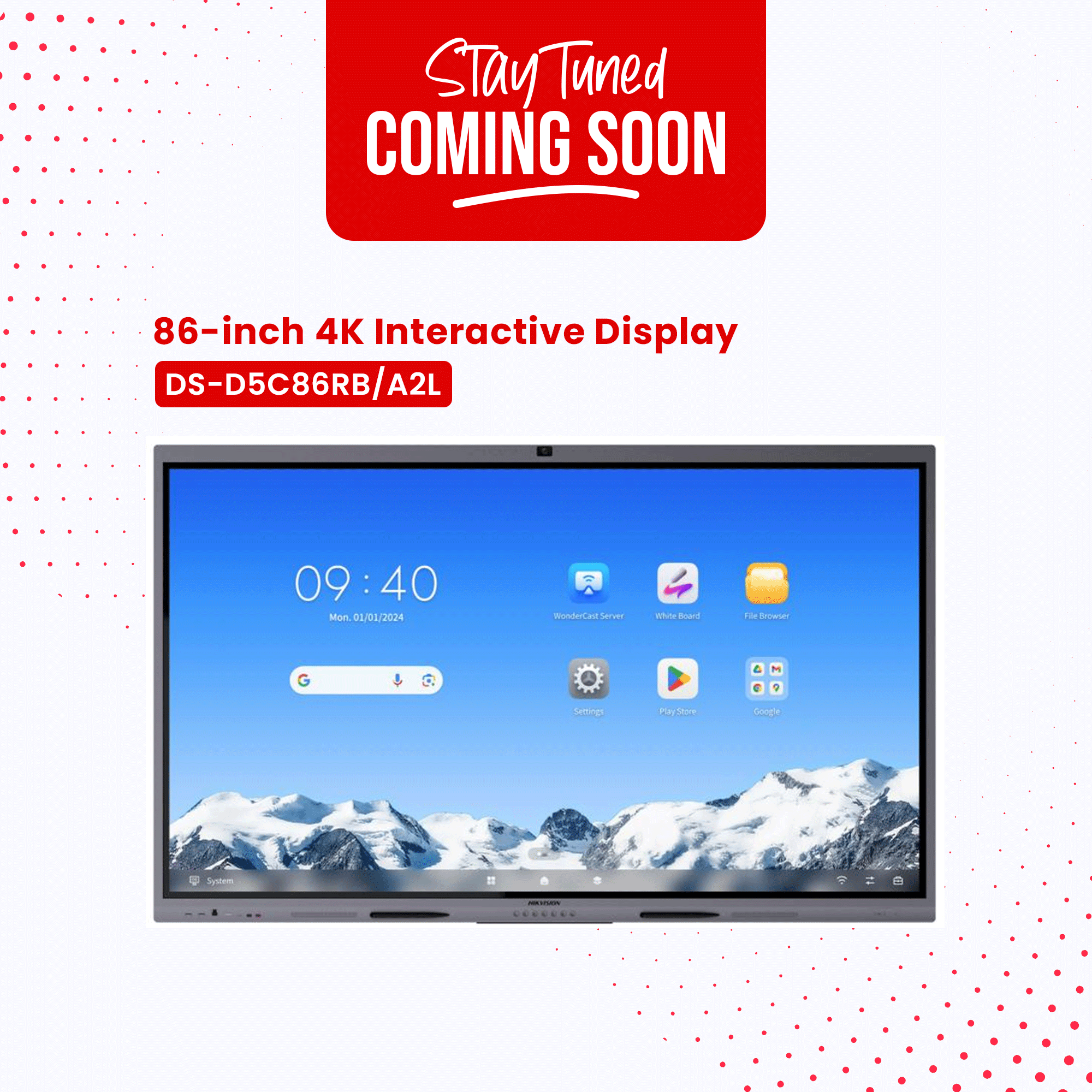

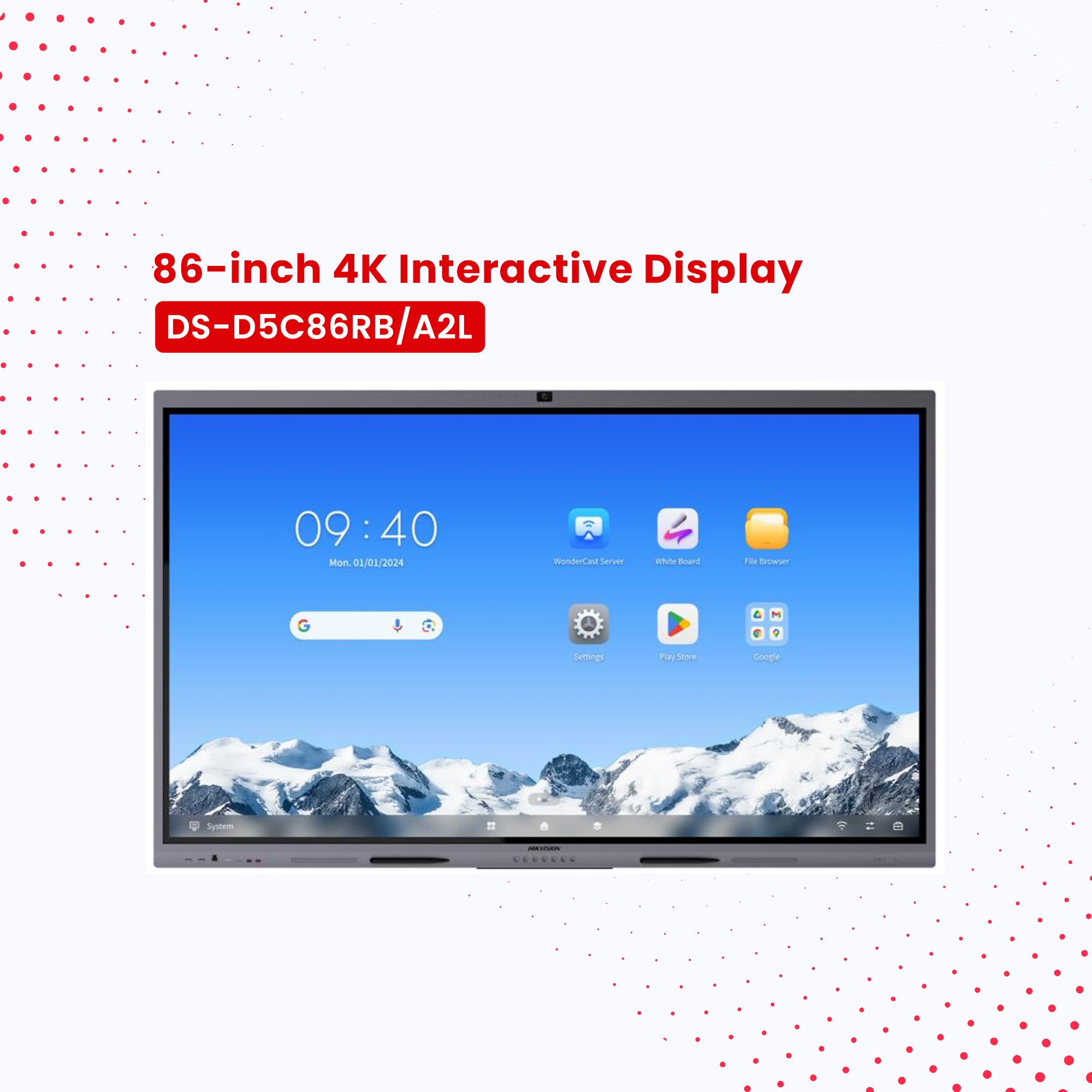

The DS-D5C86RB/A2L is an 86-inch 4K Interactive Display designed for modern classrooms, conference rooms, and collaborative workspaces. Featuring a 4K UHD VA display with DLED backlighting, 480 cd/m² brightness, zero-lamination anti-glare and anti-fingerprint glass, and 50-point infrared multi-touch technology, it delivers an immersive and responsive interactive experience.
Product Specifications
General
Model Number DS-D5C86RB/A2L
Product Type 86-inch 4K Interactive Display
Display
Screen Size 86 inch
Backlight DLED
Pixel Pitch 0.164 (H) × 0.493 (V) mm
Resolution 3840 × 2160 @60 Hz (4K UHD)
Brightness 480 cd/m² (Typ.)
Color Depth 10 bit (8 bit + FRC)
Display Color 1.07 Billion Colors
Response Time 5 ms
Panel Type VA
Contrast Ratio 5000:1 (Static) | 30,000:1 (Dynamic)
Color Gamut 72% NTSC (CIE1931) (Typ.)
Refresh Rate 60 Hz
Viewing Angle 178° (H) / 178° (V)
Aspect Ratio 16:9
Surface Hardness 9H (Pencil) | 7 (Mohs)
Surface Glass Anti-Glare & Anti-Fingerprint Glass
Surface Haze 25% Haze
Glass Bonding Method Zero Lamination
Display Area 1895.04 (H) × 1065.96 (V) mm
Working Duration 7 × 16 H
Transmittance 88% ± 3
Lifespan 50,000 hours
Touch
Touch Type Infrared Touch Screen
Touch Points 50-point Multi-touch
Touch Response Time < 2 ms
Minimum Touch Object ≥ 1.5 mm (≥ 90% touching area)
Touch Precision ± 0.5 mm (≥ 90% touching area)
Touch Resolution 32768 × 32768
Built-in System
Operating System Android 16.0
Memory 8 GB (Optional 16 GB)
Virtual RAM Up to 16 GB
Built-in Storage 128 GB (Optional 256 GB)
Processor Quad-core Cortex-A76 × 4 (2.4 GHz) and Quad-core Cortex-A55 × 4 (1.8 GHz)
Graphics (GPU) Mali-G610 MC4
HDCP Version Supports HDCP 2.3 / 2.0 / 1.4
Camera
Camera Resolution 48 MP for Photos & 8 MP for Video
Camera Function Supports Intelligent Switching Between Android System, OPS, and PC
Field of View 93.4° (Diagonal), 84.5° (Horizontal), 54.1° (Vertical)
Distortion ≤ 2.5%
Camera Resolution Ratio Up to 4K
Microphone
Microphone Specification Omni-directional 8-array Layout
Microphone Functions Echo Reduction and Smart Noise Cancellation
Voice Pickup Distance 12 m
Sampling Rate 48 K
Microphone Bit Depth 16 bit
AI & Smart Features
AI Functions AI Assistant, AI Identify, and AI Notes
AI Service Validity Free for 1 Year
AI Notes Allowance 6,000 Minutes (1-Year Validity Period)
Built-in Whiteboard Supports Handwriting Recognition, Graphics Recognition, Document Insertion, and More
Screen Casting Built-in WonderCast Software
Simultaneous Screen Casting Supports Up to 9 Devices Simultaneously
Android Screen Mirroring Supported
Internal Functions
Built-in Speakers 2 × 20 W + 25 W Loudspeaker
Bluetooth (Listing 1) Built-in BLE (Bluetooth Low Energy), Bluetooth 5.1
Bluetooth (Listing 2) Built-in BLE (Bluetooth Low Energy), Bluetooth 5.4
NFC Supports Card Reader, 13.56 MHz (ISO 14443A / ISO 14443B / ISO 15693)
Light Sensor Yes
Language Support
Supported Languages Simplified Chinese, German, Italian, Arabic, Portuguese, Dutch, French, Indonesian, Thai, Vietnamese, Japanese, Spanish, English, Czech, Danish, Hungarian, Polish, Turkish, Russian, Romanian, Slovak, Korean, Uzbek, Bulgarian, Greek, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Hebrew, Ukrainian, Traditional Chinese (HK), Traditional Chinese (TW), Hindi, Latvian, Kazakh, Nepali
Video & Audio Interfaces
HDMI Input 3 × HDMI 2.1 TMDS (Front × 1, Rear × 2)
HDMI Input Features Supports HDCP 2.3 / 2.0 / 1.4 and HDMI CEC Protocol
VGA Input 1 × VGA (Rear)
Audio Input 1 × Audio In (Rear)
HDMI Output 1 × HDMI 2.1 TMDS (Rear)
Audio Output 1 × Audio Out (Rear)
SPDIF Output 1 × SPDIF (Rear)
Control Interfaces
Front Touch USB 1 × TOUCH-USB 3.0 (Front)
Rear Touch USB 2 × TOUCH-USB 2.0 (Rear)
RS232 1 × RS232 (Rear)
Network & Connectivity
LAN 2 × LAN (1000 Mbps) (Rear)
Wi-Fi Wi-Fi 6, IEEE 802.11 a/b/g/n/ac/ax
Wi-Fi Frequency 2.4 GHz / 5 GHz
Wi-Fi Mode Wi-Fi AP & Station
Wi-Fi Technology 2 × 2 MIMO
Wi-Fi Authentication WEP, WPA, WPA2, PSK, 802.1X EAP
Data Transmission Interfaces
USB 3.0 4 × USB 3.0 (Front × 2, Rear × 2)
USB 2.0 1 × USB 2.0 (Rear)
USB Type-C 2 × Type-C (Front × 1, Rear × 1)
USB Type-C Features Supports USB 2.0, 100 W Charging, and DP IN 1.2
Power
Power Supply 100 to 240 VAC, 50/60 Hz
Standby Consumption ≤ 0.5 W
Average Consumption < 274 W
Working Environment
Working Temperature 0°C to 40°C (32°F to 104°F)
Working Humidity 10%–90% RH
Dimensions & Physical Specifications
VESA Mounting 800 mm × 600 mm (4 × M8-25 mm)
Product Dimensions (With Wall Attachment) 1960.4 × 1158.2 × 106.4 mm
Product Dimensions (Without Wall Attachment) 1960.4 × 1158.2 × 82.4 mm
Package Dimensions 2157 × 1345 × 223 mm (W × H × D)
Net Weight 58.5 ± 0.5 kg
Gross Weight 78.5 ± 0.5 kg
Accessories
Included Accessories Wall Mount Bracket, Hook, User Manual, Touch Writing Pen, Packing List, 3 m Touch USB Cable, 3.5 m HDMI Cable (2.0), 3 m Power Cable, Remote Control, Screen Cleaning Cloth
Certifications
Certifications CE, CB, ANATEL, IP5X, LOA, REACH, EDLA, Energy Star, SUBTEL, TUV Low Blue Light, MIC, CFP (ISO 14067 / ISO 14040 / EN 50693)
Warranty
Warranty Period 3 Years
