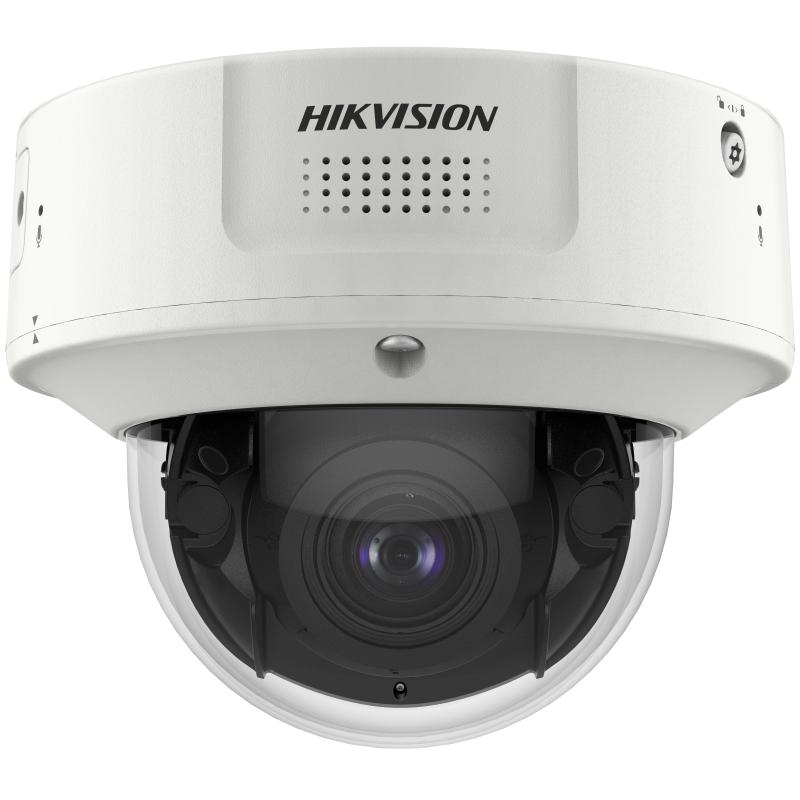

4MP DeepinView Moto Varifocal Dome Camera featuring DarkFighter 2.0 technology,
150 dB AWDR, ShotN technology, motorized varifocal lens, high frame rate up to
4MP at 60fps, H.265+ compression, built-in dual microphones and speaker,
G-sensor vibration detection, IP67 weather resistance, IK10 vandal resistance,
and NEMA 4X corrosion resistance for advanced professional surveillance.
Technical Specifications
Camera
Image Sensor
1/1.8" Progressive Scan CMOS
Maximum Resolution
2688 × 1520
Resolution
4 MP
Minimum Illumination
Color: 0.0005 Lux @ (F1.2, AGC ON)
B/W: 0.0001 Lux @ (F1.2, AGC ON)
B/W: 0 Lux with IR
Shutter Time
1 s to 1/100,000 s
Day & Night
IR cut filter, Blue glass module (less ghost phenomenon)
Angle Adjustment
Pan: 0° to 355°
Tilt: 0° to 75°
Rotate: 0° to 355°
Lens
Lens Type
Varifocal lens, motorized lens, 2.8 to 12 mm
Optional Lens
8 to 32 mm
Focal Length & FOV (2.8 to 12 mm)
Horizontal FOV: 114.6° to 41.8°
Vertical FOV: 59.3° to 23.6°
Diagonal FOV: 141.3° to 48.1°
Focal Length & FOV (8 to 32 mm)
Horizontal FOV: 42.5° to 15.2°
Vertical FOV: 23.4° to 8.7°
Diagonal FOV: 49.7° to 17.3°
Focus
Auto, Semi-auto, Manual
Iris Type
P-iris
Aperture (2.8 to 12 mm)
F1.38 to F2.53
Aperture (8 to 32 mm)
F1.7 to F1.73
Image Technology
Low-Light Technology
DarkFighter 2.0
Backlight Technology
150 dB AWDR
Shot Technology
ShotN technology for clearly capturing vehicles and humans at different speeds
High Frame Rate
Up to 2MP @ 120fps and 4MP @ 60fps
Compression
H.265+ compression technology
Streams
5 streams
Audio
Built-in Audio
Built-in dual microphones and speaker
Audio Function
Real-time audio security
Intelligent & Hardware Features
G-Sensor
Built-in G-sensor for vibration detection
Power Monitoring
Built-in power meter for voltage exception alarms and historical power statistics
Protection
Water & Dust Resistance
IP67
Vandal Resistance
IK10
Corrosion Resistance
NEMA 4X
General
Model
iDS-2CD7146G2-IZS (2.8-12mm)
Camera Type
4MP DeepinView Moto Varifocal Dome Camera
Resolution
4 MP
Lens
2.8 to 12 mm motorized varifocal lens
Optional Lens
8 to 32 mm
