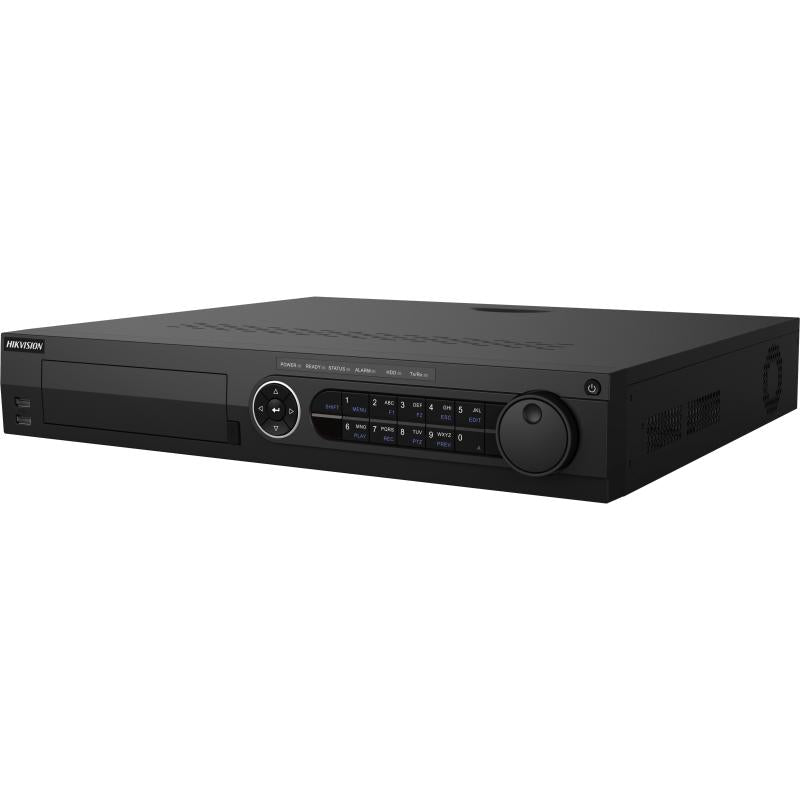

IDS-7316HUHI-M4/S High-performance 16-channel 5MP 1.5U AcuSense DVR

Description

High-performance 16-channel 5MP 1.5U AcuSense DVR featuring Deep Learning-based perimeter protection and Motion Detection 2.0 across all analog channels. It supports up to 16 analog cameras, 34 network cameras, 4 SATA interfaces, advanced H.265 Pro+ compression, up to 8 MP encoding, and POS-triggered recording with POS information overlay.

Technical Specifications

Perimeter Protection

Human / Vehicle Analysis Up to 8-ch, for channel 1/2/3/4/9/10/11/12 only

Motion Detection 2.0

Human / Vehicle Analysis Deep learning-based Motion Detection 2.0 is enabled by default for all analog channels. It can classify human and vehicle targets and significantly reduce false alarms caused by objects such as leaves and lights.
Quick Search Quick search by object or event type

Video & Audio

Analog Camera Input Up to 16-ch analog camera inputs
Video Input Support HDTVI / AHD / CVI / CVBS / IP
IP Video Input 18-ch (up to 34-ch)
IP Camera Resolution Up to 12 MP
Supported IP Camera Compression H.265+ / H.265 / H.264+ / H.264

Encoding

Encoding Capability Up to 8 MP @ 8 fps / 5 MP @ 12 fps
Video Compression H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264

Recording

Video Compression H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264
POS Recording POS triggered recording and POS information overlay

Network

Total Bandwidth 320 Mbps
Remote Connection 128
Network Camera Capacity Up to 34-ch

Storage

SATA Interfaces 4 SATA interfaces

General

Power Supply 100 to 240 VAC, 50 to 60 Hz
Form Factor 1.5U

Key Features

Channel Capacity 16-channel 5MP AcuSense DVR
Analog Camera Inputs Up to 16-ch
Network Camera Inputs Up to 34-ch
Perimeter Protection Deep Learning-based Human / Vehicle Analysis up to 8-ch
Motion Detection Deep Learning-based Motion Detection 2.0 for all analog channels
Encoding Capability Up to 8 MP @ 8 fps / 5 MP @ 12 fps
Compression Technology H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264
POS Function POS triggered recording and POS information overlay
Product form

SKU: IDS-7316HUHI-M4/S

IDS-7316HUHI-M4/S High-performance 16-channel 5MP 1.5U AcuSense DVR

Rs 234,025.00

Price inclusive of VAT

or pay in 3 x Rs 83,468.91 with Koko Koko (incl. 7% convenience fee)

    Found the price a bit high?

    Call or WhatsApp us — we will connect you with a dealer or work out a special price for you. You can also split it with KOKO, pay in 3 easy installments.

    Call 0750900900

    Island-Wide Delivery

    Fast, tracked delivery across Sri Lanka

    2 Year Warranty

    Full manufacturer warranty included

    Genuine Products

    100% original with local warranty support

    Expert Support

    Talk to our IT specialists anytime

    Payment methods

    Visa

    Visa

    Mastercard

    Mastercard

    Amex

    Amex

    Koko : Buy now, pay later

    Koko : Buy now, pay later

    7% service fee

    Bank Details

    Commercial Bank of Ceylon PLC
    Bank NameCommercial Bank of Ceylon PLC
    Account NameIT Gallery Computers (PVT) Ltd
    Account No1810029986
    BranchJa-ela
    SWIFT CodeCCEYLKLX

    Please use your order number as the payment reference and email the transfer receipt to orders@itgallery.lk

    Description

    High-performance 16-channel 5MP 1.5U AcuSense DVR featuring Deep Learning-based perimeter protection and Motion Detection 2.0 across all analog channels. It supports up to 16 analog cameras, 34 network cameras, 4 SATA interfaces, advanced H.265 Pro+ compression, up to 8 MP encoding, and POS-triggered recording with POS information overlay.

    Technical Specifications

    Perimeter Protection

    Human / Vehicle Analysis Up to 8-ch, for channel 1/2/3/4/9/10/11/12 only

    Motion Detection 2.0

    Human / Vehicle Analysis Deep learning-based Motion Detection 2.0 is enabled by default for all analog channels. It can classify human and vehicle targets and significantly reduce false alarms caused by objects such as leaves and lights.
    Quick Search Quick search by object or event type

    Video & Audio

    Analog Camera Input Up to 16-ch analog camera inputs
    Video Input Support HDTVI / AHD / CVI / CVBS / IP
    IP Video Input 18-ch (up to 34-ch)
    IP Camera Resolution Up to 12 MP
    Supported IP Camera Compression H.265+ / H.265 / H.264+ / H.264

    Encoding

    Encoding Capability Up to 8 MP @ 8 fps / 5 MP @ 12 fps
    Video Compression H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264

    Recording

    Video Compression H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264
    POS Recording POS triggered recording and POS information overlay

    Network

    Total Bandwidth 320 Mbps
    Remote Connection 128
    Network Camera Capacity Up to 34-ch

    Storage

    SATA Interfaces 4 SATA interfaces

    General

    Power Supply 100 to 240 VAC, 50 to 60 Hz
    Form Factor 1.5U

    Key Features

    Channel Capacity 16-channel 5MP AcuSense DVR
    Analog Camera Inputs Up to 16-ch
    Network Camera Inputs Up to 34-ch
    Perimeter Protection Deep Learning-based Human / Vehicle Analysis up to 8-ch
    Motion Detection Deep Learning-based Motion Detection 2.0 for all analog channels
    Encoding Capability Up to 8 MP @ 8 fps / 5 MP @ 12 fps
    Compression Technology H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264
    POS Function POS triggered recording and POS information overlay
